Ethernet maitinimo modulis PoE HAT (B) Raspberry Pi

Trumpai apie prekę

Prekė: Ethernet maitinimo modulis PoE HAT (B) Raspberry Pi. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: 18014

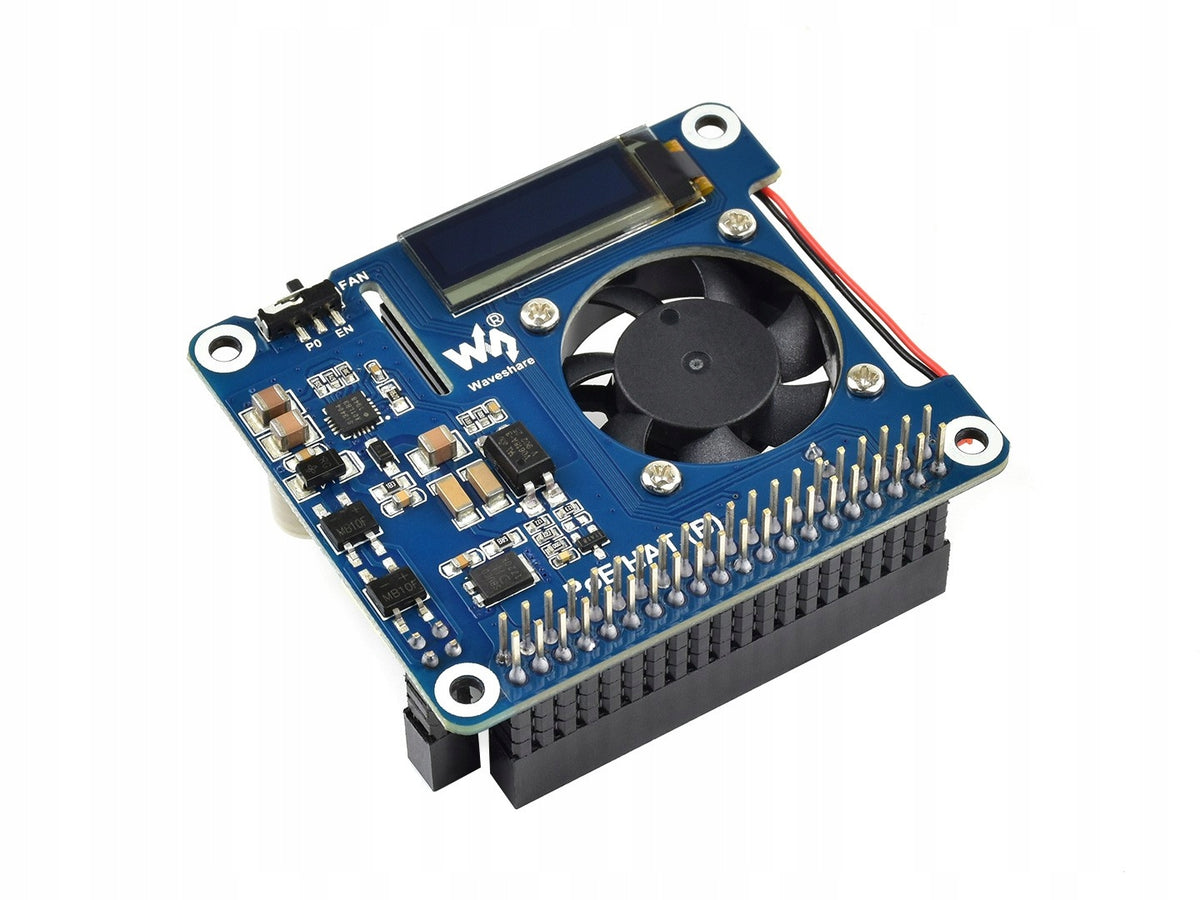

PoE HAT (B) - Power over Ethernet expansion module for Raspberry Pi

Description

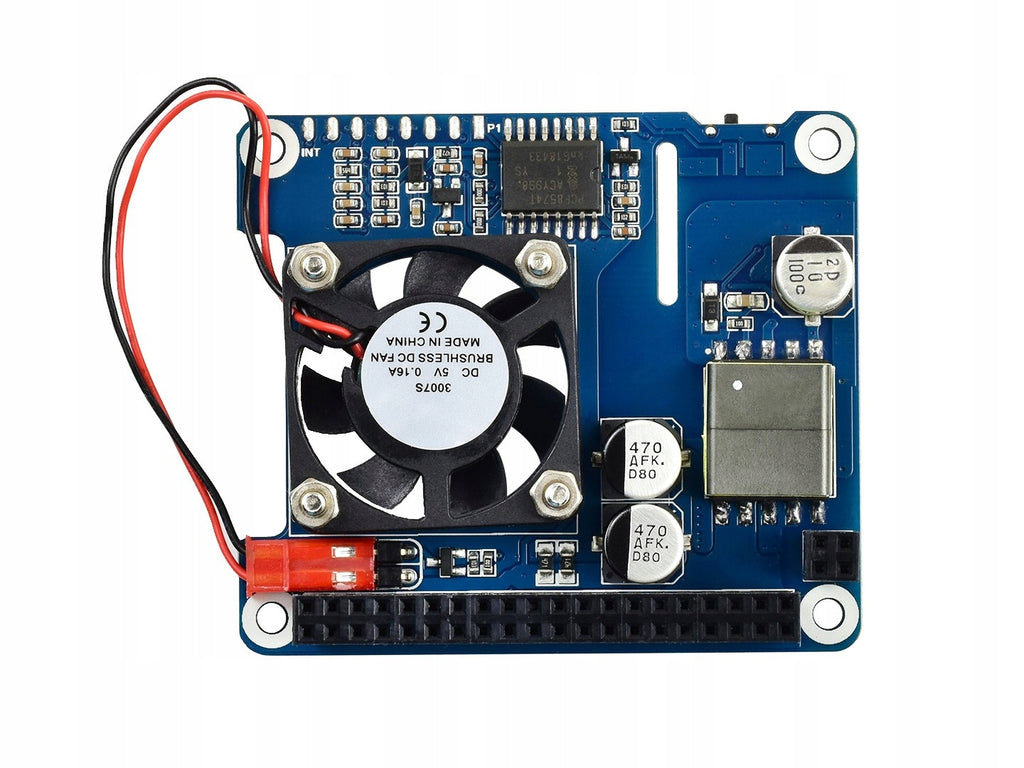

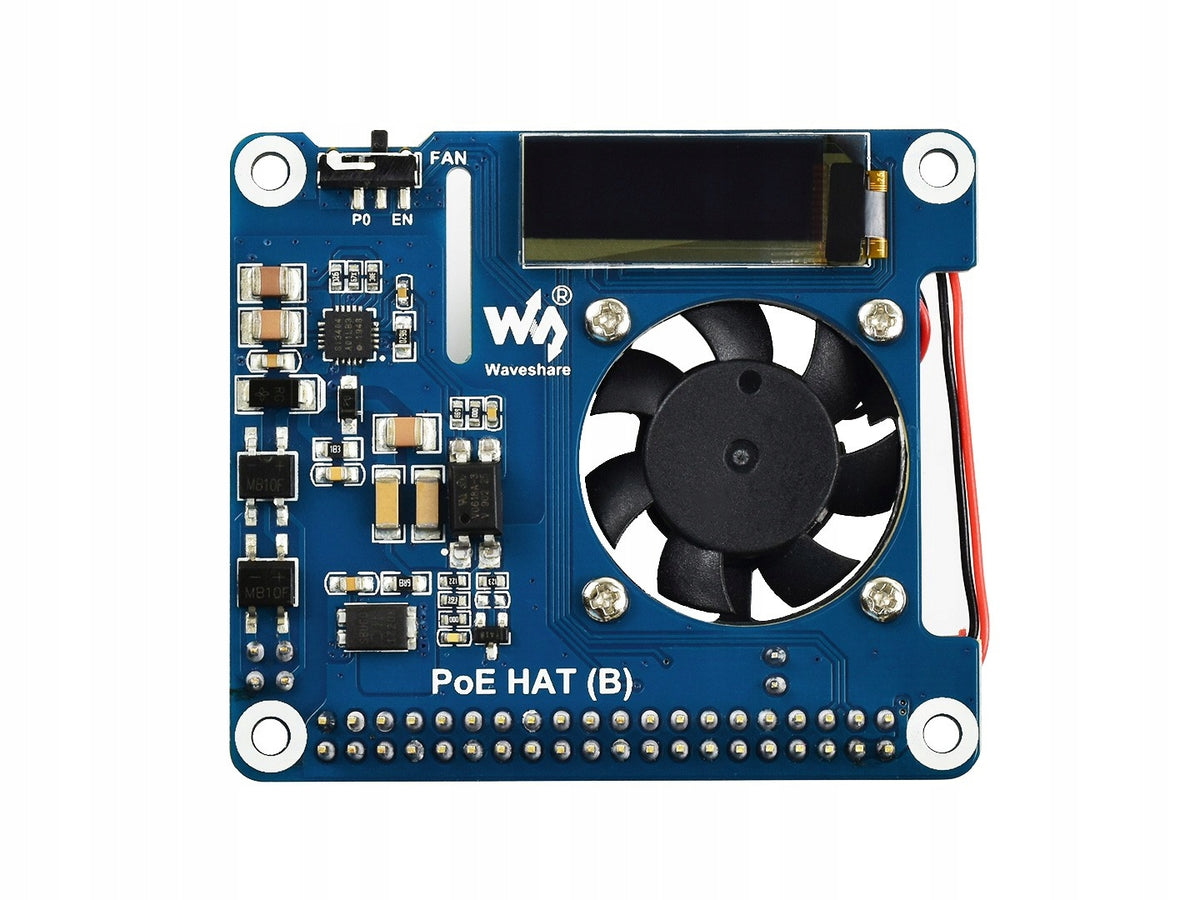

Expansion module (HAT) for PoE power supply for Raspberry Pi 3B+ and Raspberry Pi 4B. It allows you to use the PoE interface to power your Raspberry Pi over an Ethernet cable, eliminating the need for a separate power supply. The module is compliant with the IEEE 802.3af standard on the board there is a converter providing power for Raspberry Pi and external devices connected to USB A (up to 2,5 A). The module is also equipped with a fan for proper cooling and an OLED display that displays parameters such as temperature, IP address and fan operating status. The module also integrates the IO expander PCF8574 for the I2C bus, providing a P0 pin for direct fan control. These features enable the module to be used in the design and development of embedded systems, communications and networks, and IoT (internet of things). Full documentation with examples of usage is available on the Product Wiki page.

Properties

• Compatible with Raspberry Pi 3B+ and Raspberry Pi 4B
• Standard: IEEE 802.3af
• Input: IEEE 802.3af PoE compliant
• Isolated Switching Power Supply (SMPS)
• Cooling fan
• 0,91" SSD1306 OLED Display
• IO expander PCF574
• Input voltage: 37 to 57 V DC
• USB Type-A Output: 5 V, 2,5 A
• Cooling: fan
• Dimensions: 56,5 x 65 mm

Comes with

• PoE HAT Module (B)
• Set of screws and spacers

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	18014
Parametry	Manufacturer	WaveShare
Parametry	Kind	Display
Parametry	EAN (GTIN)	0614961957510
Parametry	Batteries included	no
