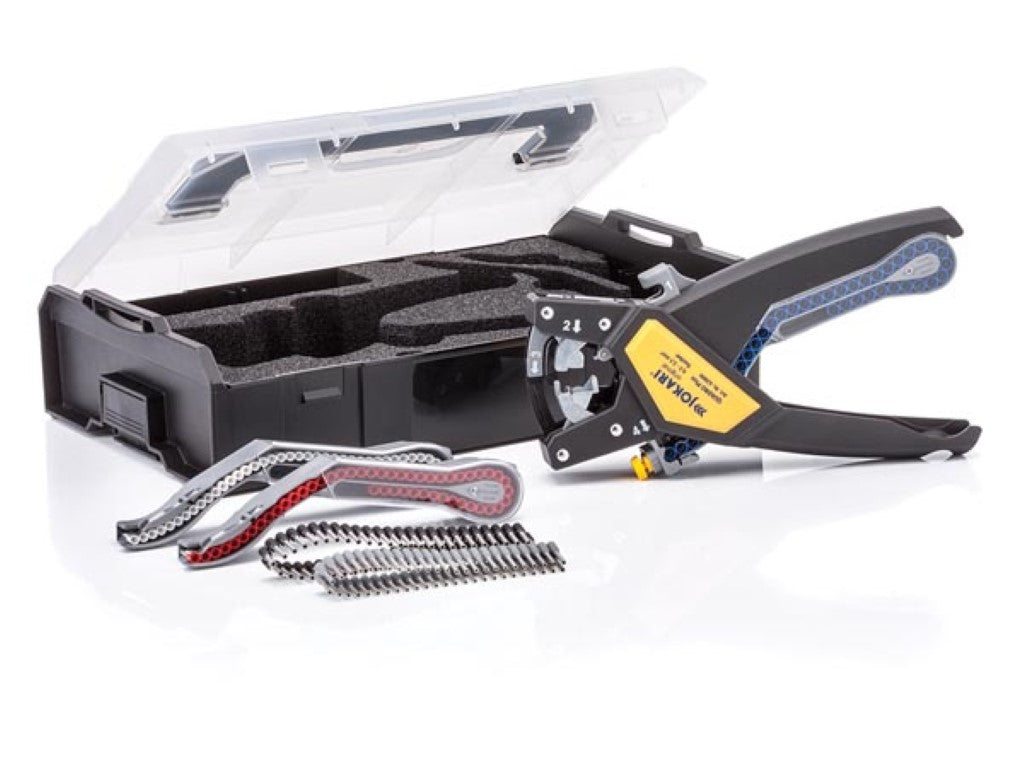

Elektros kabelių apdirbimo rinkinys JOKARI QUADRO-Plus 62000

Trumpai apie prekę

Prekė: Elektros kabelių apdirbimo rinkinys JOKARI QUADRO-Plus 62000. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Jokari
• Modelis: 62000
• Ilgis: 180 mm

JOKARI QUADRO-Plus is a professional set of 4-function tool for precise cable processing in industrial, energy, automation and machine building applications. The glass fiber reinforced polyamide construction, low weight and ergonomic working system make the tool suitable for intensive, long hours of work – also in very tight spaces of switchgears and cable trays.

QUADRO-Plus combines up to 4 functions in one tool:

1. cut,
2. removal of insulation,
3. twist,
4. crushing of terminals – which significantly speeds up and simplifies the process of preparing wires.

Thanks to the quick magazine change system and the side cutting blade, the tool guarantees smooth operation and high repeatability in assembly. It is ideal for braided cables and PVC insulation – typical in automation, industrial equipment and control installations.

The set includes a full package of magazines and 240 pieces of cable terminals on tape, so the tool is ready for immediate operation.

Technical data

• Purpose: braided wires, PVC insulation
• Functions: cutting / stripping insulation / twisting / crimping
• Construction Material: Glass Fiber Reinforced Polyamide
• Tool Type: Automatic Multifunction Pullers
• Magazine Replacement: Fast
• Cutting Blade: Side
• Application: switchgear, automation, machinery, mobile installations, industry

The set includes

• JOKARI QUADRO-Plus tool (4 functions in 1)
• 3 interchangeable magazines
• 240 pieces of cable terminals on tape:

  50 × 0,5 mm²

  50 × 0,75 mm²

  50 × 1,0 mm²

  50 × 1,5 mm²

  40 × 2,5 mm²
