Trumpai apie prekę
Prekė: Elektroninis durų akutės vaizdo skambutis VIEWFINDER. Kategorija: IP kameros.
- Gamintojas: Spreest
- Modelis: DD3

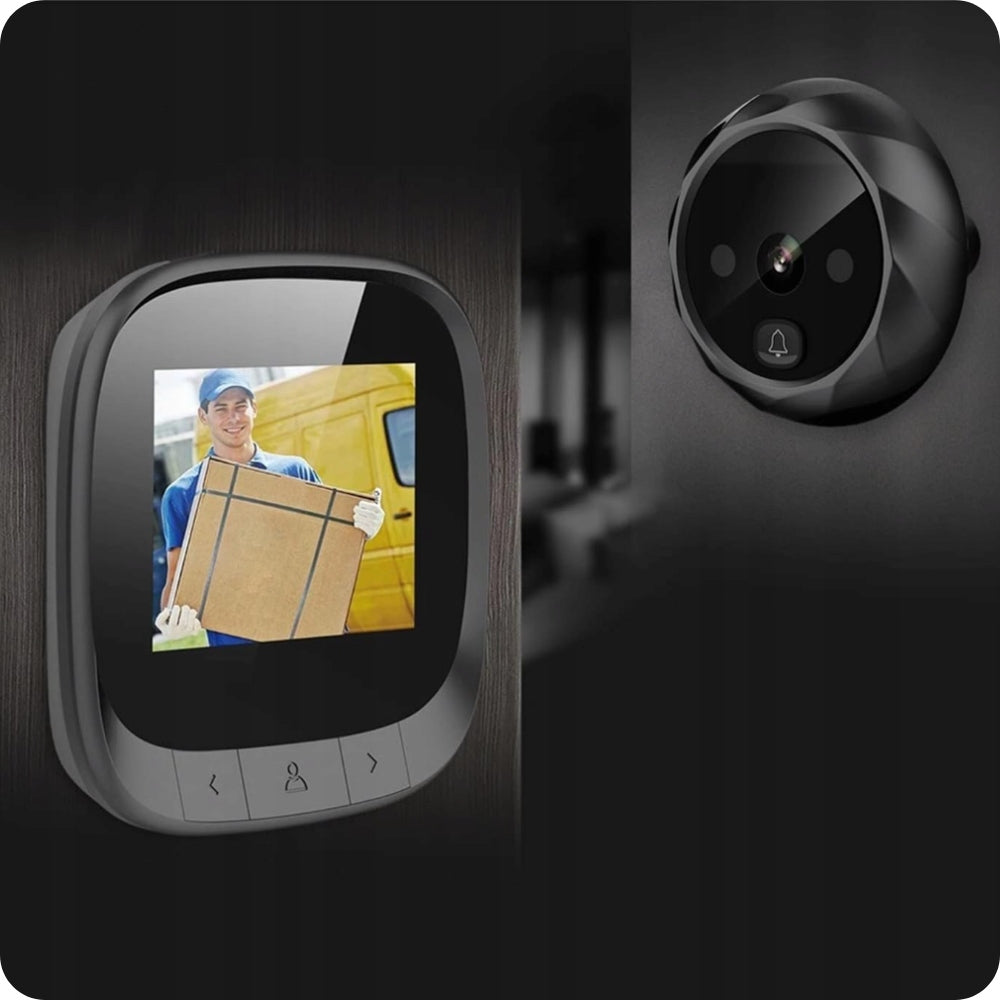

We present the Spreest electronic door viewer with photo function – a modern device that will increase the comfort and security of your home, apartment or office. Thanks to it, you no longer have to bend down to look through the traditional peephole, gaining a full view of what is happening in front of your door .
Additionally, the device acts as a doorbell and allows you to register visiting guests . The built-in memory allows you to save up to 40 photos , and when it is full, the oldest photos are automatically overwritten. This is the only model of its kind on the market with a built-in battery that can operate for up to 120 days on a single charge.
Fits doors 35-120 mm thick.
Key functions
1. Excellent workmanship and modern design: The sleek design makes the device fit perfectly in any interior.
2. 2,4" color LCD display: Large and easy to read screen provides convenience of use.
3. Wide viewing angle 90°: Super wide lens allows you to see more.
4. Night mode: Built-in 2 infrared LEDs allow you to see in total darkness up to 5 meters.
5. Bell function: When you press the bell button, you will hear a pleasant signal, and the viewfinder will take and save the photo in the device's memory.
6. Built-in memory for 40 photos: Automatically overwrite the oldest photos when the memory is full.
7. Built-in 600 mAh battery: Long-term operation without the need for frequent charging (charging cable included).
8. Assembly versatility: Fits 99% of available doors with a thickness of 35-120 mm.
9. Simple and non-invasive installation: Quick installation without the need for specialized tools.
Easy installation in 4 steps
- Prepare the viewfinder: Select a screw with a length corresponding to the thickness of the door and screw it into the hole at the back of the viewfinder.
- Place the viewfinder in the door: Insert the viewfinder into the hole in the door, making sure the signal wire and screws protrude on the other side.
- Attach the frame: Put the signal tape through the top slot and the screws through the bottom slot of the metal frame. Tighten the screws to stabilize the viewfinder and frame.
- Connect the display: Plug the signal connector into the socket in the display and slide the display onto the frame on the door.
Safety and convenience
The electronic viewfinder makes it easy to control who is standing in front of your door every day. You no longer have to bend down and stare at the traditional viewfinder.
The automatically saves photos of people calling to your door, so that even in your absence you know who visited you. In addition, during the preview, you can manually take a photo of the situation behind the door.
Viewfinder and bell elements

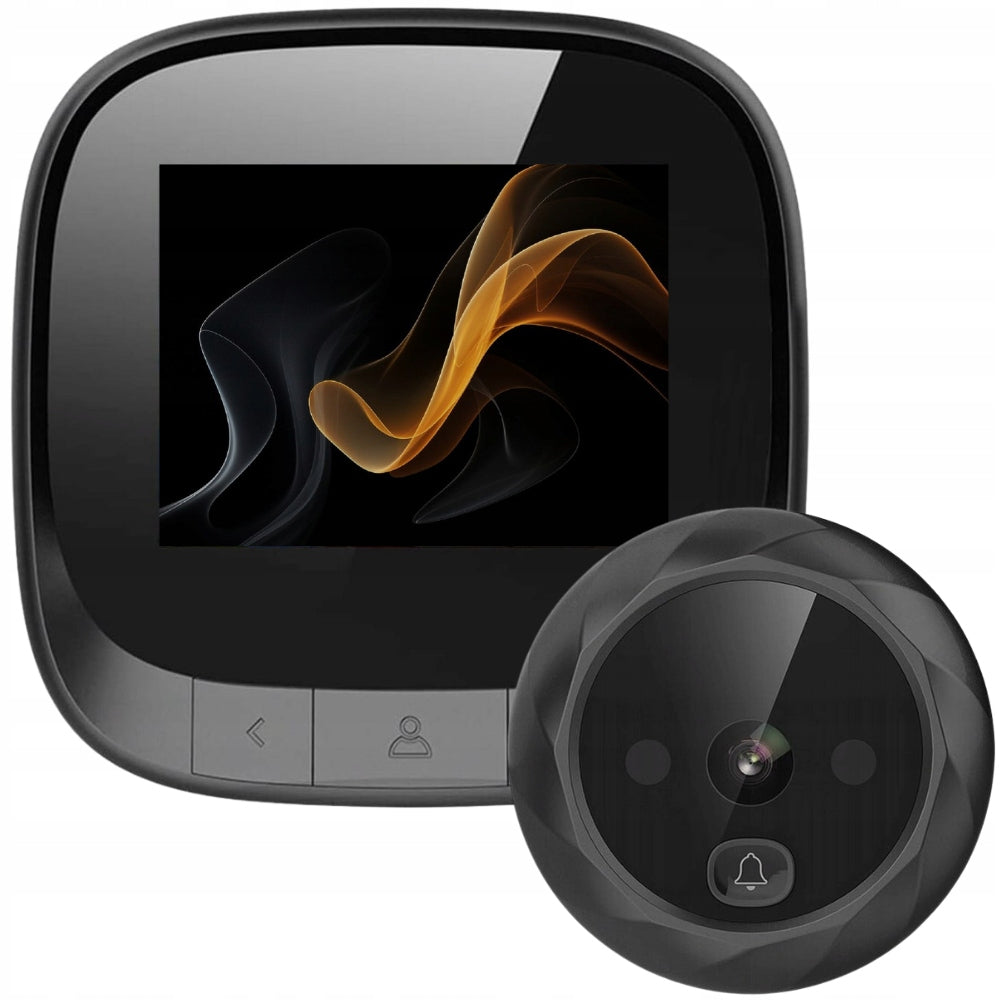

- LCD display – a clear screen allows you to easily view the image from the camera and view saved photos.
- Left button – allows you to view photos to the left and navigate through the device menu.
- Power/photo button – allows you to turn the device on and off, as well as confirm selected options in the menu.
- Right button – allows you to view photos to the right and navigate through the menu.
- Bell button – allows guests to notify residents of their presence using a doorbell integrated with the camera.

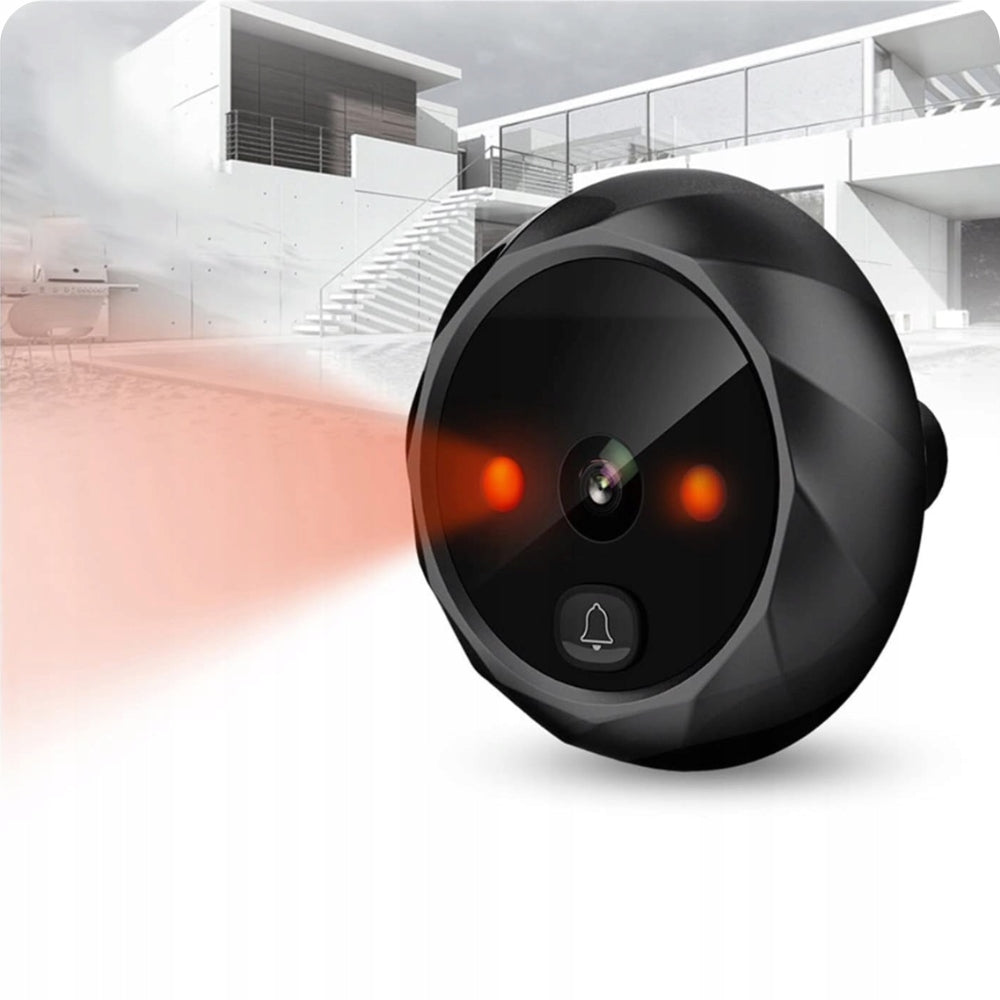

- IR LEDs – built-in infrared LEDs allow night vision, which ensures safety and monitoring even after dark.
- Camera – a high-quality camera captures images in real time, allowing you to identify people in front of the door.
Technical specification
- Display: Color LCD 2,4 inch (320x240 px)
- Camera: Color CCD camera with 90° wide-angle lens
- Night mode: 2 IR LEDs, visibility in total darkness up to 5 m
- Door thickness: Fits doors with a thickness of 35-120 mm
- Mounting hole: Can be installed in holes with a diameter of 14-28 mm (ideal replacement for the old viewfinder)
- Power Supply: Built-in 600 mAh battery (up to 120 days of operation on a single charge)
- Bell function: Yes
- Photo capture function: Yes (when you press the bell or manually during preview)
- Built-in memory: Yes (up to 40 photos with overwrite option)
- Automatic switching on: Yes (after pressing the bell or the main button)
- Automatic shutdown: Yes (after about 15-25 seconds)
- Ability to format memory: Yes
The set includes
- 1x DD3 Electronic Viewfinder
- 1x Bell
- 1x Mounting Accessories
- 1x Power Cable
- 1x User Manual
Link to the in Polish: https://hackmd.io/@spreest-manuals/BJGuRBGTxl
Link to the instruction manual in Czech: https://hackmd.io/@spreest-manuals/Syih_Saibl
Link to the instruction manual in Slovak: https://hackmd.io/@spreest-manuals/SJE0uH6jZe
Link to the instruction manual in Hungarian: https://hackmd.io/@spreest-manuals/r1DTuBao-e
- EAN: 5905935378864
- Manufacturer code: Judas electronic viewfinder
- Model: JD-DD3
- Brand: Spreest
- Condition: New
- Packaging condition: Original
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 0.1 kg |
| Parametry | EAN (GTIN) | 5905935378864 |
| Parametry | Manufacturer code | DD3 |
| Parametry | Brand | Spreest |
| Parametry | Model | DD3 |
| Parametry | Packaging status | original |
| Parametry | Kind | external |
