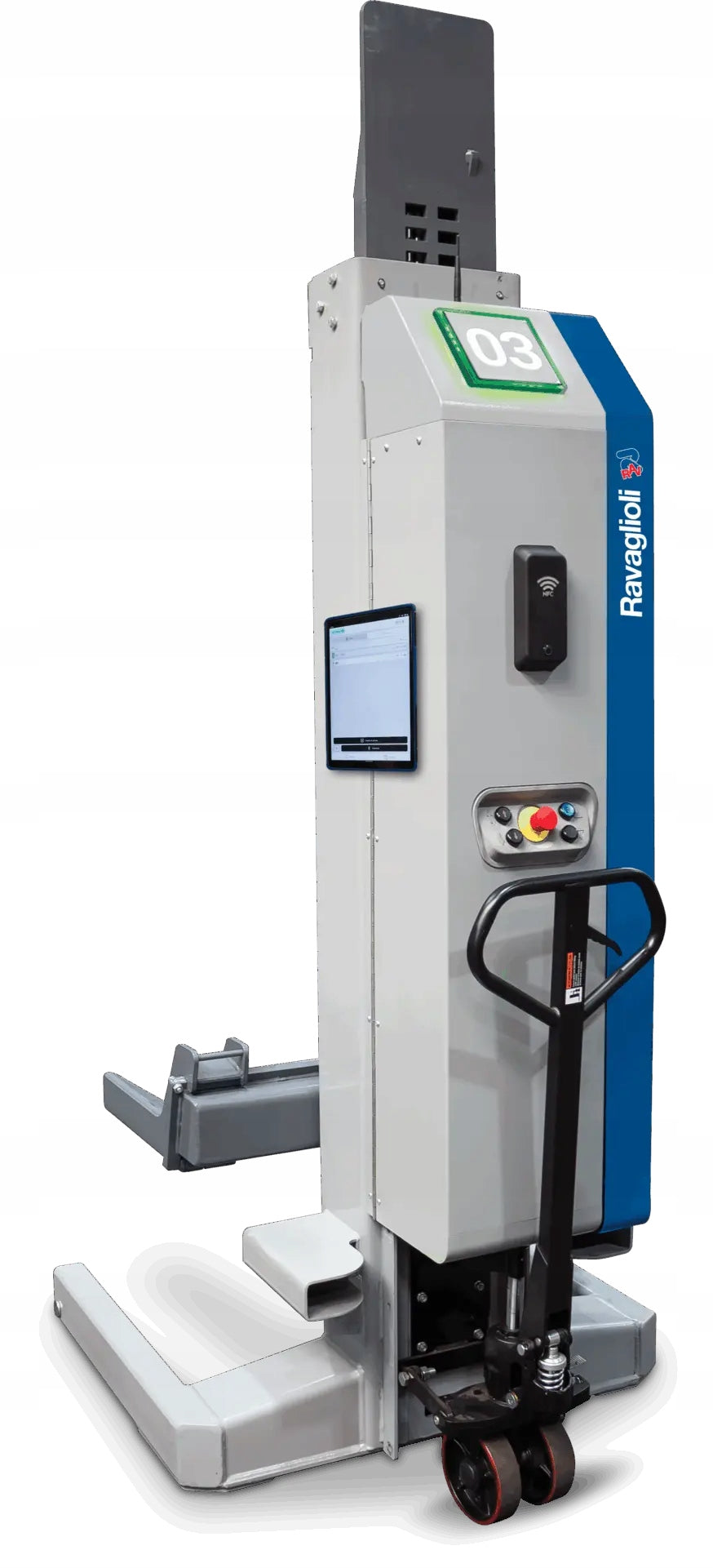

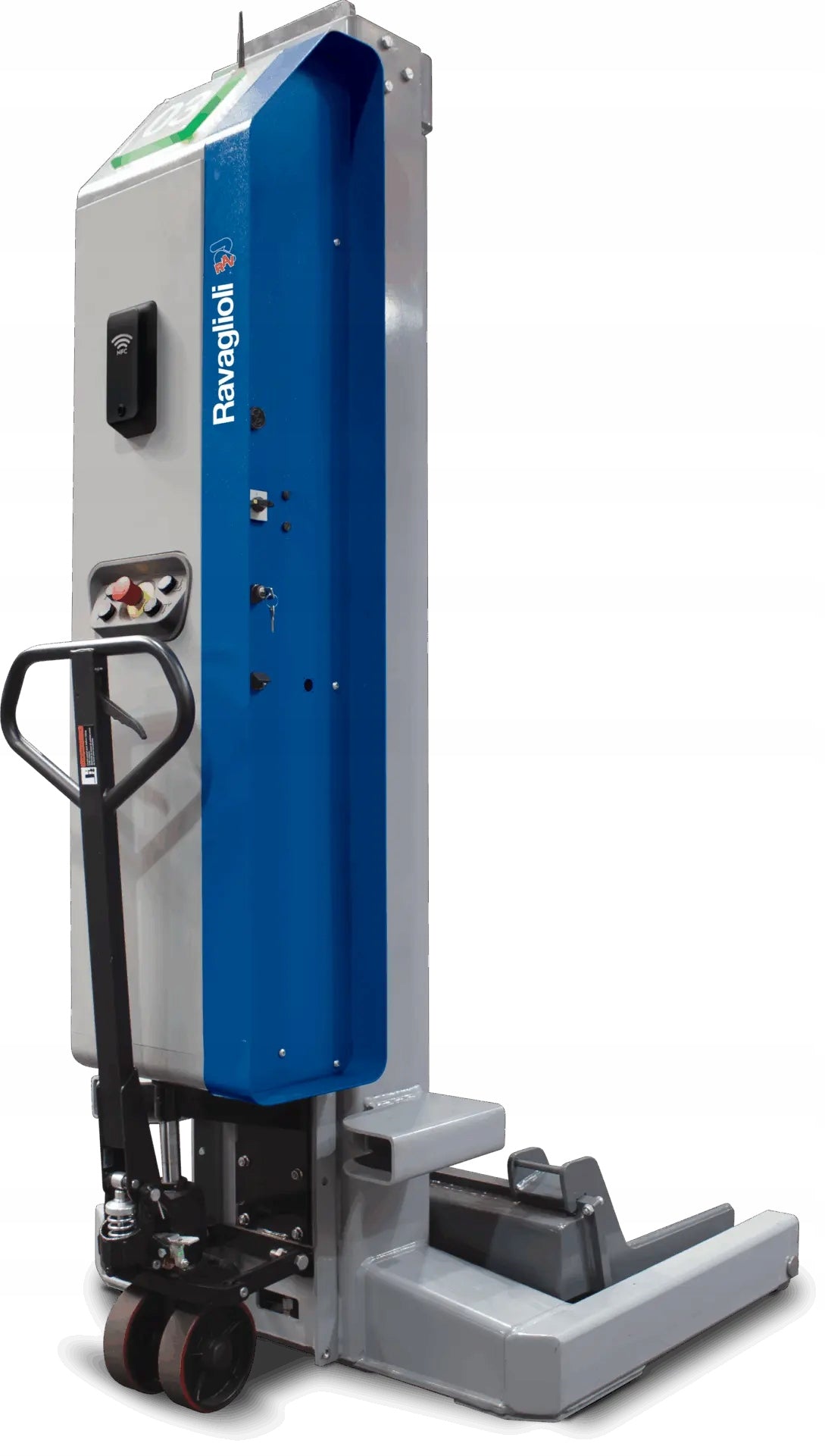

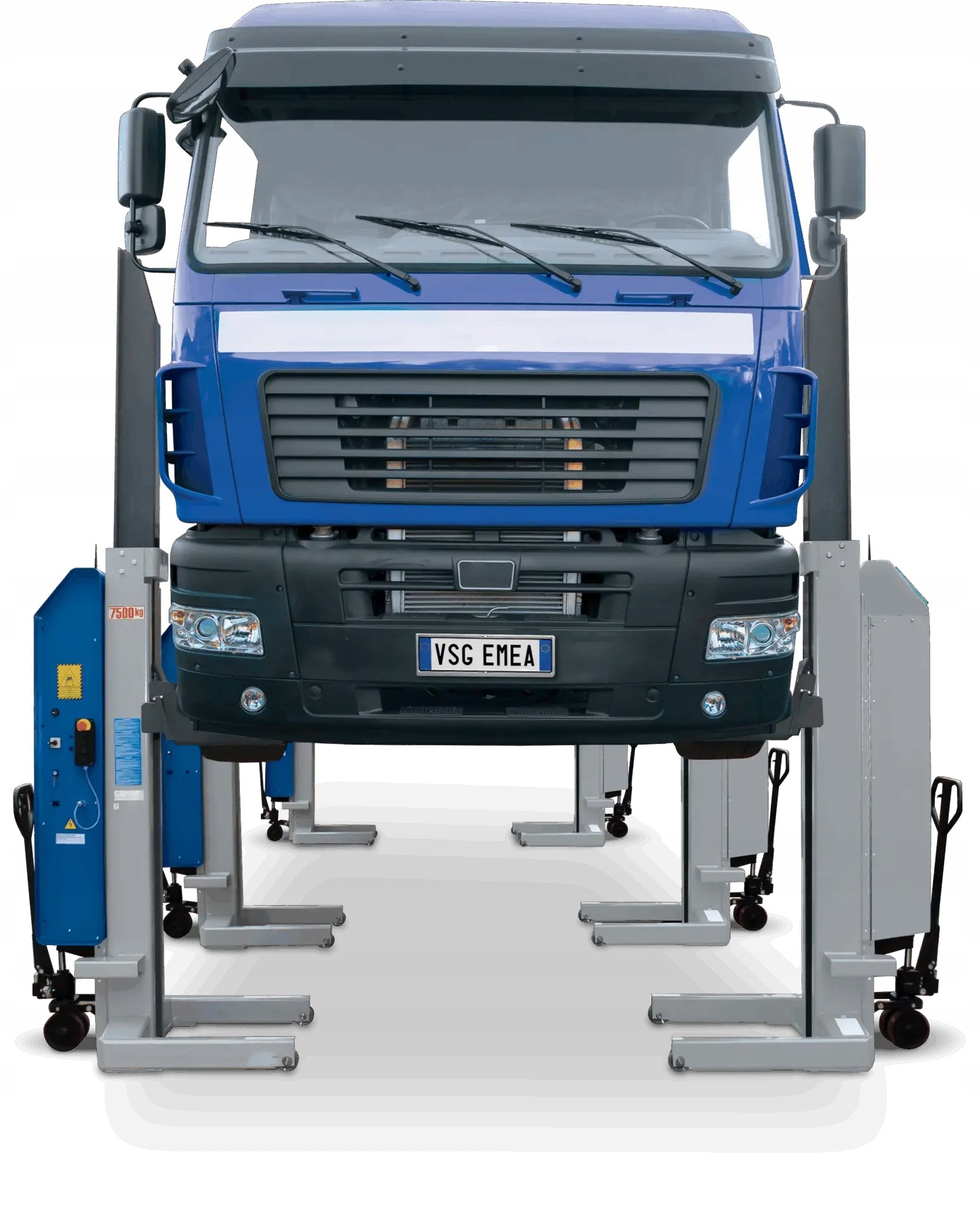

Elektrohidrauliniai mobilūs RAVAGLIOLI Alpha Series 4 x 7,5T keltuvai

Trumpai apie prekę

Prekė: Elektrohidrauliniai mobilūs RAVAGLIOLI Alpha Series 4 x 7,5T keltuvai. Kategorija: Keltuvai stulpams.

• Gamintojas: Ravaglioli
• Modelis: Alpha 4-7.5

The company RAVAGLIOLI SpA was established in 1958 in Italy as a manufacturer of equipment for car workshops, both for passenger cars and commercial vehicles.Since 2015, it has been one of the world’s leading companies in the workshop equipment industry.leading European manufacturer of lifts and one of the main manufacturers of tire testing equipment.The company has a distribution network covering more than 150 countries around the world,including branches in the United States, United Kingdom,Germany , France , Belgium and Spain . The equipment is characterized primarily by high quality and niezawodność.Jej the main products are currently car lifts, wheel balancers, tire fitters.

Description of the device:

• Real-time status:

  Waiting for connection.

  Quick configuration with the application is carried out using the NFC module. Bluetooth is also integrated as a second connection option.

  The identity of the application user is verified by biometric authentication or OTP (one-time password).

  The mobile column displays an error.

  Simplified troubleshooting: identify the status of the column error and direct link to the instructions.

  Paired and ready to use.

• Forklift pockets for easy lifting.
• Adjustable forks designed to work in light and heavy commercial vehicles with wheels of various dimensions.
• Hydraulic trolley for better column mobility when operating, entering the vehicle and parking.
• Compact and robust design.
• A powerful hydraulic unit for easy lifting, combined with an all-day battery guarantees trouble-free operation.
• Electrical system with protection degree IP 54. Low voltage control and safety circuit.
• Elevator control is carried out by means of a control panel with buttons placed on each column.
• Valve controlling the speed of descent.
• Configuration of available columns and creation of separate groups in case the vehicle requires different lifting heights.
• Software updates via wireless.
• Available for Android and iOS.
• Completely secure:

  The mechanical safety latch system with reduced stroke and increased contact width provides greater safety when lifting and improves parking functions.

  A electrohydraulic device that interrupts the descent movement if there is an obstacle under the platform.

  Greater width compared to the previous version.

  Safety valves to protect against overload and breakage of hydraulic lines.

• First on the market: application for setting the lift and column layout. The application's column configuration system provides increased security, speed and ease of use.
• Innovative features: Each column has an identification numbering and LED indicator that shows the column’s operation in real time. All column status information can be checked directly in the app.

• Electrohydraulic drive mode
• Wireless Column Communication
• Number of lifting units 4
• Rated load capacity 30000 kg
• Lifting capacity per lifting unit 7500 kg
• Stroke 1753 mm
• Lifting time with load 65 s
• Lowering time 54 s
• Lifting cycles with full load 14 Min.
• wheel diameter 570 mm
• Max. wheel diameter 1300 mm
• Drive power per cylinder unit 3 kW
• Column weight 640 kg
• Surface Coating Powder Coating
• Power supply 230/400 V | 50 Hz230/400 V | 50 Hz
• Width 1107 mm
• Depth 1307 mm
• Height 2260 mm
• Weight 2560 kg

Specifications
