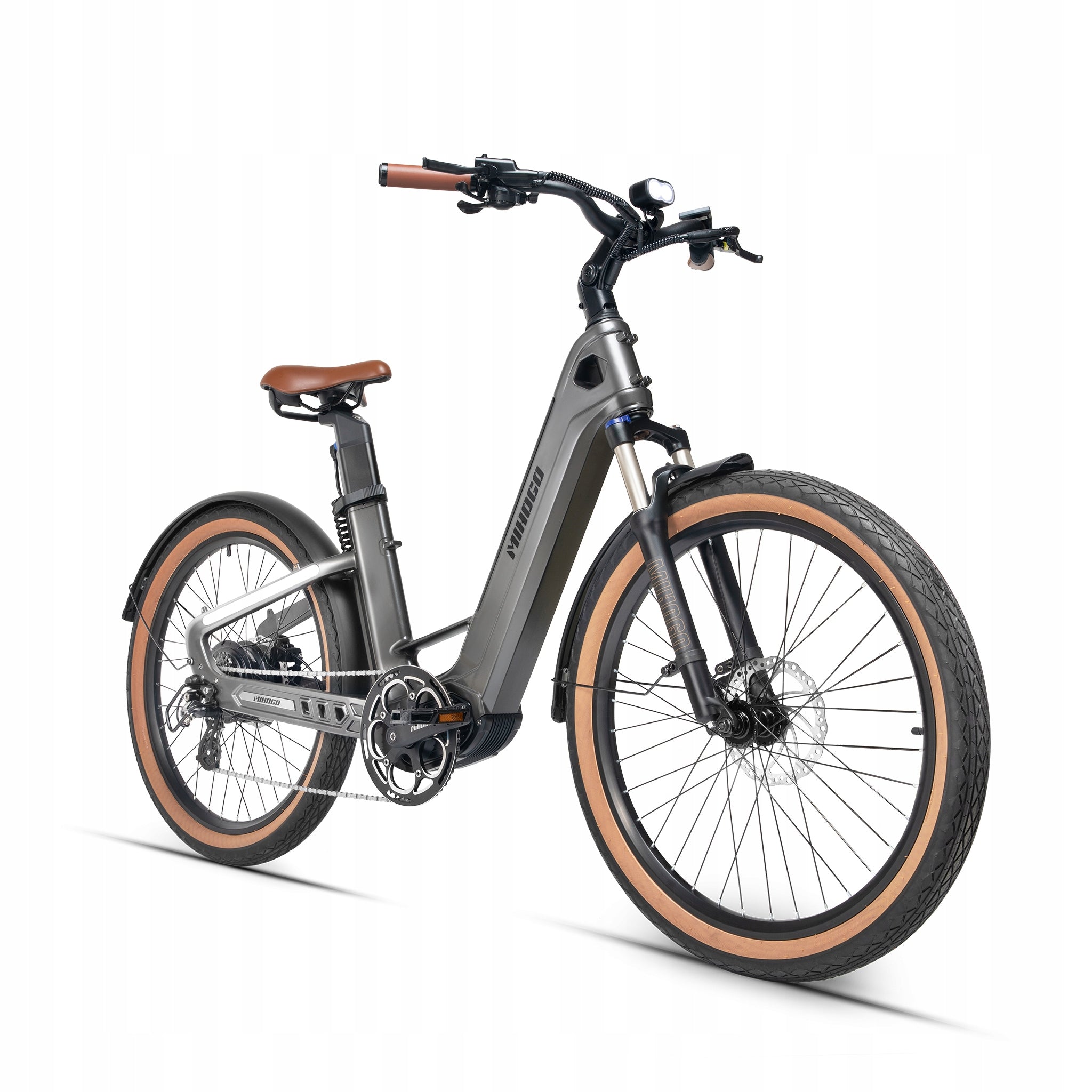

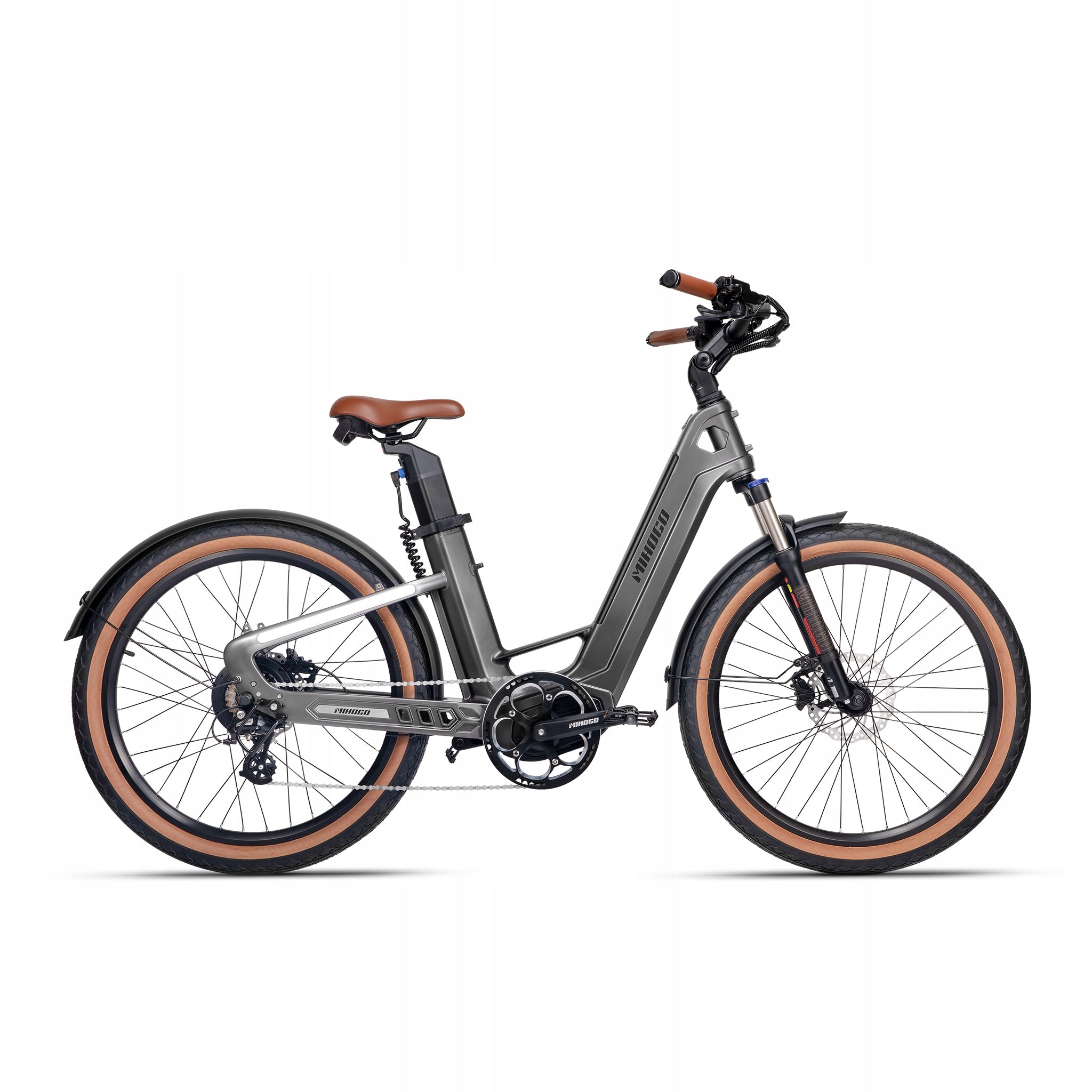

Elektrinis dviratis MIHOGO Air, 1000W, 19,2Ah, 40 km/h, 200 km, 26", valdymas programėle

Trumpai apie prekę

Prekė: Elektrinis dviratis MIHOGO Air, 1000W, 19,2Ah, 40 km/h, 200 km, 26", valdymas programėle. Kategorija: Elektriniai automobiliai.

• Gamintojas: MIHOGO
• Modelis: Mihogo Air Max 48 V 9.6 Ah *2 Podwójne baterie APP
• Svoris: 26.7 kg
• Spalva: gray

✨✨✨✨✨HIGHLIGHT✨✨✨✨✨

• Ultralight carbon fiber frame 3.49KG
• Four-piston hydraulic disc brakes
• Two-arm torque sensor
• High-performance 750W motor(1000W peak)
• High Capacity 19.2AH Battery(48V9.6AH *2)
• MIHOGO smart app

Mihogo Air Max

• Tires: 26*2.5 coloured tyres
• Frame: 26-inch Carbon JAPANESE TORAY T800 CARBON FIBER
• Headset: Headset with hidden bearing made of aluminum alloy
• Fork: Hydraulic suspension front fork made of aluminium alloy (60mm stroke) with opening width of 100mm
• Battery: 48V 9.6AH*2 (Total 19.2AH)
• Motor: 750W (peak 900W)
• Maximum speed: 25MPH (40.2 km/h)
• Rear derailleur: Shimano M310
• Gear grips: Shimano SL-M315-7R
• Rear cogs: Shimano 500-7speed
• Chain：KMC 134links
• Crank set: 52T aluminium alloy
• Sensor: BBTS3PSD LDS Torque Sensor
• Brakes: Hydraulic four-piston disc brake with power cut-off
• Brake levers: Three-finger aluminum alloy brake lever
• Front hub: Integrated aluminum alloy wheel with double bearings (detachable axle M10*100*185mm)
• Rims: 20-inch spoked aluminium alloy wheel
• Spokes: 12g
• Net weight: 59.4lbs（26.9KG）
• Capacity: 290lbs（131.5kg）
• Suitable Height: 155cm-195cm
• Charger ：48V2A
• Lithium-ion battery ：460.8Wh+460.8Wh
• Display ：IPS 2.4" Smart Easy Read Display with colour screen Connectivity via mobile phone
• Stem：Aluminum alloy Adjustable stem
• Steering wheel：Aluminum alloy (Length: 680mm Maximum diameter: 31.8mm Minimum diameter: 22.2mm)

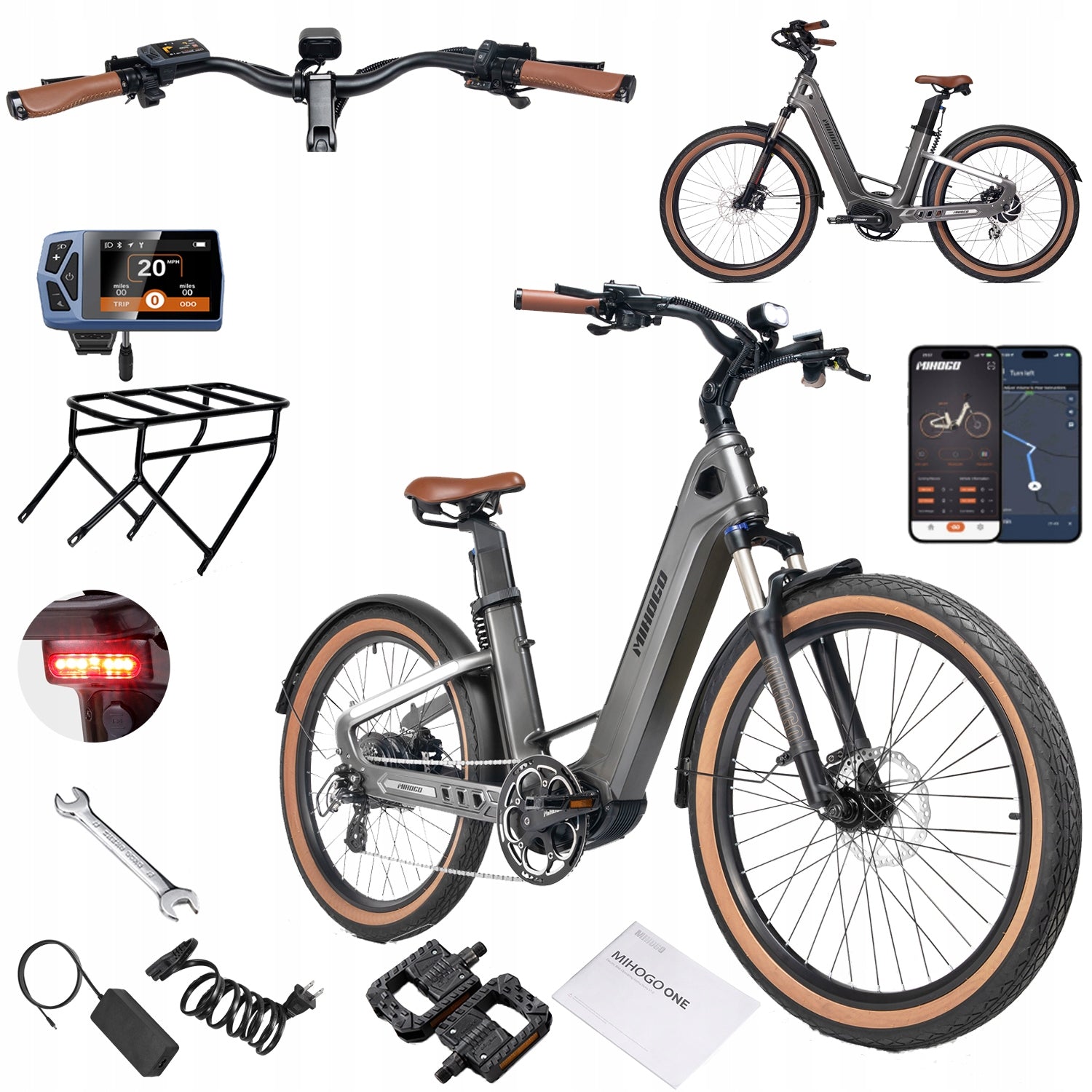

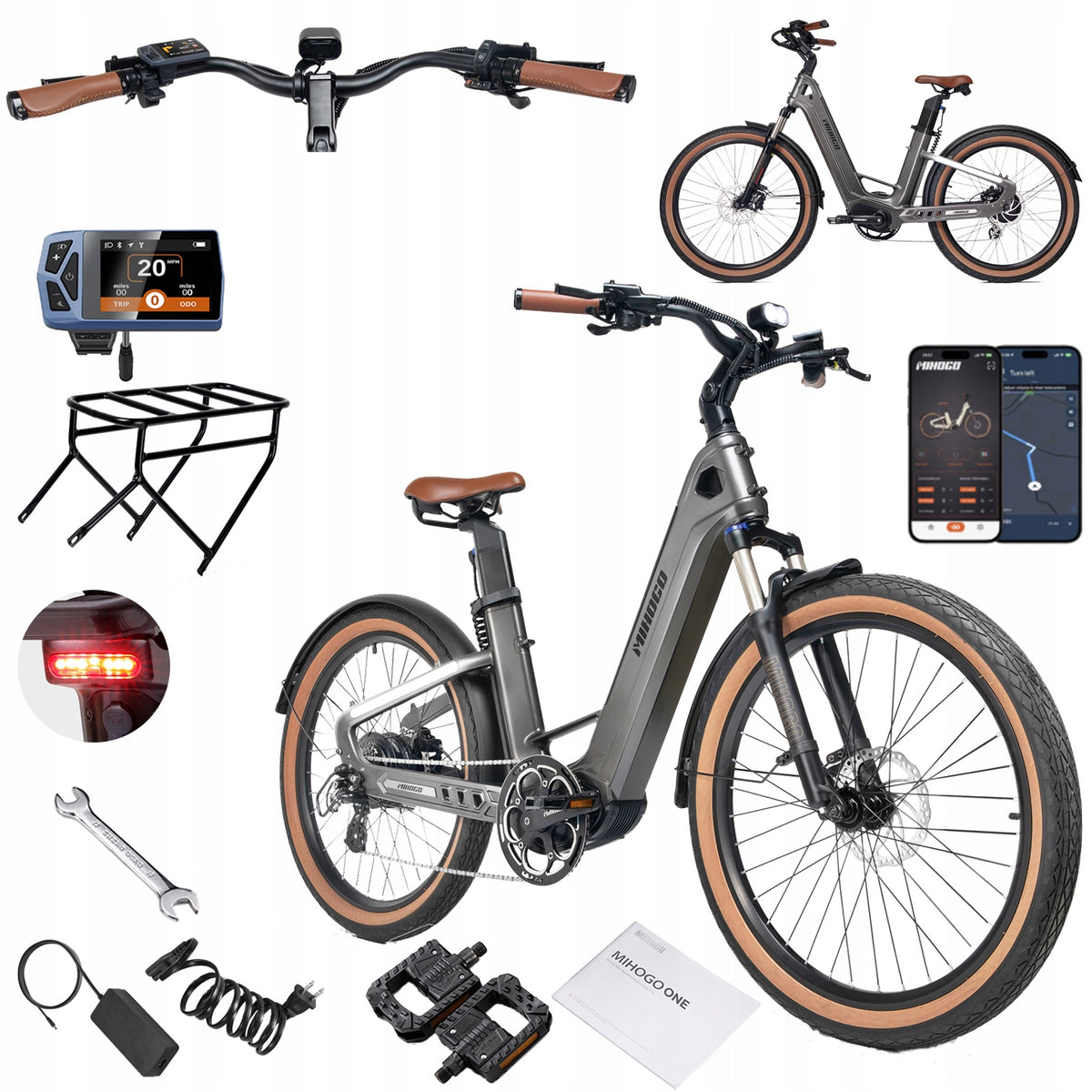

Content of the package:

• 1*Electric vehicles
• 2*9.6 Ah Battery
• 1*Tool set
• 1*Operating instructions
• 1*Charger
• 1*Rear Luggage Rack
• 1*Covers

1. Carbon fiber frame

The carbon fiber construction provides a combination of low weight, high rigidity and a modern look. The slim frame line gives the whole an elegant character, and the integrated form makes the vehicle look minimalist and premium.

The most important advantages:

Lower weight of construction

High durability

Elegant premium look

Modern, integrated form

Two-arm torque sensors - extended

TRAVEL AND LESS FREQUENT CHARGING

The Mihogo Air is a precision instrument that provides optimal steering of every power ounce from both the left and right pedals. What about the result? A remarkable 23% increase in battery life compared to single torque sensor systems and an astounding 105% improvement over speed sensor systems. Your journey has just become longer and more energy.

DUAL BATTERIES, 195 KM RANGE

Extremely Long Range: To continue the challenge of super long range in the means of transport, the MIHOGO AIR is equipped with hidden front and rear dual batteries, designed for long-range electric vehicles with a total capacity of close to 1386Wh. It also has a dual drive with torque sensor on both sides, and the total weight of the vehicle is only 0,66 traditional aluminum, which effectively improves driving efficiency and saves energy. The longest range can reach an impressive 195 kilometers.

FAST CHARGING GAN AT ULTRA-LOW TEMPERATURE

BATTERY CAN BE REMOVED FREELY

The battery can be removed freely, and the front battery is also equipped with a USB discharge interface that can be used as a mobile power source.

TUV RHEINLAND

Super Strong and Durable: The MIHOGO AIR frame has passed the very strict German Rheinland (TUV) certification, ensuring safety, reliability and durability.

First-of-its-kind central control technology

MIHOGO AIR uses centralized intelligent control drive technology that can stimulate engine operational efficiency. The automatic detection module of two batteries can read the voltage values of two batteries more than 1000 times per second. Users can complete the automatic switching of two batteries without changing the battery, and the ultra-long endurance over 128 miles is verified using this technology. The smart app and IPV color screen provide a stable Bluetooth connection, and the instrument panel is equipped with navigation mapping features to meet navigation assistance when traveling long distances.

COMPACT SMART LIGHTING DESICN

Compact smart lighting design: The MIHOGO AIR is equipped with front dual night light heads, which increases effective range by 57%. The rear frame lights on both sides are designed with a 15 inch embedded LED daytime running light, and the rear light is integrated with the embedded LED lights, which can ensure driving safety at any time.

FLEXIBLE HUMAN MACHINE

ADJUST THE POSTURE AND RIDE HEIGHT

Flexible Human-Machine Posture Adjustment: Taking into account the different requirements of riders, the MIHOGO AIR has designed with 3 adjustable positions for posture and ride height throughout the journey and equipped with a curved adjustable handle bar, which makes every user can ride Vehicles. The front shock absorber can be manually adjusted for softness to adapt to different road conditions.

90% HIDDEN IPV6T WATERPROOF WIRING DESIGN

Simple modular electrical control design: MIHOGO AlR uses a hidden wiring design of up to 90%, which is equipped with iP67 waterproof interfaces and make removal of each electrical control part.

SHIMANO 500-7 Speed Drive System – Precision and Smooth Sliding

The Mihogo Air Max is equipped with a modern Shimano 500-7 speed transmission system for smooth and precise shifting. Its wide gear range allows for efficient climbing and smooth descents, effortlessly tackling a variety of terrain.

APPLICATION MIHOGO

Stay up to date with your vehicle’s data in time, enjoy the convenience of a digital key, effortlessly track the location of your vehicle, and unlock a whole range of amazing features at your fingertips.

All measurements given in mm unless otherwise stated.

Recommend height 5'1" (155cm) - 6'5" (195cm)

Wheel Size ：kenda 20*4.0"

• Tube A-Seat： 416mm
• B-Angle seat tube：75.5°
• C-Head tube：150mm
• D-Head angle：72°
• Tube length E-Top 465mm
• F-Standover height 560mm
• G-BB drop 87mm
• H-Rear center 479mm
• I-Wheelbase 1150mm
• J-Reach 375mm
• Type K 440mm
• L-Maximum seat height 1030mm
• M-Minimum seat height 880mm
• N-Rear trunk height 645mm
• O-Total length 1730mm
• P-Height of the steering wheel 1200-1320mm
• Q-Length of handlebar 640mm
• R-Length of rear trunk 50mm
• S-sear outdoor stand diameter length 375mm
• T-Width of rear luggage compartment 165mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With invoice (excluding VAT)
Parametry	Product weight with unit packaging	26.7 kg
Parametry	Gender	unisex product
Parametry	EAN (GTIN)	754547416328
Parametry	Batteries included	yes
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Year of manufacture	2025
Parametry	Shock absorption	front and rear
Parametry	Pedals	click-in
Parametry	Derailleur type	internal (hub)
Parametry	Brakes	hydraulic disc
Parametry	Number of gears	7
Parametry	Engine power	750 W
Parametry	Motor location	in rear hub
Parametry	Charging time	7 h
Parametry	Crank	single row
Parametry	Motor type	przekładniowy
Parametry	Rechargeable battery	lithium-ion
Parametry	Maximum load	120 kg
Parametry	Maximum speed	40 km/h
Parametry	Range	200 km
Parametry	Accessory equipment	rack,fenders,meter,lighting,kickstand,electrically-assisted
Parametry	Model	Mihogo Air Max 48 V 9.6 Ah *2 Podwójne baterie APP
Parametry	Kind	trekking
Parametry	Manufacturer code	754547416328 Mihogo Air Max 26"*2.5"
Parametry	Brand	MIHOGO
Parametry	Weight	26.7 kg
Parametry	User height	155–195 cm
Parametry	Color	gray
Parametry	Frame material	carbon
Parametry	Frame size	not specified
Parametry	Wheel size (")	26
