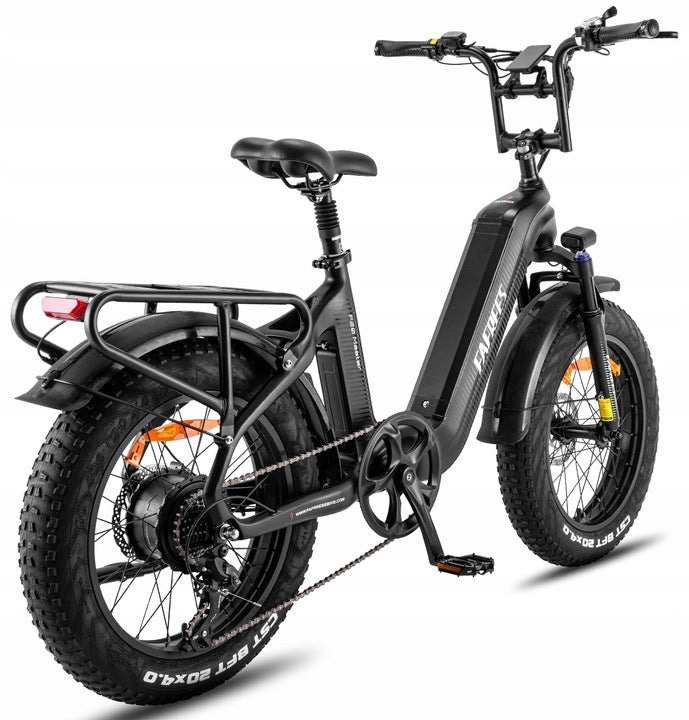

Elektrinis dviratis FAFREES F20 Master 2025, 500 W, 45 km/h, 160 km rida, 20" ratai

Trumpai apie prekę

Prekė: Elektrinis dviratis FAFREES F20 Master 2025, 500 W, 45 km/h, 160 km rida, 20" ratai. Kategorija: Elektriniai automobiliai.

• Gamintojas: Fafrees
• Modelis: FAFREES F20 Master 500 W 45km/h 160km 20"
• Spalva: black

Fafrees F20 Master carbon fiber electric vehicles

Elevate your driving experience with carbon fiber. Optimal balance of strength and agility. The F20 Master carbon fiber frame is complemented by a powerful hub motor and dual shock absorbers to ensure a smooth and enjoyable ride. Equipped with a 22.5 Ah Samsung battery, the F20 Master is able to travel between 100 and 120 kilometers on a single charge, and the color LCD screen allows you to track important statistics while driving. Rid comfortably with a cushioned saddle, leather-trimmed handlebars and an upright riding position.

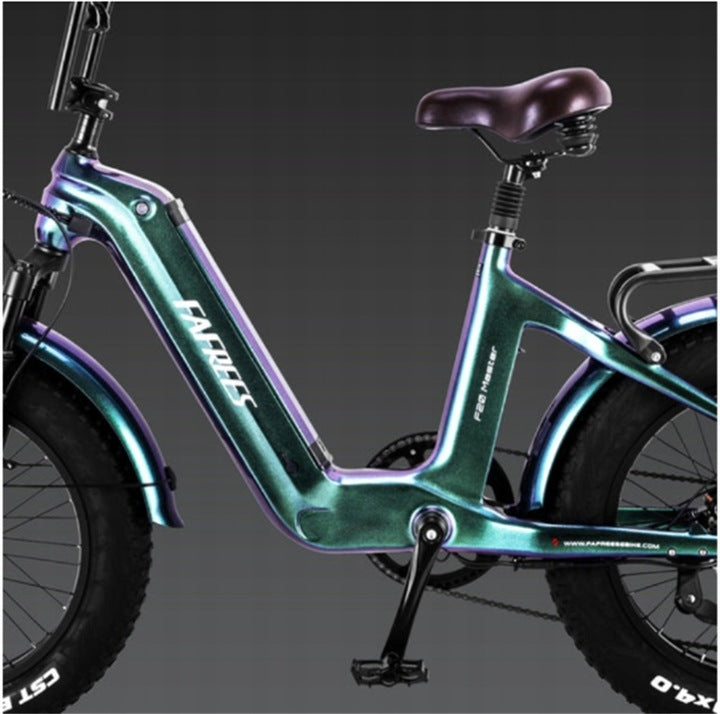

SEAMLESS CARBON FIBER FRAME

The carbon fiber frame not only reduces the weight of vehicles, but also improves damping and rigidity. While driving, it absorbs shocks and dampens vibrations. With its cross-sectional design, it is suitable for men, women, and people of all ages.

POWERFUL 48V 500W MOTOR

Enjoy the ride with the support of a 500 W motor. With the right peak power of 690 W and 65 Nm of torque, you can drive confidently and easily on any terrain. The maximum speed that can be achieved is 45 km/h. Thanks to the detachable throttle, you can switch between all-electric mode and assisted mode at any time.

48V 22.5AH BATTERY WITH SAMSUNG CELL PHONE

The vehicles are equipped with a portable battery with a capacity of 1080 Wh and 21% higher density and 21700 cells, allowing them to travel up to 120 kilometers. The integrated design reduces the risk of short circuits and moisture issues, ensuring a safe and reliable ride.

COLOR LCD DISPLAY

The high-resolution LCD display offers a variety of functions with easy control and the ability to program 3 speed levels. The large screen shows various data such as speed, battery, mileage and gear. It features a steering assist mode and cruise control function to help you ride whenever you need it.

20" * 4.0" INCH THICK TIRES

A thick 4.0 tire with greater friction that can adapt to different driving conditions, such as snowy road, sand road, muddy road, gravel road, as well as flat terrain.

FRONT AND REAR SHOCK ABSORBERS

The front suspension (jump: 50 mm) and cushioned seat tube (jump: 50 mm) provide instant and long-lasting cushioning, increasing riding comfort regardless of the weight and terrain you ride on. With a lock adjustment, you can control the soft and hard stroke of the fork to suit different road conditions.

DOUBLE HYDRAULIC BRAKES

The hydraulic braking system with durable pads with a diameter of 160 mm and a ball ramp actuation system provides a silky smooth leverage feel and incredible grip strength. It significantly reduces the braking distance to just one meter and the response time to one second.

7-SPEED SHIMANO GEAR SHIFTING SYSTEM

Shimano's 7-speed gear shifting system makes it easy to respond to uphill riding scenarios, when riding on a flat surface or when riding outdoors with stopping and starting. Effectively used in a variety of driving conditions, it can help increase battery range by up to 15%.

FRONT AND REAR BRAKE LAMPS

Bright front light better illuminates the corners of the road. The rear stop light signals barking. Escort your day and night horse riding trips.

Recommended rider height 165-200CM

[A] Max. Seat height: 102 CM

[B] Min. Seat height: 88 CM

[C] Crossing height: 37 CM

[D] Frame Size: 40 CM

[E] Max. Handlebar height: 111 CM

[F] Min. Handlebar height: 111 CM

[G] Support height: 28 CM

[H] Length of upper tube: 65CM

[I] Wheelbase length: 112 CM

[J] Overall length: 172 CM

Reminder: There will be slight errors in manual measurement, and the actual size will take precedence.

FAFREES F20 Master

Type: vehicles with thick carbon fiber tires

Color: Satin Black

Power cable

• Net weight: 32 kg
• Package Weight: 44 kg
• Battery weight: 4.6 kg
• Load capacity: 150 kg

Material

• Frame Material: Carbon Fiber
• Tyre Type: Pneumatic Tyre

Driving

• Default maximum speed: 25KM/H
• Adjustable maximum speed: 45KM/H
• Maximum range in assisted mode: 140-160KM
• Maximum range for pure power: 100-120HP
• Maximum climbing capacity: 25°

Multi-shot Sequential Shots: Yes

• Battery Type: Samsung 21700 Lithium-Ion Cell
• Rated Voltage (V): 48 V
• Input Voltage (V): 54.6V
• Battery capacity (AH/Wh): 22.5AH/1080Wh
• Undervoltage protection value (V): 39 V
• Overcurrent Protection Value (A): 35A

Engine

• Rated engine power (W): 500W
• Peak engine power output (W): 690 W
• Engine Location: Rear Drive
• Maximum torque (Nm): 60Nm

charger

• Input Voltage (V): 220V
• Output voltage (V): 54.6 V
• Rated Current (A): 3A
• Charging time: 7H

Damping

• Fork Type: Spring Suspension with Lock
• Fork travel distance: 50 mm
• Rear Shock Absorber Type: Cushioned Seat Tube
• Rear shock absorber stroke distance: 15 mm

Brightness (max.

• Display Type: LCD Display
• Driving assist mode 6 km/h: Yes
• Cruise control: Yes
• Application Control: No
• PAS Level: 0-3

Transmission: Shimano 7S

Brake Type: Hydraulic Disc Brakes

Folding parts: not applicable

Headlight: Yes

Rear Light: Yes

Driving Mode: Human/Assisted/Pure Power

Operating temperature: -10℃-40℃

Waterproof rating: IPX5

Package includes

1 * F20 main car

1 box with charger

1 * charger cable

1* toolkit

1* User Manual

2 * wheeled lights

1* Left pedal

1* Right pedal

1 * rear set

1 gift box (including 1 inner tire, 2 content caps, 4 rod, 2 mirrors on wheels, 2 battery-operated fuses, 2 brake pads, 1 key chain)

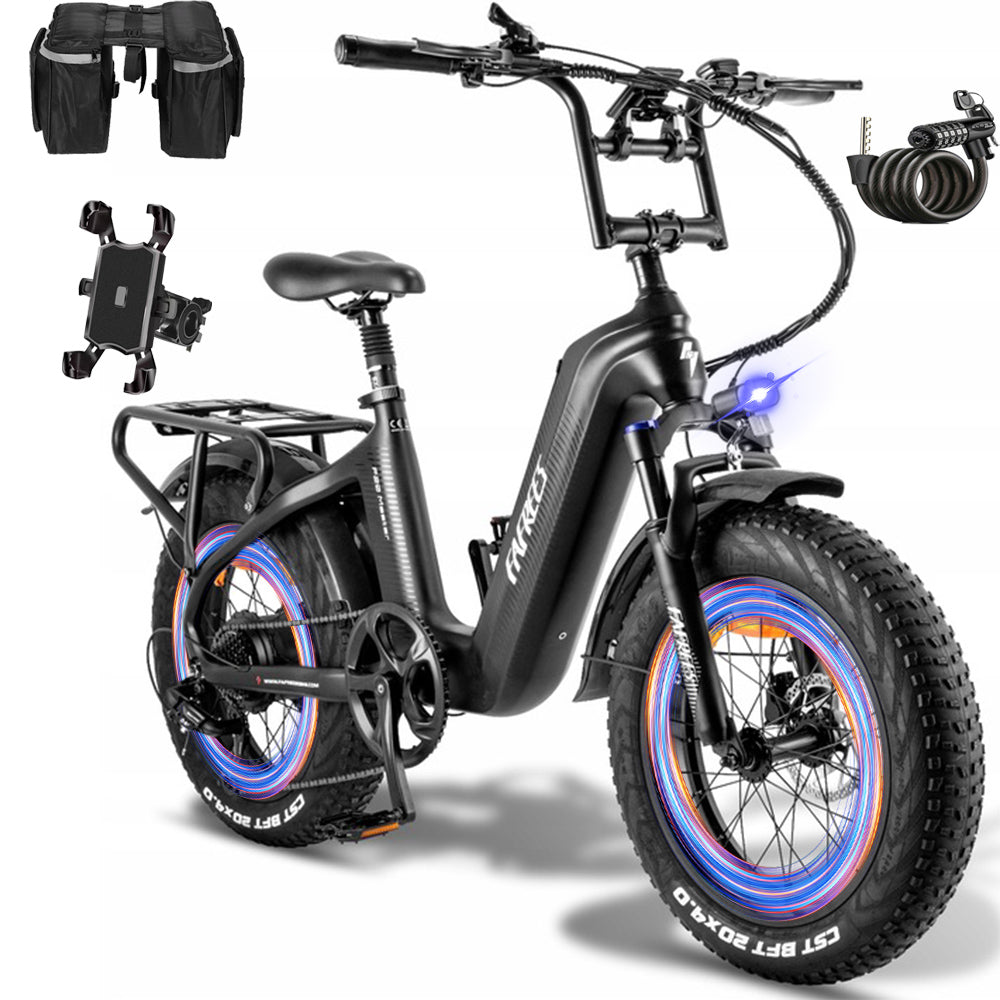

Free gift: suitcase, mobile phone holder, password lock (separate shipping)
