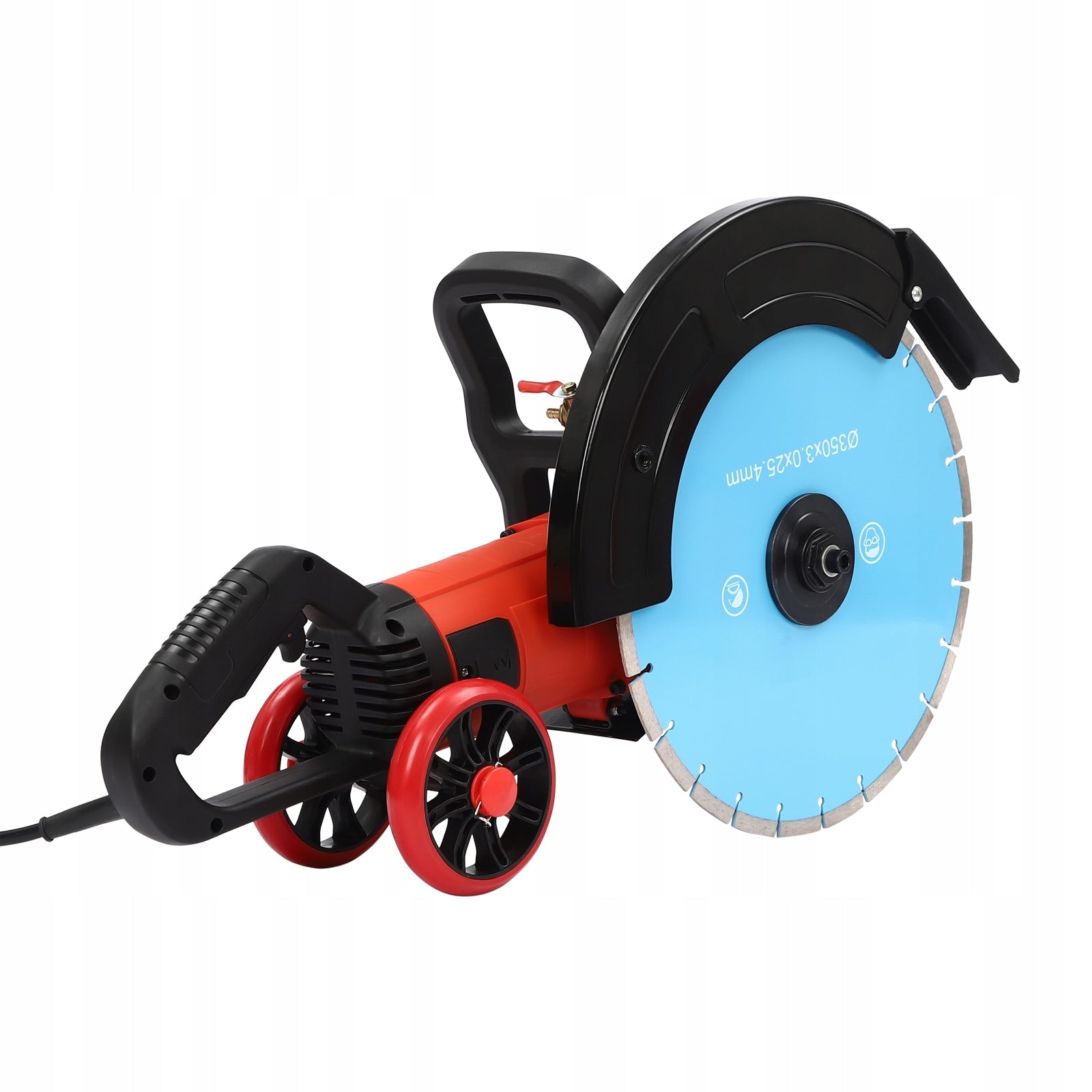

Elektrinis betono pjūklas 3500W, 14" (350 mm) disku, CE

Trumpai apie prekę

Prekė: Elektrinis betono pjūklas 3500W, 14" (350 mm) disku, CE. Kategorija: Diskiniai pjūklai.

• Gamintojas: Hychika
• Modelis: ZIE305

Application

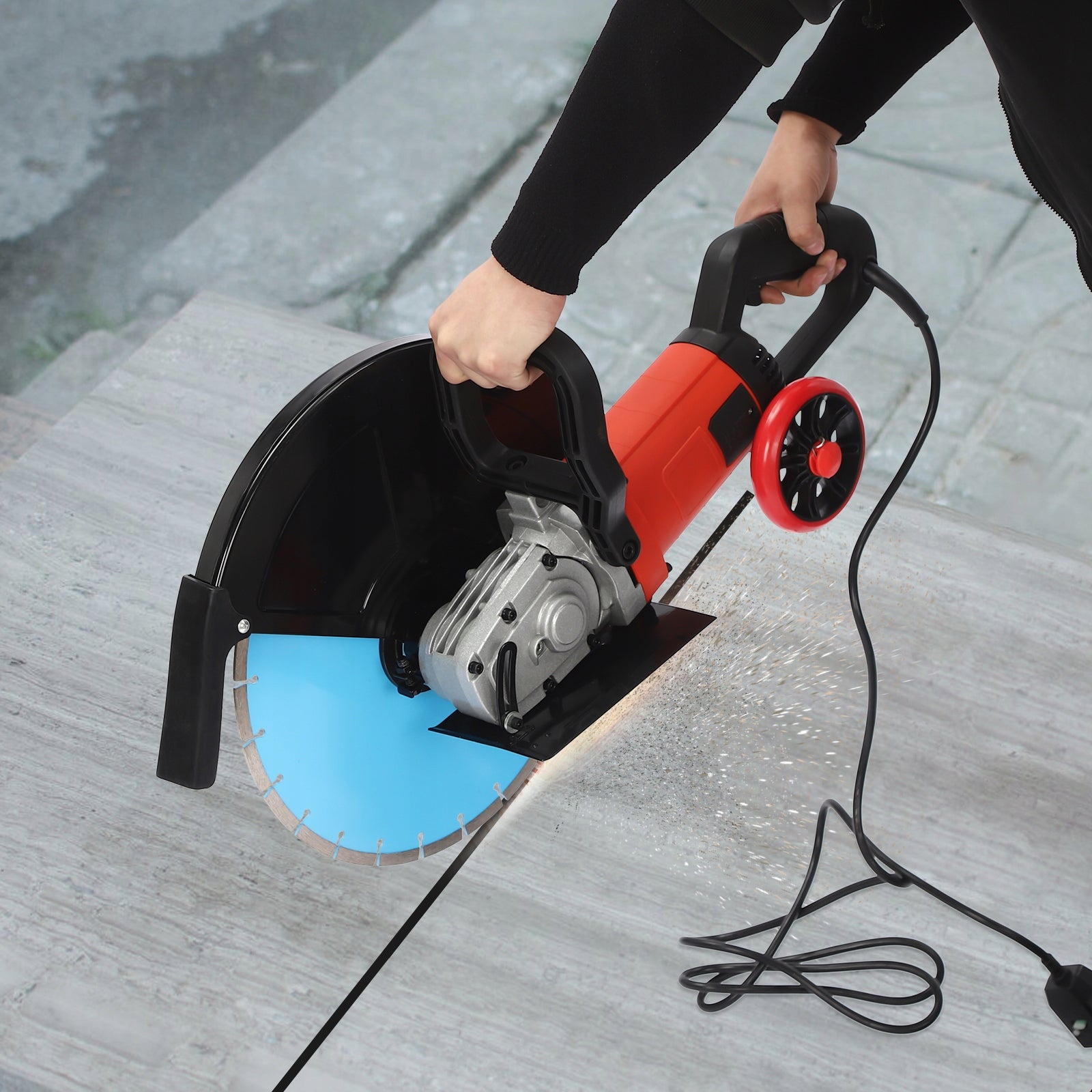

This product is suitable do cutting stone, concrete, granite, red brick, ceramic, concrete flooring, asphalt and so on. You can also replace other do saw blades for cutting wood and metal.

Specification

• Material: Stal carbon, Diament, Nylon, Aluminium, Copper
• Color: Black, Red, Blue
• Assembly Required: Yes
• Power Source: Wired Electric
• Plug Type: Standard EU
• Engine Type: Pure Copper Motor
• Number of Saw Blades: 1
• Water pump model: BT-1230
• Water pump input: 100-240 V AC 50/60 Hz
• Water Pump Output: 12V 3A
• Voltage: 220V
• Power: 3500W
• Speed: 3800RPM
• Maximum Load Power: 4800W
• Maximum cutting depth: 135mm/ 5.31in
• Power cord length: 3m/9.84ft
• Water pipe length: 5m/16.4ft
• Inner diameter of water pipe: 6mm/ 0.24in
• Applicable pipe: 6mm/0.24in, 8mm/0.31in, 10mm/0.39in
• Saw Blade (D*T): 350*3mm/ 13.78*0.12in
• Saw Blade Hole Diameter: 25.4mm/ 1in
• Gross weight: 14kg/ 30.86 lbs
• Package Size: 62*24*42 cm/ 24.41*9.45*16.54in

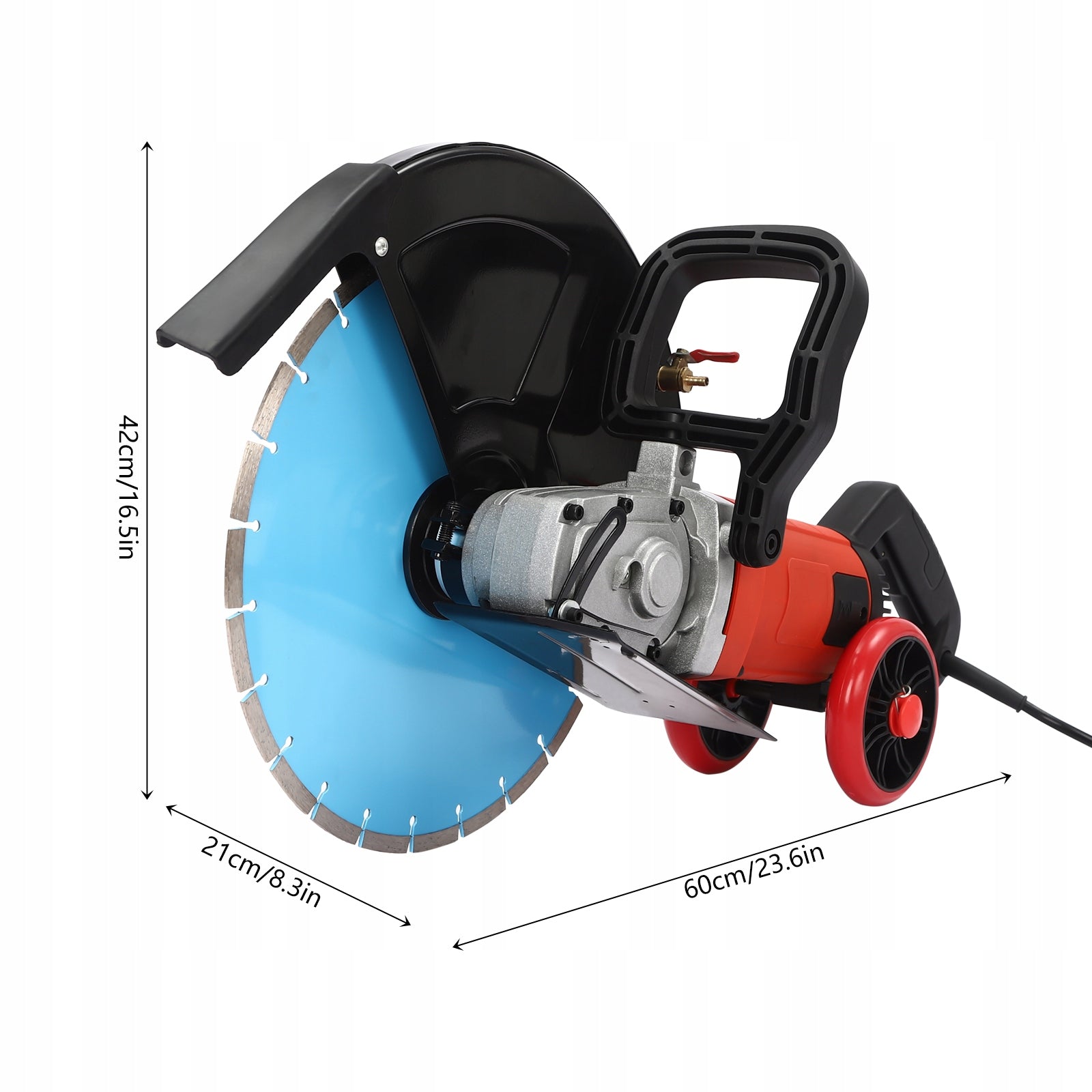

• Product Size: 60*21*42 cm/ 23.62*8.27*16.54 in

Package included

• 1* Electric saw do concrete
• 1* Protective cover
• 1* Water pipe
• 1* Water pump
• 1* Blade
• 2* Rolling pulleys
• 1* English Manual
• All accessories do installation

1. Please beware of potential safety hazards in electricity use. Please use this product according to the English manual, take necessary personal protective measures, and keep them out of reach of children.

2. Please note that you will need to prepare a bucket when using the pump.

3. When cutting walls vertically, please make sure the head is facing down so that water does not enter the motor and burn it. Please operate the machine from up to down when grooving, it will be easier to save energy while protecting the motor.

4. Please regularly check whether the carbon brushes are wear and tear, and replace the carbon brushes in time when the sparks are large.

5. When cleaning the head, please avoid water entering the body through the vent.

6. Please note that the pump should not be pumped empty for a long period to avoid damaging the pump core.

7. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

[Safety Warning]

-Continuous use should not exceed 30 minutes. If you need to continue using it, please turn off the power and let it cool down.

-Avoid using this equipment near flammable materials.

Failure to follow the above guidelines may result in equipment damage or increased fire risk. For your safety and the safety of others, please adhere strictly.

Details

Aluminum gearbox: It is lightweight, not easy do deformation and ma smoother power transmission.

External carbon brush: This humanized design is convenient do repair and maintenance of machinery.

Auxiliary pulleys: Equipped with auxiliary pulleys on both sides, it is both easier and labor-saving when cutting flat surfaces and smoother when cutting walls.

Protective Cover: You can adjust its angle according to your cutting habit and preferences to prevent splashing of water and other objects.

Key Features

• Sturdy and durable: This product is made of high-grade aluminum, copper, nylon and carbon steel, which ensures a long service life, and the blade is made of diamond and carbon steel, which is sharp and durable and can cut various materials.
• Dust-free Fracking: The 16.4ft hose water pump can quickly supply water, improve cutting efficiency, reduce dust splashing during cutting, lower the temperature of the saw blade, while extending its service life and protecting health.
• Humanized design: Ergonomic main handle meets the needs of horizontal or vertical cutting, the front auxiliary handle is easy do control, and both together can achieve good balance and high cutting efficiency.
• High efficiency: With strong 3500W power, high speed 3800rpm, manually adjustable gap depth and thickened sharp blades with a diameter of 13.78", it can perform one-time grooving with a maximum grooving depth of 5.31" on the wall without secondary processing.
• Adjustable Depth: You can adjust the fracking depth (maximum 5.31 inches) by adjusting the product base plate to meet different needs of daily work.
• Safe and Reliable: The kratki heat dissipation ports on the body ensure good heat dissipation, so that the heat during operation can be dissipated at a higher speed to protect the engine from burnout due to long-term use. The self-locking safety design makes it safer and more reliable to use.
