Ekrano modulis Waveshare EPAPER 4,3

Trumpai apie prekę

Prekė: Ekrano modulis Waveshare EPAPER 4,3. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 10628

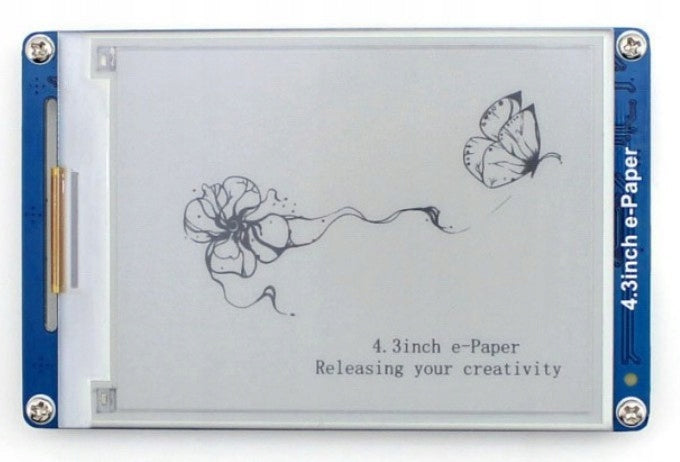

Waveshare EPAPER 4,3" Display Module with UART

Description

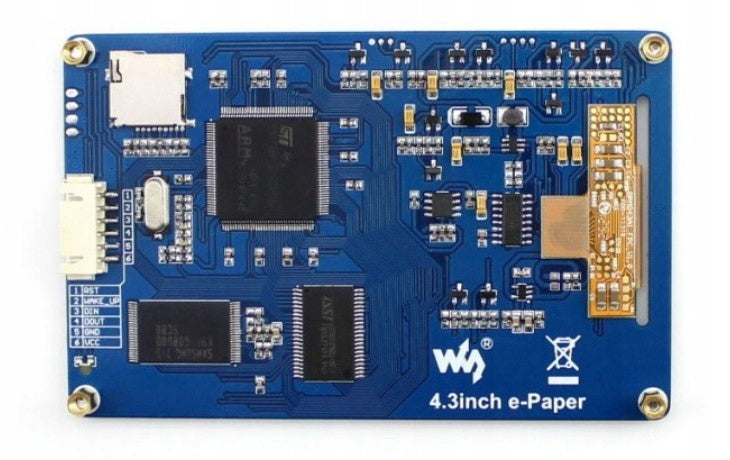

EPD display module with a resolution of 800x600 pixels and a diagonal of 4,3 inches. Thanks to the UART interface, operation is simple and no large number of I/O lines is required. The module has a built-in microcontroller, 128 MB NandFlash memory and a microSD card reader.

Properties

• EPD display (e-paper)
• Diagonal: 4,3 inch
• 800x600 pixels resolution
• Four levels of gray
• Content remains unchanged after power disconnection
• Easy to use, the ability to display any content (geometric figures, text, photos) via UART
• Built-in NandFlash memory with a capacity of 128 MB
• Content refresh time: approx. 1,5 s
• Built-in font libraries, support for 32, 48 and 64 points fonts (fonts: Chinese GBK and English)
• Variable transmission speed UART (default speed: 115200 b/s)
• Very low power consumption, (less than 5 mA in sleep mode)
• Accessible software for the computer, allowing direct control of the display
• Connector with signals:
• VCC: 3,3-5,5 V power supply
• GND: Ground
• DOUT: Serial data output line
• DIN: Serial data input line
• WAKE_UP: Module wake-up line from sleep mode
• RST: Zero Line
• Supply Voltage: 3,3-5 V
• Bus signal voltage: 3,3-5,5 V

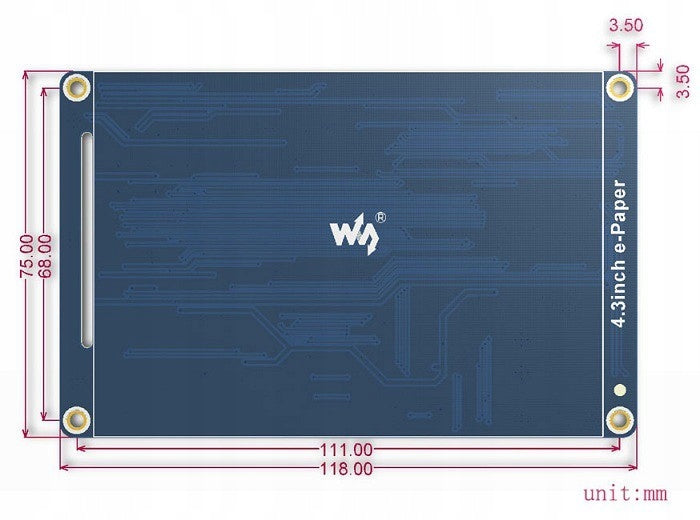

• Dimensions: 118 x 85 mm

Comes with

• Display Module 4,3"
• Connection cable JST-XH - goldpiny female

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Waveshare 10628
Parametry	Manufacturer	WaveShare
Parametry	Kind	Display
Parametry	EAN (GTIN)	5904978304632
Parametry	Batteries included	no
