Trumpai apie prekę
Prekė: Ekrano modulis su 2.9" e-popieriumi Pico-ePaper-2.9. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 19408

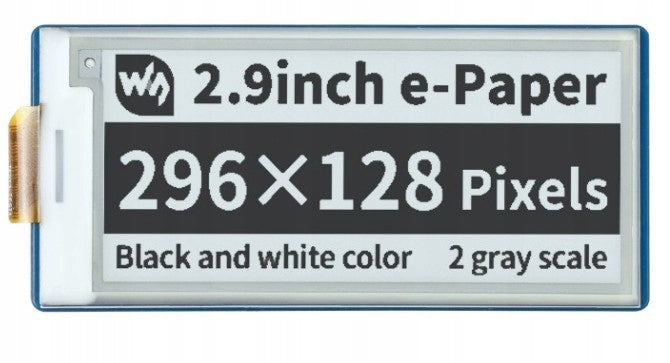

Pico-ePaper-2.9 - module with e-Paper display 2,9" 296x128 for Raspberry Pi Pico
Description
Module with black and white e-Paper display with a diagonal of 2,9" and a resolution of 296x128 px designed to work with Raspberry Pi Pico. It has the ability to display content with a two-stage grayscale, and the built-in controller realizes communication using the SPI interface. Displays of this type are characterized by high contrast of the displayed image and draw current only if the displayed content changes. The module is compatible with 3,3 V and 5 V systems.
Note!
The kit does not include a Raspberry Pi Pico. They must be purchased separately.

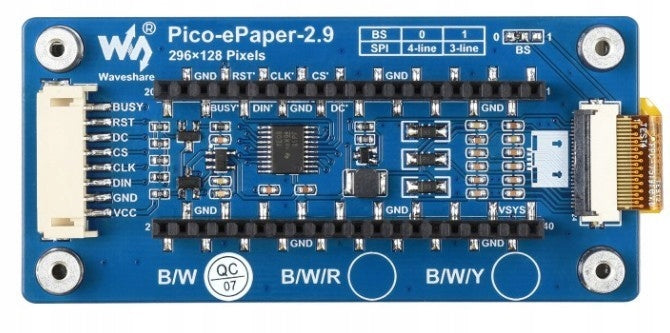

Description of exits
Properties
- Diagonal 2,9"
- Resolution: 296x128 px
- Interface: SPI
- Spot size: 0,226 × 0,227 mm
- Display Color: Black, White
- Grayscale: 2
- Full refresh time: 2 s
- Partial refresh function
- Refresh power: 26,4 mW (Typ. )
- Standby power: < 0,017 mW
- Viewing angle: >170°
- Voltage: 3,3 V to 5 V
- Contour dimensions: 82 x 38 mm
- Display dimensions: 66,89 x 29,05 mm
Comes with
- Module with Pico-ePaper-2.9 display
- 4 x distance
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 19408 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5906623425334 |
| Parametry | Batteries included | no |
