Trumpai apie prekę
Prekė: Ekrano modulis Pico-ePaper-2.66-B. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 20053

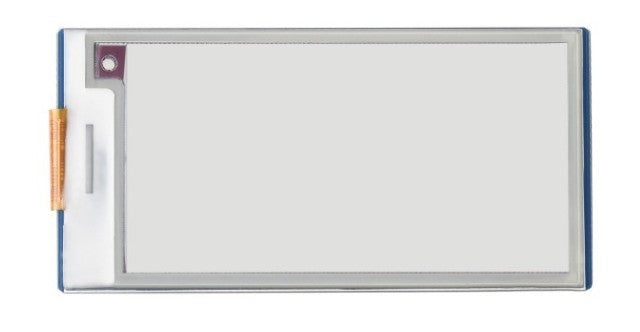

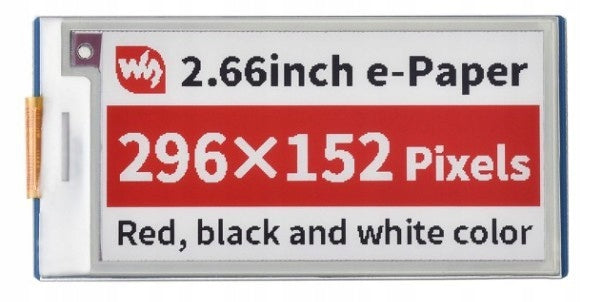

Pico-ePaper-2.66-B - module with 3-color e-Paper display 2,66" 296x152 for Raspberry Pi Pico
Description
Module with 3-color e-Paper display with a diagonal of 2,66" and a resolution of 296x152 px designed to work with Raspberry Pi Pico. It has the ability to display content with a two-stage grayscale, and the built-in controller realizes communication using the SPI interface. Displays of this type are characterized by high contrast of the displayed image and draw current only if the displayed content changes. The module is compatible with 3,3 V systems. Full documentation is available on the product wiki.
Attention!
The kit does not include a Raspberry Pi Pico. They must be purchased separately.
Properties
- Diagonal 2,66"
- Resolution: 296x152 px
- Interface: SPI
- Spot size: 0,203 × 0,202 mm
- Display Color: Red, Black, White
- Grayscale: 2
- Full refresh time: 15 s
- Refresh power: 42,4 mW (Typ. )
- Viewing angle: >170°
- Voltage: 3,3 V
- Contour dimensions: 74 x 37,5 mm
- Display dimensions: 60,088 x 30,704 mm
Comes with
- Pico-ePaper-2.66-B
- Set of distances
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 20053 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5701599705363 |
| Parametry | Batteries included | no |
