Prekė: Ekrano modulis Inky Impression 4" su 7 spalvų e-popieriaus ekranu. Kategorija: Priedai.
- Gamintojas: Pimoroni
- Modelis: PIM600

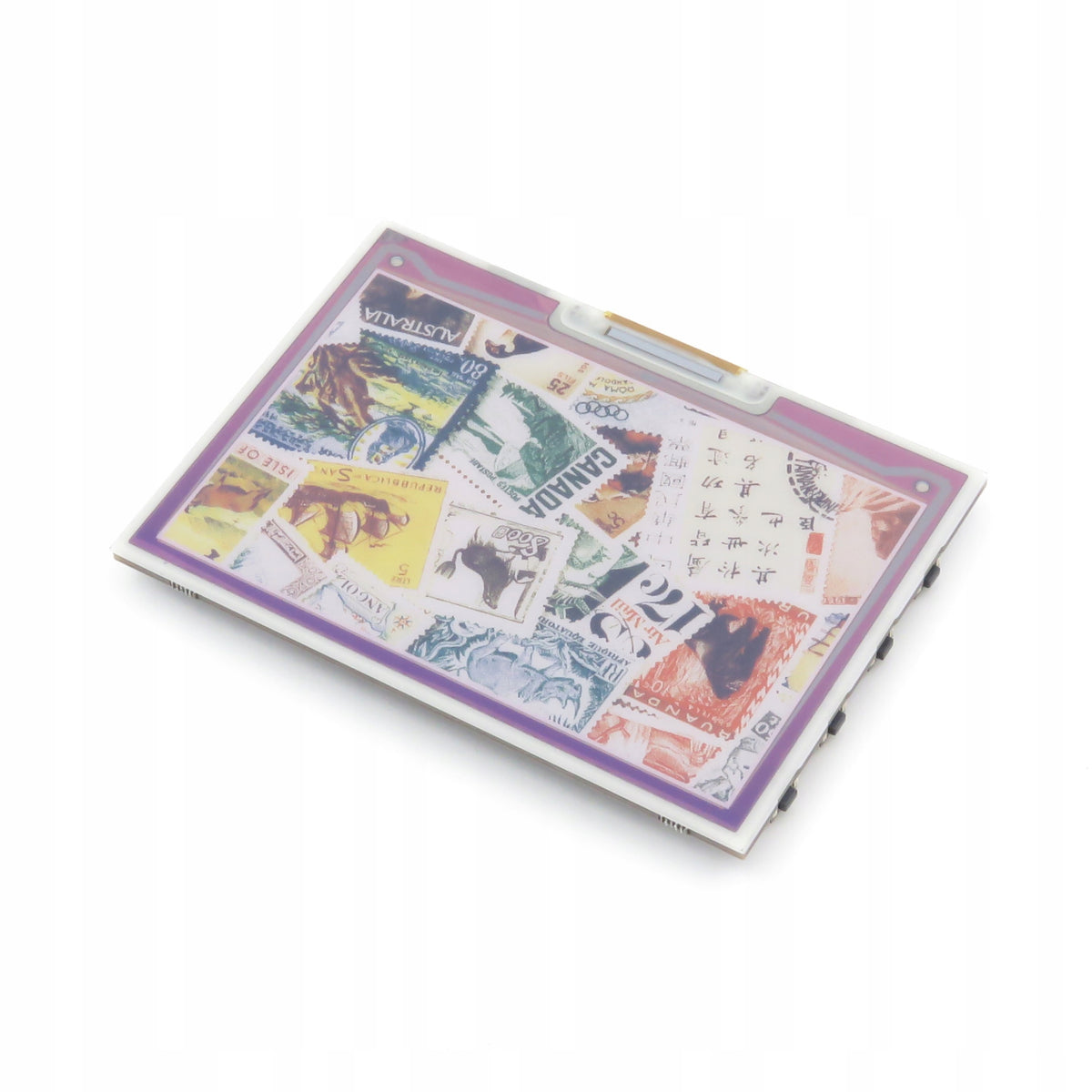

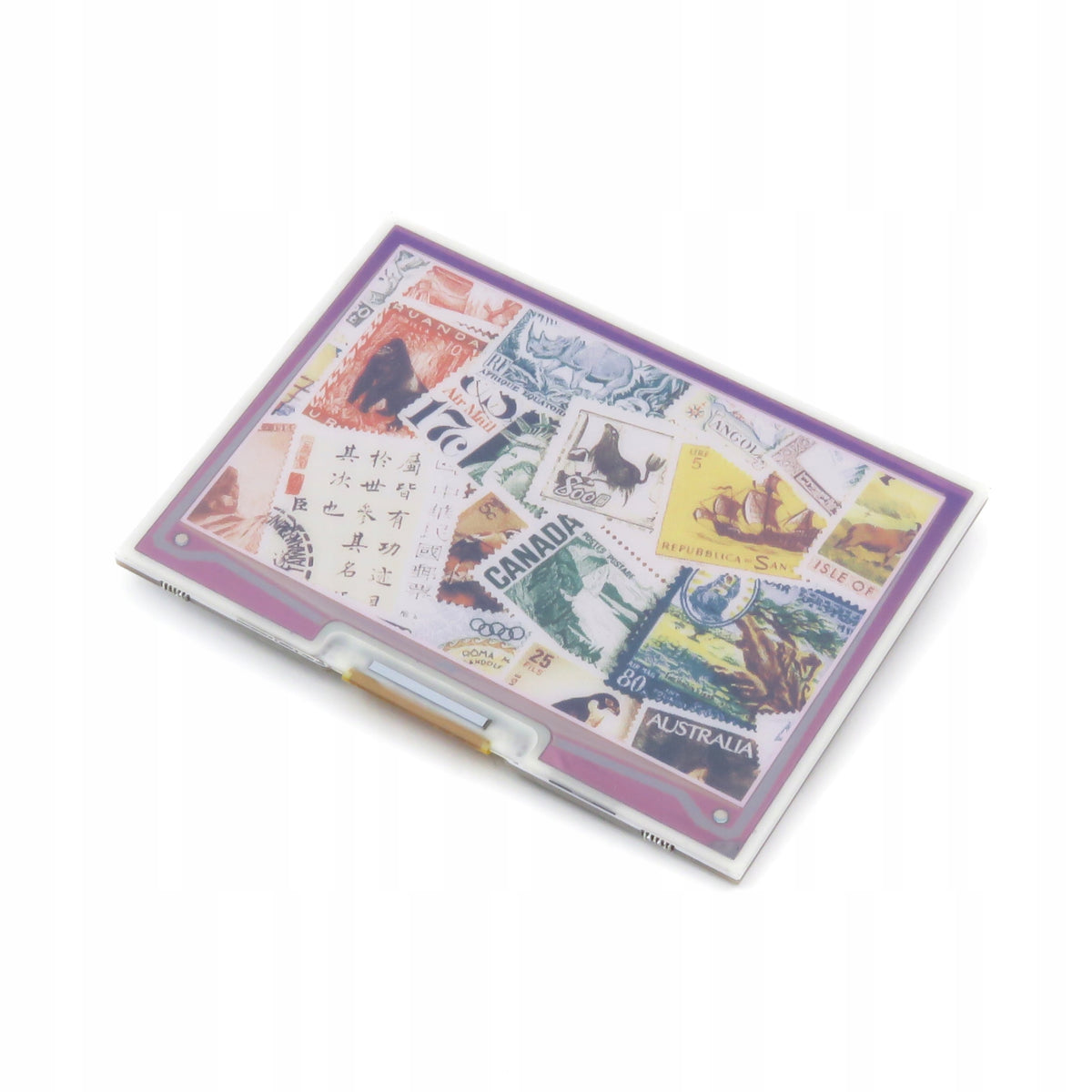

Inky Impression 4" - module with 7-color e-Paper 4" 640x400 display for Raspberry Pi
Description

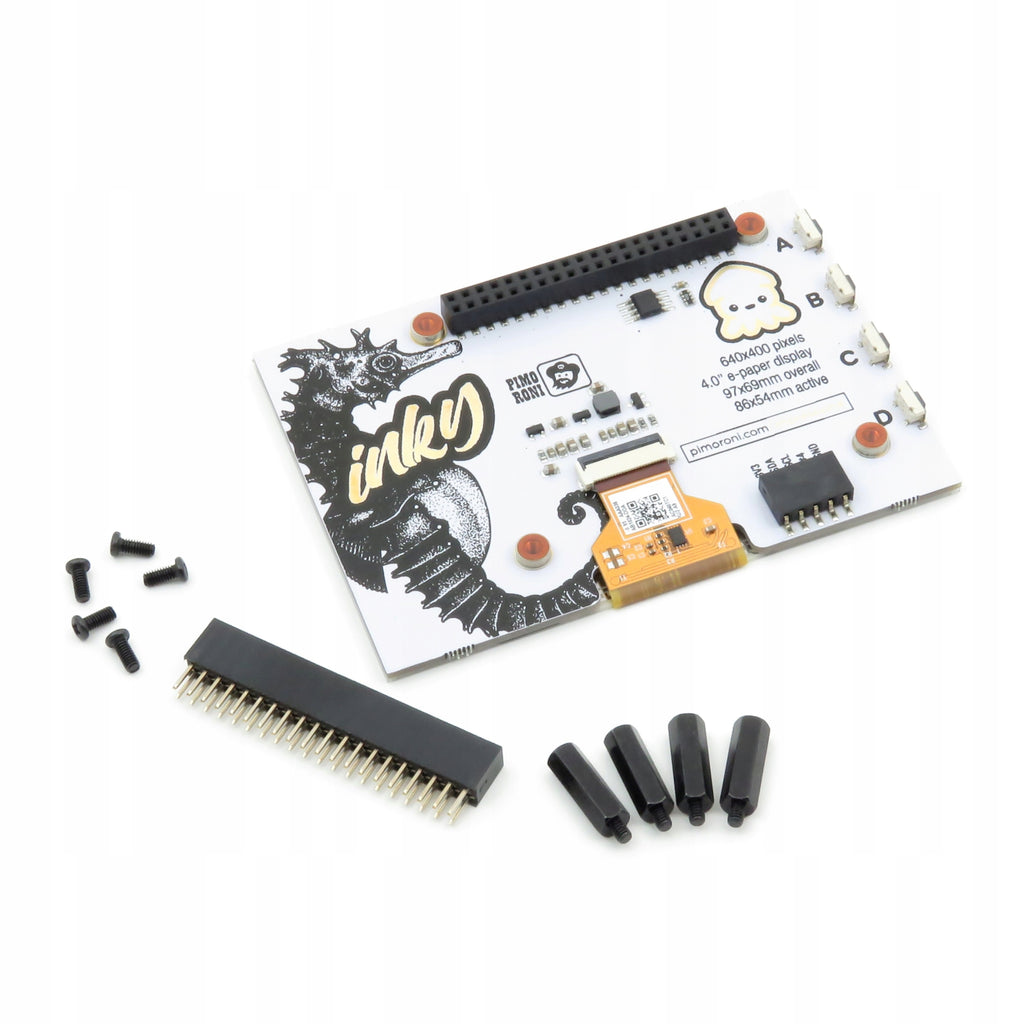

Module with 7-color 4" e-Paper display with a resolution of 640x400 px. It supports ACeP (Advanced Color ePaper) technology, and the built-in controller realizes communication via SPI interface. The e-Paper displays are characterized by high contrast of the displayed image and draw current only if the displayed content changes. The module has built-in 4 buttons located on the side of the display and a connector with an I2C interface for connecting additional elements. It is equipped with a 40-pin connector that allows you to connect the display to the Raspberry Pi. To operate the display, the manufacturer provides a library with an instruction manual available in the project's GitHub repository.
Properties
- Diagonal: 4"
- Resolution: 640x400 px
- Display Color: ACeP 7-Color
- Interface: SPI
- Pixel Size: 0,135 × 0,135
- Full refresh time: 15 s
- Power consumption: 50 mW
- Viewing angle: >170°
- No backlight, displays last content when power off
- Low energy consumption
- Display Size: 86 x 54 mm
- Module dimensions: 97 x 69 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | PIM600 |
| Parametry | Manufacturer | Pimoroni |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 769894020913 |
