Ekranas Waveshare 13.3″ e-Paper, 960×680

Trumpai apie prekę

Prekė: Ekranas Waveshare 13.3″ e-Paper, 960×680. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: Waveshare 27236

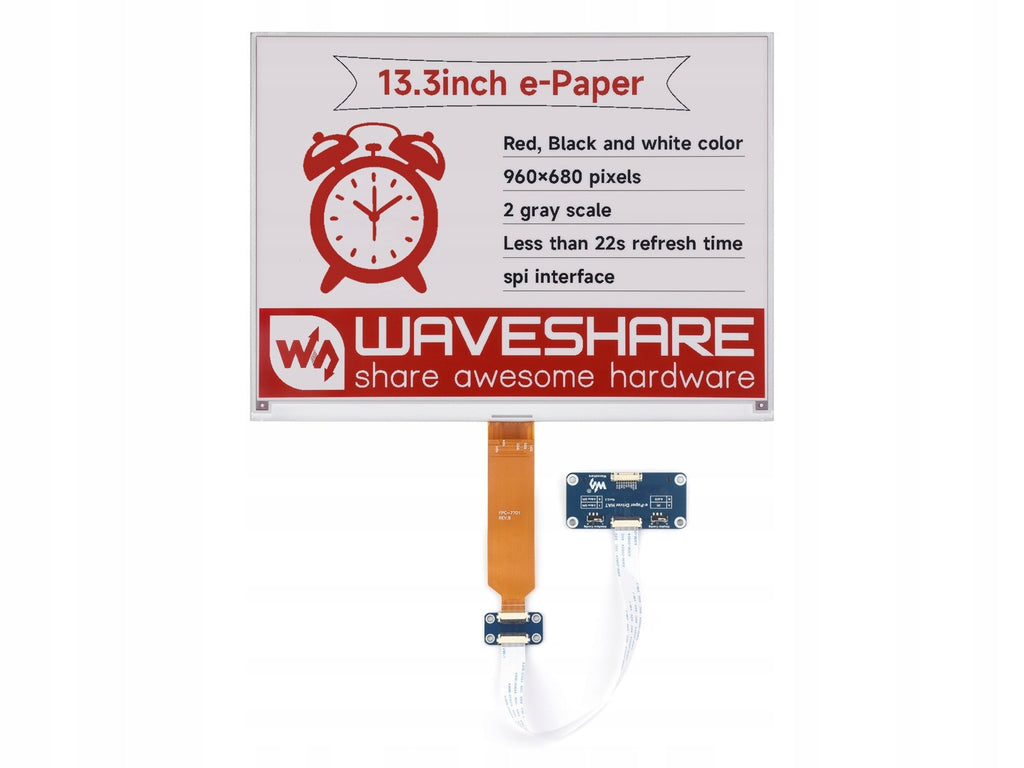

Display e-Paper (B) 13.3″ E-Ink 960×680 with HAT overlay for Raspberry Pi - Waveshare 27236

Description

Large three-color e-Paper display with a diagonal of 13.3" and a resolution of 960×680, equipped with a HAT driver compatible with Raspberry Pi. It supports full and partial refreshment, has a very low energy consumption and a wide viewing angle. Ideal for dynamic marking systems, information displays and industrial applications where readability in natural lighting is important.

Properties

• Diagonal: 13.3"
• Resolution: 960 × 680 pixels
• Colors: Red, Black, White
• Shades of Gray: 2
• Partial refresh support: yes (time ~2,9 s)
• Full refresh time: 22 s
• Interface: SPI (3- and 4-wire)
• Display dimensions: 286.32 × 212.26 × 1.20 mm
• Active Area: 275.52 × 195.16 mm
• Optical resolution: 0.287 mm
• Power consumption at refresh rate: ~75 mW
• Resting current: < 0.01 µA
• Viewing angle: >170°
• Supply Voltage: 3.3V/5V (via HAT module)

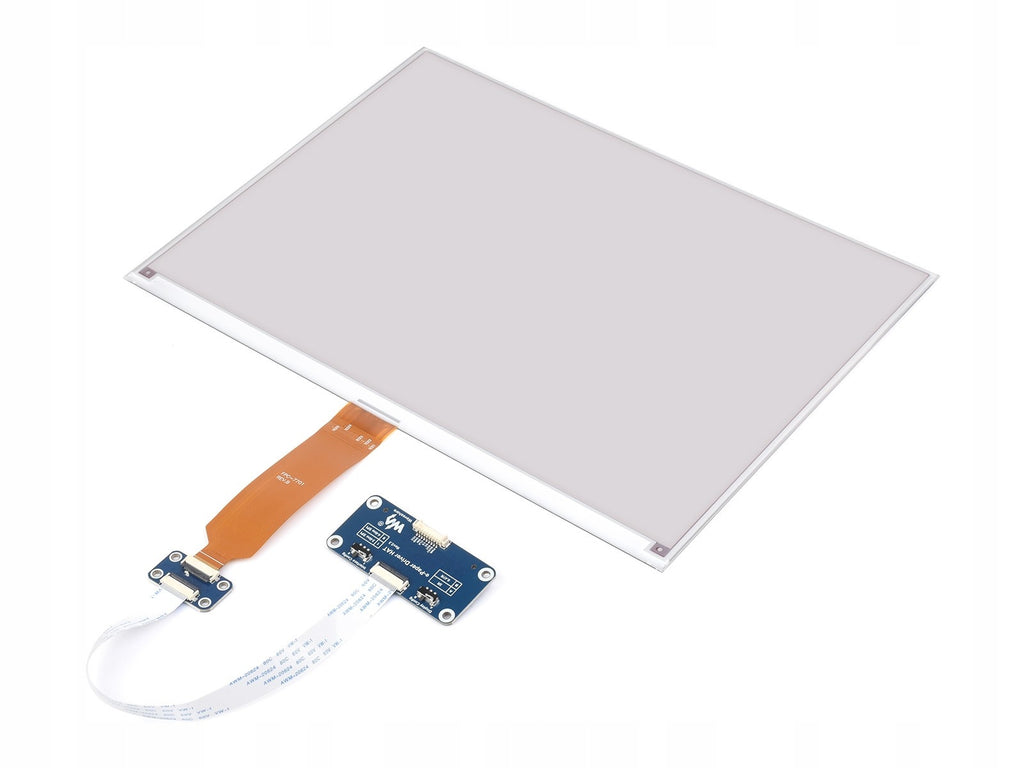

Comes with

• e-Paper Display 13.3" (B)
• e-Paper Driver HAT control unit
• Adapter Board
• FFC tape
• GH1.25 9PIN cable (approx. 20 cm)
• Set of mounting screws

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	Waveshare 27236
Parametry	Manufacturer	WaveShare
Parametry	Kind	Display
Parametry	EAN (GTIN)	5902186321120
