Trumpai apie prekę
Prekė: Ekranas E-Ink 2,9" 296x128, SPI. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 19408

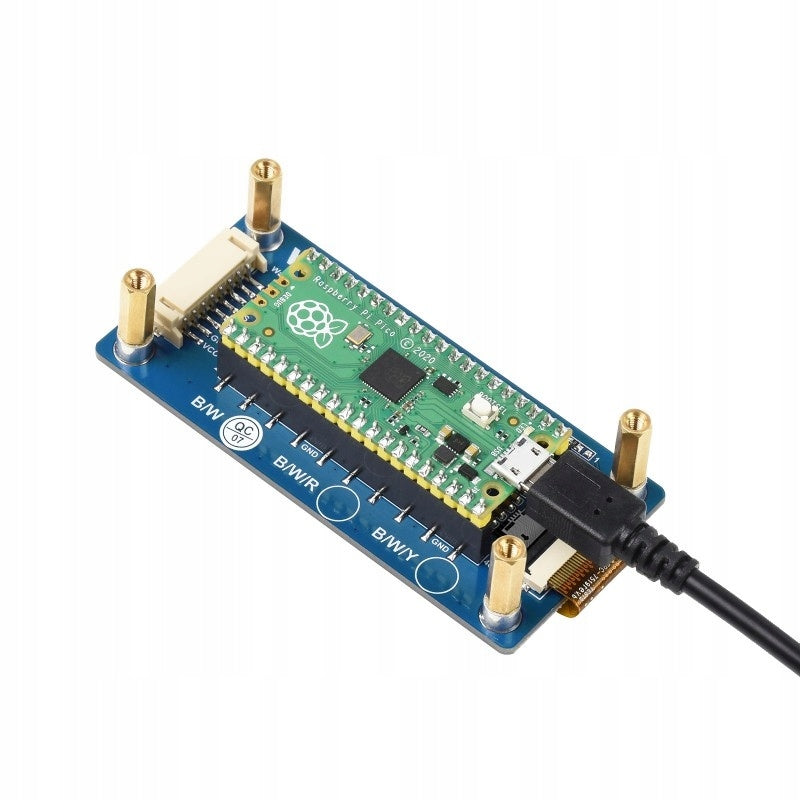

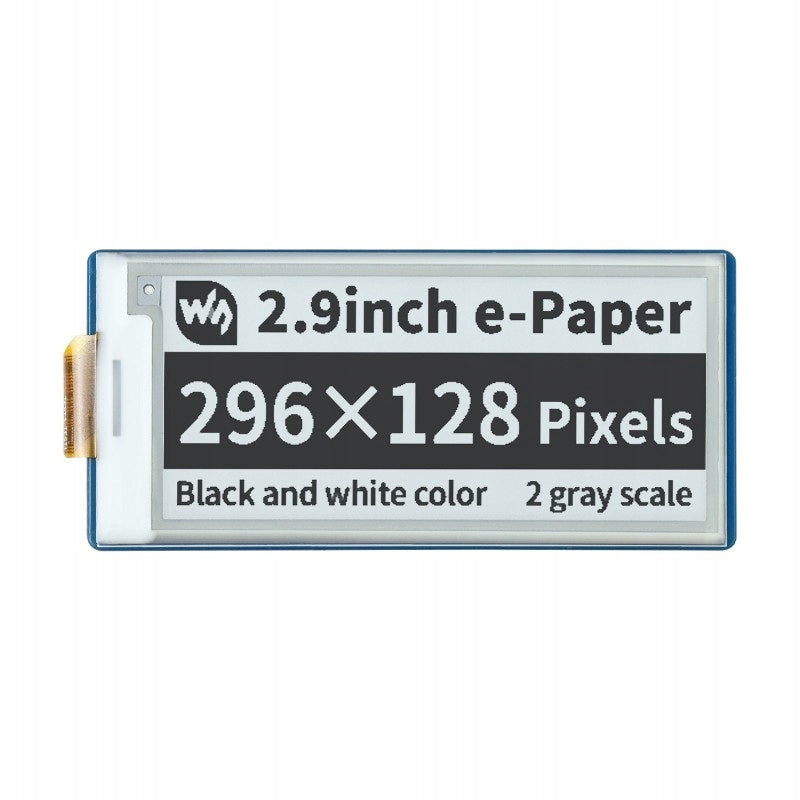

Another extension to Raspberry Pi Pico from Waveshare - display made in the technology e-paper. The diagonal of the screen is 2,9'', the resolution is 296 x 128 px, and the pixel size is 0,138 × 0,138. The picture is presented in two colors: black and white, with a grayscale of 2. The module is characterized by low power consumption and fast refresh time. It uses SPI buses to communicate with Raspberry Pi Pico.
Index: WSR-18992
Technical specification
- Compatible with: Raspberry Pi Pico
- Display Type: e-paper
- Operating Voltage: 3,3V / 5V
- Screen diagonal: 2,9''
- Resolution: 296 × 128 px
- Pixel size: 0,138 × 0,138
- Communication interface: 3-wire SPI, 4-wire SPI
- Displayed colors: black and white
- Grayscale: 2
- Partial refresh time: 0,3 s
- Full refresh time: 2 s
- Refreshing power: 26,4 mW
- Standby current: <0,01 µA (almost none)
- Viewing angle: >170°
- External dimensions: 82 x 38 mm
The photos shown in the auction gallery come from various Exhibitors. Only the pictures contained in the Description show the product we offer.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 19408 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5904422371814 |
| Parametry | Batteries included | no |
