Dvipusis automatinis 4T autoserviso keltuvas su alyva

Trumpai apie prekę

Prekė: Dvipusis automatinis 4T autoserviso keltuvas su alyva. Kategorija: Kolonų keltuvai.

• Gamintojas: TM-Group
• Modelis: SF-B4000ES

⭐ NOTE - LIMITED TIME PROMOTION ⭐

Only now our flagship lift model at a discounted price! There is a limit to promotional items.

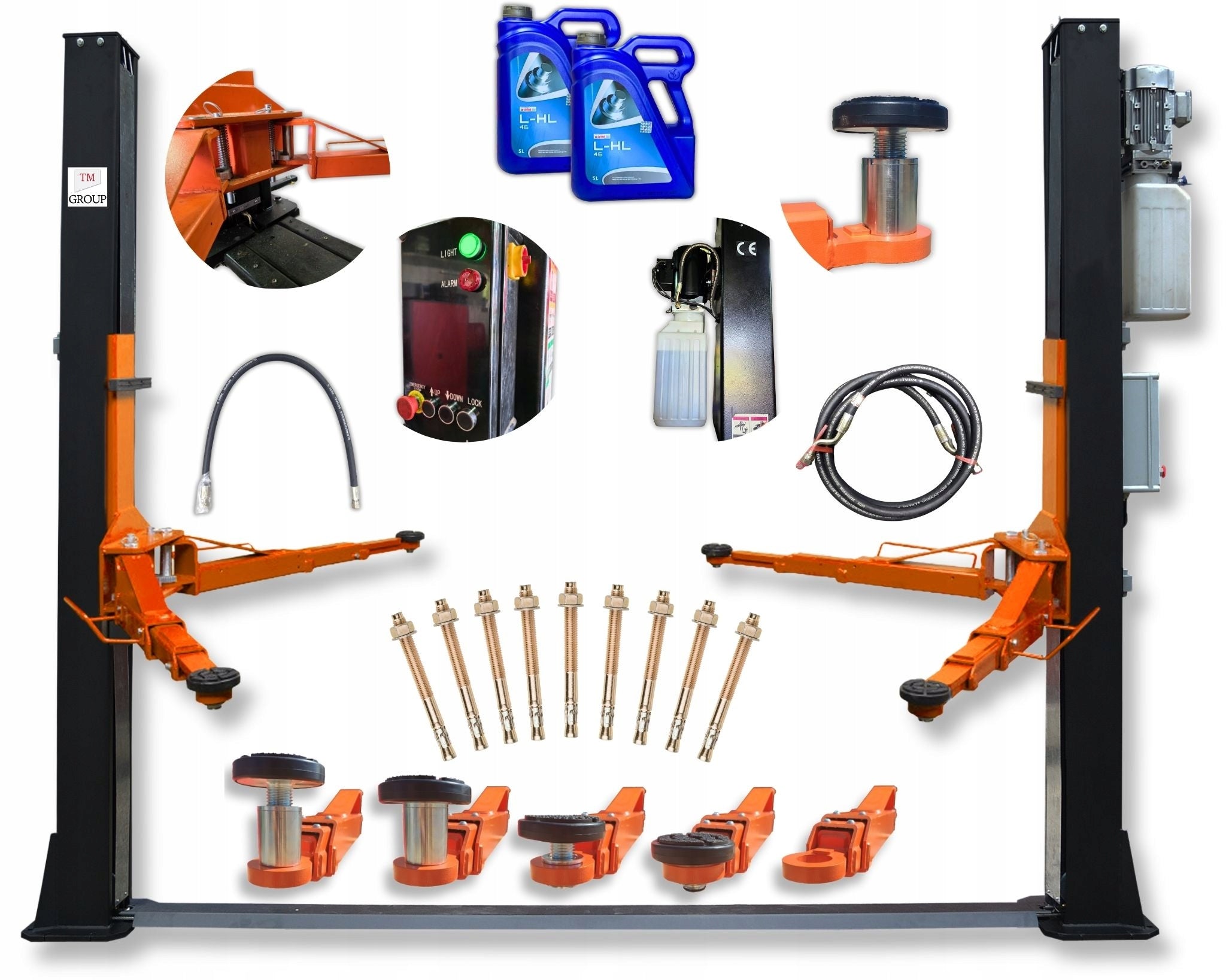

⭐ HIGH QUALITY OIL AND MOUNTING KIT INCLUDED

Specification:

✅ Producer: TM-GROUP

✅ Maximum lifting capacity: 4 tons

✅ Connection: Lower

✅ Power supply: 230V

✅ Lowering time: 30 seconds

✅ Lifting time: 40 seconds

✅ Lifting height: 10 - 196 cm

✅ Column base dimensions: 360 x 450 mm

✅ Thickness of the required floor: 30 cm

✅ Limit switch: Yes

✅ Pistons WZM, Engine M

✅ Engine power: 2,2 kW

✅ Telescopic Extended Lift Arms: Yes

✅ Arm length range: 760 - 1450 mm

✅ Anchors Included: Yes

✅ Meets UDT certification requirements: Yes

✅ Hydraulic oil 10L: included

✅ Dimensions (W x H): 3380 x 2824 mm

Is this lift for me❓

The two-column automatic lift is suitable for handling virtually any passenger car, from a 2-door coupe to large 4x4 off-road cars. The load capacity of 4000kg (4T) will also allow smaller vans to be lifted.

⭐ IS IDEAL FOR SITUATIONS WHEN WE DO NOT HAVE 3-PHASE POWER SUPPLY. WORK FROM AN ORDINARY OUTLET 230V⭐

In the case of powerless power supply, the lift is controlled from one column, so that controlling we do not have to walk around the lift. During installation, you can decide on which side to install the control box.

What about the scope of repairs ❓

Our lift is great for repairing suspension as well as cyanobacteria or gearbox. Of course, high lifting (over 195 cm) will allow you to make any inspection and even tall people work comfortably and are not limited by movement.

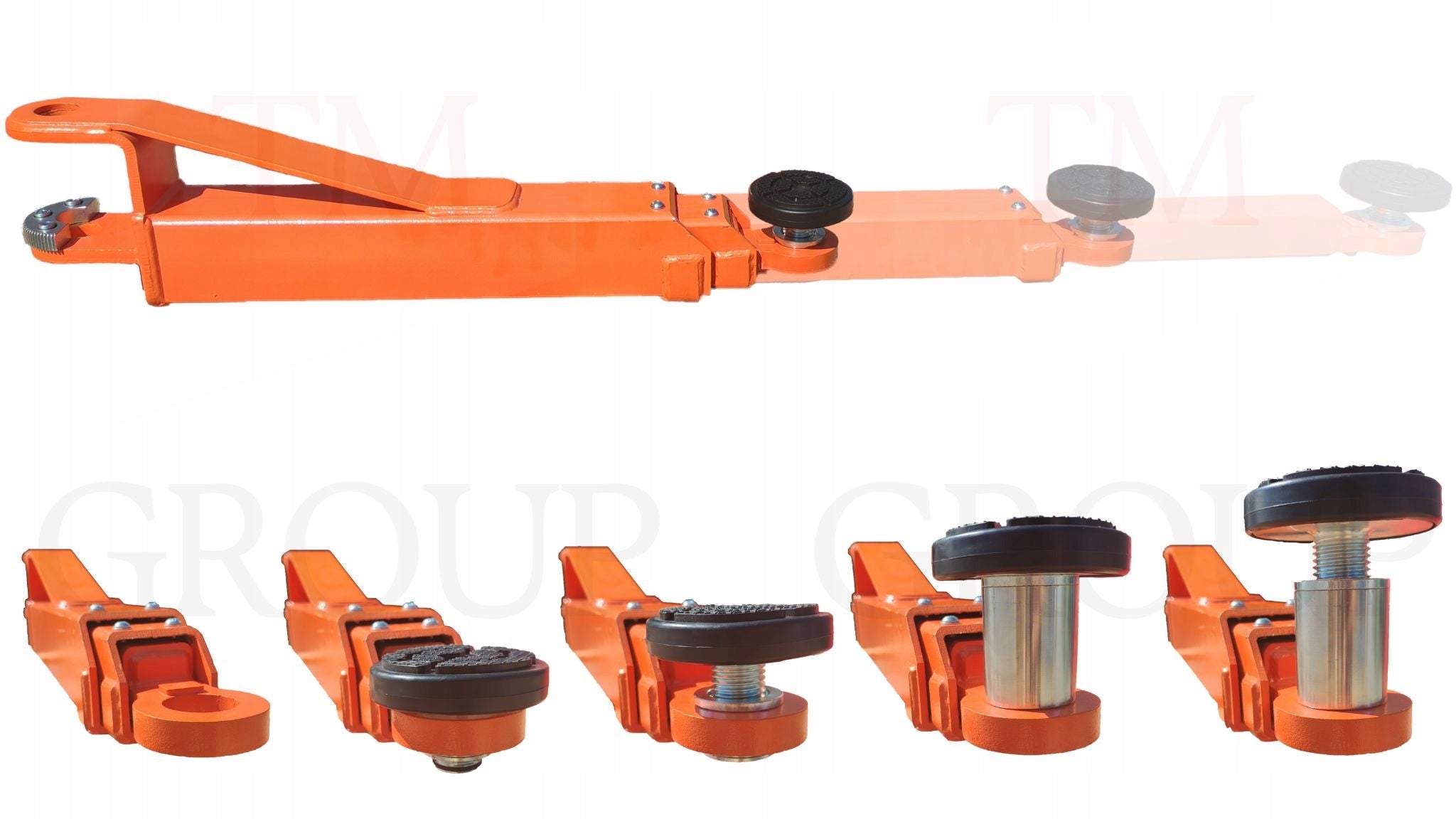

✅ Working range of TM-Group lift arms

The lift is equipped with three-stage arms. The arms allow for more stable lifting of the car in the range greater than two-stage counterparts.

The dimensions of the arms from our lift are included in the technical drawing below.

• Minimum range (hidden arm) - 760 mm
• maximum range of first extension - 1095 mm
• maximum range of the second extension - 1450 mm

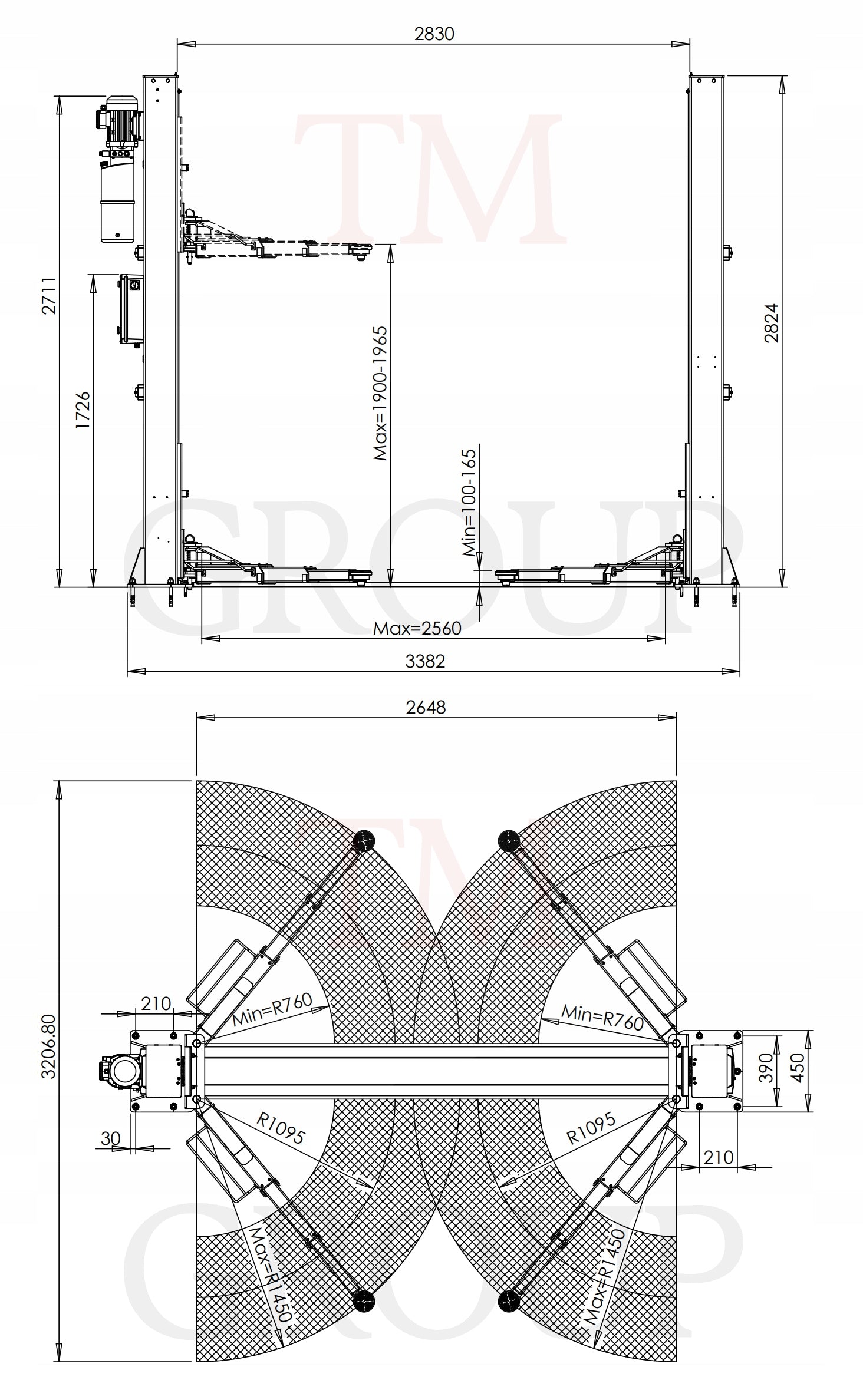

Technical drawing:

Substrate for lift:

Work safety is not only a great lift but also the ground under the lift, the correct attachment of the lift to a properly prepared floor is a key element in maintaining health and safety rules

There are 2 methods of preparing the substrate for the 4T two-column lift:

Uniform Plate Method:

• substrate area 1,6 - 2,0 m x 4 m x 30 cm
• maximum flat surface
• minimum thickness of the foundation slab: 30 cm
• minimum concrete class C20/25 (formerly called B25)
• 28 days, waiting time for the floor to dry and harden (in the case of a fresh spout)
• The floor must be in the form of a homogeneous concrete slab, with the above-mentioned parameters.
• cross reinforcement, minimum bar ⌀8

Method of Concrete Poles:

• substrate area 2 sloops measuring 1 m x 1 m 1 m
• maximum flat surface
• minimum concrete class C20/25 (formerly called B25)
• 28 days, waiting time for the floor to dry and harden (in the case of a fresh spout)
• double-row reinforcement, minimum bar ⌀8

1. Column Curtain
2. Height limiter
3. Two-stage screw-on washers
4. Rubber protection against door abrasion
5. Reinforcement of lift arms
6. Control valve

Documentation:

The lift is delivered with the necessary documentation to be provided when registering with the Office of Technical Inspection:

✅ Declaration of conformity with CE certificate

✅ User manual in Polish

In the case of transport by courier:

The lift is sent on a transport rack, which ensures safe transport.

Approximate transport dimensions (due to the fact that one package may slightly differ from the other):

• Length: 294 cm
• Height: 75 cm
• Width: 43 cm
