Dvipostis keltuvas RAVAGLIOLI KPX35, reguliuojamas dirbtuvėms

Trumpai apie prekę

Prekė: Dvipostis keltuvas RAVAGLIOLI KPX35, reguliuojamas dirbtuvėms. Kategorija: Kolonų keltuvai.

• Gamintojas: Ravaglioli
• Modelis: KPX35.199010

The company RAVAGLIOLI SpA was established in 1958 in Italy as a manufacturer of equipment for car workshops, both for passenger cars and commercial vehicles.Since 2015, it has been one of the world’s leading companies in the workshop equipment industry.leading European manufacturer of lifts and one of the main manufacturers of tire testing equipment.The company has a distribution network covering more than 150 countries around the world,including branches in the United States, United Kingdom,Germany , France , Belgium and Spain . The equipment is characterized primarily by high quality workmanship and reliability. Its main products currently include car lifts, wheel balancers, and tire changers.

2 column lifter Ravaglioli KPX35 designed for taking passenger vehicles, SUVs, off-road vehicles and vans weighing up to 3500 kg. ,wide 2700

New series : LEGEND SERIS

The design of the lift allows free access to the interior of the vehicle. The lift has electronic trolley synchronization. It is equipped with a new screw system

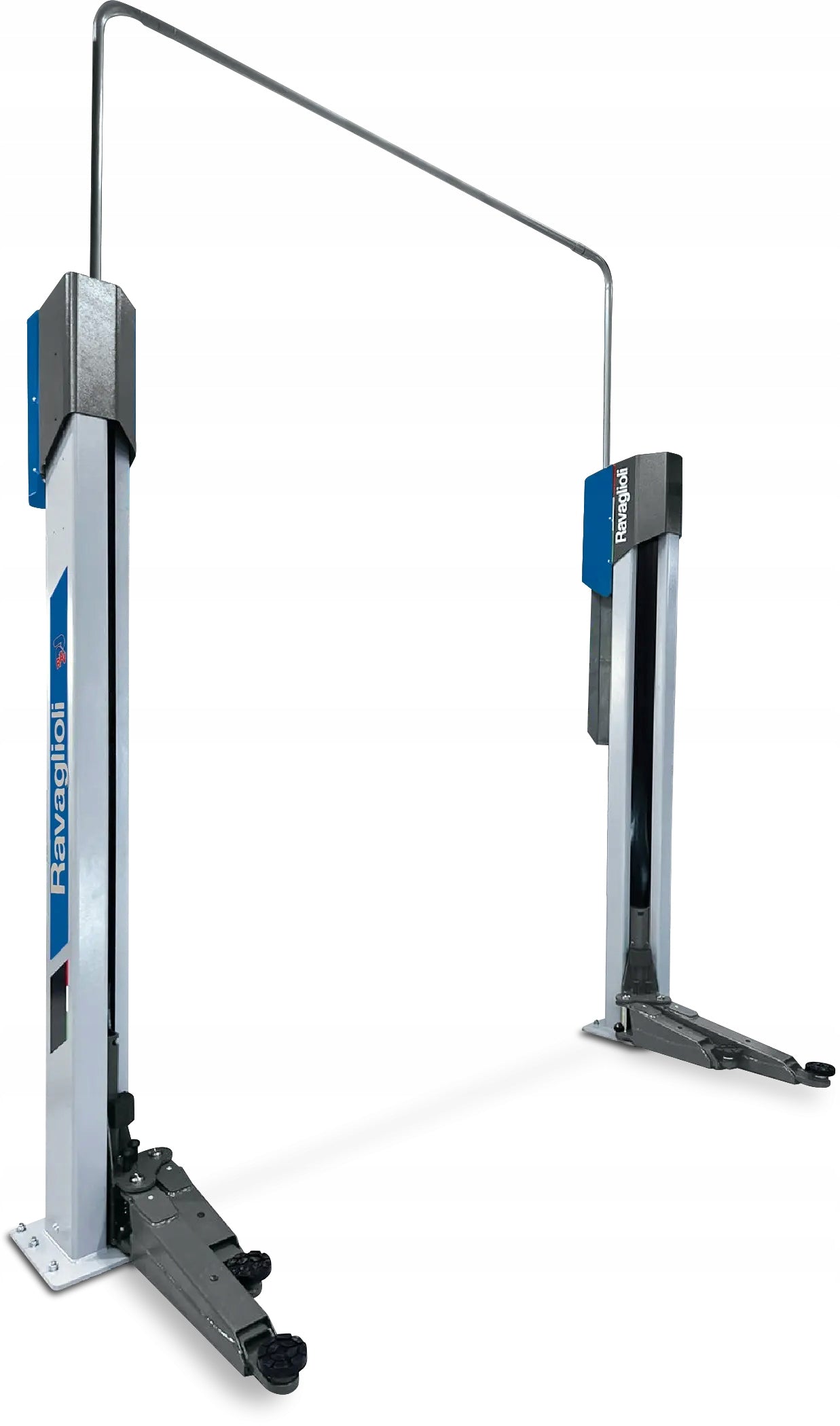

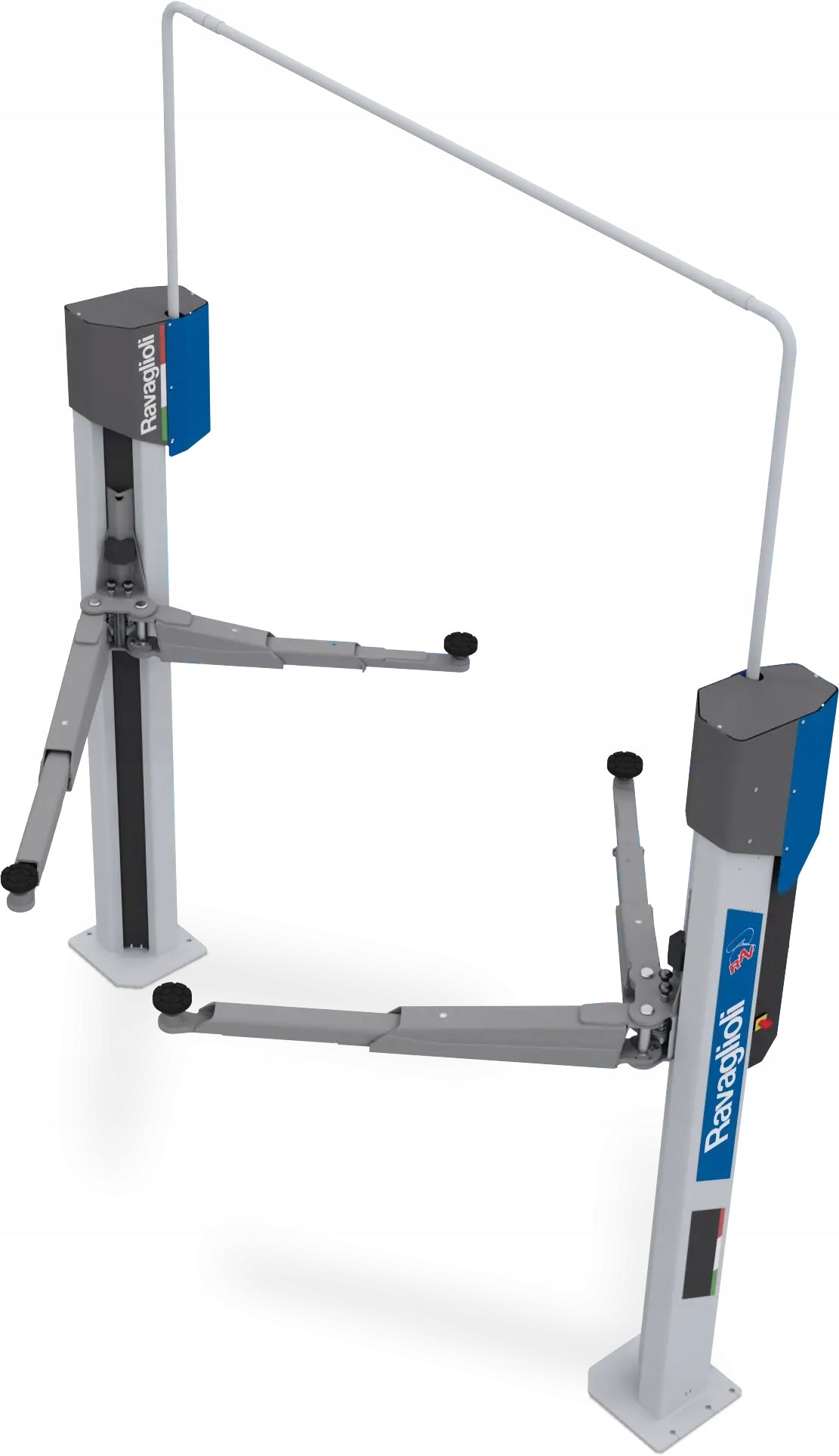

Two-column screw lifter RAVAGLIOLI KPX35 3.5T - asymmetrical columns

Ravaglioli electro-mechanical two-post screw jack from the legendary KPX series. It has an extremely ergonomic design that makes it easy to work with vehicles of various types - from passenger cars to light commercial vehicles.

RAVAGLIOLI KPX35 - Characteristics

• Arm geometry designed to lift from small cars to sedans with long wheelbase
• Easy door opening - the vehicle can be rear-mounted without worrying about damage to the vehicle itself
• Easier to get in and out of the vehicle
• More convenient access to the vehicle OBD connector in case of the need to connect a diagnostic computer

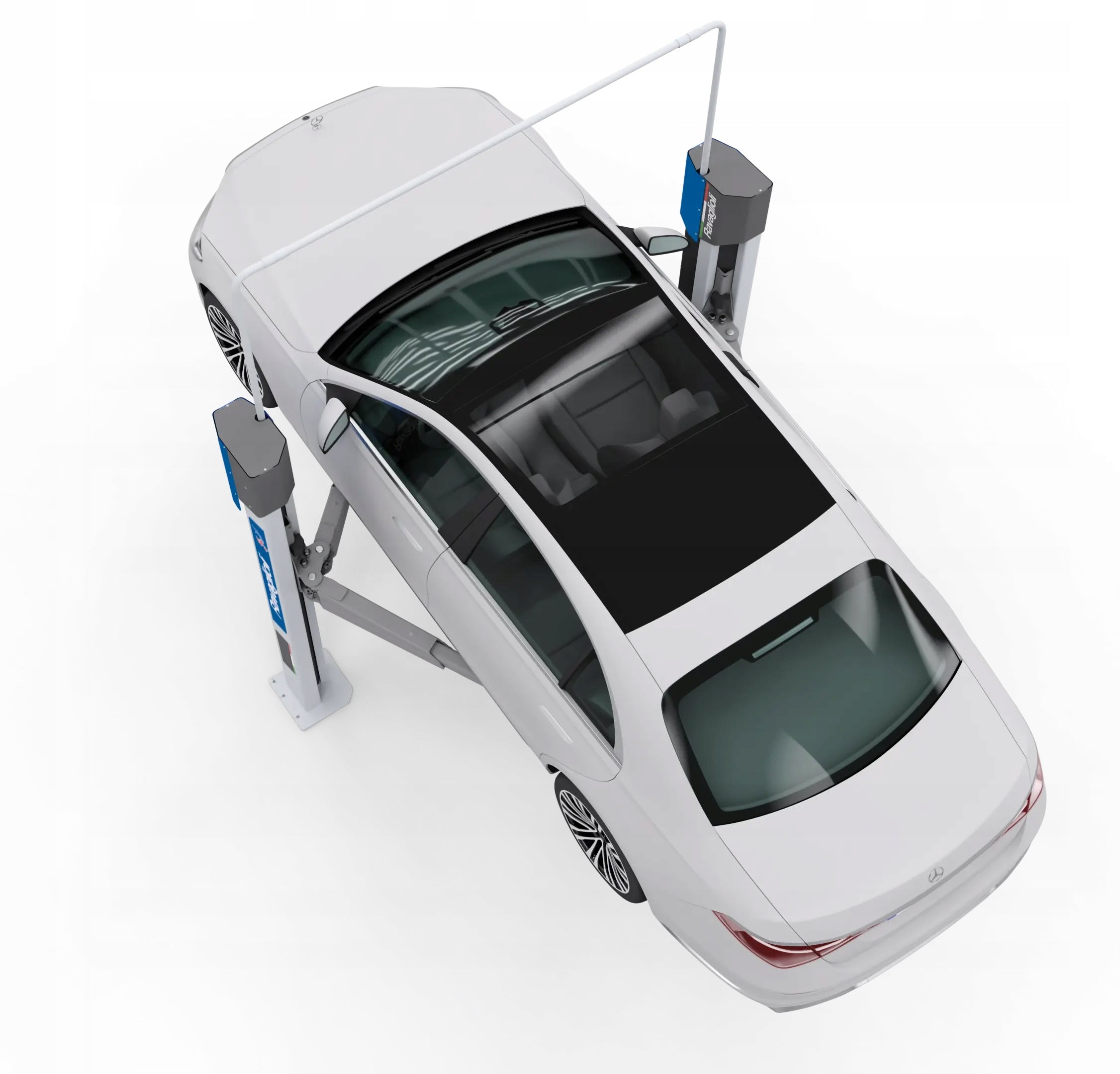

• Thanks to the asymmetrical column design, the working areas of the arms overlap, providing great flexibility and saving time when lifting the vehicle
• Asymmetrical setting with columns set at an angle of 45°
• More space - the lift is designed to have the same overall width as a standard lift, but with a larger pass width
• Quick setting of the car - the operator has a wide cargo space at his disposal, without having to push the vehicle to find the right lifting position

RAVAGLIOLI KPX35 - Technical data

• Two-column lift KPX35 - technical data:
• lifting capacity: 3500 kg
• max. height Lifting: 2000 mm
• min. / max. support height: 100 / 150 mm
• min. ceiling height: 4150 mm
• 3-piece asymmetric front arms: 564 - 1160 mm
• 2-piece asymmetrical rear arms: 922 - 1460 mm
• max. lift width: 3250 - 3350 mm
• max. lift height: 4052 mm
• Engine power: 2x3,5 kW
