Dvipostis keltuvas RAVAGLIOLI KPS327LH CARDAN, 3200 kg, Italija

Trumpai apie prekę

Prekė: Dvipostis keltuvas RAVAGLIOLI KPS327LH CARDAN, 3200 kg, Italija. Kategorija: Keltuvai stulpams.

• Gamintojas: Ravaglioli
• Modelis: KPS327LH

2-column lift RAVAGLIOLI KPS327LH

• Lifting capacity 3200kg

Two-column lift, screw, electro-mechanical RAVAGLIOLI KPS327LH combined with a frame, designed for undertaking passenger vehicles, SUV, off-road and delivery with a weight of up to 3200 kg and increased distance between columns.

Features of the device:

• Electromechanical lift with one motor

• Cardan shaft drive transfer with maintenance-free transmission

• Four two-piece arms with a range of 820 mm & 1200 mm

• Support and safety nuts made of bronze

• Rolled steel screws for long life

• Automatic arm lock when lifting

• Automatic lubrication system for load-bearing nuts

• Height adapters with smooth adjustment from 95 mm to 135 mm

• Small base dimensions for easy access to the work area

• Safety devices according to EN1493:2010

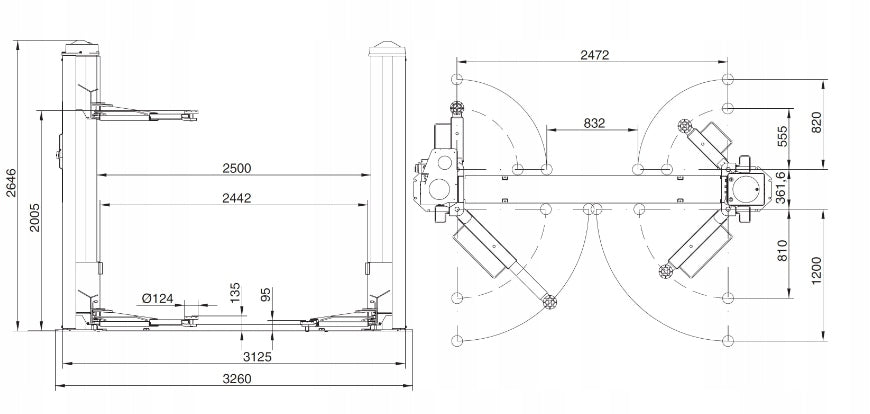

Technical data:

• LIFTING CAPACITY: 3200 kg

• POWER SUPPLY: 400V/50Hz

• ENGINE POWER : 3,5 kW

• LIFTING HEIGHT: 2005 mm

• LOWEST HEIGHT: 95 mm

• CLEARANCE : 2500 mm

• NOISE LEVEL : <78 ±2 dB (A)

• WEIGHT: 555 kg

Ravaglioli is a renowned company specializing in the production and distribution of equipment and equipment for the automotive industry, especially in the field of vehicle maintenance and repair equipment. The company has a rich heritage, dating back over 60 years of experience in the industry, making it one of the world’s leading suppliers in its field.

The main products offered by Ravaglioli include a wide range of vehicle servicing equipment and tools, including car lifters, assemblies and balancers for wheels, convergence meters, diagnostic systems, hydraulic presses, camera and radar calibration devices, and many other accessories and tools.
