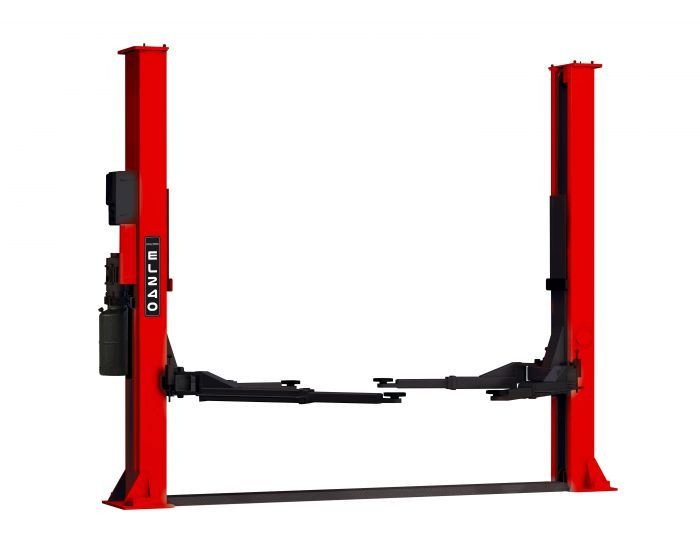

Dvipostė automatinė elektrohidraulinė keltuvas 4T INVENTO EL240

Trumpai apie prekę

Prekė: Dvipostė automatinė elektrohidraulinė keltuvas 4T INVENTO EL240. Kategorija: Keltuvai stulpams.

• Gamintojas: Invento
• Modelis: INVEL240

INVENTO EL240 is an automatic electrohydraulic lift with a lifting capacity of 4000 kg. Adjustable arms from 740 to 1310 mm in length allow you to handle passenger cars, SUVs and smaller commercial vehicles.

The two-column design provides easy access to the wheels and chassis, making it easy to perform a variety of service tasks.

🛡 Security and CE Compliance

The lift is equipped with the protection required in the CE documentation. The automatic height lock is electromagnetically controlled, which facilitates the protection and release of the mechanism.

The movement of both sides of the lift synchronizes the steel cable guided under a low cover between the columns. Technicians performing the installation of the device have UDT licenses.

⚙ Key information

• Lifting capacity: 4000 kg
• Maximum lifting height: 1900 mm
• Adjustable arm length: 740 – 1310 mm
• Automatic electromagnetic controlled locks
• Synchronization with steel cable
• Low threshold between columns
• 80 mm extension adapters as standard
• Electrohydraulic drive
• Transport included in the price

🚗 Use in the workshop

INVENTO EL240 is designed for lifting:

• passenger cars,
• SUVs,
• off-road vehicles,
• smaller commercial vehicles.

The maximum width of the vehicle supported is 2580 mm, and the distance between the columns is 2810 mm.

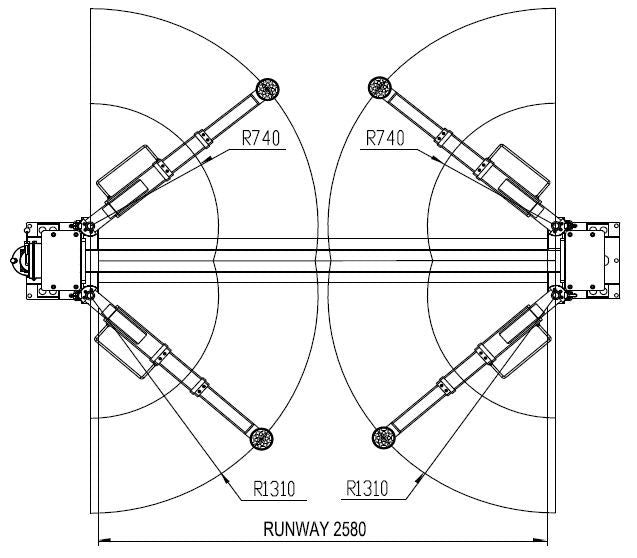

🔧 Adjustable arms

The length of the arms can be adjusted from 740 to 1310 mm. This allows you to adjust the support points to vehicles with different chassis designs and wheelbases.

⬆ 80 mm extension adapters

The standard equipment includes adapters with a height of 80 mm. They facilitate the support of off-road vehicles, SUVs and commercial vehicles with higher lifting points.

🏢 Working and assembly conditions

The lift is designed for installation in indoor, enclosed rooms free from obstacles. The permissible operating temperature is from -10°C to 40°C.

The price does not include the installation of the device.

🧱 Preparation of the substrate

Installation of the lift requires a substrate of the appropriate concrete class and thickness. Two options for preparing the position are foreseen.

Option 1

• Concrete class: minimum C20/25
• Minimum substrate thickness: 150 mm
• Required mounting area: 1,5 m from anchorage

Option 2

• Concrete class: minimum C20/25
• Minimum substrate thickness: 250 mm
• Foundation plate: 4000 × 2000 mm

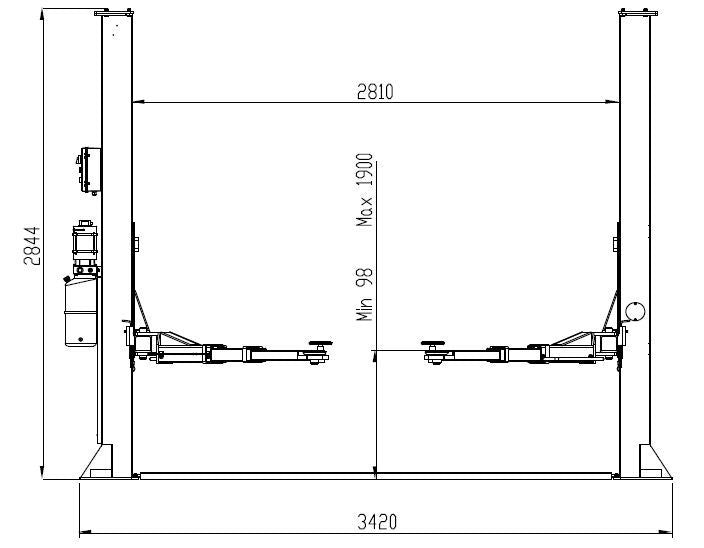

📊 Technical data

• Model: INVENTO EL240
• Type: electrohydraulic two-column lift
• Lifting capacity: 4000 kg
• Maximum lifting height: 1900 mm
• Minimum height: 98 mm
• Arm length: 740 – 1310 mm
• Column height: 2844 mm
• Width between columns: 2810 mm
• Maximum width of the vehicle: 2580 mm
• Overall width: 3420 mm
• Lifting time: 60 s
• Power supply: 400 V, 50 Hz
• Power: 2,6 kW
• Operating temperature: -10°C to 40°C
• Adapters included: 80 mm

The INVENTO EL240 combines a lifting capacity of 4 tons, adjustable arms and a compact minimum height. It is a functional equipment of a workshop servicing passenger cars, SUVs and smaller commercial vehicles.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Invento
Parametry	Manufacturer code	INVEL240
Parametry	EAN (GTIN)	5904533331516
Parametry	Number of columns	2
Parametry	Drive	electrohydraulic
Parametry	Column connection	bottom
Parametry	Overall width	3420 mm
Parametry	Overall height	2844 mm
Parametry	Total length	1310 mm
Parametry	Power supply	400 V
Parametry	Lifting capacity	4000 kg
Parametry	Minimum lifting height	98 mm
Parametry	Maximum lifting height	1900 mm
