Dvigubas stulpinis keltuvas Ravaglioli PX32, 3200 kg, CE sertifikatas

Trumpai apie prekę

Prekė: Dvigubas stulpinis keltuvas Ravaglioli PX32, 3200 kg, CE sertifikatas. Kategorija: Keltuvai stulpams.

• Gamintojas: Ravaglioli
• Modelis: KPX32

The 2-column lifter Ravaglioli KPX32 is designed for passenger vehicles, SUVs, off-road vehicles and commercial vehicles weighing up to 3200 kg. ,wide 2700

New series : LEGEND SERIS

Lift design for free access to the interior of the vehicle. The lift has electronic synchronization of trolleys. It is equipped with a new screw system

Two-column screw lifter RAVAGLIOLI KPX32 3.2T - asymmetrical columns

Electro-mechanical, two-column screw lift Ravaglioli from the legendary KPX series. It has an extremely ergonomic design that makes it easy to work with vehicles of various types - from passenger cars to light commercial vehicles.

RAVAGLIOLI KPX32 - Characteristics

• Arm geometry designed to lift from small cars to sedans with long wheelbase
• Easy door opening - the vehicle can be rear-mounted without worrying about damage to the vehicle itself
• Easier to get in and out of the vehicle
• More convenient access to the vehicle OBD connector in case of the need to connect a diagnostic computer
• Thanks to the asymmetrical column design, the working areas of the arms overlap, providing great flexibility and saving time when lifting the vehicle
• Asymmetrical setting with columns set at an angle of 45°
• More space - the lift is designed to have the same overall width as a standard lift, but with a larger pass width
• Quick setting of the car - the operator has a wide cargo space at his disposal, without having to push the vehicle to find the right lifting position

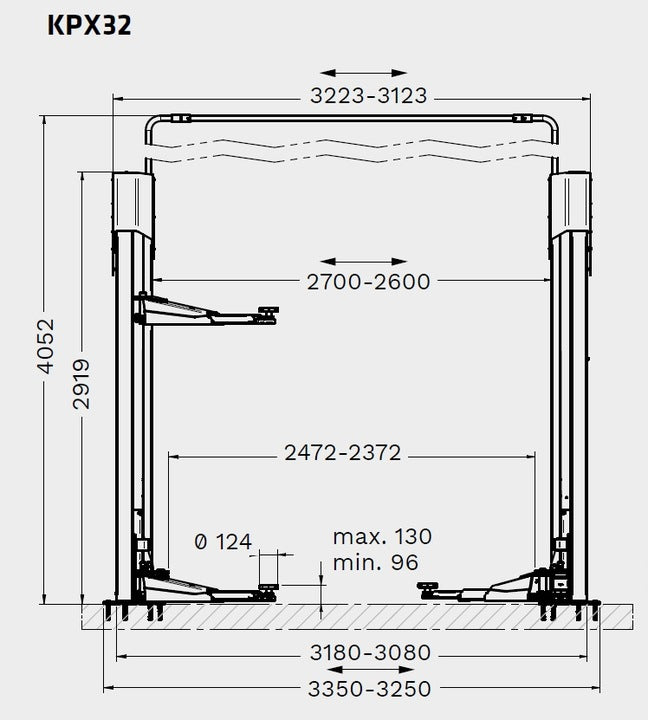

Technical data

• lifting capacity: 3200 kg
• max. H. Lifting: 2000 mm
• min. / max. support height: 96 / 130 mm
• travel width: 2372 - 2472 mm
• min. ceiling height: 4150 mm
• 3-piece asymmetric front arms: 555 - 1100 mm
• 2-piece asymmetrical rear arms: 805 - 1200 mm
• max. lift width: 3250 - 3350 mm
• max. lift height: 4052 mm
• Engine power: 2x3,5 kW

Ravaglioli is a renowned company specializing in the production and distribution of equipment and equipment for the automotive industry, especially in the field of vehicle maintenance and repair equipment. The company has a rich heritage, dating back over 60 years of experience in the industry, making it one of the world’s leading suppliers in its field.

The main products offered by Ravaglioli include a wide range of vehicle servicing equipment and tools, including car lifters, assemblies and balancers for wheels, convergence meters, diagnostic systems, hydraulic presses, camera and radar calibration devices, and many other accessories and tools.
