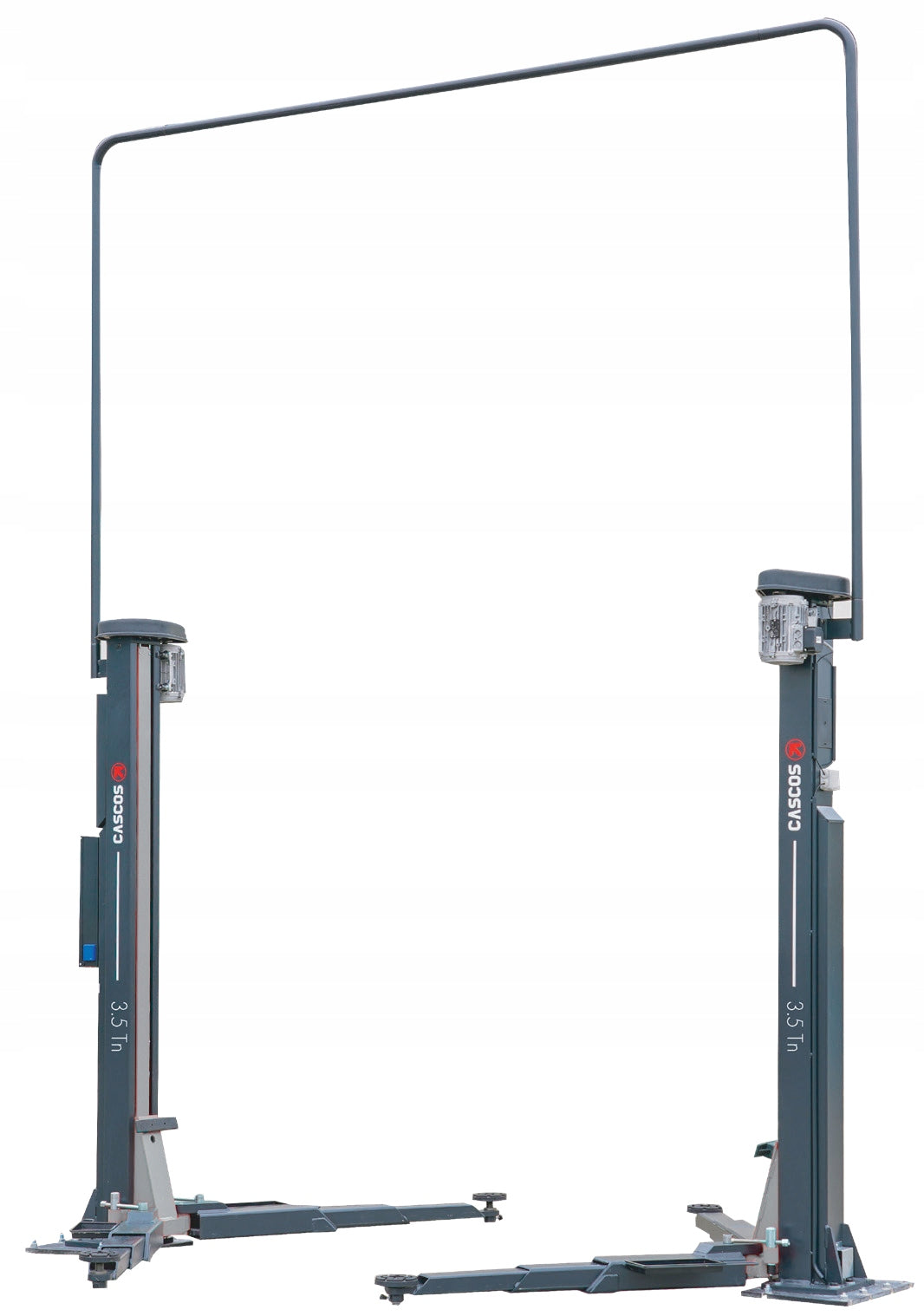

Dviejų kolonų keltuvas CASCOS C3.5S, 3,5T

Trumpai apie prekę

Prekė: Dviejų kolonų keltuvas CASCOS C3.5S, 3,5T. Kategorija: Kolonų keltuvai.

• Gamintojas: CASCOS
• Modelis: CS-001-0001

Professional electromechanical two-column lift designed for vehicles weighing up to 3500 kg. The device is equipped with symmetrical, three-stage arms for a wide range of supported vehicles and full flexibility of setting.

Solid construction and modern technical solutions make the lift ideal for car workshops, mechanical services and vehicle inspection stations.

Basic advantages

• Durable construction of columns made on the basis of two solid steel catheters
• Three-stage symmetrical arms – the possibility of entering the vehicle from any side
• Possibility of mounting the main column on the left or right side
• Arm lock system for positioning at any point (without jump lock)
• Lifting capacity 3,5 tonnes approved for each position and arm spread
• 45 mm diameter support screw for reduced component wear and precise height setting
• Electronic lifting synchronization system for both trolleys
• Fully automatic electronic control and information system ILC with the possibility of communication with the mobile application
• Roller skates instead of traditional slides – increased durability
• Metal Column Interior Covers
• Rubber door protectors
• Shoulder Mounted Tool Trays
• Foundation slabs for precise positioning of columns on the floor

Technical data

• Lifting capacity: 3500 kg

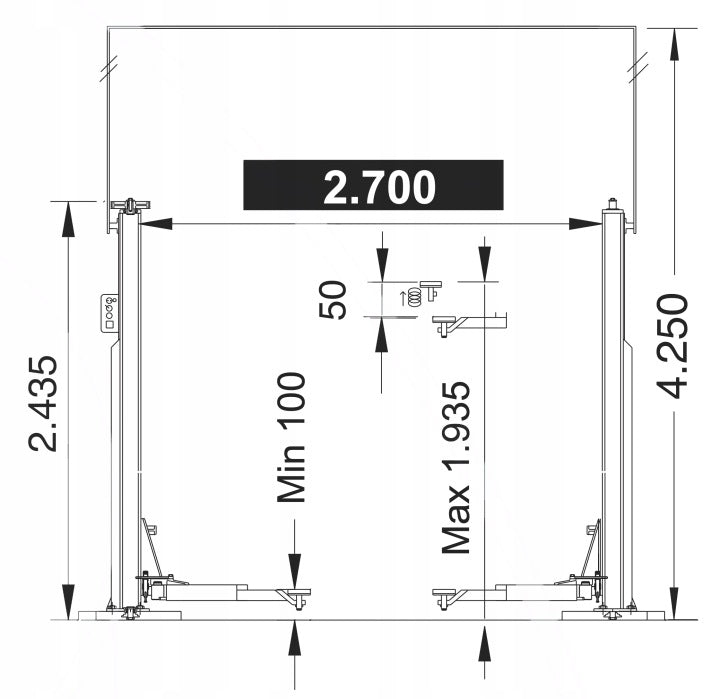

• Lifting height: 1935 mm
• Minimum height of support points: 100 mm
• Overall height with headband: 4250 mm
• Column height: 2435 mm
• Column spacing: 2700 mm

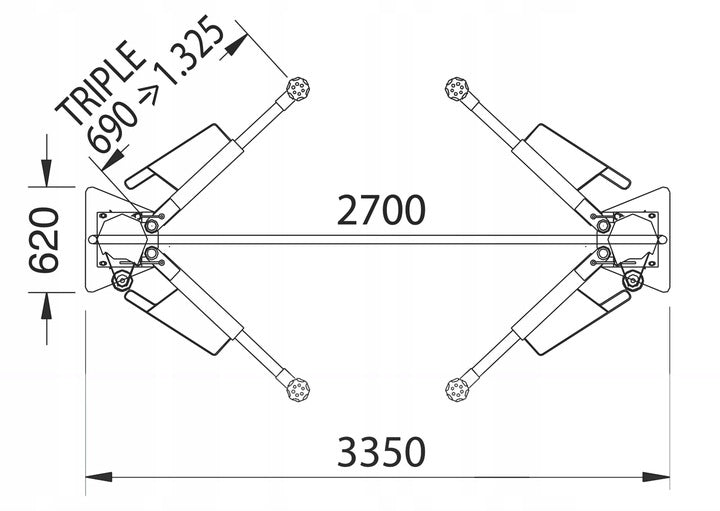

• Arm range (3-degree): 690 – 1019 – 1325 mm
• Engine: 2 x 3 kW
• Power supply: 400 V (3 phases, 50 Hz)
• Lifting time: about 45 seconds
• Lift weight: 660 kg

Why choose Best Products?

Each device has a in Polish, which makes it easy to install and use. It is possible to use professional advice to choose the right equipment for the needs of the workshop. We focus on clear terms of cooperation and reliable service at every stage.
