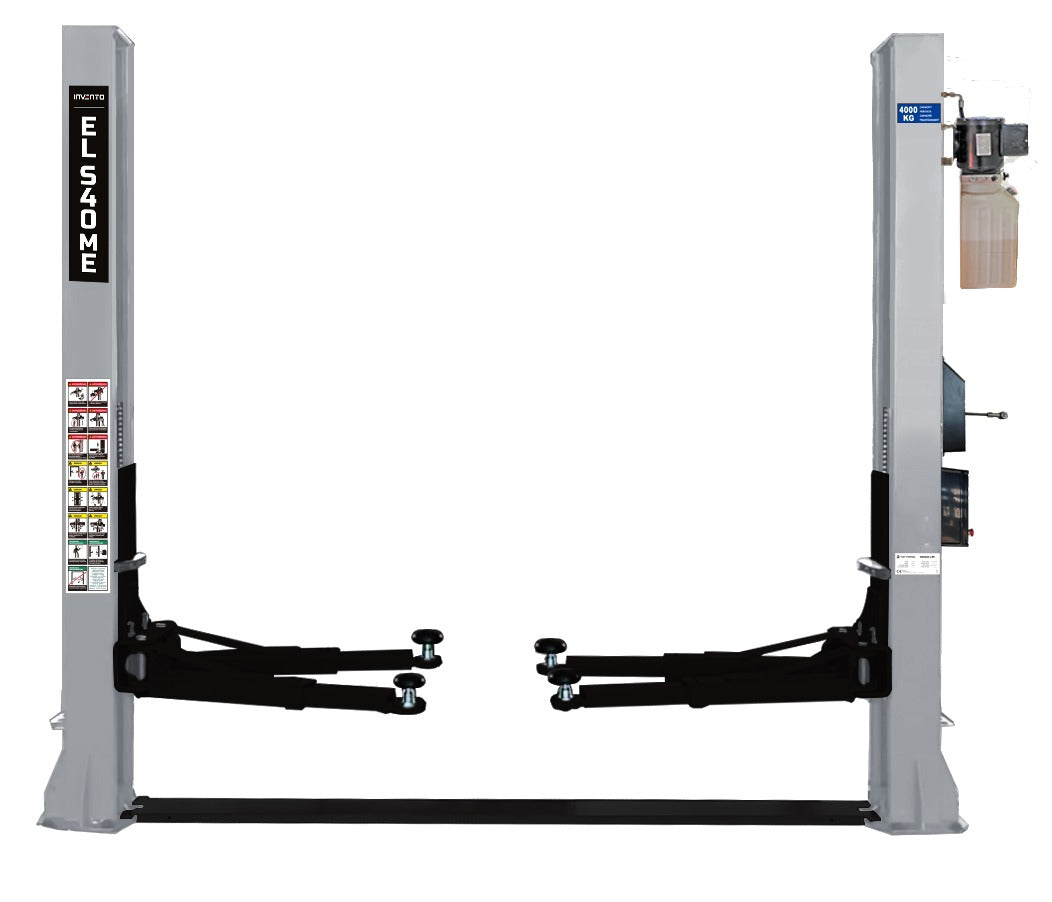

Dviejų kolonų automobilių keltuvas 4T 230V INVENTO EL S 40ME

Trumpai apie prekę

Prekė: Dviejų kolonų automobilių keltuvas 4T 230V INVENTO EL S 40ME. Kategorija: Keltuvai stulpams.

• Gamintojas: Invento
• Modelis: INVELS40ME_230V

INVENTO EL S 40ME 230V is a modern electrohydraulic lift with manual height lock, designed for professional car workshops and services.

The lifting capacity of 4 000 kg, 2-step adjustable, symmetrical arms and robust construction enable the operation of passenger cars, SUVs and smaller commercial vehicles.

The two-column design provides easy access to wheels, suspension, and chassis, making the device perfect for a wide range of maintenance and repair work.

🎁 Hydraulic oil 10 L FREE!

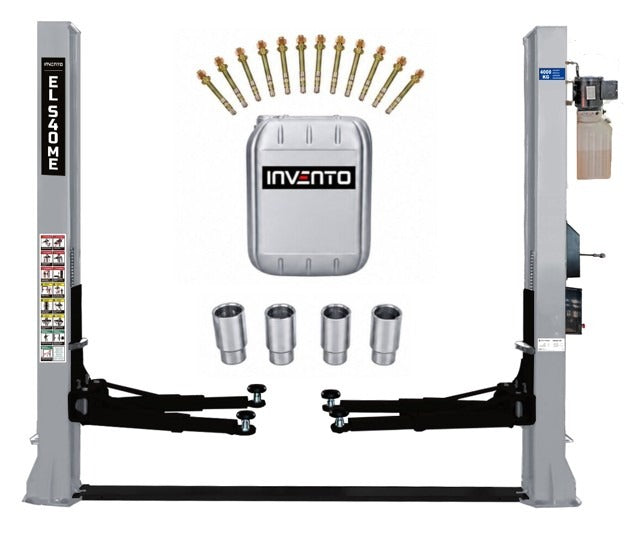

Complete with the lift you get:

✔ 10 liters of hydraulic oil FREE

Thanks to this, you do not have to buy the oil needed to prepare the device for work after assembly separately.

⭐ The most important advantages

✔ Lifting capacity 4 000 kg

✔ Manual lift height lock

✔ Power supply 230 V

✔ 2-stage symmetrical arms

✔ Arm range 797 – 1137 mm

✔ Lifting height up to 1900 mm

✔ Arm locking system

✔ Steel cable synchronizing the operation of the lift

✔ Low threshold to protect the synchronizing cable

✔ Adjustable support points

✔ 70 mm extensions / adapters included

✔ Column protection to protect the vehicle door

✔ Hydraulic oil 10 L FREE

🔌 230 V power supply

One of the most important advantages of this variant is the power supply 230 V, thanks to which the lift can be used in facilities equipped with a suitable single-phase installation.

It is a practical solution for both professional workshops, as well as smaller services or garages where it is not possible to use 400 V power supply.

🔒 Manual height lock

The EL S 40ME 230V uses a manual lift height lock system.

The solution allows you to secure the device in the right working position while performing work on the vehicle.

🚗 Symmetrical shoulders

The lift is equipped with 2-step adjustable symmetrical arms with a range of 797 – 1137 mm.

The adjustment allows you to adjust the position of the paws to the support points of different vehicles.

The device will work well during operation:

✔ passenger cars

✔ SUVs

✔ crossovers

✔ smaller vans

⬆ 70 mm extensions included

The standard equipment includes adapters with a height of 70 mm and adjustable support points.

The solution increases the possibility of adjusting the lift paws to the chassis structure of the vehicle.

Extensions make it easy to:

✔ lifting higher vehicles

✔ support for SUVs and smaller vans

✔ fit for vehicles with low-guided threshold guards

✔ obtaining stable and even vehicle support

🛡 Safety at work

INVENTO EL S 40ME 230V is equipped with the protection required by the CE documentation.

The safety of use is affected by m.in.:

✔ manual height lock

✔ shoulder locking system

✔ steel cable synchronizing the work of the lift

✔ low threshold for securing the synchronization cable

✔ protection on the columns to protect the car door from accidental damage

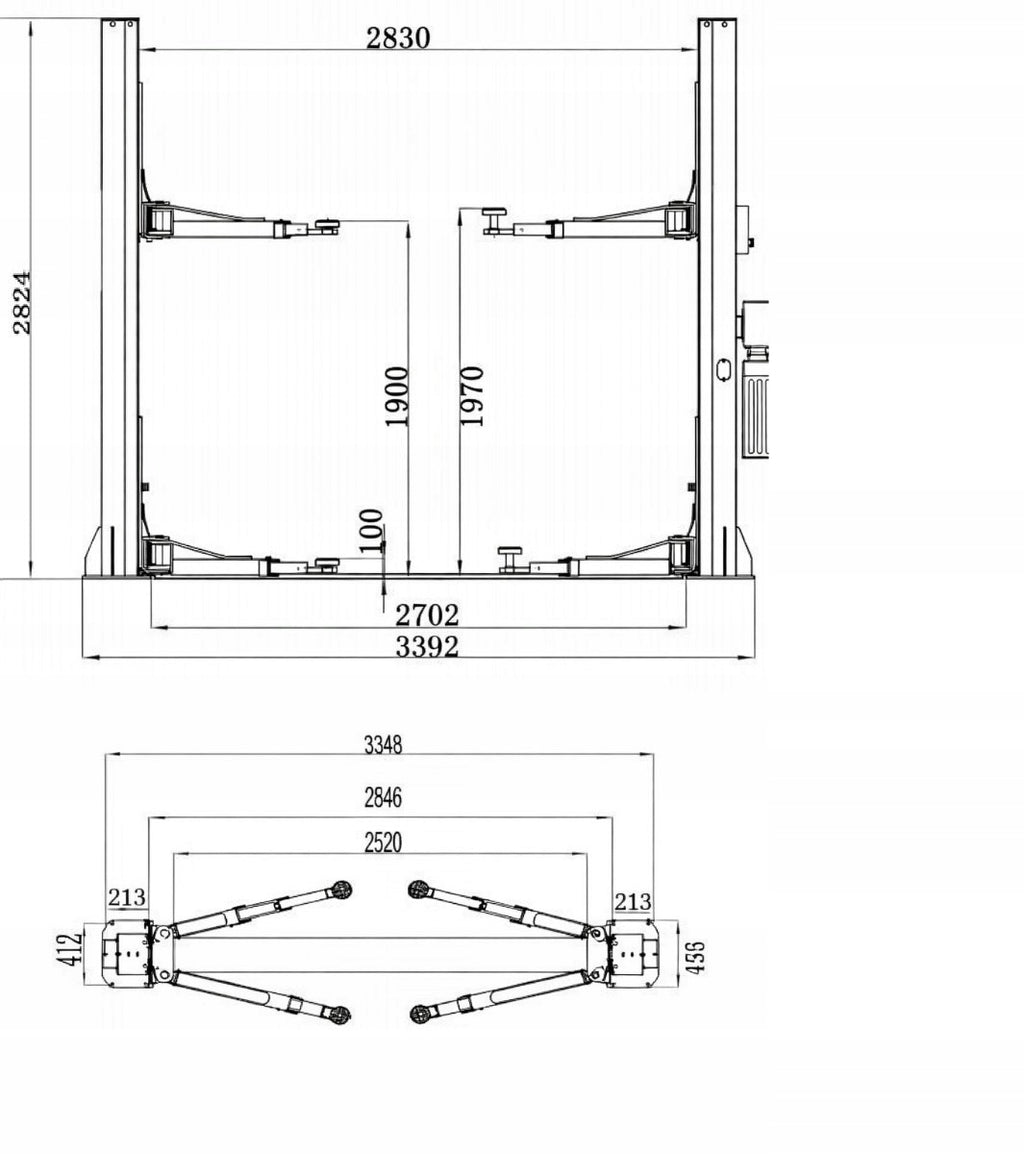

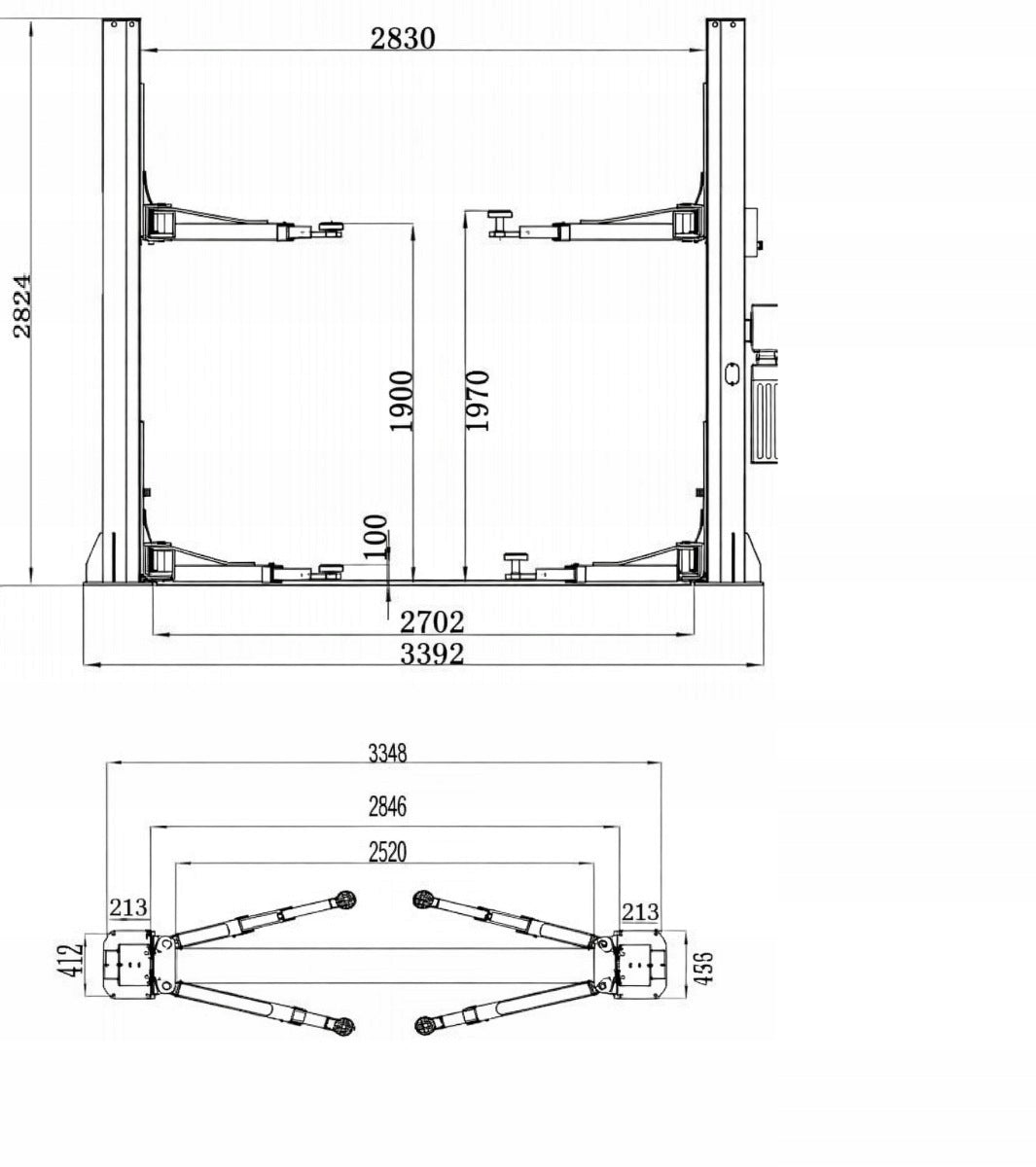

📊 Technical data

• Model: INVENTO EL S 40ME 230V
• Type: Two-column electrohydraulic lift
• Leverage: 4 000 kg
• Height lock: Manual
• Lifting height: 1 900 mm
• Minimum height: 100 mm
• Shoulder length: 797 – 1 137 mm
• Adjustable arms: 2-step
• Column height: 2 824 mm
• Width between columns: 2 830 mm
• Total width: 3 392 mm
• Lifting time: 75 s
• Power supply: 230 V
• Engine power: 2,2 kW
• Adapters: 70 mm
• Hydraulic oil: 10 L FREE

🏗 Conditions of installation and use

The lift is designed for installation in covered and closed rooms, without obstacles limiting its proper operation.

Working temperature range: -10°C to 40°C.

Substrate requirements:

✔ unscratched and leveled concrete substrate

✔ minimum concrete thickness: 200 mm

✔ minimum concrete strength class: C25/30

Properly prepared substrate allows proper attachment of the lift to the floor using the provided fixing elements.

🔧 For professional workshop

INVENTO EL S 40ME 230V combines a lifting capacity of 4 tons, manual height lock, symmetrical arms and a comfortable 230 V power supply.

It is a universal solution for work on wheels, suspension, brakes, exhaust system and other elements under the vehicle. 🔧🚗
