Dviejų kolonų automobilio keltuvas BAUTOMATION LB-LS1 PRO 4T 400V

Trumpai apie prekę

Prekė: Dviejų kolonų automobilio keltuvas BAUTOMATION LB-LS1 PRO 4T 400V. Kategorija: Keltuvai stulpams.

• Gamintojas: BAUTOMATION
• Modelis: PRO1

With anchors • oil • adapters • ready to install

Thanks to the use of long arms, you are also able to lift buses and light vans.

⚙ Technical specification

• Producer: BAUTOMATION
• Model: LB-LS1 PRO
• Type: semi-automatic
• Lifting capacity: 4000 kg
• Power Supply: 400V (380V)
• Engine power: 2,2 kW
• Lifting time: 50 s
• Lowering time: 25 s
• Maximum lifting height: 1900mm + adapters 1970mm
• Minimum arm height: 100 mm
• Max. width of the vehicle: 2510 mm
• Width between columns: 2830 mm
• Front arm range: 550 – 1105 mm
• Rear arm range: 876 – 1472 mm
• Arm Layout: 3 + 2
• Minimum floor thickness: 30 cm
• Dimensions (W) × H. ): 3392 × 2824 mm
• CE certified: yes
• UDT Compliance: Meets the requirements

✅ Key features

✔ Lifting capacity 4 tons

✔ Maximum lifting height: 190 cm + adapters = 197 cm

✔ Minimum shoulder height: 10 cm – ideal for low suspension vehicles

✔ Extra long and low-profile support arms – system 3 + 2 front 550 – 1105 mm, rear: 876 – 1472 mm

✔ Limit switch – additional protection

✔ Stable construction with bottom beam

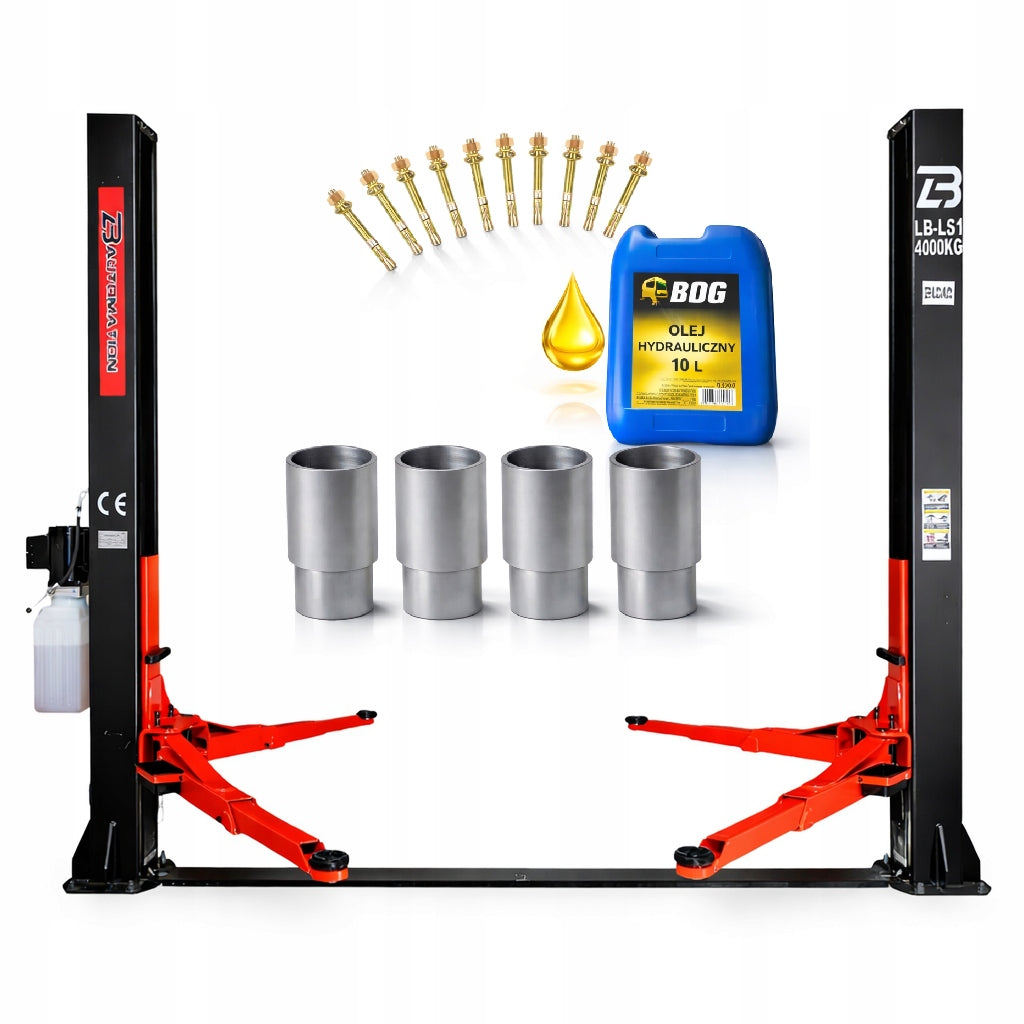

✅ What do you get in the set?

• 10L of hydraulic oil included in the price – no need to buy separately
• Set of mounting anchors
• User manual in Polish
• CE certificate

🎁Free adapters – you save PLN 400

With us, you receive adapters completely free of charge - at competing companies you have to pay up to 400 PLN for them!

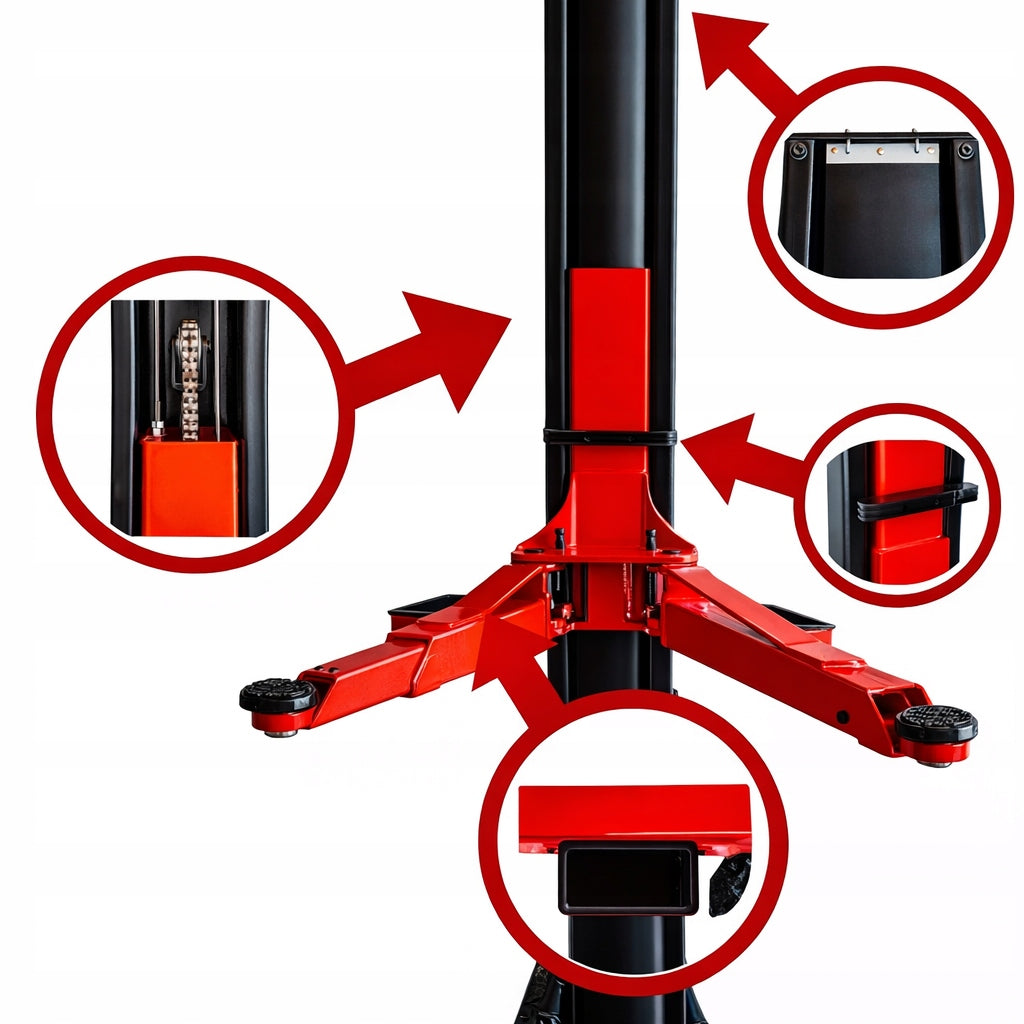

🔝 Robust construction – advantage over the competition

🛠 Trolleys type 3

• made of uniform, bent thick sheet
• high resistance to deformation
• longevity even with intensive work

🧱 Reinforced columns

• 4 gains on each column
• application of thick sheet
• very high rigidity of the entire structure

🚗 Long and low-profile support arms

• easy access to support points
• trouble-free operation of sports cars and low body
• 3+2 long extendable arms (front: 550 – 1105 mm, rear: 876 – 1472 mm)

🛡 Safety of use

• limit switch
• lift rope covers
• rubber anti-impact protectors on columns
• tool boxes on each arm
• stable operation even at maximum load

🧱 Substrate preparation (important)

• area: 1,5 m × 4 m
• uniform concrete slab
• concrete class B25
• minimum floor thickness: 30 cm
• for fresh spout: 28 days for full hardening
