Dūmų generatorius Turbo ZADYMA LAUNCH SLD-501

Trumpai apie prekę

Prekė: Dūmų generatorius Turbo ZADYMA LAUNCH SLD-501. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Launch
• Modelis: SLD-501

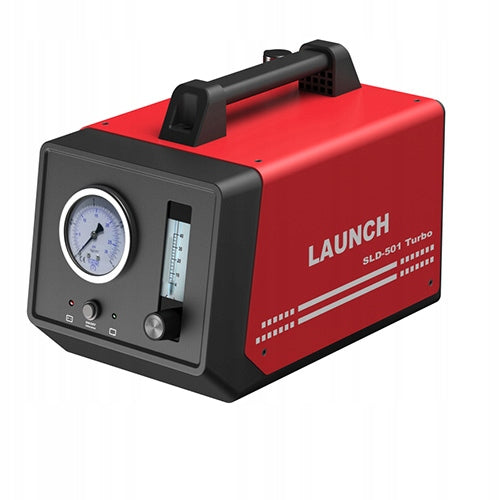

SMOKE GENERATOR SMOKE TESTER LAUNCH SLD-501

Characteristic:

• Dimensions: 290 x 185 x 210 mm

• Power supply voltage: 12 V

• Maximum pressure: 1,1 bar

• Working temperature: 10 - 35°C

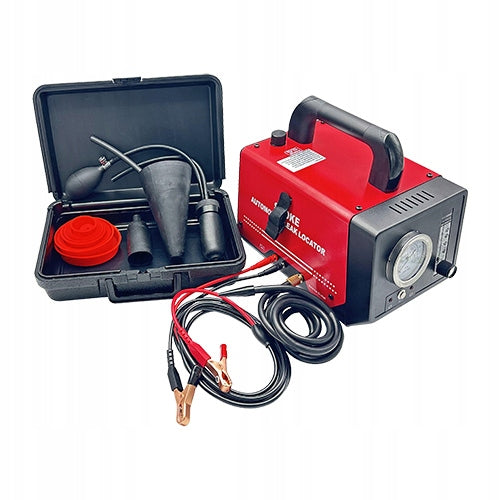

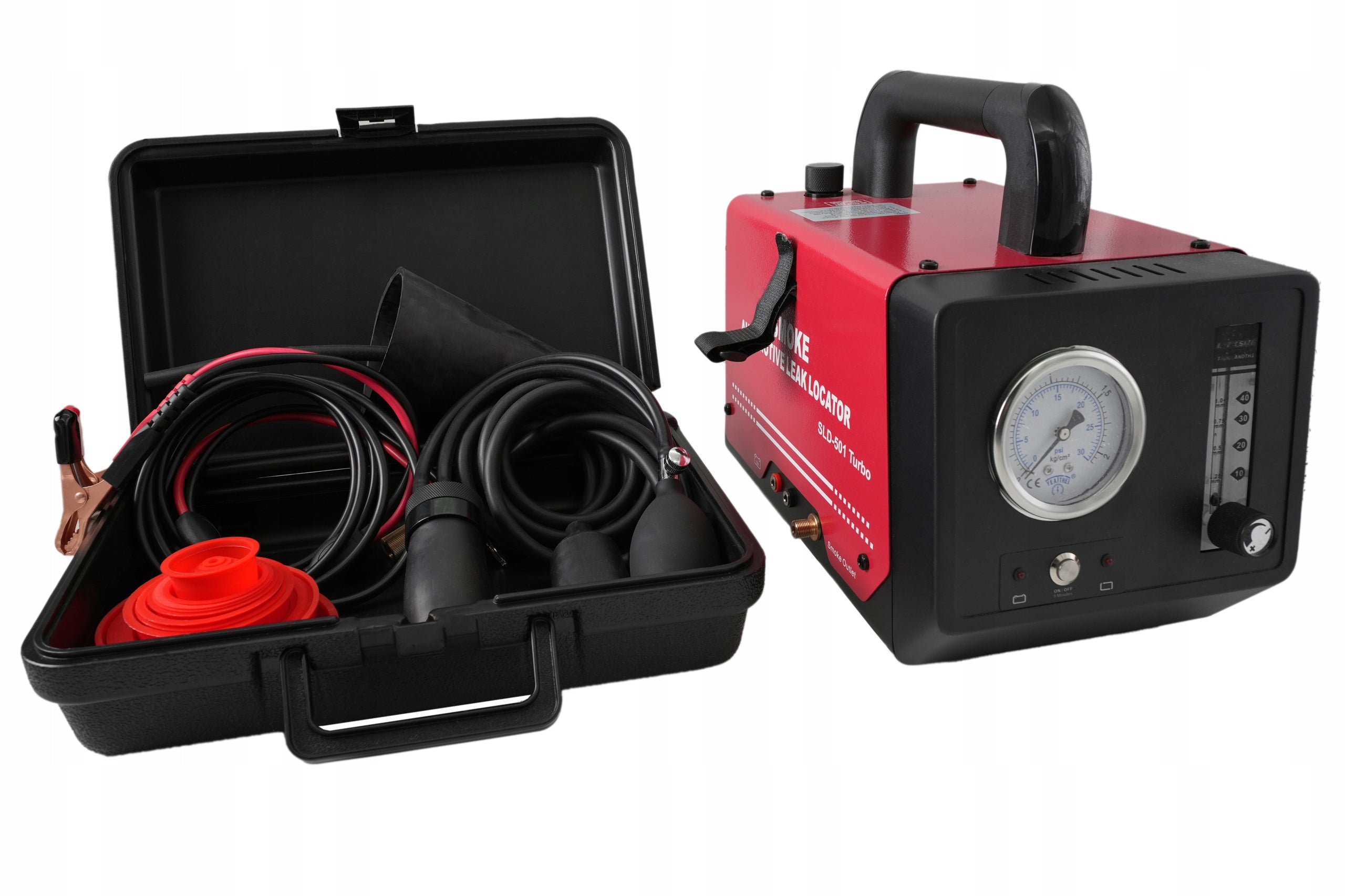

picking:

• Smoke Feeding Hose
• Conical adapter
• Universal adapter
• Spare cover
• Set of caps
• Power cords

Description of the device:

A smoke generator, also known as a leak detector, is used to locate leaks in vehicle piping systems. Its operation is based on evaporation of a special smoke liquid in the sealed evaporator chamber using a heating element (STEN), and then adjustable smoke supply using a built-in compressor through a hose to the test system. The most common application is the location of air intake sites in the intake manifold. The device can be used to test various systems, such as cooling, lubrication, power supply, and more.

SLD-501 Turbo – designed for various vehicle systems with turbocharged and atmospheric engines.

Note: Do not use the SLD-501 TURBO model to test the EVAP system, as this may damage it.

Smoke generator capabilities:

The device allows you to detect such damage as: cracks, damaged or worn gaskets, simerings, wires, loose connectors, weakened bands, etc. It is equipped with a built-in compressor that provides a flow rate of up to 10 l/min. The generator also allows you to detect holes less than 0,2 mm in size using a special fluorescent liquid and UV light (optional).

Leak detection can be tracked by reading from the pressure gauge and flowmeter, or by the appearance of smoke at the leak site.

Smoke generator benefits:

• Replaceable smoke hose and power cord.
• Simple control of the operating mode with the touch of a button.
• A complete set of adapters and plugs with spare consumable parts.
• Pressure gauge and adjustable flowmeter to optimize the operation of the device in any situation.
• Built-in high-efficiency air compressor (up to 10 l/min).
• Support UV method for leak detection of less than 0,2mm size.
• Easy and accessible smoke liquid replacement: pharmacy paraffin.

LAUNCH Tech Co. was founded in 1992 and is China's first high-tech team dedicated to developing, manufacturing and selling a full range of diagnostic equipment and general workshop equipment for automotive services.

Today LAUNCH is: over 20 years of success on the market, millions of devices sold, an advanced team of developers and prospective technological solutions. During these years, the company’s engineers have created generations of diagnostic devices that have always met the highest requirements of modern vehicle repair and maintenance, as a result, LAUNCH now holds more than 80 patents in the field of applying advanced technologies in the development of car diagnostic and repair equipment.

LAUNCH technology products are widely known in the world and have received many awards from authoritative publishers and government organizations both in China and abroad. In 2001, the company obtained the ISO9001:2000 quality certificate.

Specifications
