Dokų stotelė Sonnet Echo 20 Thunderbolt4 su 4TB NVMe SSD, 20 jungčių, 100W

Trumpai apie prekę

Prekė: Dokų stotelė Sonnet Echo 20 Thunderbolt4 su 4TB NVMe SSD, 20 jungčių, 100W. Kategorija: Dokavimo stotelės.

• Gamintojas: SonnetTech
• Modelis: ECHO-DK20-T4-4TB

Sonnet Echo 20 Thunderbolt 4 SuperDock is a universal Thunderbolt 4 docking station with three Thunderbolt 4 ports, one M.2 SSD slot, one HDMI 2.1 port, 2,5 Gb Ethernet, eight USB 10 Gbps ports, a card reader, audio output and support for displays up to 8K

More connections than you’d expect from a Thunderbolt™ docking station – NVMe SSD support, HDMI port, ultra-fast 2,5 Gigabit Ethernet support, and more! With this super docking station, one cable connects your computer to the digital world. The Sonnet Echo™ 20 Thunderbolt 4 SuperDock is a versatile docking station for today and tomorrow. Compatible with Apple Mac M Series computers; Intel Mac computers with Thunderbolt™ 3; Windows computers with Thunderbolt 3 and 4; Chromebooks with Thunderbolt 4/USB4 and iPad Pro M Series.

Connect peripherals and power your computer with one cable

Connect Thunderbolt devices, monitors, USB peripherals, powered speakers, and an Ethernet cable to the docking station, then connect it all to your computer with a single Thunderbolt cable. Do you have a laptop? You can keep its power supply in your bag because the Echo 20 Thunderbolt 4 SuperDock will power it up to 100W charging power. When it’s time to go out, just unplug the Thunderbolt cable, grab your computer, and exit.

Internal SSD expansion slot – up to 8 TB of NVMe SSD storage can be added

The built-in M.2 NVMe SSD slot allows you to add up to 8 TB of SSD storage (SSD sold separately) to your system without connecting your storage device to an Echo dock or computer.

Installing the SSD is very simple – just unscrew the two screws that attach the bottom panel cover, insert the SSD, and then remount and secure the bottom cover. Transfer and access data at speeds up to 800 MB/s and easily store large files, media libraries or Time Machine® backups.

SSD sold separately

Built-in HDMI display support – no HDMI adapter required

The Echo 20 Thunderbolt 4 SuperDock features a built-in HDMI port, allowing you to connect your HDMI display directly to the docking station.

Faster Ethernet transfers over existing cabling – 250% Gigabit Ethernet speed

Equipped with 2,5-gigabit Ethernet, the Echo 20 Thunderbolt 4 SuperDock supports a link speed of 2,5 Gbps over regular Cat 5e cabling (or better) when used with a compatible Ethernet or NAS switch with 2,5 Gbps Ethernet support, saving the cost of another adapter. You can get a huge performance boost – 250 percent Gigabit Ethernet speed – without having to change the wiring! Do you need to connect to a switch without Ethernet 2,5 Gb support? The Sonnet docking station also supports 1 Gbps and 100 Mbps link speeds.

Double Thunderbolt ports – simple, end-to-end connectivity for work and play

The Echo 20 Thunderbolt 4 SuperDock features three Thunderbolt 4 ports: one for connecting/powering your computer – perfect for Mac and Windows laptops with only one or two Thunderbolt ports because they can be connected and charged on the same port – and two for connecting Thunderbolt peripherals directly.

Thunderbolt ports also support USB4 and USB 3 peripherals, and even provide 15W of power each to support the most demanding Thunderbolt and USB bus-powered peripherals. If your computer supports this, you can even connect another monitor.

Efficient USB-A and USB-C ports 10 Gb/s

The Echo 20 SuperDock is equipped with four USB 3.2 Gen 2 (10 Gbps) Type-A ports and four USB 3.2 Gen 2 Type-C ports – two at the front and two at the back – to support super-fast USB NVMe SSDs at full speed. Unlike some other docking stations, the Echo 20 also does not skimp on power – each port provides up to 7,5W to ensure that drives with higher peak power requirements can be assembled and run flawlessly. An additional advantage of USB-C ports is that they support the Type-C charging specification, allowing the docking station to charge devices even when the computer is off, dormant or disconnected.

Display options – Thunderbolt port connectors: Connect up to one 8K monitor or two 6K monitors

Depending on your computer’s video capabilities and whether your monitor has been connected to the built-in HDMI port, the Thunderbolt ports of the Echo docking station can support one (always 4K, 5K or 6K, up to 8K) monitor or up to two 6K monitors. You can connect Thunderbolt 3 or USB-C monitors directly or connect other types of displays (HDMI, DisplayPort, etc. ) using a Thunderbolt compatible adapter (sold separately).

Charging a notebook without a power supply – 100 W of charging power (Power Delivery)

When connected to a laptop computer using the included Thunderbolt 4 cable, the Echo 20 Thunderbolt 4 SuperDock provides up to 100W of power (Power Delivery), which means it can power and charge your computer when plugged in, even when not in use, allowing you to leave your computer's power adapter packed.

Dedicated RCA audio outputs

The Echo 20 Thunderbolt 4 SuperDock is equipped with stereo RCA connectors. RCA outputs deliver consistent line-level sound, combining a sweet music library with a pair of powered speakers. RCA outputs are also ideal for direct connection to a receiver, power amplifier or mixer.

Card reader- fast SD card reader 4.0 UHS-II

The included SD card slot is compatible with SD™, SDHC™ and SDXC™ memory cards and supports 320 MB/s read speeds with UHS-II SDXC cards for fast loading of photos and videos. microSD cards are also supported when used with adapters commonly attached to cards.

Security – Thunderbolt 4 and ThunderLok 4 cable included. Kensington lock is ready.

Thunderbolt 4 and ThunderLok 4 Cable – Sonnet includes a Thunderbolt cable and a security clip for the Echo 20 SuperDock docking station. The Thunderbolt cable supports full 40 Gbps bandwidth and 100W charging capability. The Thunderbolt ThunderLok™ 4 connector security clip prevents the cable from accidentally disconnecting by easily sliding on one end of the cable and attaching directly to the docking station with a knurled screw. Due to its unique design, ThunderLok stays on the cable so it won't get lost when not in use.

Kensington Lock Ready – Lock your docking station and keep it safe. Because the Echo docking station can hold up to 8 TB of valuable data, it’s worth securing it with Kensington® Lock (sold separately).

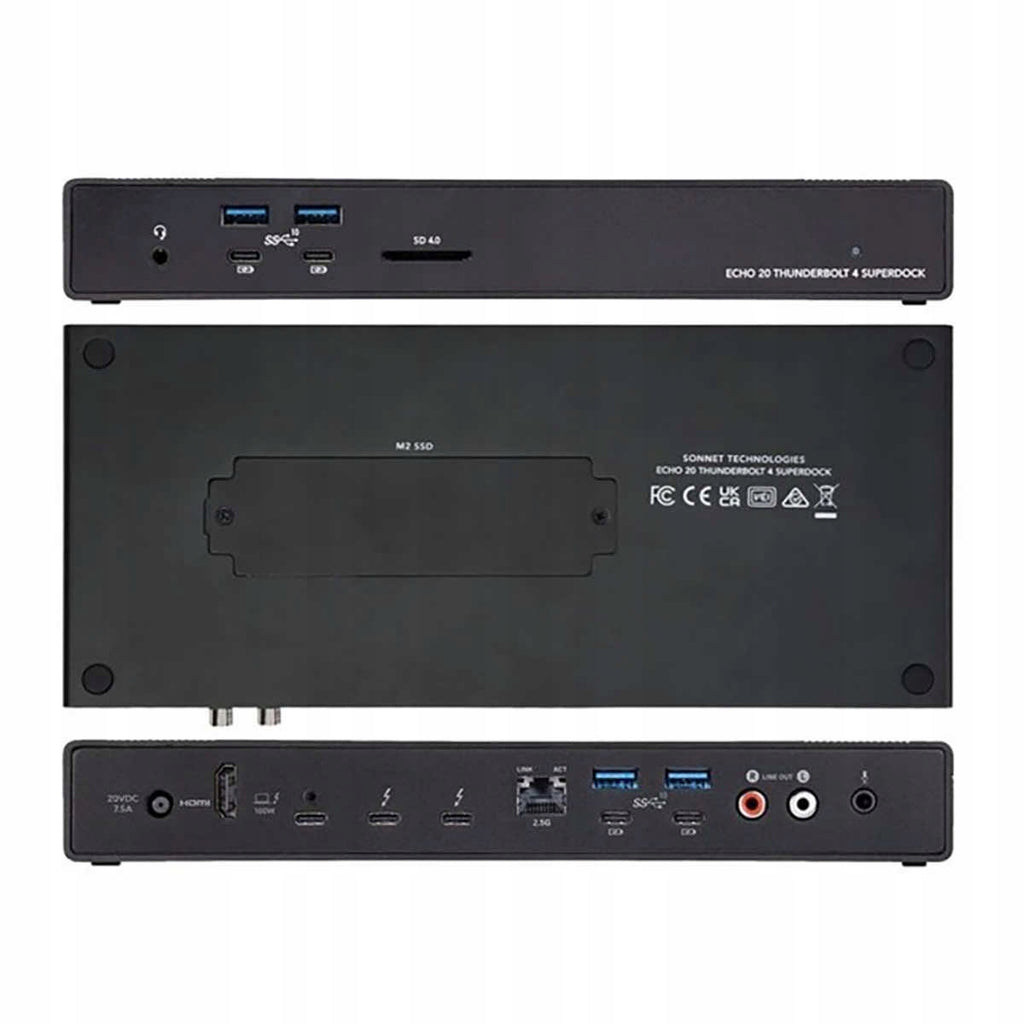

Main features

• One cable peripheral connection
• Twenty different ports
• Three Thunderbolt 4 ports (two Thunderbolt ports for peripherals and one for host computer)
• M.2 NVMe SSD – pre-installed TRANSCEND 2TB SSD internal M.2 2280 PCIe Gen3x4 NVMe TLC DRAM-less drive – support for drives up to 8 TB
• Four powerful 10 Gbps USB Type-C charging ports
• Four powerful 10 Gbps USB Type-A ports
• Built-in HDMI 2.1 port
• RJ45 2.5 Gigabit Ethernet port
• 3,5 mm stereo headphone jack (front panel)
• Separate RCA line output jacks for left/right channel (on rear panel)
• Microphone jack 3,5 mm (on the rear panel)
• High speed SD card reader 4.0
• Includes Thunderbolt 4 cable and Thunderbolt 4 ThunderLok connector security clip to prevent accidental cable disconnection.
• Ready to lock Kensington Lock
• Support 4K, 5K, 6K and 8K @60Hz displays
• Laptop charging – provides power up to 100W
• Compatible with Apple Mac M Series computers; Intel Mac computers with Thunderbolt 3 connector; Windows computers with Thunderbolt 3 and 4 connector; Chromebooks with Thunderbolt 4/USB4 connector; and iPad Pro M Series (the latest information on compatibility with computers and operating systems can be found on the technical specification page of this product)
• 2-year product warranty
• Lifetime free technical support
• Designed in the USA

Docking station bundled with TRANSCEND 4TB M.2 2280 PCIe Gen4x4 NVMe 3D TLC DRAM-less

The main features of the disk:

• Capacity: 4TB
• Housing type: M.2 2280 (double-sided)
• Interface: PCIe 4.0 x4 (NVMe)
• Features: Advanced Garbage Collection, 3D NAND Technology, Low-Density Parity Check, NVM Express (NVMe) 1.4, SMART
• SSD endurance: 2400 TB
• Internal data speed: 5300 MBps (read) / 4000 MBps (write)
• Random read 4 KB: 390000 IOPS
• 4KB random write: 630000 IOPS
• MTBF: 2 million hours

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	ECHO-DK20-T4-4TB
Parametry	Manufacturer	SonnetTech
Parametry	Product weight with unit packaging	2 kg
Parametry	EAN (GTIN)	5904917097311
Parametry	Packaging status	original
Parametry	Interface	Thunderbolt 3
Parametry	Certificates of conformity	CE
