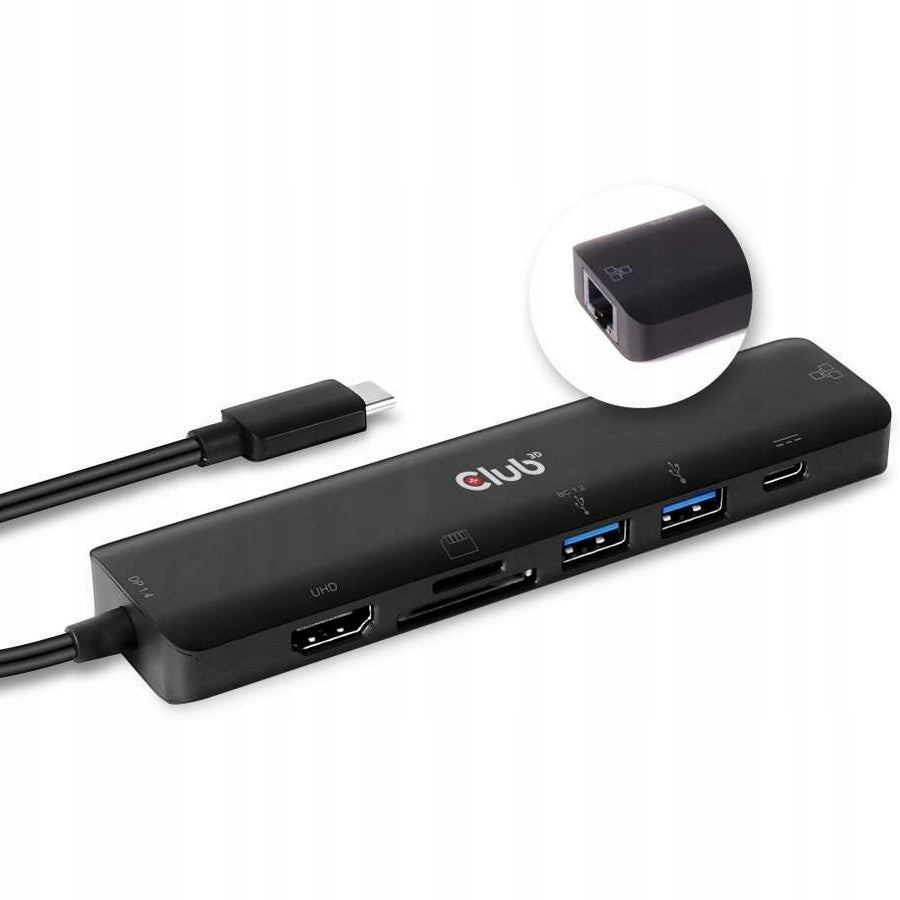

Doko stotelė CSV-1592 su USB-C, HDMI ir papildomomis jungtimis

Trumpai apie prekę

Prekė: Doko stotelė CSV-1592 su USB-C, HDMI ir papildomomis jungtimis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: CLUB3D
• Modelis: CSV-1592

• Docking station / hub / multiport 7-in-1 USB-C to: HDMI™ 4K 60Hz / SD-TF slot / 2x USB-A / USB-C PD / RJ45.
• It provides an ideal solution for extending a USB-C or Thunderbolt™ 3 host port (PC/laptop/tablet/mobile phone, etc. ).
• The HDMI connector supports 4K 60Hz, supports DP 1.4 Alt mode, data transfer at 5Gb/s, the USB-C female port with PD 3.0 support provides charging up to max. 100W.

The CSV-1592 is a USB-C 3.2 Gen1 or Thunderbolt 3 multiport / hub / docking station that will allow you to easily extend the functionality of each device and will work where manufacturers have limited the number of interfaces to a single USB-C port. The multiport adapter is especially recommended for the latest Apple MacBook notebooks, e.g. Apple Macbook and many other USB-C mobile devices and more . It will also work with almost any newest Windows/Linux/Mac PC equipped with a USB-C port.

The CVS-1592 will allow you to use a computer equipped with USB-C without restrictions and will allow you to connect more peripheral devices using one USB port or quickly use devices not equipped with a USB-C port. It will also allow for easy data transfer from phones or tablets equipped only with the latest USB interface. The adapter can also function as a memory card reader. The CSV-1592 will allow you to simultaneously charge the base device while using the other ports uninterruptedly. It will easily eliminate the need to use unnecessary and cumbersome converters and cables, effectively combining the functions of several devices in one.

Multiport CSV-1592 allows you to convert the USB-C interface to 2 USB 3.1 (3.0) ports, HDMI video connector, 2x USB-A, Gigabit Ethernet port, SD/micro SD card reader and USB-C (for charging only). The adapter supports DP ALT Mode 1.4 (including DP 1.2 mode) - allows the transmission of any signal, including video. If the port on the computer supports DP ALT Mode, we can use USB-C as a docking station to connect a monitor or TV to our laptop via an HDMI cable.

The device will allow you to send the computer's desktop to a TV or monitor screen, i.e. it can be used as a video output, in the event that our laptop does not have one. Supports resolutions up to 4K 60Hz. This will allow you to enjoy the perfect picture and quality on a larger TV or monitor. Before buying an adapter, it is worth getting acquainted with the specification of your device and checking what operating mode your USB-C connector supports.

Characteristics:

• Upstream:

  – USB-C male port (connection to host device)

  – DP 1.4 Alt mode support, with max. 2 lanes 16.2Gb/s (8.1Gb/s per lane), backwards compatible with DP1.2 Alt mode

  Note: For maximum bandwidth, the host must support DP 1.4 Alt mode with DSC format

• Downstream:

  – HDMI™ support max. 4K 60Hz 4:4:4, 8bit with 18Gbps bandwidth

  – 6/8/10/12 bit color depth support

  – Supports RGB 4:4:4/YCbCr 4:4:4/YCbCr 4:2:2 input formats

  – HDCP 2.2&HDCP1.4 support

  – HDR support

  Note: If a host device supporting DP 1.4 Alt mode is connected, the maximum HDMI resolution will be 4k 60Hz; If a host device supporting DP 1.2 Alt mode is connected, due to bandwidth limitations, the maximum HDMI™ resolution will be 4k 30Hz.

• 2x USB-A 3.1/3.0 (max. 5Gb/s bandwidth to USB-A port):

– 1-USB-A supports BC 1.2 with max. 7.5W (5V 1.5A) and provides charging

– 2-USB-A max. 8W (5V/1.6A) and provides charging

• SD/Micro SD slot

  – Support Secure Digital v3.0 UHS-I (Ultra High Speed) SDR12 (12.5Mbyte/s)/SDR25 (25Mbyte/s)/SDR50 (50Mbyte/s)/DDR50 (50Mbyte/s)/SDR104 (104Mbyte/s)

• RJ45 (Gigabit Ethernet) port supports 10/100/1000Mbps
• USB-C female (for PD charging)

  – PD Power Delivery 100W (20V/5A) charging support

  – Support Fast Role Swap with PD 3.0, the connected device will not be disconnected when plugging and unplugging. 8W is needed for the operation of this device, the remaining power (max. 92W) will be transferred to host charging.

Technical data

Interfaces available:

Upstream:

– 1x USB-C male (host)

Downstream:

– 1x HDMI™ female for monitor connection

– 1x SD slot

– 1x Micro SD slot

– 2x USB-A, BC1.2 charging

– 1x USB-C female PD (charging + data)

– 1x RJ45

Dimensions and weight:

• Packaging dimensions: 32 x 6 x 3 cm

• Device dimensions: 13.6 x 3.4 x 1.4 cm

• Weight of the device: 0.069 kg

• Package weight: 0.036 kg

• Total weight: 0.11 kg

Fulfilled requirements: ROHS, FCC and CE EMI

Contents of the package:

• 1x CSV-1592

• 1x User Manual )

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	CLUB3D
Parametry	Product weight with unit packaging	0.11 kg
Parametry	Number of ports	1
Parametry	EAN (GTIN)	8719214471477
Parametry	Manufacturer code	CSV-1592
