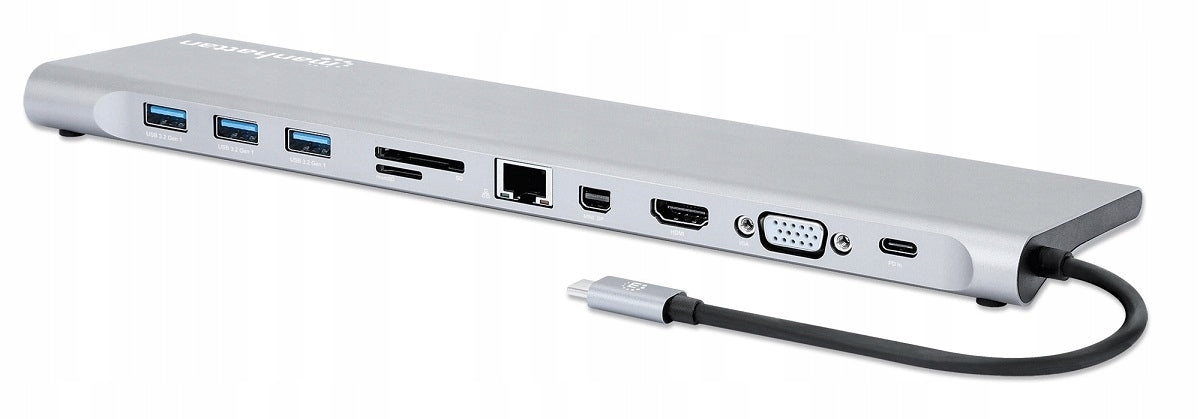

Dokavimo stotelė Manhattan USB-C su HDMI, MiniDP, VGA, RJ45, 3x USB ir SD kortelių skaitytuvu

Trumpai apie prekę

Prekė: Dokavimo stotelė Manhattan USB-C su HDMI, MiniDP, VGA, RJ45, 3x USB ir SD kortelių skaitytuvu. Kategorija: Dokavimo stotelės.

• Gamintojas: Manhattan
• Modelis: 130578

➡ Maximum video resolution:

• HDMI: 4K@30Hz
• Mini DisplayPort: 4K@30Hz
• VGA: 1080p@60Hz
• When using two video ports at the same time, the maximum resolution is 4K@30Hz per display
• With three video ports at the same time, the maximum resolution is 1080p@60Hz per display

➡ USB-A port bandwidth: 5Gbps

➡ Supported memory card types: MicroSD, SD, SDHC and SDXC up to 2TB

➡ USB bus power supply (excluding charging function)

➡ USB-C PD charging port: 100W (20V at 5A) maximum

➡ Charging on USB-A ports: 7.5W (5V at 1.5A) maximum

➡ Audio output port: 48kHz, 16-bit stereo

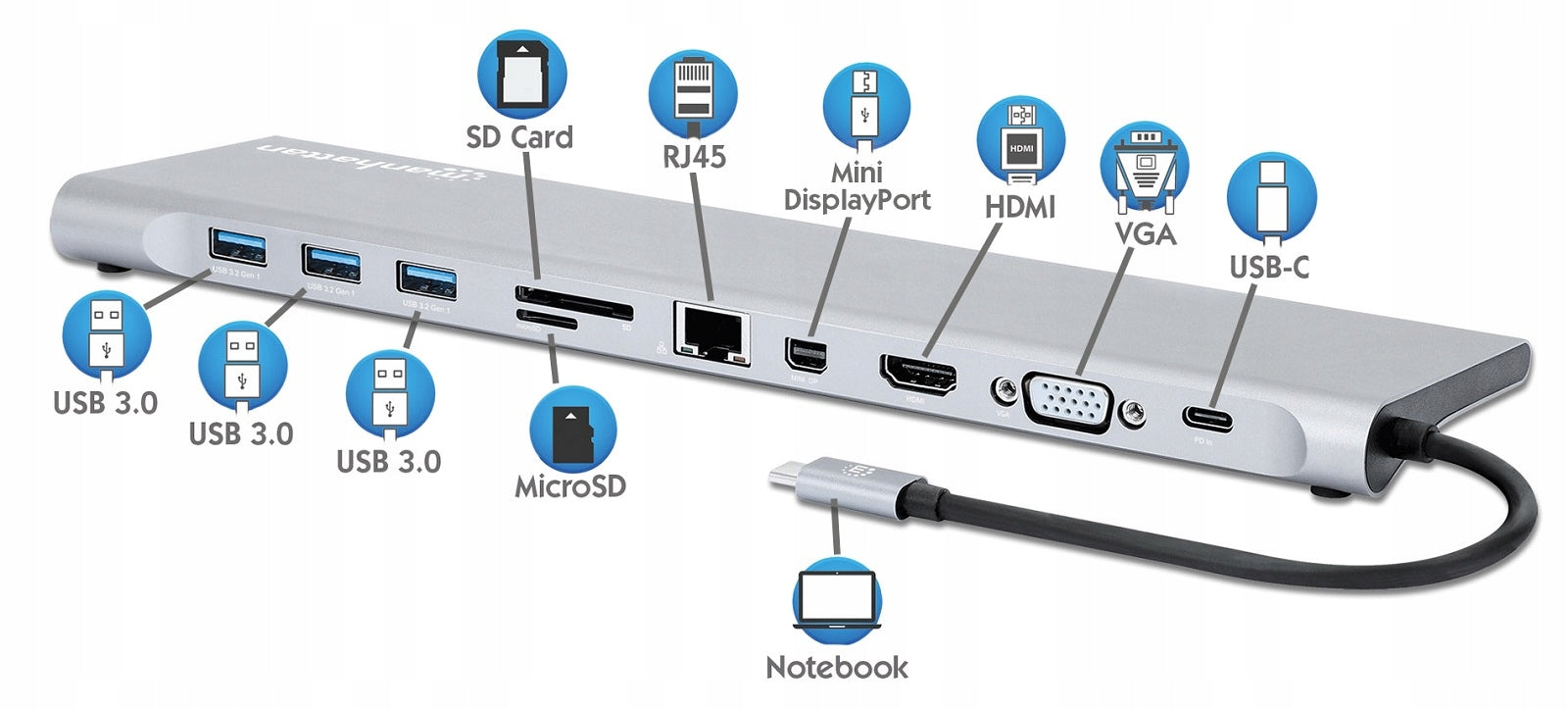

➡ 1x USB-C 24-pin male

➡ 1x HDMI 19-pin, female

➡ 1x Mini DisplayPort 20-pin, female

➡ 1x VGA 15-pin, female

➡ 1x 10/100/1000 Mbps RJ45, female

➡ 3x USB Type-A 4-pin, female

➡ 1x SD card slot

➡ 1x MicroSD card slot

➡ 1x Stereo Audio 3.5 mm, female

➡ 1x USB-C Power Delivery (PD) 24-pin, female

➡ Housing: aluminium

➡ Dimensions (D. x W x H ): 80 x 280 x 17 mm

➡ Weight (net/gross): 245/355 g

➡ Cable length: 20 cm

➡ Cable Diameter: 34AWG

➡ Operating temperature: 0° - 45°C

➡ Storage temperature: -10° - 70°C

➡ Humidity: (non-condensed): 5 - 90% RH

➡ Windows 7/8.1/10/11, Linux, Chrome OS or macOS

➡ Allows you to create multi-display configurations, charge mobile devices and connect peripherals

➡ Resolution up to 4K@30Hz in dual video output mode or resolution up to 1080p@60Hz in triple video output mode

➡ Resolution up to 4K@30Hz UHD (3840 x 2160) on HDMI

➡ Resolution up to 4K@30Hz UHD (3840 x 2160) on Mini DisplayPort

➡ Resolution up to 1080p@60Hz Full HD (1920 x 1080) with VGA connector

➡ Multi-Stream Transport (MST) support allows you to view in Mirror or Fully Extended modes on Windows® and Mirror mode on Mac®

➡ One Gigabit Ethernet port (10/100/1000) for faster downloads, transfers of media files and games

➡ Three USB 3.2 Gen1 Type-A ports with support for SuperSpeed bandwidth up to 5Gbps and current charging up to 7.5W (5V / 1.5A)

➡ USB-A ports allow you to connect a mouse, keyboard, USB stick and other peripherals or charge and sync mobile devices

➡ SD and MicroSD card slots allow you to write and read data, support cards up to 2 TB and bandwidth up to 832Mbps

➡ Support USB Power Delivery (PD) up to 100W (requires external PD power supply - available among Manhattan products)

➡ 3.5mm audio ports provide excellent stereo sound quality, support for both microphone (audio input) and headphones (audio output)

➡ Compatible with all DP-Alt-Mode USB-C enabled desktops, notebooks and tablets, including Apple® MacBook®, Chromebook™, Pixel™ and more

➡ Compatible with DisplayPort 1.2 Alternate Mode (DP Alt Mode)

➡ Allows you to work on a smartphone as on a PC while charging it (required device with Android 9 or newer with support for video transmission via USB-C)

➡ Possibility to set the station under the laptop saves space on the desk

➡ Integrated, durable 20 cm cable with flooded aluminum plug, ideal for laptops with USB-C port on the left

➡ Robust and elegant aluminum housing, provides style while working at the desk and durability when traveling

➡ Rubber feet guarantee stability and protect the desk from scratches

➡ Plug and Play installation, compatible with Windows®, macOS®, Linux®, Chrome OS™ and Android™

➡ USB-C 3.2 Gen1 MST 11w1 Docking Station

➡ Quick Connect Instructions

P/N: 130578

Specifications
