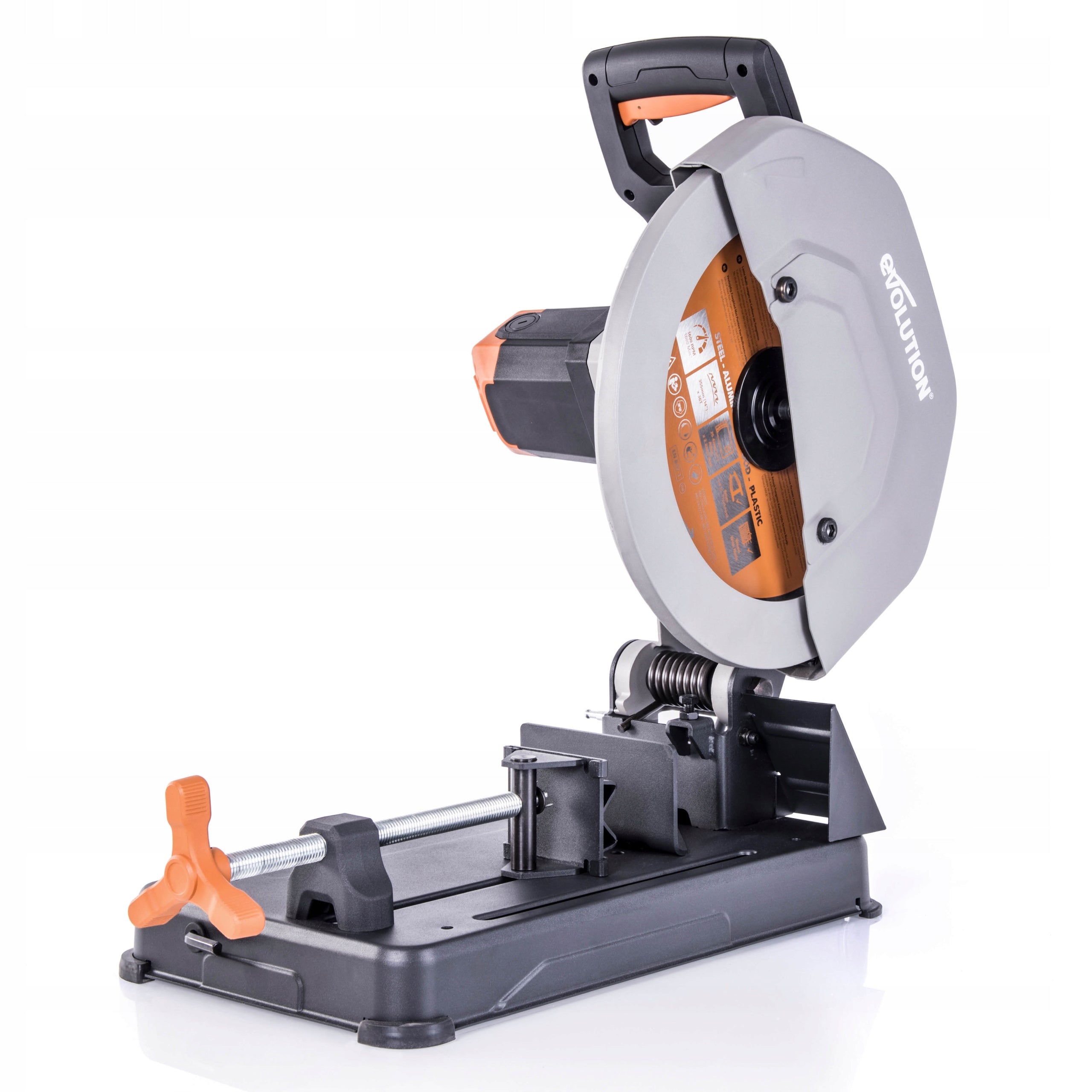

Diskinis pjūklas Evolution R355CPS 355 mm su universaliu disku

Trumpai apie prekę

Prekė: Diskinis pjūklas Evolution R355CPS 355 mm su universaliu disku. Kategorija: Diskiniai pjūklai.

• Gamintojas: Evolution
• Modelis: 083-0003

Evolution R355CPS 355mm

TCT blade cutter for multi-material cutting

If you work with metals, wood and plastics, then the R355CPS saw is the ideal large saw with a mounted stand for your workshop. It is light enough to be carried between the van and the workplace, yet strong enough to handle large cuts up to 95mm x 180mm in heavy-duty materials. The R355CPS is perfect for cutting non-ferrous metals, mild steel, as well as all plastic and wood materials.

Cuts are faster and generate less heat than a band saw, and are also safer than cutting with an abrasive wheel.

Advantages

• Multi-material cutting technology
• The ultimate saw for every job: one saw, one blade, cutting everything*
• Faster, safer, more precise and economical than circular saws
• Clean and homogeneous, smooth cuts
• Max. rectangle: 95 x 180 mm
• Max. square: 120 x 120 mm
• Max. Circle: ø 130 mm
• Fast vice clamp that can be adjusted in seconds
• Allows cutting from 0° to 45°
• "Best-in-class quality and performance guarantee"
• Sturdy reinforced steel base
• Adjustable rubber feet that reduce vibration and increase disc life
• 3 years limited warranty
• Engine power of 2200 W
• Gear system and high torque disc system, increasing the durability of the motor and disc

Specifications

• Motor (230V 50Hz): 2200W
• No-load speed: 1550 min-1
• Max. cutting angle: 45°
• Cable Length: 2m
• Disc Diameter: 355mm
• Number of Teeth: 36
• Hole: 25.4mm/1 inch
• Cutting Thickness: 2.2mm
• Max. rectangular pipe (0° x 0°): 95 x 180mm
• Max. rectangular pipe (0° x 45°): 78 x 110mm
• Max. square tube (0° x 0°): 120 x 120mm
• Max. square pipe (0° x 45°): 89 x 89mm
• Max. round tube (0° x 0°): Ø 130mm
• Max. round tube (0° x 45°): Ø 105mm
• Max. thickness of steel sheet: 6mm
• Max. wall thickness in soft steel box section: 3mm
• Minimum length of cut piece: 8mm
• Package Dimensions: 470 x 575 x 374mm
• Product Dimensions: 410 x 530 x 310mm
• Product weight: 21.5 kg
• Package weight: 23.85 kg
• LPA sound pressure level: 100.5dB(A) K=3 dB(A)
• Sound power level LWA: 97.3dB(A) K=3 dB(A)

Included

R355CPS cutter

355mm TCT Multi-Material Disc (Mounted)

User manual

8mm Allen Wrench (for disc replacement)

Block V

Application

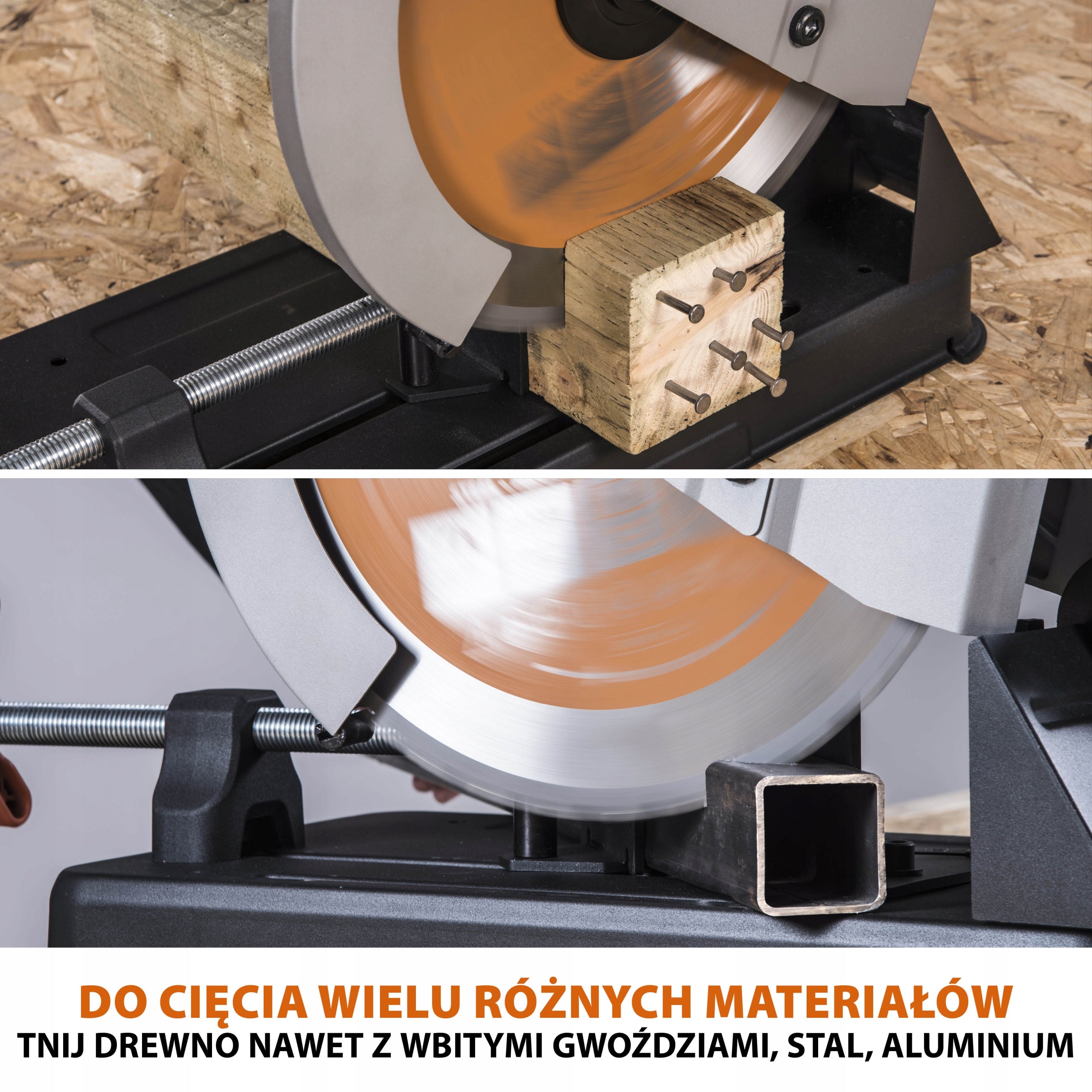

• Wood: Hardwood, Tanalized Board, Medium Density Chipboard (MDF) Laminates, Slats, Processed Wood with Nails, Scaffolding Boards and Poles, Dividing Frame
• Iron metal: Mild steel, angle, rectangular profile, square pipe, metal frame for dry plaster, reinforcing bar steel, sheet metal (1/4 inch), unistrut
• Non-ferrous metal: Aluminium, reinforced cables, cable rail, copper, floor finishing strips, roofing, stair treads
• Plastic: Electrical wire, plastic pipes, plexiglas, rubber and reinforced hoses, wood-plastic composites

Not recommended: High carbon hardened steel, coated and stainless. Note: Cutting galvanized steel can shorten the life of the blade.
