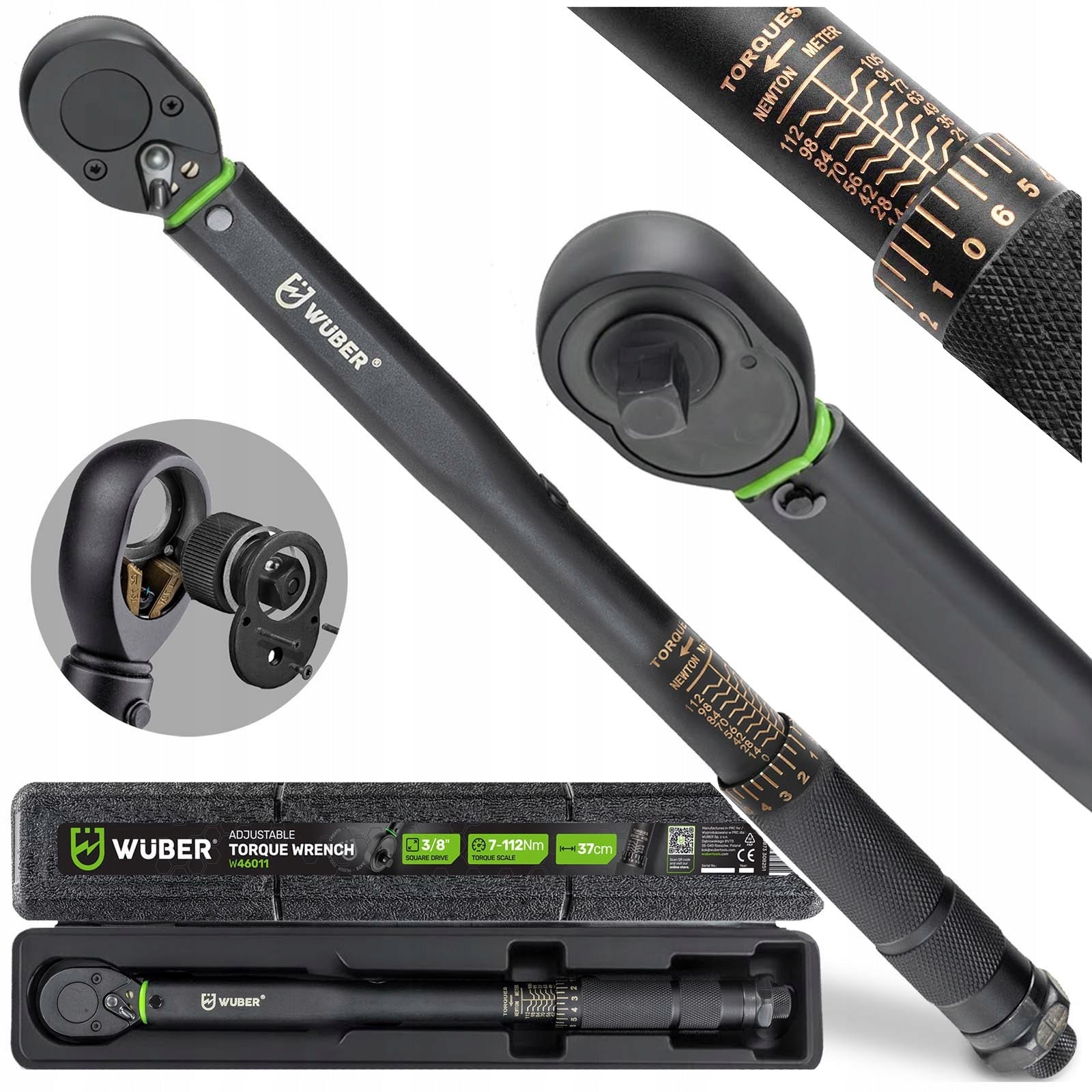

Dinamometrinis raktas 7-112 Nm su fiksatoriumi lagamine, 3/8", ISO

Trumpai apie prekę

Prekė: Dinamometrinis raktas 7-112 Nm su fiksatoriumi lagamine, 3/8", ISO. Kategorija: Raktai.

• Gamintojas: Wuber
• Modelis: W46011 KLUCZ DYNAMOMETRYCZNY 7-112NM 3/8" 4%

► Range 7-112 Nm | ► 3/8" Drive | ► Accuracy ±4% | ► 0.5 Nm Increments | ► Setting Lock | ► 45-Tooth Ratchet | ► Click Signal | ► Nm and kgm Scale | ► Knurled Handle | ► Length 37 cm | ► Case Included

✅ The key has a declaration of compliance with EN ISO 6789 and its indications are within the tolerance of ±4%.

⚙ Technical specification

• Producer: WUBER
• Model: W46011
• Tool type: Torque wrench
• Mounting pin: 3/8"
• Torque measuring range: 7-112 Nm
• Second measuring scale: 0,71-11,42 kgm
• Declared measurement accuracy: ±4%
• Standards: EN ISO 6789-1:2017, EN ISO 6789-2:2017
• Main scale plot: 7 Nm
• Plot of exact scale: 0,5 Nm
• Torque measurement: When tightening
• Ratchet direction switch: Yes
• Number of ratchet teeth: 45 (8° pitch)
• Material: Cr-V
• Setting lock: Yes
• Overall length: 37 cm
• Key weight: 0,8 kg
• Weight of the set with suitcase: 1 kg
• Suitcase dimensions: 39 cm x 7 cm x 7 cm

⭐ Controlled torque setting and thread protection

✅ Range 7-112 Nm ► You set the moment specified in the service documentation instead of tightening to the feel.

✅ Declared accuracy ±4% ► You can be sure that the tightening torque matches the value recommended by the manufacturer of the item.

✅ Setting every 0,5 Nm ► High adjustment accuracy, it will also work well with aluminum and plastic elements, where several newton meters make a difference.

✅ Setting lock ► The set value stays in place throughout the work, so you tighten the next screws with the same force.

✅ Scale in Nm and kgm ► You read the moment in the unit where your documentation provides it, without having to recalculate.

⚡ Access to tight spaces and work under load

✅ Rattle 45 teeth ► Jump every 8 degrees makes it easier to work where you have a few centimeters to move the handle.

✅ 3/8" ► One of the most popular standards, you can buy caps in any construction store.

✅ Total length 37 cm ► Long lever = less force on your part at high torque values.

✅ Reinforced Cr-V ► steel The stem is characterized by high resistance and long-term durability.

✅ Moletized handle ► The hand does not slip on the handle.

✅ Suitcase included ► The key lies in a contoured socket, you keep the workshop organized and more comfortable to carry in the trunk of the car.

⭐ With the WUBER torque wrench you will tighten:

► Replacement of spark plugs

► Installation of engine accessories

► Repairs of motorcycles and quads

► Installation of bicycle cranks and cassettes

► Service of power tools and garden equipment

⚡ How does torque wrench work?

The manufacturer of your car, motorcycle or tool indicates in the instructions how to tighten each screw. You set this number once on the key scale.

What happens next?

You spin and the key keeps an eye on the value for you: the moment the screw reaches it, the mechanism lets go and you hear a click. It's a signal that the work on this screw is done.

⭐ Declared accuracy ±4% over the entire range

The spring inside the shaft releases the ratchet when the set value is reached. The manufacturer declares very small deviation of the measurement at the level of ±4%, which practically does not affect the accuracy of the key.

What do you gain?

You are certainly tightening the screws with the torque required by the component manufacturer.

⚡ Setting locking ring

Once set, the value is unchangeable throughout the work - the first and twenty screws tightened at exactly the same moment.

⭐ Indication of reaching a given moment

After reaching the set value, the mechanism gives an audible click and a noticeable jump in the hand.

This signal tells you to stop tightening before you pull the thread.

⚡ Rattle 45 teeth and jump every 8 degrees

A 45-tooth ratchet needs 8 degrees of rotation to jump to the next tooth.

What does this mean for you?

You tighten the screw in a tight space without removing the cap after each movement.

⭐ Second scale in kilogrammeters

In addition to the scale in Newton meters, the key has a scale in kilogrammeters, in the range of from 0,71 to 11,42 kgm.

If your service documentation gives you a moment in this unit, you read it straight from the core.

⚡ Convenient transport case

The wrench has a special, grooved transport case that will allow you to safely store and transport the tool.

✔ Set includes:

► 1x Torque wrench WUBER W46011 3/8"

► 1x Transport case

► 1x User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Wuber
Parametry	Manufacturer code	W46011 KLUCZ DYNAMOMETRYCZNY 7-112NM 3/8" 4%
Parametry	Key type	torque
Parametry	Product weight with unit packaging	1 kg
Parametry	EAN (GTIN)	5905873308251
Parametry	Packaging status	original
