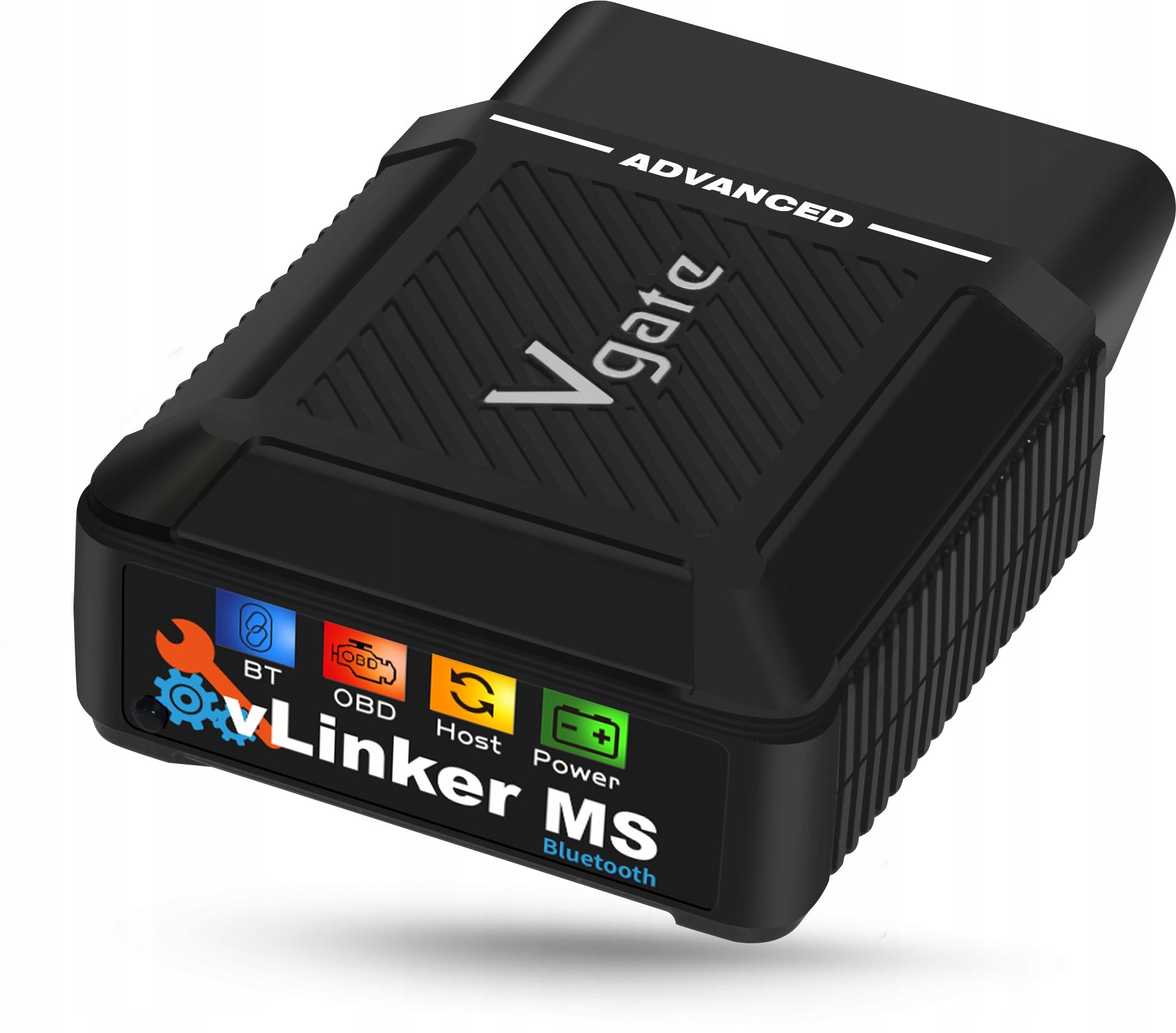

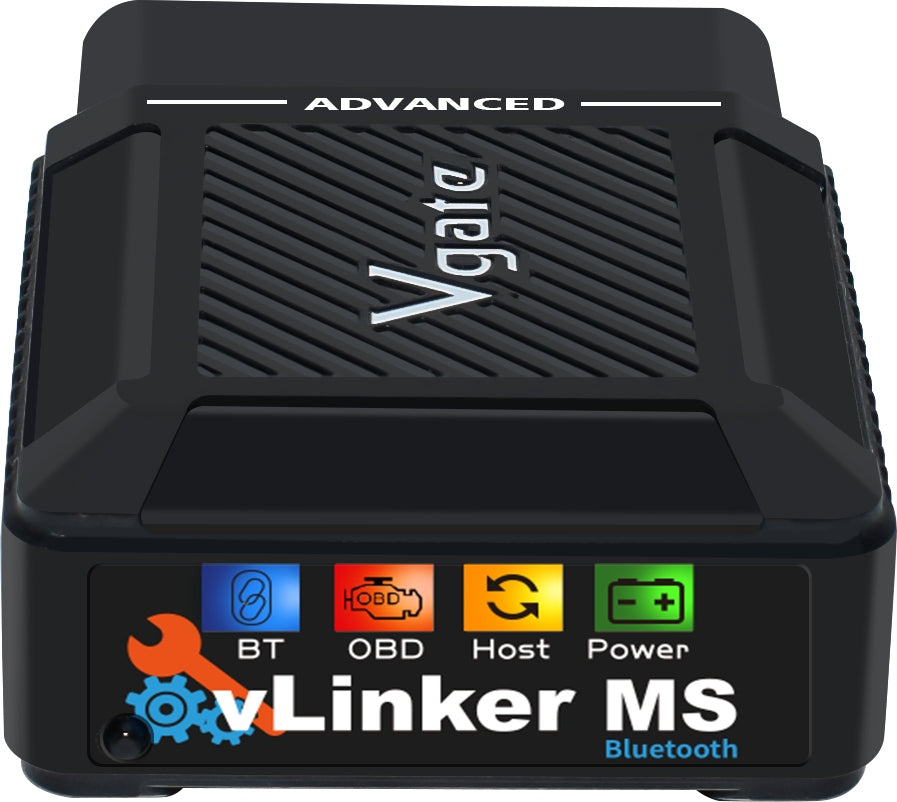

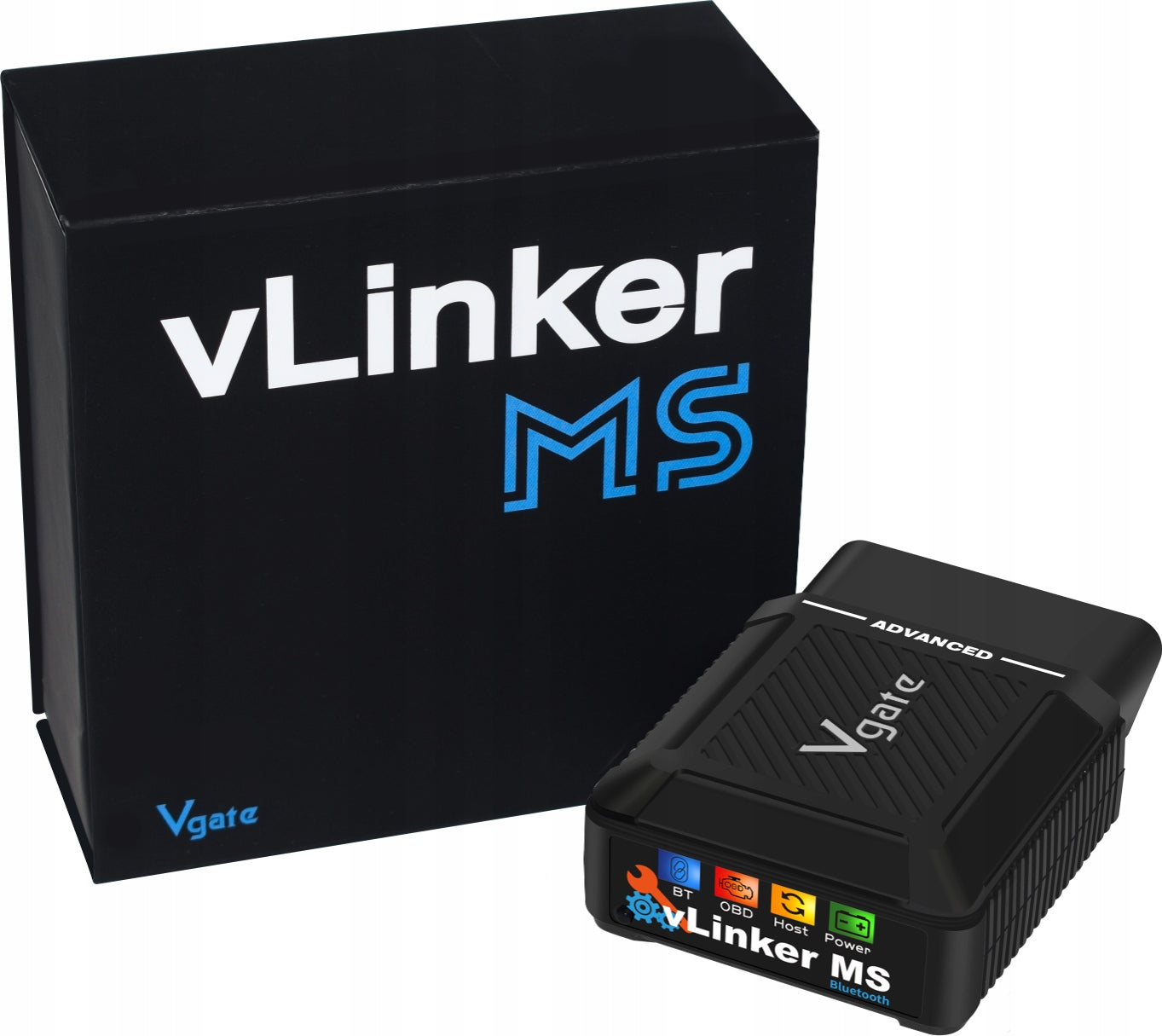

Diagnostinis testeris VGATE VLINKER MS ADVANCED OBDII ELM327 CODING

Trumpai apie prekę

Prekė: Diagnostinis testeris VGATE VLINKER MS ADVANCED OBDII ELM327 CODING. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Vgate
• Modelis: VG-VL-MS-1

Vgate vLinker MS BT5.2 - Latest OBD2 Diagnostic Interface

✅ Top model: The Vgate vLinker MS series is an improved version of vLinker MC+, specifically for encoding applications that require a huge amount of data transmission.

✅ Supports up to 5 CAN protocols! – HS-CAN, MS-CAN, SW-CAN, CH-CAN, LS-CAN the device can additionally access these proprietary networks for General Motors and Ford cars, in addition to 5 standard OBD-II protocols.

✅ It works on the latest Bluetooth 5.2 chip: This version works with both iOS and Android iWindows, and not only supports bluetooth up to version 5.4, but also works on it itself.

✅ Fully automatic: The interface turns on automatically when the engine starts and goes into sleep mode 30 minutes after it is turned off, so it can be left in the car socket without having to constantly start.

✅ OFFICIALLY APPROVED BY APPLE: The device is MFi certified short for "Made for iPhone", which means that the product has been specifically designed and tested by Apple to work seamlessly with iPhone, iPad, and iPod devices. Having an MFi certification means that the product complies with Apple's quality and safety requirements.

✅ Vgate vLinker MS BT 5.2 turns your iOS, Android or Windows mobile device into an advanced diagnostic tool, performance monitor and gives you the ability to code.

✅ Increased Byte OBD request up to 4000 bytes, meets the needs of special communications.

✅ Transmission speed of up to 3 Mbps!

✅ Fully compatible with AT ELM command set (ELM327, ELM329) and ST command set (STN).

✅ Top chip MIC331X: Very high quality chip that supports more commands than ELM327, ELM329 or STN chip kits while ensuring full compatibility with them.

✅ Regular updates: The Vgate brand interfaces are among the few on the market that offer regular software updates to offer customers the latest features available, better compatibility with applications, as well as the highest level of security adapted to current standards. This interface will be a good choice for the future.

✅ More than 100 000 satisfied customers in Poland: the most popular diagnostic interface in the country with an extremely strong supportive community. Our clients regularly publish videos, forum posts and articles, as well as constantly exchange information.

✅ Best Application Support: Vgate works with many publishers of dedicated applications to ensure that each subsequent software update is compatible with current and future car models as well as the latest updates to available programs.

✅ Instructions and application in Polish: printed and folded instructions are located in the middle of the box, while the application can be downloaded from the App Store or Play Store.

• Connect the interface to the OBD port in the car, connect the device to the appropriate application and you're done! (detailed step-by-step instructions in Polish are included with the device)

❓ Will the interface work with my car?

• For extended programming features using Bimmercode and FORScana exact list of supported cars check in the application
• full compatibility with the Bimmercode application - BMW E, F and G series encoding
• MS CAN protocol support - for Ford vehicles (FORScan MS CAN)
• SW CAN protocol support - for General Motors vehicles: Opel, Saab, Chevrolet, Vauxhall, Holden, Buick, Cadillac, GMC, Pontiac, Saturn, Oldsmobile, Hummer
• For Ford vehicles: Supports 99% of models after 2000 and about 92% of models after 1996.
• NOTE: The new 2019+ Mazda 3 and CX-30 models are not yet supported.
• For new cars from 2021, FORScan may offer limited possibilities.
• Compatibility with the MotoScan app for BMW motorcycles
• full compatibility with the AlfaOBD app for cars: Fiat / Alfa Romeo / Lancia / Chrysler / Dodge / Ram / Jeep

full compatibility with CarScanner - encoding:

• Volkswagen, Audi, Skoda, Seat MQB platform
• Volkswagen, Audi, Skoda, Seat MLB-EVO platform
• Volkswagen, Audi, Skoda, Seat PQ26 platform
• Volkswagen Touareg NF FL (2015-2018)
• Volkswagen Tiguan and FL (2013-2018)
• Hyundai/Kia with CAN bus.
• Mitsubishi Outlander II, XL, III
• General Motors (Opel, Chevrolet, Vauxhall, Holden) with CAN bus (Reset service reminder)

The interface is a universal device and works with almost all models of vehicles with a standard OBD2 connector. Europe: from 2001 year cars with petrol engine, from 2004 year cars with diesel engine.

❓ What applications does the interface support?

vLinker MS was created mainly for Encoding in Bimmercode, FORScan, OPL Monitor, Multiecuscan and also works with other applications available on the market, such as:

• CarScanner;
• Torque;
• Piston;
• JScan: For Jeep, Chrysler, Dodge;
• OBD Auto Doctor;
• DashCommand;

⚙ Supported protocols:

• ISO 15765-4 (CAN 250/500 kbps, 11/29 bit)
• ISO 14230-4 (Keyword Protocol 2000)
• ISO 9141-2 (Asian, European, Chrysler)
• SAE J1850 VPW (GM)
• SAE J1850 PWM (Ford)
• SAE J2411 Single-Wire CAN (SW-CAN) – standard for GM
• Medium-Speed CAN (MS-CAN) – standard for Ford
• HS-CAN
• CH-CAN
• LS-CAN

❓ Does our device work with electric/hybrid cars?

The vLinker MS series is fully prepared, and supports the latest models of electric and hybrid cars with their applications.

With the Car Scanner app, you can handle a very large number of electric and hybrid vehicles on the market.

⚙ There are also programs dedicated directly to each brand for example:

• Deep OBD - for BMW and VAG vehicles
• Leaf Spy Lite/Pro - for Nissan leaf series cars
• ScanMyTesla - for Tesla
• vctool.app - supports cars from the VAG group (Audi, VW, Skoda, etc. including electric cars) with MQB, MQBA0, MQBAB, MQB2020, MQB37w, MEB and MLBEvo platforms.
• Hybrid assistant - Toyota and Lexus hybrid cars
• ABRP - Application for route planning for electric cars

❓ What are we able to program using the vLinker MS interface with Bimmercode or Forscan?

⚙ For example, we are able to program the following functions:

• activation of emergency brake lights
• activation of daytime running lamps
• Welcome Lights activation
• automatic folding/unfolding of mirrors
• duration of the alarm
• and much more (check the app for details)

⚙ In addition, the interface must work with the appropriate software and enables OBD diagnostic functions:

• Reading and erasing OBD-II errors
• Deleting the CHECK ENGINE lamp
• Read error codes waiting when the MIL light is not yet on
• Reading the error codes recorded that caused the MIL lamp to light
• Reading general and manufacturer characteristic error codes
• and much more (check the app for details)

❓ Will the interface work with my phone, laptop or car radio?

The device works with all phones with Bluetooth and the Android or iOS operating system.

The interface also works with devices that have Windows and macOS operating systems.

Due to Bluetooth compatibility, some Android car radios are not supported.

Specifications
