Diagnostinis įrenginys ThinkScan Max 2 OBD2 Thinkdiag Tester

Trumpai apie prekę

Prekė: Diagnostinis įrenginys ThinkScan Max 2 OBD2 Thinkdiag Tester. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Thinkcar
• Modelis: Thinkscan

THINKCAR® THINKSCAN Max 2 - Full Diagnosis, Fully Designed

Features

• Capable of diagnosis for all components on the vehicle.
• Supports FIAT Security Gateway account login procedure.
• Up to 28 Special procedures, including Immobilizer Reset, Tire Pressure Reset.
• Lifetime access of softwares and special functions.
• Recognizes car brand (VIN code) automatically.
• Fluent design with a 6' HD display and the Android 10.
• CAN FD making a wider vehicle coverage with enhanced data transportation speed.
• Supports ECU Coding extension (an extra purchase needed)
• Auto-recognizes car brand (auto-VIN code recognition)

Notice Before Purchase

• Supported in Polish, but the adaptation may not be complete (some parts are still in English).
• Does not support coding, matching and reading the freeze frames UNLESS it has been mentioned in the special function list or OBDII diagnostic list.

DIANOSTIC FUNCTIONS

Thinkscan Max 2 covers basic diagnosis for all vehicle components. Here's the possibilities of diagnosis:

• Transmission: Diagnoses transmission trouble codes, monitors fluid temperature.

• Fuel System & Efficiency: Checks fuel trim, injector performance, air-fuel ratio, MAF/MAP sensors.

• Ignition & Electrical: Monitors ignition timing, coil status, battery voltage, throttle position, crankshaft/camshaft sensors.

• ABS & Braking (Advanced Scanners): Detects ABS faults, brake pad wear.

• Airbag & Safety (Advanced Scanners): Diagnoses airbag (SRS) issues.

• Steering & Suspension (Advanced Scanners): Checks EPS, wheel speed sensors, stability/traction control.

• Climate & Comfort Systems: Diagnoses HVAC, infotainment, interior electronics.

• Performance Monitoring: Streams live data (RPM, speed, fuel efficiency), tracks throttle response, acceleration.

and many more...

NOTICE: For different car model, the available diagnostic functions are different.

28 SPECIAL FUNCTIONS

Contains abundant post-repair/replacement/maintenance service procedures. Here's the list:

1. steering angle sensor reset
2. brake reset
3. gear reset
4. oil indicator reset
5. immobilizer reset
6. oil injector coding/reset
7. tire pressure reset
8. battery matching/reset
9. ABS bleeding
10. electronic throttle reset/matching
11. diesel particulate filter(DPF) regeneration
12. (air level) suspension calibration
13. headlight(AFS) reset
14. sunroof reset
15. gearbox learning
16. exhaust gas recirculation(EGR) adaption
17. UI language setting
18. air/fuel(A/F) ratio reset
19. coolant bleeding
20. NOx sensor reset
21. seats calibration
22. stop/start function reset
23. transportation mode deactivation
24. tire reset
25. window calibration
26. AdBlue reset
27. odometer reset
28. airbag reset

NOTICE: The actual special function count is larger than

WIDE VEHICLE COVERAGE

• Volkswagen Group: VOLKSWAGEN / AUDI / BENTLEY / BUGATTI / LAMBORGHINI / PORSCHE / SEAT / SKODA
• BMW Group: BMW / MINI / ROLLS-ROYCE
• Daimler (Mercedes-Benz) Group: MERCEDES / MAYBACH / SMART
• General Motors (GM) Group: BUICK / CADILLAC / CHEVROLET / HOLDEN / OPEL
• Ford Group: FORD(AUSTRALIA) / LINCOLN / EUROFORD
• Stellantis Group: ABARTH / ALFA ROMEO / CHRYSLER / CITROEN / DODGE / DS / FIAT / JEEP / LANCIA / MASERATI / OPEL / PEUGEOT
• Hyundai Motor Group: HYUNDAI / KIA / GENESIS (not listed but part of the group)
• Honda Group: HONDA(DONGFENG) / HONDA(GAC) / HONDA / ACURA
• Toyota Group: TOYOTA / LEXUS / DAIHATSU / HINO (not listed) / TOYOTA(CHINA)
• Renault–Nissan–Mitsubishi Alliance: RENAULT / DACIA / NISSAN / DFCITROEN / DFMOTOR (not listed) / MITSUBISHI / INFINITI / RENAULT SAMSUNG
• SAIC Motor: MG(SAIC) / MAXUS / ROEWE (not listed) / WULING (SGMW) / SGM / CHBUICK / CHCADILLAC / CHCHEVROLET
• Geely Group: GEELY (not listed) / LYNKCO / VOLVO / LOTUS (not listed)
• Tata Group: TATA / TATA(INDIA) / JAGUAR / LAND ROVER
• Changan Group: CHANGAN / CHANGANFORD / JMC
• BAIC Group: BAIC / BAIC SENOVA / BAIC WEIWANG / BJEV (not listed)
• FAW Group: FAW(TIANJIN) / HONGQI (not listed)
• Dongfeng Motor Corporation: DFSK / DFCITROEN / DFPEUGEOT / DFNISSAN
• Great Wall Motors (GWM): GWM / HAVAL (not listed) / WEY (not listed) / ORA (not listed)
• Chery Group: CHERY / QOROS / JETOUR (not listed)
• BYD Auto: BYD
• Zotye Auto: ZOTYE
• Haima Group: HAIMA
• Brilliance Auto Group: BRILLIANCE
• JAC Motors: JAC
• Lifan Group: LIFAN
• Mahindra Group: MAHINDRA / MAHINDRA(INDIA)
• Proton Group: PROTON / PROTON(MALAYSIA)
• Perodua: PERODUA / PERODUA(MALAYSIA)
• Maruti Suzuki: MARUTI / MARUTI(INDIA)
• Iran Khodro: IKCO
• SAIPA Group: SAIPA
• Other/Independent/Unknown/Regional Brands: ASTON MARTIN / ISUZU / SUBARU / SSANGYONG / UAZ / ZX AUTO / HAFEI / CHANGHE / ECUAID / GAZ / FOTON / JOYLONG / LUXGEN / POLARSUN / QOROS / XINKAI / NJFIAT / SEAZ / OBM&IM / ZAZ / UNITED PAKISTAN / SPARK / SPRINTER / TLISUZU / DEMO

THINKSCAN Max 2

Display: 5.99 inches

Resolution: 720*1440px

RAM: 2Gb

Capacity: 32Gb

Network: Dual frequency Wi-Fi

Software: Lifetime Free

Language: English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish, Hungarian, Arabic, Greek, Slovak, Chinese(Traditional), Korean.

User Manual Language: English, French, Spanish, German, Russian, Italian, Portuguese, Japan.

OTHER USEFUL FUNCTIONS

• VIN code auto-recognition
• repair history
• diagnosis feedback
• screenshot
• Email share
• mall
• Advanced Tire Pressure (TPMS) extension (purchase needed)
• car data replay
• voltage monitor
• DLC locating
• fault code knowledge base

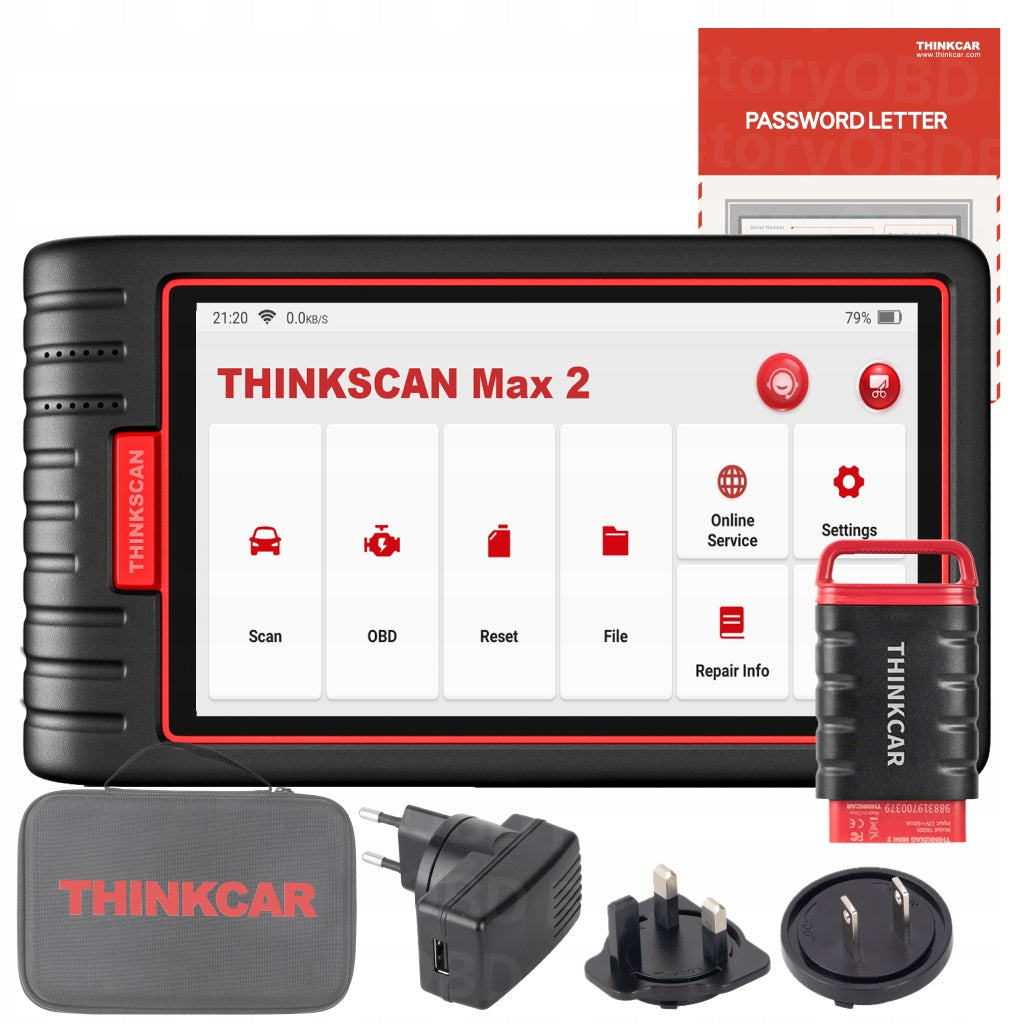

IN THE BOX

1. THINKSCAN Max 2 Diagnostic Interface
2. OBDII Bluetooth VCI Sender
3. Power Adaptor (with US/EU/UK Travel Adaptors)
4. USB Charging Cable
5. User Manual
