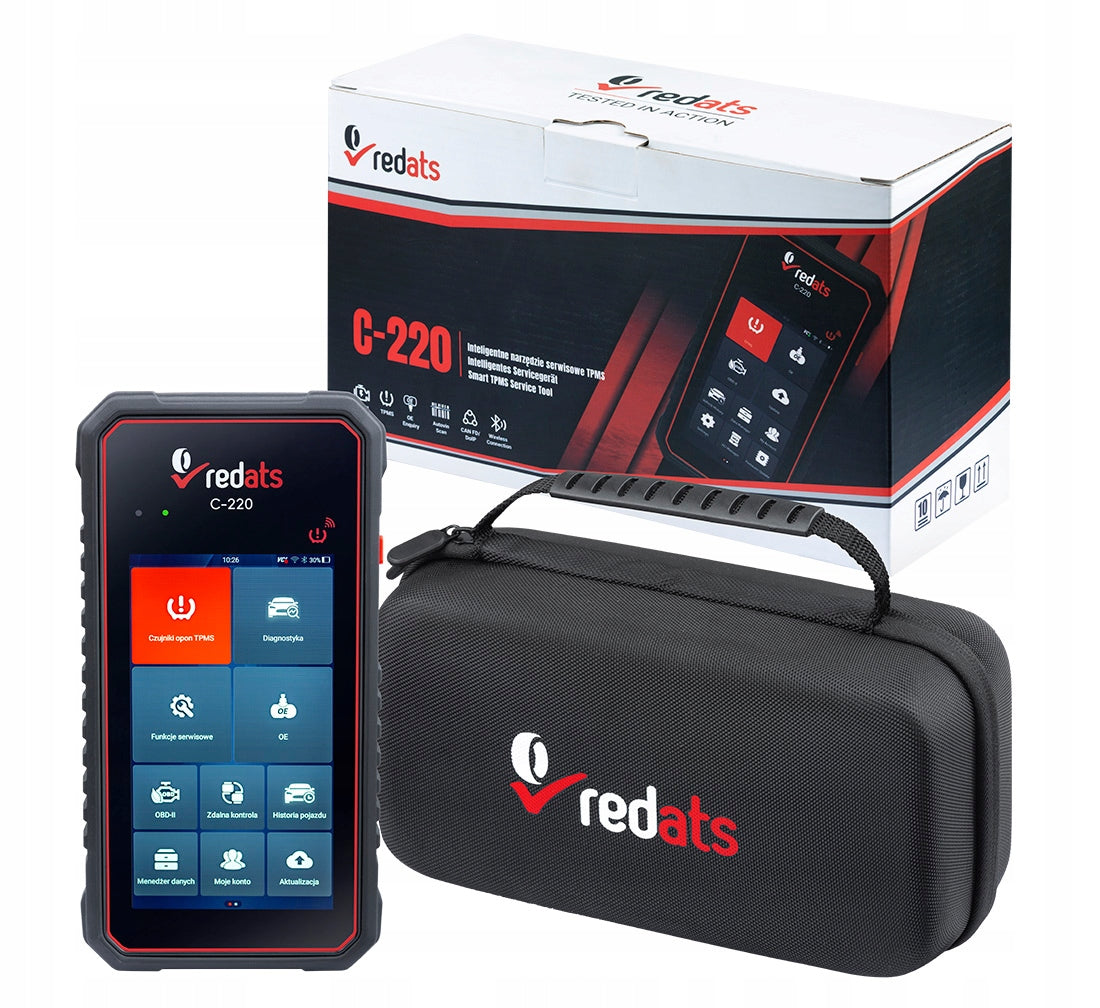

Diagnostinis įrenginys REDATS C-220 TPMS jutiklių programatorius Wi-Fi

Trumpai apie prekę

Prekė: Diagnostinis įrenginys REDATS C-220 TPMS jutiklių programatorius Wi-Fi. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Redats
• Modelis: 19-01-23

Brand: REDATS

Symbol: 19-01-23

Display: 5.5 inch TFT LCD capacitive screen; 720*1280 pixels

Update: Lifetime

Processor: Quad-core, 1.3 GHz

Memory: 2 GB

SSD: 64 GB

Radio emission: 315 MHz, 433 MHz

Protective case on device: Yes

Battery capacity: 5000 mAh

Radio reception: 315 MHz, 433 MHz

Communication interface: Built-in WIFI 802.11 b/g/n wireless network card USB 2.0 OTG/standard USB 2.0 HOST Bluetooth specification v2.1+EDR; Bluetooth 4.0 Low Energy (LE) (10-20 m)

Supported sensors for activation (reading): >99%

OBD LED Option: Yes

Supported sensors for programming

• Redats S20R
• Redats S20B
• Redats S20S

Communication Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Dual K-line SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, Fast, Medium, Slow and Single Wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1939

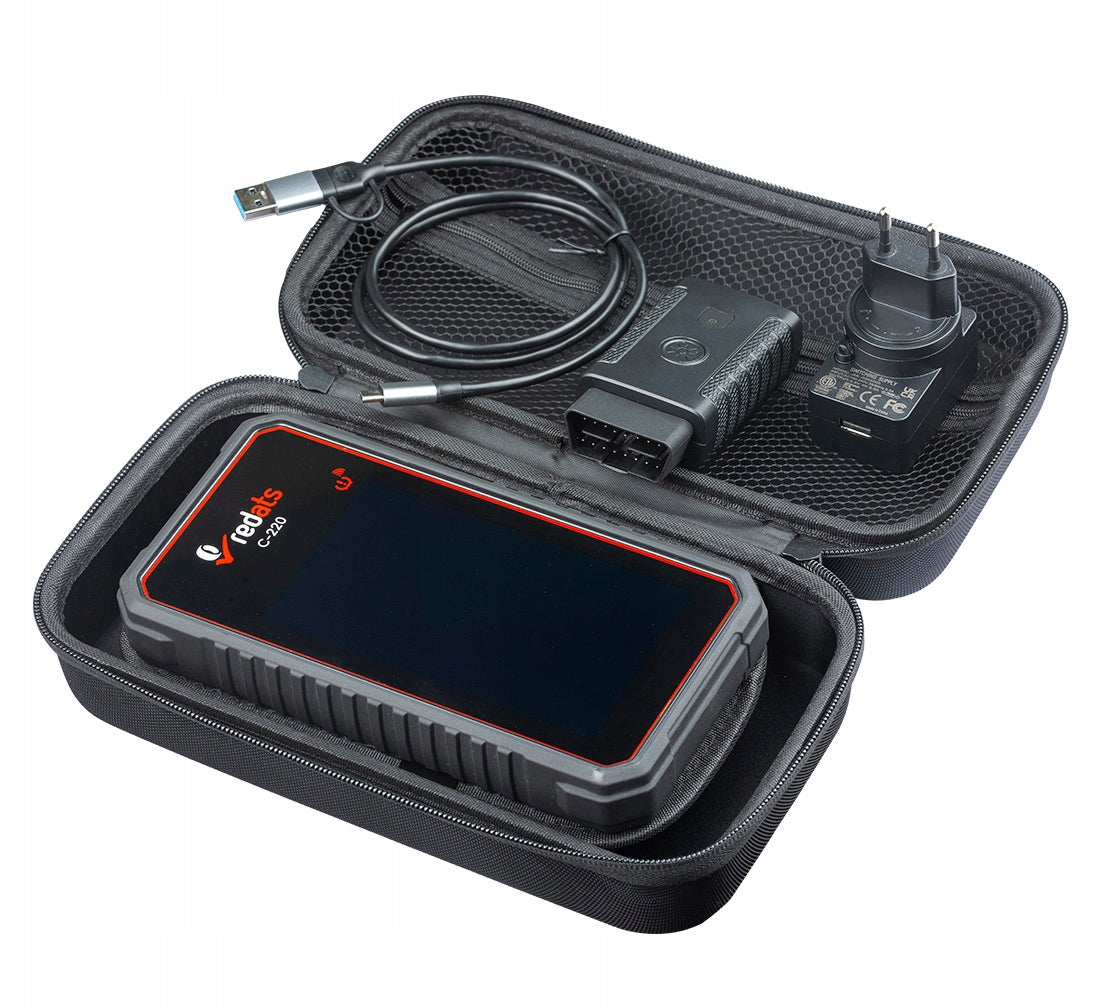

Set:

• C-220 Programmer
• Communication interface
• Charger
• USB cable
• User manual

Operating system: Android 9.0

Operating temperature: -10 to 70°C

Storage temperature: -20 to 80°C

Power supply: lithium polymer battery, charged via 5V USB power adapter

Main unit weight: 0.87 kg

Dimensions of the main unit (length x width x thickness. ): 200mm x 104mm x 28mm

What kind of equipment is this?

REDATS C-220 is a diagnostic device that enables quick diagnostics of TPMS systems and programming of pressure sensors in passenger cars.

The most important facts about this diagnostic device for pressure sensors!

See:

• Battery capacity: 5000 mAh - enough for a long time!
• Display: 5.5”
• Operating System: Android 9.0
• Memory: 2 GB
• SSD Hard Drive: 64 GB
• Frequency: 315 MHz, 433 MHz
• LIFETIME UPDATES - buy once, use for years!

Do you need a diagnostic scanner for TPMS?

Today, virtually every car has this system - tire pressure monitoring. Since 2014, almost every car.

Therefore - if you work with tires - be it ordinary, seasonal replacements or repairs - the diagnostic device for TPMS simply needs to be on your service.

Because let the car come to you with a glowing TPMS light.

Or a faulty valve with a pressure sensor.

Having a diagnostic device for TPMS does not refer the customer to the competition. You don't lose your income.

Instead, you diagnose, repair, and the money stays in your pocket!

Speaking of cash, in REDATS C-220 you have...

LIFETIME UPDATES - buy once, use for years!

Most TPMS device manufacturers on the market offer free updates for a short time. For example, a year. Then you pay. And that’s often a lot of money.

By choosing REDATS C-220 you can be sure of lifetime updates.

Yes.

You read well.

Lifetime updates - as long as your device is running and you are using it, you have access to system updates for as long as you have access to it.

You admit it's a good deal, right?

What can this device do?

REDATS C-220 is a TPMS tester, packed with functions that will allow you to effectively operate with pressure sensors. Check out what he has on board!

Huge screen = Convenience

This TPMS sensor programmer is equipped with a 5.5 inch screen. The size of 720*1280 pixels will allow you to work comfortably and seamlessly with sensors!

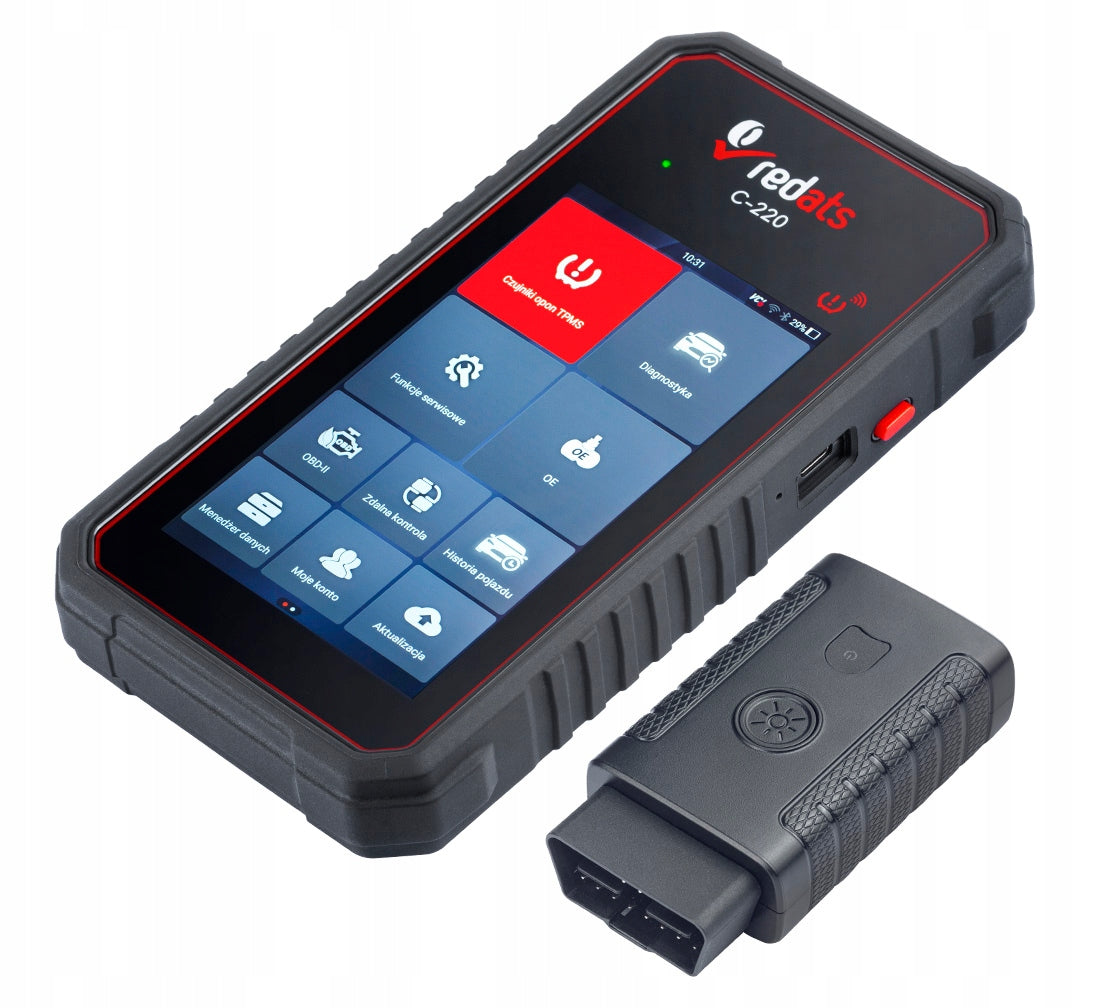

Not only that - the OBD cube attached to the tester has lighting! This makes it easy to get into an outlet in your car - even when it's dark outside :)

How does this TPMS tester work?

It's very simple. You have 2 options:

If you just want to read sensor data or make a sensor clone, all you have to do is connect to the sensor by radio!

If you want to update the sensor numbers (e.g. After replacing the sensors in the car), all you have to do is plug the scanner into the OBD connector in the car.

However, regardless of the action you want to do - you start the device. And you have access to the entire TPMS system. With this device, you can read all the data from TPMS sensors - for example:

• ID number,
• Pressure in bars, psi or kPa,
• temperature in °C or °F.

The programmer has a huge database of vehicles (Europe, USA, Asia), so you can easily program 99% of the vehicles that will appear on your website!

Will I program TPMS with this scanner?

Yes. REDATS C-220 will allow you to work comprehensively with TPMS systems. Here are his main options:

• Programming of TPMS sensors
• Cloning of TPMS sensors
• Cloning of TPMS sensors by OBD2 connector.
• Reading TPMS sensors via OBD2 connector in the car
• Diagnostics of the Wheel Pressure Monitoring System in the Car (TPMS)

Huge database

You're not just programming TPMS. 'Cause this scanner still has

• OEM sensor database.
• Database of the torque of tightening the nut/screw of the wheel.
• Database of how to retrain/program sensors for a given car.

Briefly. No more searching for information. You have everything at hand, in one device!

Multifunctional scanner!

This TPMS diagnostic device will work not only in working on wheels! You can even say that it is a multifunctional combine harvester! And this will not be an exaggeration, because REDATS C-220 offers such features as:

• Vehicle diagnostics: Error reading, error erasure
• Reading of real parameters
• Camera
• OBD2 Pin Detector
• Adaptation of the battery
• Transmission Adaptation
• Steering wheel steering angle sensor
• DPF diesel particle filter
• Parking brake EPB
• Coding of diesel injections
• ABS Brake Venting
• Oil Reset
• Checking the operating frequency of the wireless key.
• Remote control system
• History of Serviced Vehicles
• Vehicle Service Reports

So many options – what does it give you?

Briefly.

1. A multifunctional combine harvester that will cover 99% of TPMS systems in cars.
2. He can also do diagnostics. - DPF, brakes, battery, sensors, etc.
3. It has lifetime updates - buy once, use for years!

Communication protocols - TPMS device REDATS

This tester works with the following protocols:

• ISO9141-2,
• ISO14230-2,
• ISO15765-4,
• K/L lines - double line K SAE-J1850 VPW,
• SAE-J1850PWM,
• CAN ISO 11898,
• Fast, medium, slow and single wire CAN, KW81, KW82, GM UART,
• UART Echo Byte protocol,
• Honda Diag-H protocol,
• TP2.0, TP1.6, SAE J1939, SAE J1939, SAE J1708, CAN fault tolerant, CAN FD, DOIP
