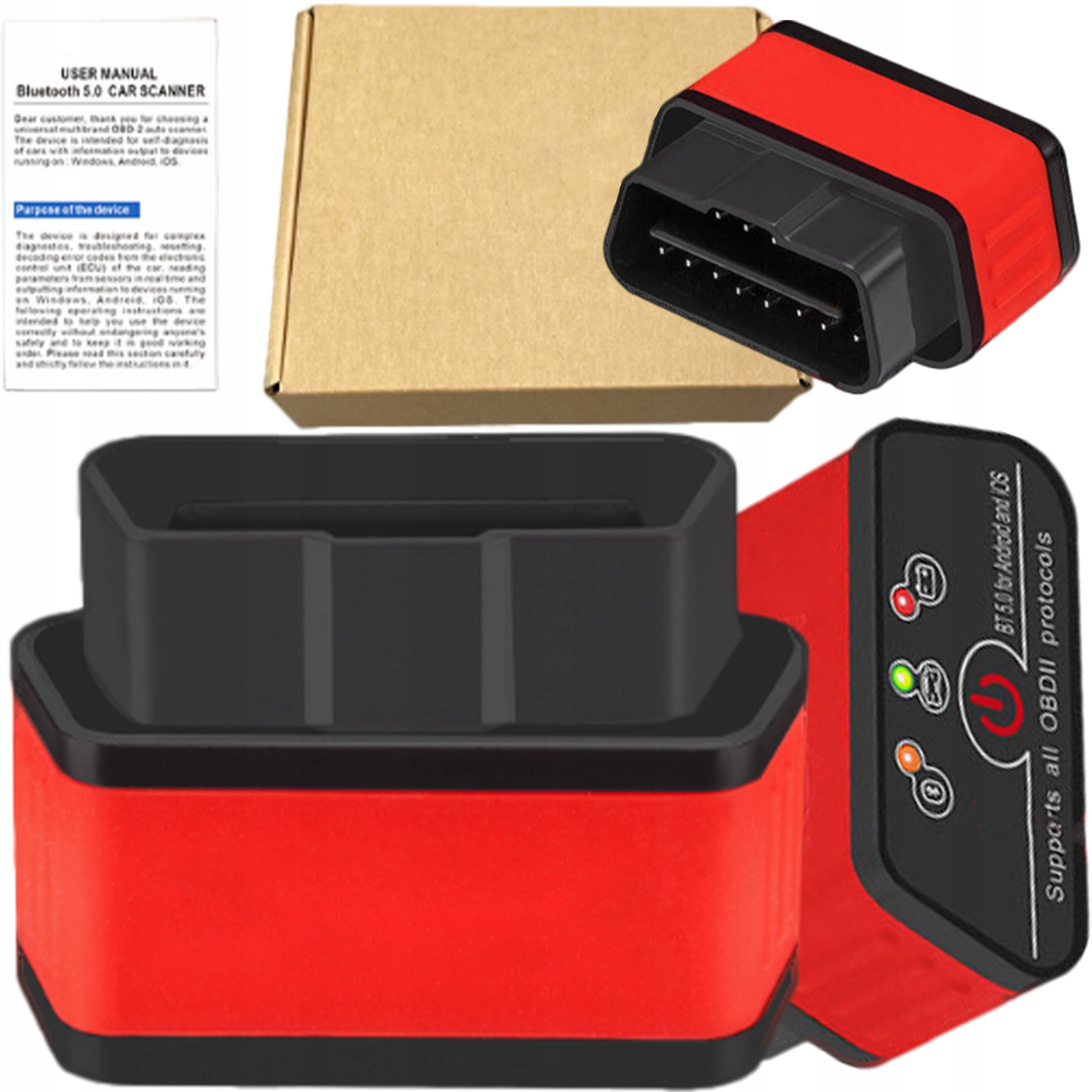

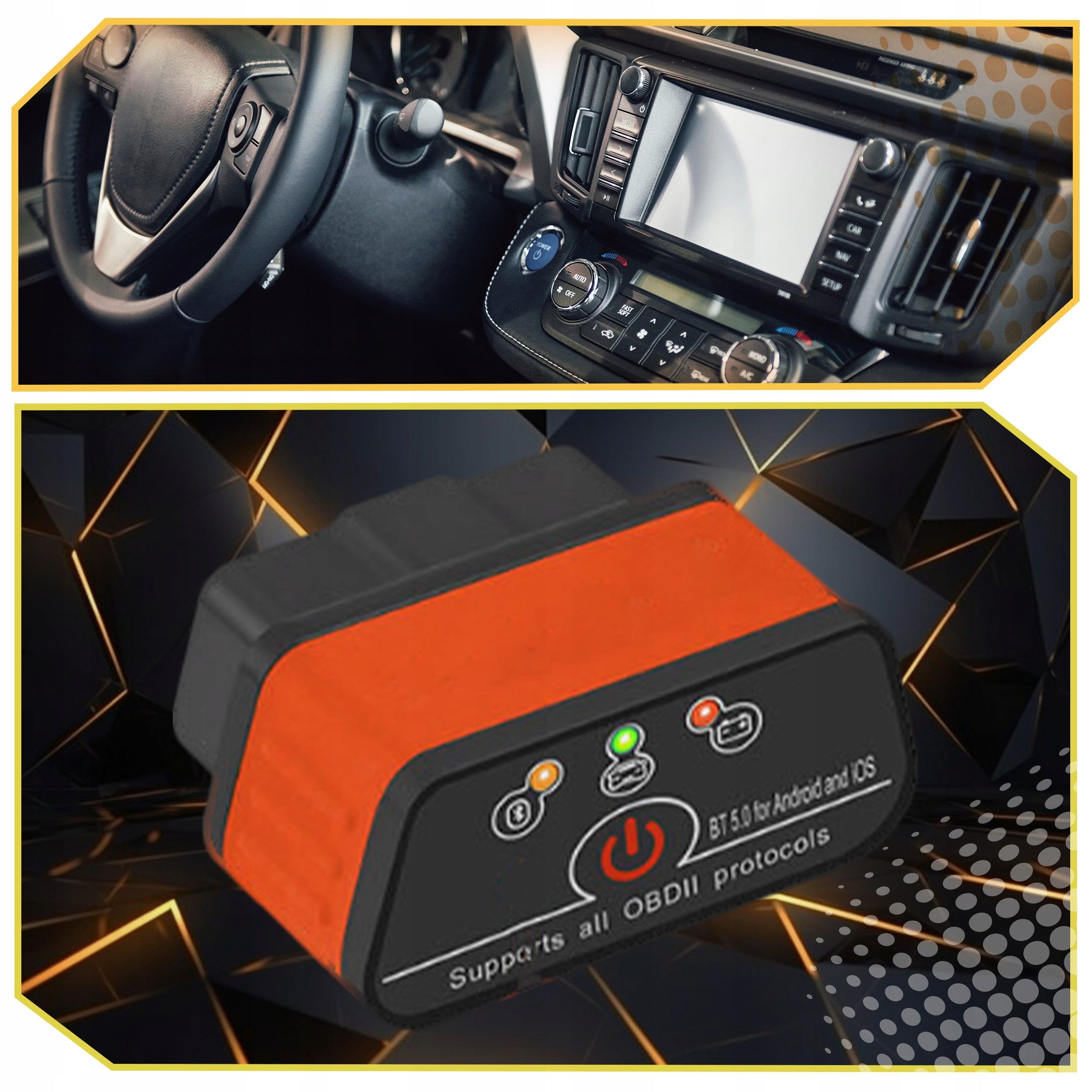

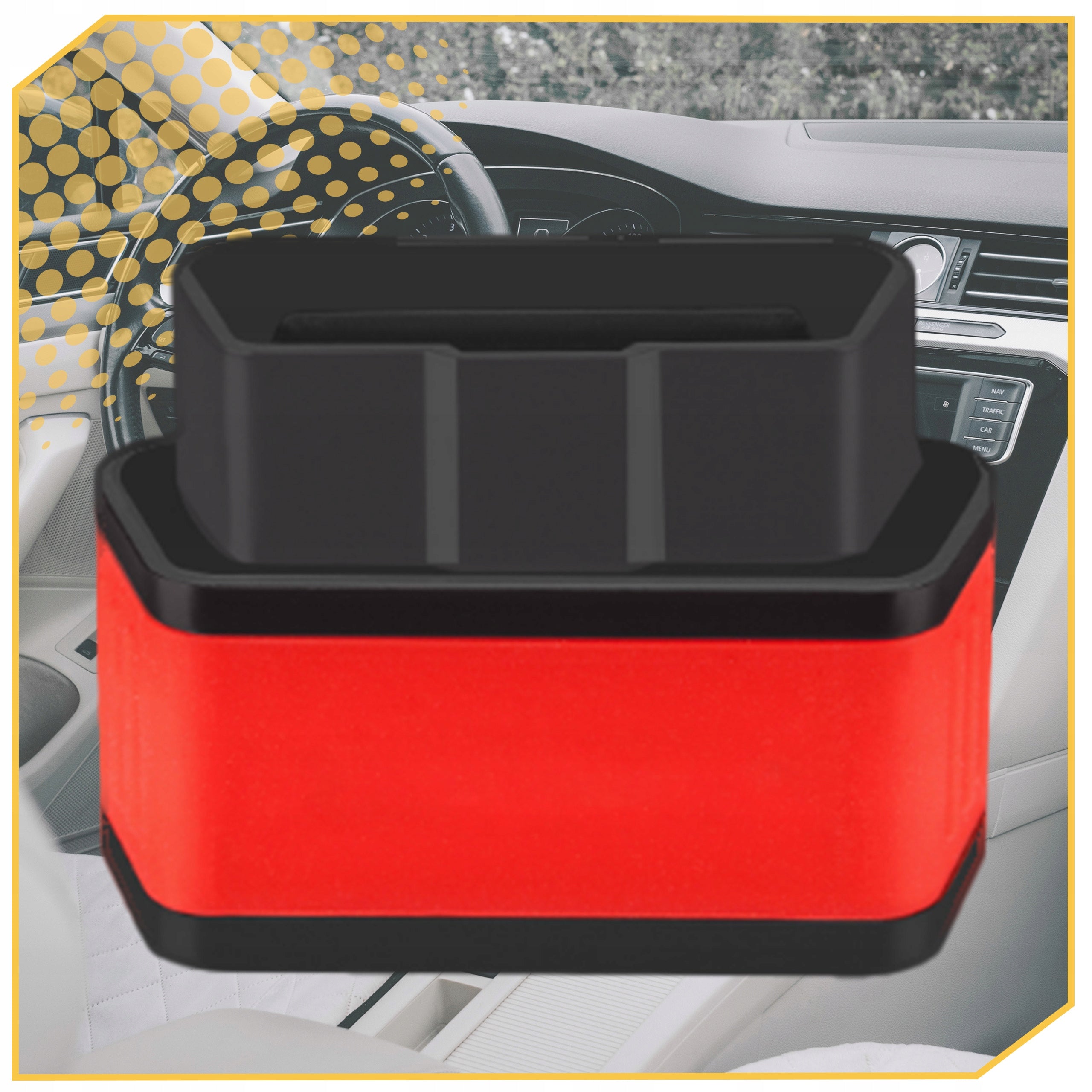

Diagnostinė sąsaja ELM327 OBD2 Bluetooth 5.0 Android/iOS

Trumpai apie prekę

Prekė: Diagnostinė sąsaja ELM327 OBD2 Bluetooth 5.0 Android/iOS. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Lewer
• Modelis: Interfejs diagnostyczny iCar2 ELM327

Reading information and burning DPF in your own garage?

IT'S POSSIBLE!

The diagnostic interface ELM327 offers wide compatibility with and accuracy of measurements.

Specification:

• Compatibility: Android / Windows
• Connection: Bluetooth 5.0
• Weight: approx. 0,06 kg
• Color: black-orange

Set Contents:

• diagnostic interface,
• box,
• instruction in Polish.

What makes our diagnostic interface so great?

✅ Quickly connects to the controllers of ECU motors.

✅ It is equipped with a high-quality Bluetooth module, which translates into a stable connection and reduces the risk of data loss.

✅ In order to save battery power, the device automatically goes into sleep mode after 30 minutes of inactivity.

✅ It is characterized by wide compatibility (connects to virtually all the most important OBD2 applications).

✅ Aesthetic design makes easily adapts to the interior of any car.

✅ It has a small size, making it easy to insert into the OBD2 socket.

Working with the right software, the interface will allow you to:

➔ reading and erasing OBD-II errors,

➔ erasure of the CHECK ENGINE lamp,

➔ reading pending error codes (when the MIL light is not yet on),

➔ reading the error codes recorded that caused the MIL lamp to light,

➔ reading general and characteristic error codes of the manufacturer,

➔ preview of frozen frames – FREEZE FRAMES,

➔ real-time monitoring of engine operating parameters – LIVE DATA,

➔ reading parameters online,

➔ checking the meaning of error codes,

➔ measurement of engine power (HP),

➔ measurement of parameters (e.g. time from 0-100 km/h).

Compatibility with applications:

• SDPROG,
• Torque,
• Piston,
• JScan (for Jeep, Chrysler, Dodge),
• OBD Auto Doctor,
• DashCommand,
• OPL Monitor, Fdpf, VAG DPF, DPF Monitor, FAPlite, bimmer-tool (dlla cars from the VW, Opel, Ford, Citroen, Peugeot, BMW, Fiat, Alfa Romeo, Chrysler, Jeep, Dodge, Lancia group).

➔ We especially recommend the Car Scanner application for diagnostics.

ELM327 interface – usage guidelines

1. To get started with the interface, connect it to the OBD port in your car and connect it to the appropriate app.
2. The device works with almost all vehicles with a standard OBD2 connector (in Europe with cars with gasoline engines since 2001 and cars with diesel engines since 2004).
3. The OBD2 socket is most likely to be found under the dashboard on the driver's side. Try to find them before buying the interface.
4. The interface is compatible with Android and Windows devices (due to Bluetooth compatibility, it does not support some Android radio devices).
5. The device does not work with iOS!
6. The interface does not read or remove security-related errors (m.in. airbags, ABS, ESP, seat belt).
7. The device supports passenger cars (including those with a permissible gross weight of more than 2500 kg and light commercial vehicles that are obliged to operate and support the OBD2 protocol).

The diagnostic interface allows you to read information and burn DPF for engines and cars such as:

➡ OPEL using the OPL Monitor – Android application: supported engines: 2.0 CDTI, A20DT, A20DTC A20DTE, A20DTJ, A20DTH, A20DTL, A20DTR, B20DTH, B16DTH

➡ from the VW group, using the VAG DPF application -Android: supported engines: DETA,CBC, CFHD,CUNA, CFFB, CFWA(*), CLHA, CXXB, CAYC ,CAHA,CXHA, DTTC, CDUC, CFGB(*), CFGC, CJCA, CRMB, CUPA, CUSA,CXFA, CAYB, CAYD, CRLB, CUTA, CFHC, CAGA(*), CSHA, CJCD,DFSB, CLAB, DFLA, DCXA, CFCA, CGLC, CFJB, CFHA, CRUA,DDYA, DFFA, CRKB, DCYA, DFCA, CUUB, CGLB, CUAA, CUSB,CAPA(*), DFGA, DFSF, DFHA, CNHA, DGTA, DGTE(*), CCWA,DGDA, DLUB, CJCB, DGTD, CDUD, CSUD, DEUA, DAUA, DJGA,CXXA, DFEA, DBGC, CAYA, CRTD, DGDB, CUUA, DAVA, CKFC,CRCA, CGQB(*)(*) = partial support or depending on software version

➡ FORD using the application Fdpf - DPF Monitor for FORD - Android: supported engines: 1.6 Duratorq 2011-> (without ECONETIC), 2.0 Duratorq 2011, 2.2 Duratorq 2011, 3.2 Duratorq 2011, 1.5 EcoBlue, 2.0 EcoBlue

➡ Citroen/Peugeot using the FAPlite Citroen/Peugeot OBD2 – Android application: supported engines:EDC15C2, EDC17C10, EDC17C10_BR2, DCM3.5, DCM3.5_BR2,HDI_SID803, EDC16CP39, DCM3.4, HDI_SID807_BR2, MED17.4.2,MM6LPB, MEV17.4_EURO4, DCM3.4P, HDI_SID807, MEV17.4_EURO5,MEV17.4.2, ME745, MED17_4_EURO5, SID201, DCM35_HY, J34P,MM6LP, ME749, MM6KP, EDC17CP42, EDC17CP11, MED17_4_EURO4,V46, DCM6.2, ME747, DCN2, V34.1, V46.21, EDC17C60, MED17.4.4,S2000PM2, MEVD17.4.4, VD46, V34.4, S2000P, SID801, ME7.4.4,ME749_EC5, M7.4.4, V46_6, V46_52, V34.3, DCM71v5, MD1CS003

➡ BMW (E60, E83**, E81, E87, F10, F30, F25) using the bimmer-tool – Android application: supported engines: M47N/M57N (DDE5)

➡ Fiat, Alfa Romeo via the DPF Monitor – Fiat app,Alfa Romeo – Android: supported engines:Alfa Romeo: 159/Brera/Spider 1.9 2.4 2.0, Giulietta 1.6 2.0,Giulia 2.2, Stelvio 2.2, MiTo 1.3 1.6 / Fiat:500 1.3 1.6, 500L, 500X 1.3 1.6 2.0, Panda 1.3 1.9,Bravo 1.6 1.9 2.0, Croma 1.9 2.4, Doblo 1.3 1.6 1.9 2.0,Ducato 2.0, 2.2, 2.3, 3.0, Idea 1.6, Linea 1.3 1.6,Sedici 1.9 2.0, Stilo 1.9, Ducato 2.3, Egea 1.6, Fiorino 1.3,Punto 1.3 1.9, Punto Evo 1.3, 1.6, Grande Punto 1.3 1.6 1.9,Idea 1.3 1.6 1.9, Qubo 1.3, Strada 1.3, Tipo 1.3 1.6,2.0, Toro 2.0, Freemont 2.0 / Lancia:Delta 1.6 1.9 2.0, Musa 1.3 1.6 1.9, Thesis 2.4, Delta 2014 1.6 2.0,Ypsilon 1.3 / Dodge: Journey 2.0, Dodge Neon 1.3 1.6 / Jeep:Cherokee 2.0, Compass 1.6, 2.0, Renegade 1.6, 2.0 / Suzuki: SX4 1.9 2.0 DDi

Specifications
