Diagnostikos testeris H6EB XTool kompiuterinis skeneris

Trumpai apie prekę

Prekė: Diagnostikos testeris H6EB XTool kompiuterinis skeneris. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Xtool
• Modelis: H6EB

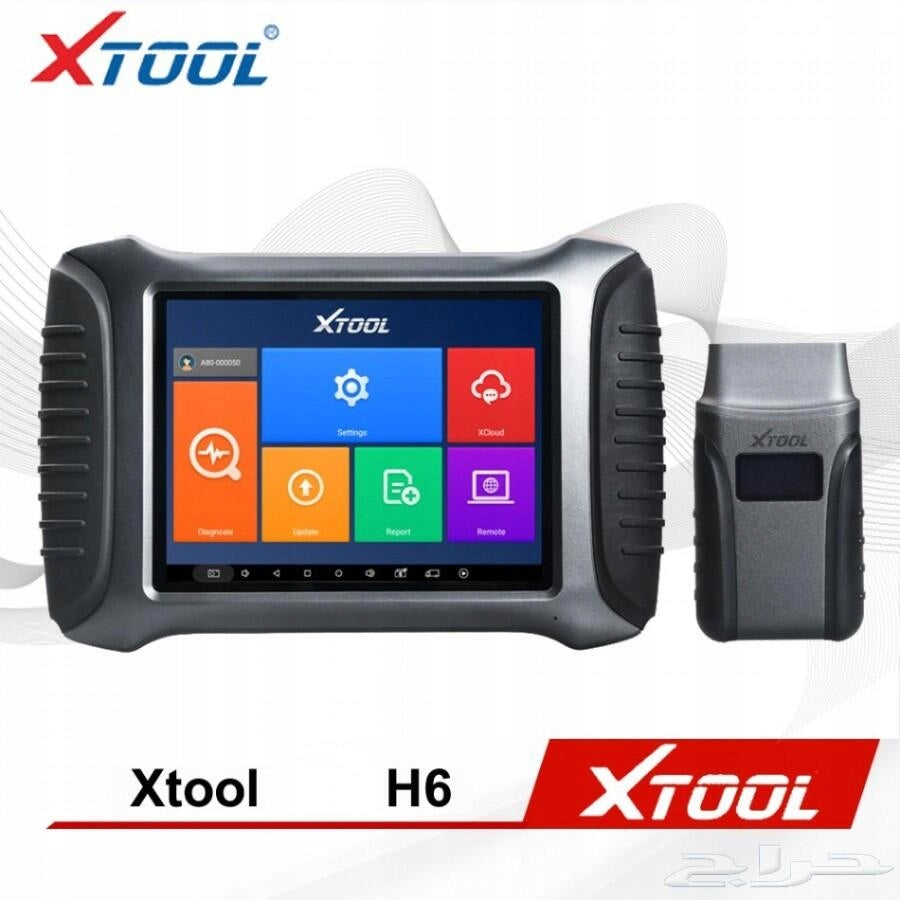

The H6EB diagnostic tester is the latest diagnostic platform for vehicle diagnosis.

It is a 8-inch industrial touch (capacitive) tablet with a screen. It has 2 GB RAM and 64 GB built-in memory. Data transfer and image mapping is convenient and faster thanks to the USB 3.0 port selected by our specialists makes data transfer more convenient and faster. The device is intuitive in use, easy is to choose the vehicle we are interested in for diagnosis, as well as download the update.

The set includes a 38 pin connector for Mercedes and a 21 pin connector for BMW. The H6EB connects to the vehicle via Bluetooth BOX. The tester has rich diagnostic functions, including reading information ECU, oreading/deleting DTC codes, reading data in real time, active test.

h,

Workshop functions:

• DPF filter regeneration
• Correction of the course
• Retracting parking brake calipers
• Throttle Adaptation
• ABS pump venting
• Reset service inspection
• Calibration of steering angle sensor
• Adaptation of the battery after replacement
• Suspension adjustment
• Headlamp adjustment
• Immobilizer programming
• EEPROOM programming

Specification:

CPU: Quad Core,1.8GHz

Operating system: Android

Display: 8 inches

RAM: 2G

ROM: 64G

Connection: WiFi/Bluetooth

Battery capacity: 10,000mAh

Ports: USB3.0, HDMI (C Type), DC (2.5), VGA (DB15)

Camera: 8.0 Megapixel, AF with lamp

Resolution: 1024*768P

The H6 EB diagnostic interface supports all the control modules that the vehicle is equipped with, including the latest vehicle models, via an online update:

• engine
• ABS braking system
• airbags
• automatic transmission
• comfort module
• brake electronics
• ESP/ASR/EBD traction control
• TMPS tyre pressure system
• air conditioner
• power steering
• dashboard
• navigation
• sound system
• anti-burglary system
• light electronics
• Driving 4×4
• seat memory
• door electronics
• navigation
• Parking assistance
• Lane maintenance assistant
• reversing camera
• speed controller
• central lock

and many other vehicle equipment systems.

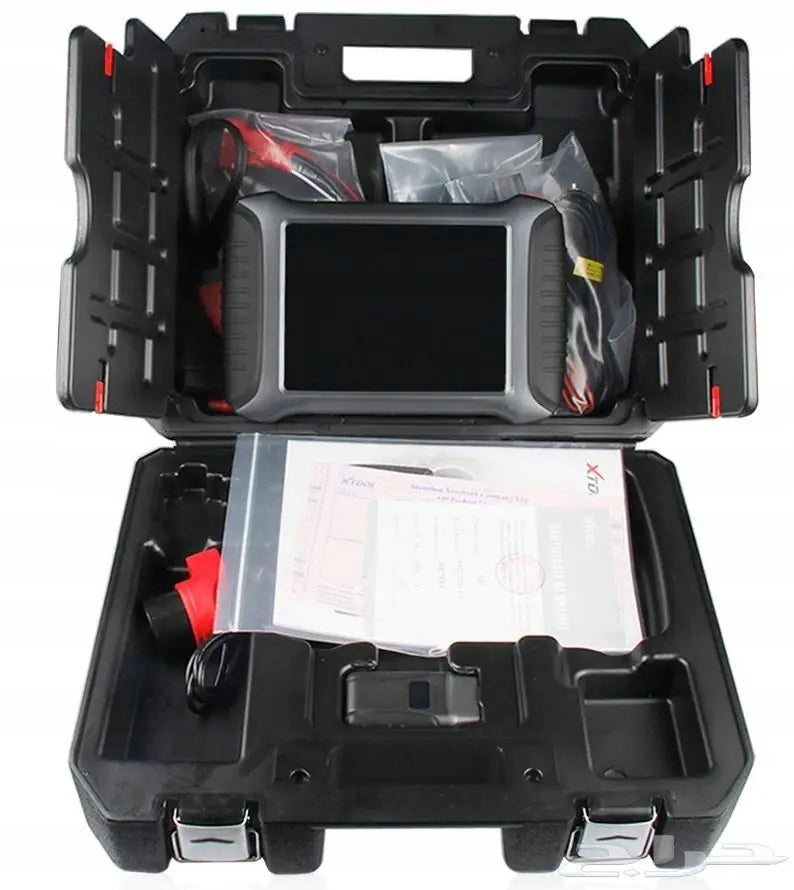

Standard equipment of the tester:

• USB 3.0 cable
• 12V Power Cables
• 230V power supply
• OBDII-16 diagnostic connector
• Diagnostic connector BMW 21 PIN
• Diagnostic connector MERCEDES 38 PIN
• Diagnostic connector MERCEDES 14 PIN
• Diagnostic tester H6 EB
• Diagnostic cable
• Diagnostic extension
• Bluetooth Diagnostic Connector
