Diagnostikos įrenginys THINKTOOL MAX PassThru DoIP, lenkiška versija, 2 metų atnaujinimai

Trumpai apie prekę

Prekė: Diagnostikos įrenginys THINKTOOL MAX PassThru DoIP, lenkiška versija, 2 metų atnaujinimai. Kategorija: Diagnostiniai testuokliai ir sąsajos.

• Gamintojas: Thinkcar
• Modelis: 4313425

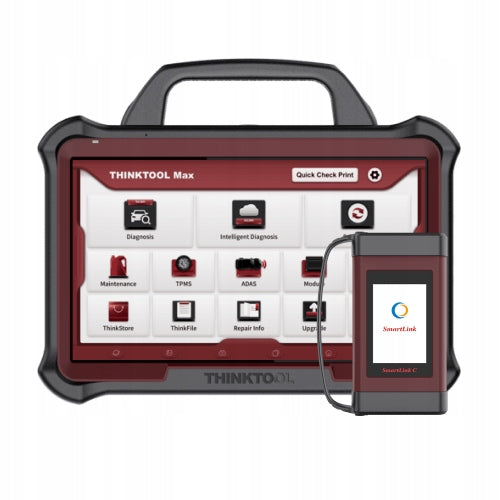

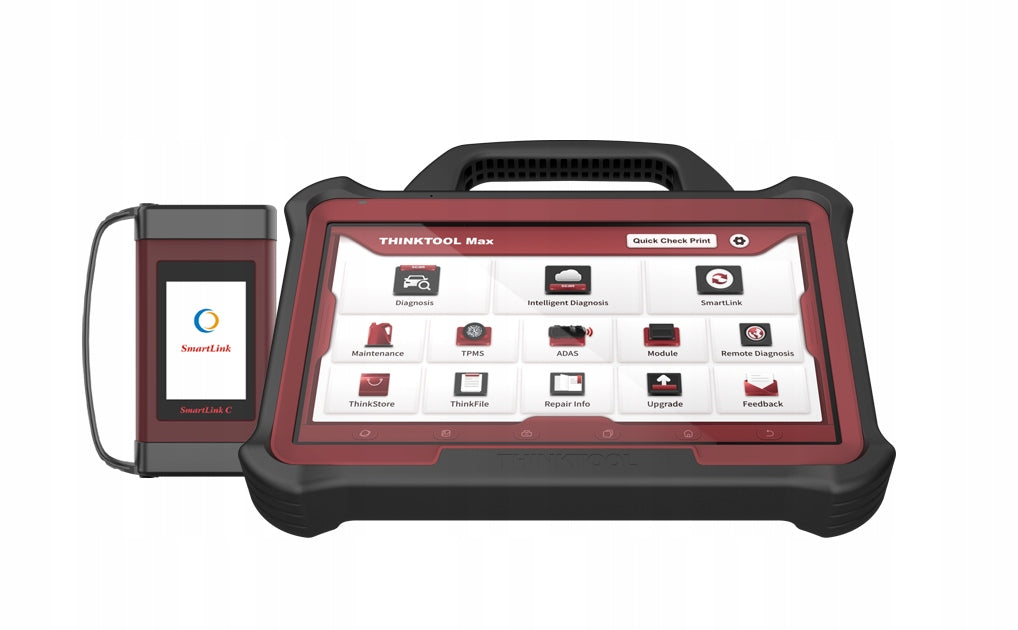

The subject of the offer is a diagnostic tester

THINKTOOL MAX with SmartLink C Oscilloscope 4 Channel Interface, TPMS, AKU Tester,CAMERA

The diagnostic device is designed to work in the workshop.

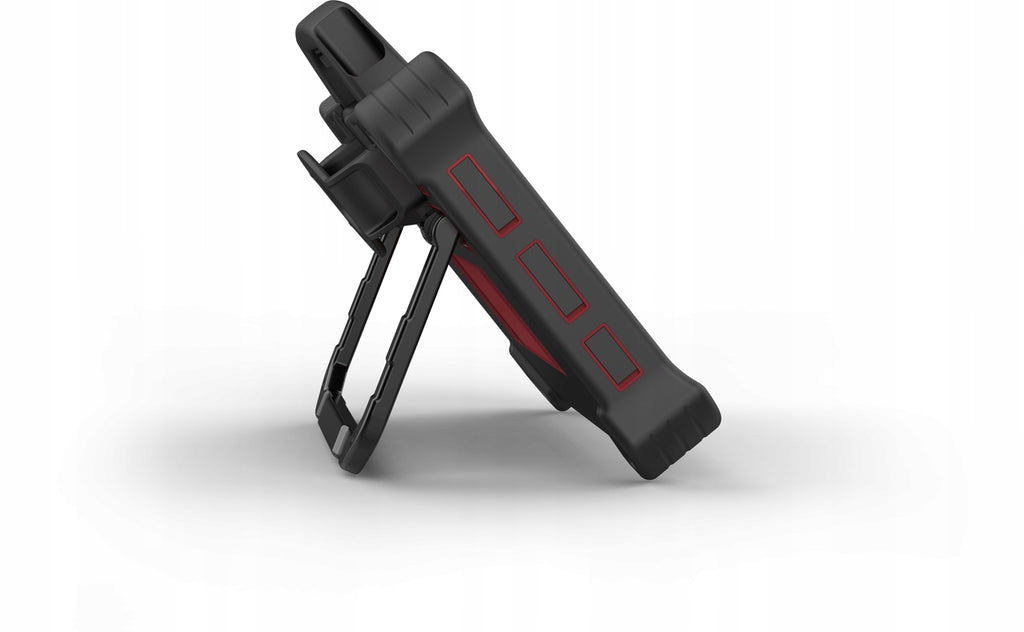

The equipment is equipped with a 13 inch touch screen. The main unit has a durable housing made of plastic and rubber. It provides above-average mechanical resistance to damage during operation.

The devices come from the Polish distribution of THINKCAR. We have license documents for each device.

The device has depending on the vehicle manufacturer from 28 to 35 special functions, supports the latest models of leading manufacturers. Diagnostics at this level has not been available so far, thanks to the TVCI interface we have the possibility to expand the set with a full range of additional equipment.

Information:

Tablet guiding software: ANDROID

working language: Polish

Hardware version: 2024 SmartLink C

software version: Latest available software in Polish

update period: 24 months from the date of device activation.

Connectivity: Bluetooth (wireless), USB C type, Passthrue, Doip,Can FD

Supports the latest DoIP and CanFD J2534(Pass Thru) D-PDU RP1210 protocols.

Possibility to configure SGW (security Gateway) for FCA /Stelantis group

THINKTOOL MAX equipment (this is a set heavily retrofitted in the series)

1 SmartLInk C- Passthrue, Online Encoding,Doip

2 Endoscopic camera

3 Oscilloscope 4 Channel

4 Battery Tester

5 TPMS programmer /PROG- Encodes/reads/programs

scope of service: Passenger vehicles, commercial vehicles (up to 3.5 tonnes), the possibility of adding the HML module to the capacity. Above 3.5 tonnes

wiring: A set of adapters to support older OBD connector models

Specifications of the Model:

MAX

-Android 10

- 8 core 2.0GHz processor

-256 GB drive, built-in, overwritten

- 8GB RAM

-13 Mpi camera

-Battery 9300mah

- Connectivity: Bt, Usb Type C, WIFI

Functions of the device:

The tester is used for comprehensive operation of vehicle electronics, provides the possibility of full diagnostics, coding, personalization of controllers and performing the main service functions of the so-called. executive functions.

FLASH ONLINE/CODING/PASSTHRUE

Due to the enormity of inquiries and discussions on the subject. range of precise service, I will allow you to list basic, verified capabilities. However, please note that with each software update, the functionality of the tester changes and various functions can be activated. We will also list confirmed problems that the user of a particular vehicle model may face.

• General system scanning: All passenger and commercial vehicles.
• Smart scanning (reading by VIN): vehicles with OBD II after 2001. The model base is constantly growing, of course, please remember that not every model will be able to verify without incorrectly after VIN
• Online coding: BMW/VAG group/MB models until 2016 model,GM (without Saab)
• Personalisation: BMW/VAG/MB Group to 2022/PSA/FCA(excluding Iveco)/Nissan/Mazda/GM
• Driver programming: Most EU and Japan brands and Ford USA and GM until 2019 (April) then full online service. USA other brands for detailed verification.
• Online PIN: BMW/VAG/Toyota/FCA/PSA(until 16r)/Renault/Nissan
• Modification in vehicle soft number: Mainly VAG Group models
• Configuration/ parameterization PROXY: FCA, Stelantis( PSA,Opel,FCA)/Nissan
• Offline programming read. (programming, adaptation of new drivers and components) NEW, not used from another car (it is about drivers, e.g. motorrol,continental,siemens); most popular models since 2001-2022

Main capabilities of the tester used in everyday work

• Reading CAN bus errors
• Reading DTC/fault codes
• Reading real-time parameters/Live DATA/Graphics
• Reading VIN numbers
• Reading driver numbers and versions
• Reading the stored waveform in memory of various components
• Adaptation of components
• Adaptation of controllers
• Component training
• Forced commissioning of components
• Resumption of work Pumps,windmills,mechanisms
• Operation of EGR exhaust gas reciculation systems
• Operation/burning/adaptation of DPF particulate filters
• Support for ADBLUE and the entire EKO infrastructure in vehicles
• Support for service modes, i.e.:
• reset of the service control,
• service control reset- In kilometers and time
• Brake pad service settings
• setting of the electric handbrake
• pump and ABS venting mode
• calibration of the steering wheel position sensor
• Turn angle sensor calibration
• programming of Injectors
• battery programming
• Key programming (list available_)
• NIVO programming, Airmatic/pneumatic suspension
• calibration of the gearbox
• calibration of pneumatic components
• Activation of hidden functions (highlighting of corners, cruise control, etc. )
• Reset mode after an accident

The tester has the so-called. Maintence Funkction, i.e. derived shortcuts to support selected service functions from the device desktop, without having to enter the controller after a full scan of the vehicle

• OIL reset
• DPF regeneration
• ABS/blocks- replacement mode
• BATTERY encoding
• Transmission adaptation reset
• coding of injectors
• steering angle sensor encoding
• encoding of the suspension position/height sensor
• adpathy of front lamps
• adaptation of EGR and throttle
• reset modes transport
• reset imobilizer
• Airbag reset (of course if you do not need to disassemble the controller)
• Window reset/sunroof adaptation
• Reset vehicle personalization settings i.e. locks, lighting(leaving home)
• Navigation memory reset (so-called data cleaning)

SET COMPOSITION

• Protective case
• Main Unit/ 13 inch Tablet
• OBD SmartLinkC interface
• Slider Obd for hard-to-reach sockets/grommet
• Charger for tablet
• Authorization documents and licensing codes
• Car charger
• Table of contents of the suitcase
• User manual
• Adapters for older OBDs

Each ThinkTool model has a Bluetooth interface, in addition, the kit is enriched with OBD adapters that support older types of connectors. Connectivity capabilities via usb type C cable.

The set includes all the cables needed to connect vehicles from each model year.

• Mercedes 38 pin round
• Mercedes 14 pin
• BMW 20 pin round
• Honda 3 pin
• Kia 20 pin
• Ford 6+1
• Audi 4 pin
• Nissan 16/14 pin
• Fiat 3 pin
• PSA old
• Toyota 17 and 22 pin
• Hyundai 12 and 18 pin
• Mazda 17pin
• GM 12 pin
• Chrysler 6 pin
• Suzuki 3 pin
• Ssangyong 20 pin
• Subaru 9 pin

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Thinkcar
Parametry	Product weight with unit packaging	3 kg
Parametry	EAN (GTIN)	850022568428
Parametry	Manufacturer code	4313425
