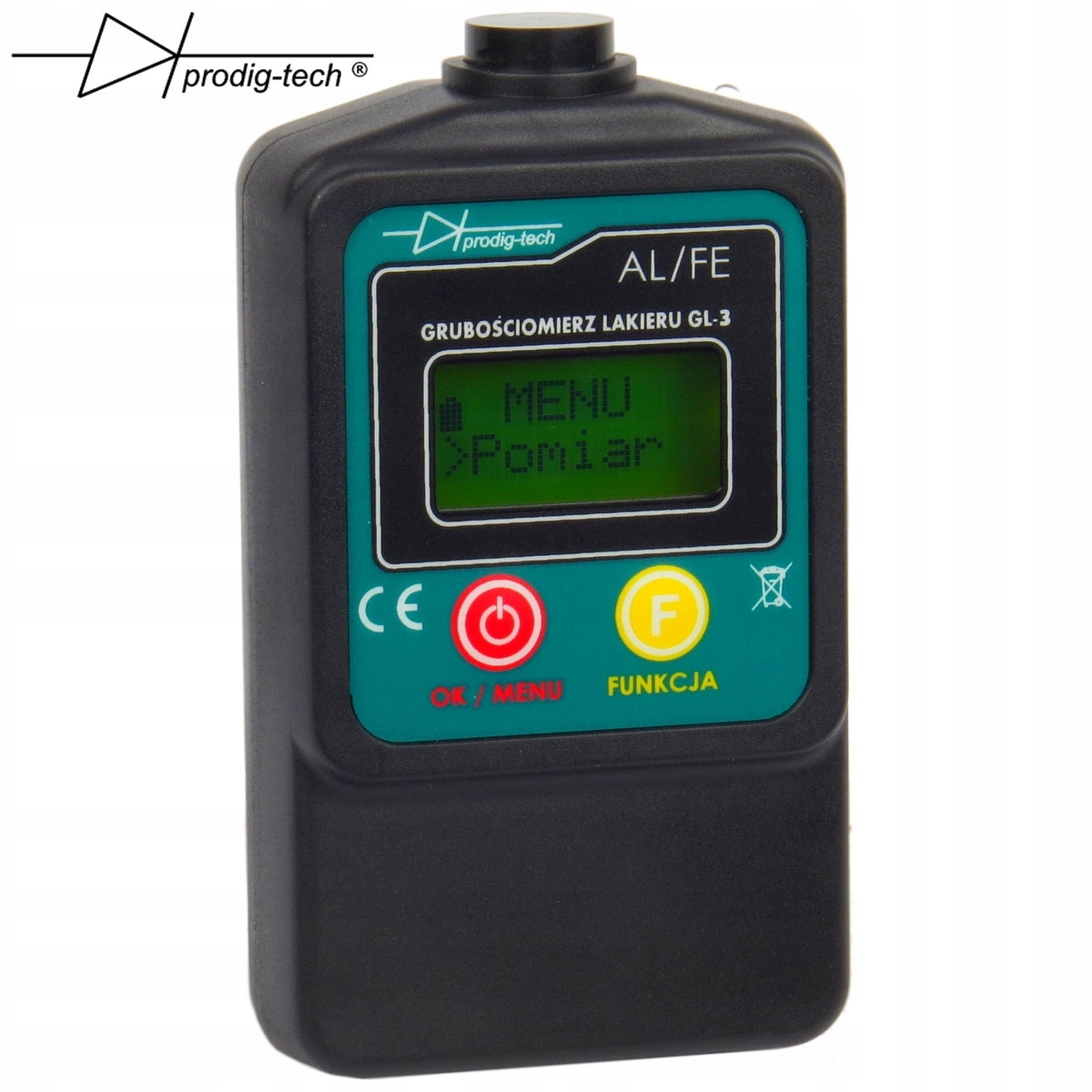

Dažų storio matuoklis GL-3UV

Trumpai apie prekę

Prekė: Dažų storio matuoklis GL-3UV. Kategorija: Dažų storio matuokliai.

• Gamintojas: Prodig-Tech
• Modelis: GL-3UV

─────────────────────────────────

Measurement of paint thickness on automotive steel, galvanized steel and aluminum sheets; UV tester.

• meter straight from the manufacturer
• latest software
• good quality batteries included
• You get a complete set: meter, manual, batteries, calibration plates, branded case
• Our meters are constantly improved, we participate in m.in. in scientific seminars organized by the Silesian University of Technology, which are a valuable mine of knowledge about automotive and materials engineering; we cooperate with scientific staff

• type of measuring probe: built-in probe;
• measurement on steel sheets, galvanized steel and aluminum;
• measurement resolution: 10µm or 1µm - selection in MENU;
• measuring range (coat thickness): 0µm to 2000µm;
• measurement memory: 200 items;
• UV tester;
• HOLD function - freezing measurement;
• maximum/minimum measurement;
• sound signalling;
• calibration of the meter – a plate for zeroing (calibration) is included;
• backlighting of the LCD display;
• automatic shutdown of the meter after prolonged inactivity;
• power supply: two R3 alkaline batteries (AAA);
• polycarbonate keyboard;
• 3 languages: Polish, English, German.

GL-3-UV meters are an upgrade of earlier GL-3 meters. These models also use a UV diode, which allows e.g. checking the originality of the car documents.

The small size of the meter means that we can easily fit it into an average pocket.

In addition, a new better quality housing made of high-quality plastic was used.

In 2018, our paint thickness meters were awarded the prestigious emblem "Best in Poland®" for the second time. We received an earlier award in 2015.

The MIN/MAX function allows you to read the minimum and maximum measurement that has been made in the entire series of measurements.

UV tester allows you to verify car documents and means of payment.

The HOLD function allows you to measure and stop it, so that we can move the meter away from the test surface and read the measurement.

Sound signalling is especially useful when measuring with HOLD enabled. After the measurement, the meter informs us about this fact with a short beep.

The housings of our meters are of high quality. They are created according to our designs from scratch and "premium" grade materials are used to make them.

The meter will last for years.

• simple calibration
• plate included

The calibration - zeroing function ensures that the meter will measure correctly in all conditions, even after several years of use.

Before measurements, you can calibrate the meter and be sure that the measurements will be correct.

The meter has compensation so it automatically calibrates, but accurate calibration is always possible using a calibration plate.

Calibration + calibration plates - a very important function

• as the probe wears out (frictions) with this function, you will compensate for its wear, your measurements will still be correct;
• natural aging of electronic components after some time can cause a measurement error, which you will correct thanks to the calibration function and the attached plate;
• large temperature changes can cause a measurement error, which you will also correct thanks to the calibration function;
• It is thanks to the calibration function that you know whether your meter measures correctly, and when the deviation is large, you can eliminate this measurement error.

We add high-quality alkaline AAA batteries to each meter for free.

The Prodig Tech® logo guarantees high product quality.

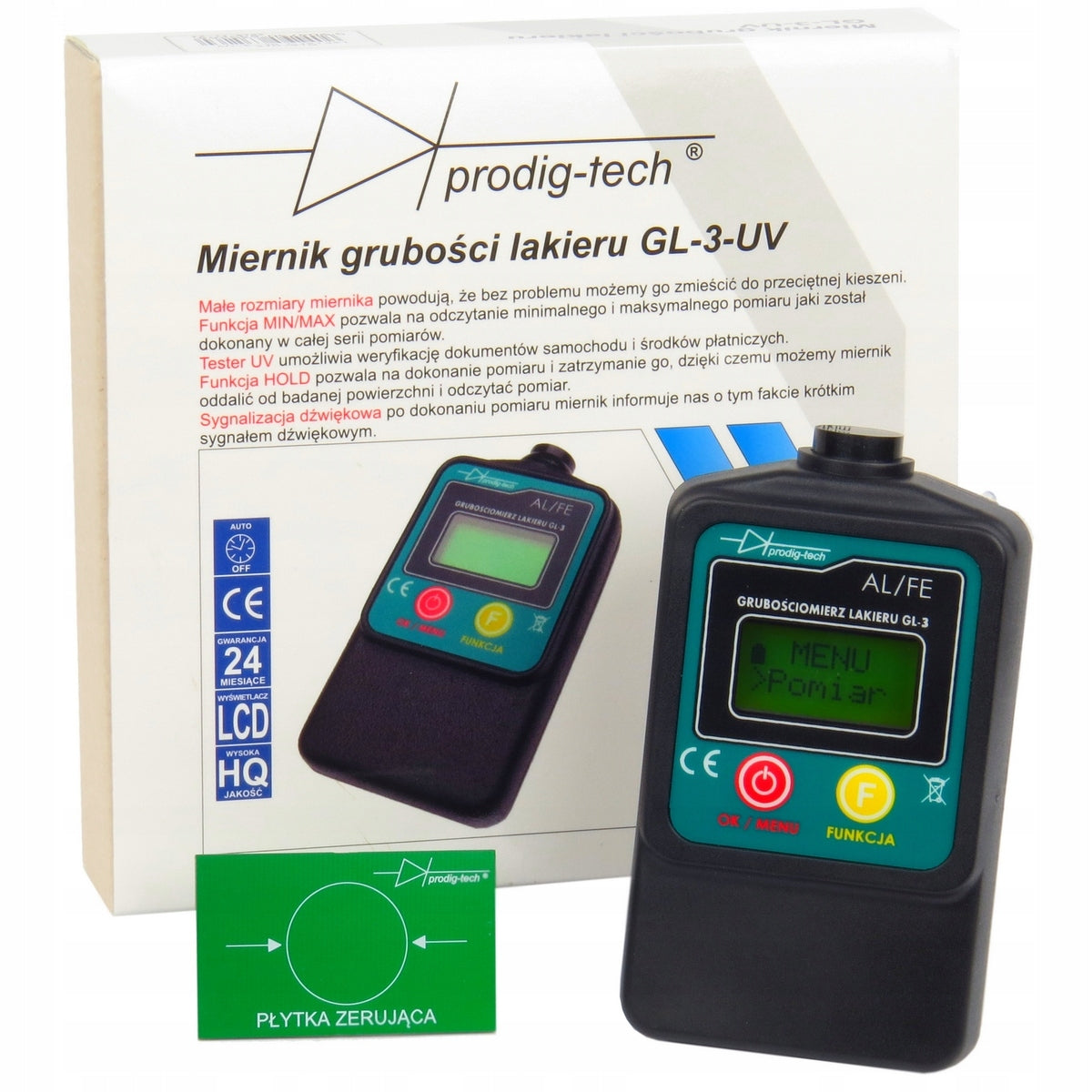

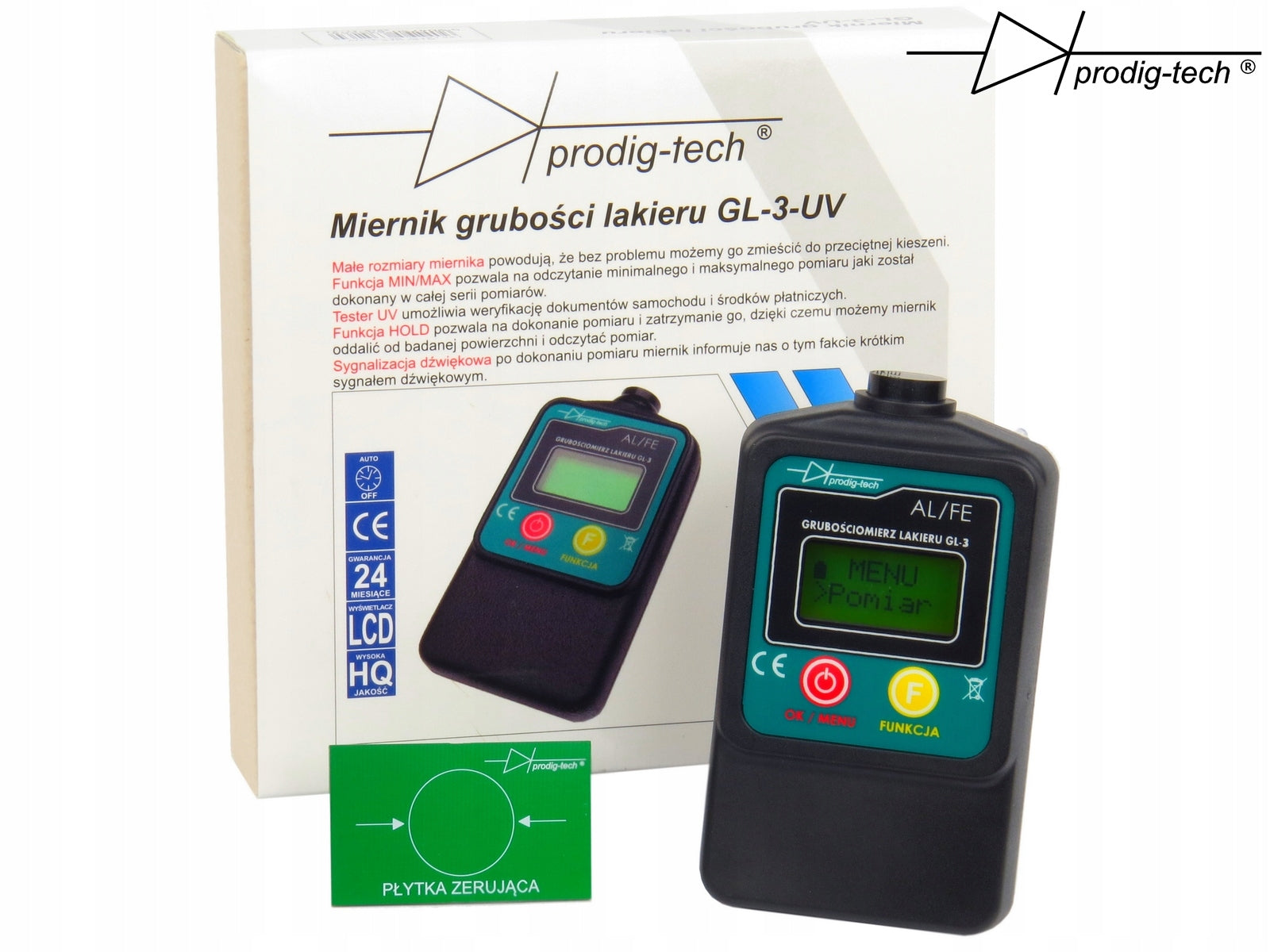

• GL-3UV paint thickness gauge;
• plate for zeroing - calibration;
• two AAA alkaline batteries;
• Branded meter case;
• instructions.

Our meters are designed based on extensive knowledge in the field of electronics and materials engineering. In order to improve our products, we cooperate with the scientific staff of universities and participate in scientific and technical seminars.
