BMW SDPROG DASH DPF parametrų monitorius ir OBD diagnostinė sąsaja

Trumpai apie prekę

Prekė: BMW SDPROG DASH DPF parametrų monitorius ir OBD diagnostinė sąsaja. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: SDPROG
• Modelis: SDDASHPLBMW

➡ SDPROG DASH parameter monitor + SDPROG OBD diagnostic interface

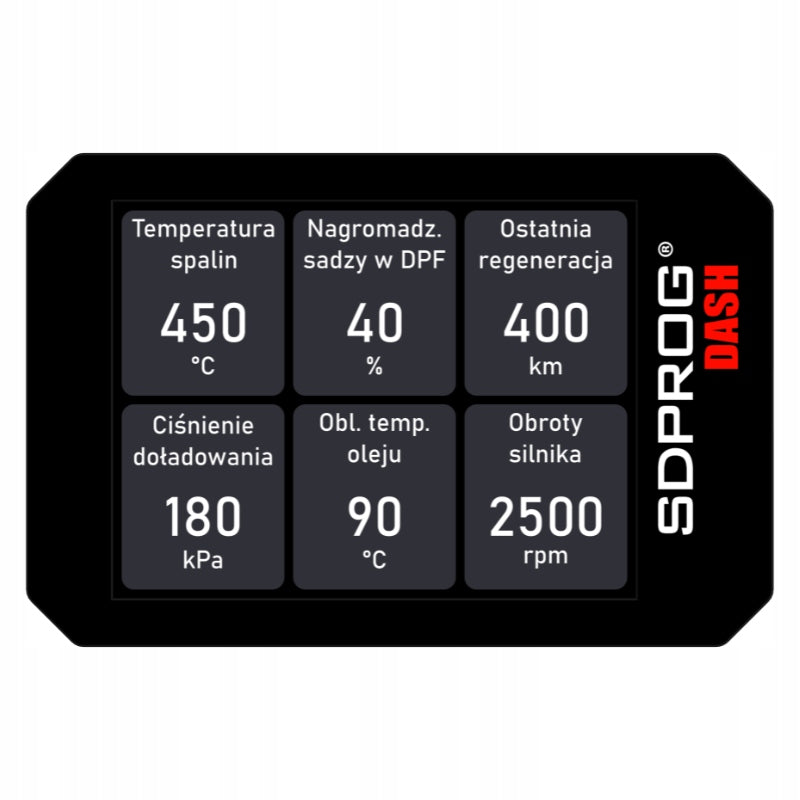

SDPROG DASH is an advanced engine parameter monitor, which gives you full control over the condition of the vehicle. A clear display with up to 6 parameters programmed immediately, sound notifications and the possibility of full personalization via the mobile application is an ideal choice for drivers who want to know more than just the basics.

The set includes a diagnostic interface SDPROG OBD, so that everything works immediately when connected.

Configured for brand: BMW / MINI

Everything that matters most about your car – in one device.

➡ SDPROG DASH – Advantages and benefits of using SDPROG DASH

✅ The most important benefits of using SDPROG DASH

• 6 live parameters – full control over key engine and DPF data,
• Simple connection – OBD interface included, USB-C power supply, works immediately,
• Ready to drive – the device is sent pre-programmed, so you use it immediately after connecting.

✅ SDPROG DASH is the perfect solution for people who want to:

• Have full control of the vehicle,
• Get access to detailed engine parameters,
• Monitor engine parameters in real time – exhaust temperature, DPF soot mass and many more.

➡ Parameters programmed for your vehicle

✅ When you buy SDPROG DASH, you get a free configuration for your vehicle. Programmed parameters:

1. Exhaust gas temperature before particulate filter
2. Particulate filter: soot mass
3. Particulate filter: exhaust pressure difference
4. DPF status
5. DPF regeneration request
6. Particulate filter: distance travelled since the last regeneration

✅ You can be sure that the device will work immediately after connecting.

➡ Additional functionalities of SDPROG DASH

✅ Reading parameters in OBDII mode

Constant access to data from the vehicle control unit – more than just basic information from the dashboard, e.g. temperature and engine load, MAF, throttle

✅ Sound Notifications

The device itself will inform you when the parameter exceeds the set level – you do not have to constantly look at the screen. Useful to hear when e.g. regeneration of the DPF filter begins

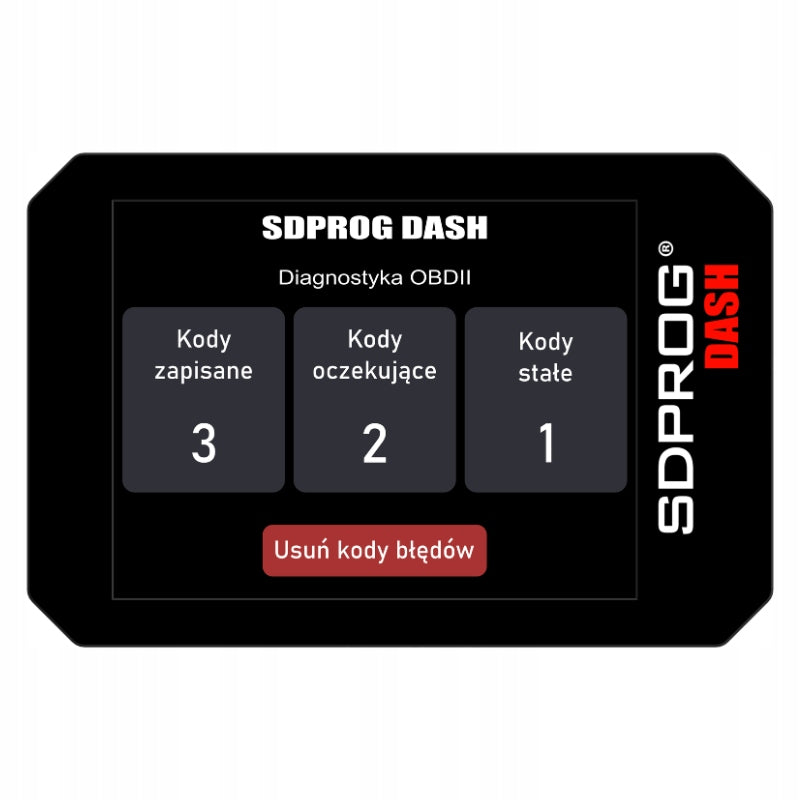

✅ OBDII diagnostics with error erasure

Quickly detect and remove engine fault codes, e.g. You extinguish the Check Engine control with one click.

✅ Easy mounting on magnetic holder

Simply apply the device to the magnetic holder so that it is always at hand and clearly visible while driving.

List of supported BMW models and engines:

1-Series - F20:

116d 6MT N47D20K1;116d 8AT N47D20K1;118d 6MT N47D20U1;118d 8AT N47D20U1;120d 6MT N47D20O1 ;120d 8AT N47D20O1 ;120d xDrive 6MT N47D20O1 ;125d 6MT N47D20T1;125d 8AT N47T20T1

1-Series - F21:

116d 6MT N47D20K1;116d 8AT N47D20K1;118d 6MT N47D20U1;118d 8AT N47D20U1;120d 6MT N47D20O1 ;120d 8AT N47D20O1 ;120d xDrive 6MT N47D20O1 ;125d 6MT N47D20T1;125d 8AT N47T20T1

2-Series - F22:

218d 6MT N47D20U1;218d 8AT N47D20U1;220d 6MT N47D20O1 ;220d 8AT N47D20O1 ;225d 8AT N47D20T1

2-Series - F45:

214d 6MT B37C15K0;216d 6MT B37C15U0

2-Series - F46:

214d 6MT B37C15K0;216d 6AT B37C15U0;216d 6MT B37C15U0

3-Series - F30:

316d 6MT N47D20K1;316d 8AT N47D20K1;318d 6MT N47D20U1;318d 8AT N47D20U1;318d xDrive 6MT N47D20U1;320d 6MT N47D20O1 ;320d 8AT N47D20O1 ;320d xDrive 6MT N47D20O1 ;320d xDrive 8AT N47D20O1 ;325d 6MT N47D20T1;325d 8AT N47D20T1; 330d 8AT N57D30O1;330d xDrive 8AT N57D30O1;335d xDrive 8AT N57D30T1

3-Series - F31:

316d 6MT N47D20K1;316d 8AT N47D20K1;318d 6MT N47D20U1;318d 8AT N47D20U1;318d xDrive 6MT N47D20U1;320d 6MT N47D20O1 ;320d 8AT N47D20O1 ;320d xDrive 6MT N47D20O1 ;320d xDrive 8AT N47D20O1 ;325d 6MT N47D20T1;325d 8AT N47D20T1; 330d 8AT N57D30O1;330d xDrive 8AT N57D30O1;335d xDrive 8AT N57D30T1

3-Series GT - F34:

318d 6MT N47D20U1;318d 8AT N47D20U1;320d 6MT N47D20O1 ;320d 8AT N47D20O1 ;320d xDrive 6MT N47D20O1 ;320d xDrive 8AT N47D20O1 ;325d 8AT N47D20D; 330d 8AT N57D30O1;330d xDrive 8AT N57D30O1;335d xDrive 8AT N57D30T1

4-Series - F32:

420d 6MT N47D20O1 ;420d 8AT N47D20O1 ;420d xDrive 6MT N47D20O1 ;420d xDrive 8AT N47D20O1 ;425d 6MT N47D20T1;425d 8AT N47D20T1; 430d 8AT N57D30O1;430d xDrive 8AT N57D1O1;435d xDrive

4-Series - F33:

420d 6MT N47D20O1 ;420d 8AT N47D20O1 ;425d 6MT N47D20T1;425d 8AT N47D20T1; 430d 8AT N57D30O1;435d xDrive 8AT N57D30T1

4-Series Gran Coupe - F36:

418d 6MT N47D20U1;418d 8AT N47D20U1;420d 6MT N47D20O1 ;420d 8AT N47D20O1 ;420d xDrive 6MT N47D20O1 ;420d xDrive 8AT N47D20O1; 430d 8AT N57D30O1;430d xDrive 8AT N57D30O1;435dAT xDrive

5-Series - F10:

518d 6MT N47D20U1;518d 8AT N47D20U1;520d 6MT N47D20O1 ;520d 8AT N47D20O1 ;520d xDrive 8AT N47D20O1 ;525d xDrive 8AT N47D20T1; 530d xDrive 8AT N57D30O1;535d 8AT N57D30T0;535d xDrive 8AT N57D30T1;M550d xDrive 8AT N57D30S1

5-Series - F11:

518d 6MT N47D20U1;518d 8AT N47D20U1;520d 6MT N47D20O1 ;520d 8AT N47D20O1 ;520d xDrive 8AT N47D20O1 ;525d xDrive 8AT N47D20T1; 530d xDrive 8AT N57D30O1;535d 8AT N57D30T0;535d xDrive 8AT N57D30T1;M550d xDrive 8AT N57D30S1

5-Series GT - F07:

520d 8AT N47D20O1; 530d xDrive 8AT N57D30O1;535d 8AT N57D30T0;535d xDrive 8AT N57D30T1;M550d xDrive 8AT N57D30S1

6-Series - F06:

640d 8AT N57D30T1;640d xDrive 8AT N57D30T1

6-Series - F12:

640d 8AT N57D30T1;640d xDrive 8AT N57D30T1

6-Series - F13:

640d 8AT N57D30T1;640d xDrive 8AT N57D30T1

6-Series Gran Coupe - F14:

640d 8AT N57D30T1;640d xDrive 8AT N57D30T1

7-Series - F01:

730d 8AT N57D30O1;730d xDrive 8AT N57D30O1;740d 8AT N57D30T1;750d xDrive 8AT N57D30S1

7-Series - F02:

730Ld 8AT N57D30O1;740Ld xDrive 8AT N57D30O1;750Ld xDrive 8AT N57D30S1

X1 - F48:

sDrive16d 6MT B37D15U0

X3 - F25:

sDrive18d 6MT N47D20O1 ;sDrive18d 8AT N47D20O1 ;xDrive20d 6MT N47D20O1 ;xDrive20d 8AT N47D20O1; xDrive30d 8AT N57D30O1;xDrive35d 8AT N57D30T1

X4 - F26:

xDrive30d 8AT N57D30O1;xDrive35d 8AT N57D30T1

X5 - F15:

xDrive25d 8AT N47D20T1; M50d 8AT N57D30S1;xDrive30d 8AT N57D30O1;xDrive40d 8AT N57D30T1

X6 - E71:

M50d 8AT N57D30S1

X6 - F16:

M50d 8AT N57D30S1;xDrive30d 8AT N57D30O1;xDrive40d N57

List of supported MINI models and engines:

Cooper D - F55:

1.5 D 6AT B37C15U0;1.5 D 6MT B37C15U0

Cooper D - F56:

1.5 D 6AT B37C15U0;1.5 D 6MT B37C15U0

Cooper D - F57:

1.5 D 6AT B37C15U0;1.5 D 6MT B37C15U0

One D - F55:

1.5 D 6MT B37C15K0

One D - F56:

1.5 D 6MT B37C15K0

One D Clubman - F54:

1.5 D 6AT B37C15U0;1.5 D 6MT B37C15U0

One D Countryman - F60:

1.5 D 6MT B37C15U0

➡ SDPROG DASH specification:

• Screen: High resolution LCD screen 2.8″
• Operating temperature range: 0°C to +40°C
• DC Input: USB Type-C Connector
• Power supply: 5V
• Interfaces: OBD-II, CAN
• Dimensions: 86mm x 58mm x 17mm

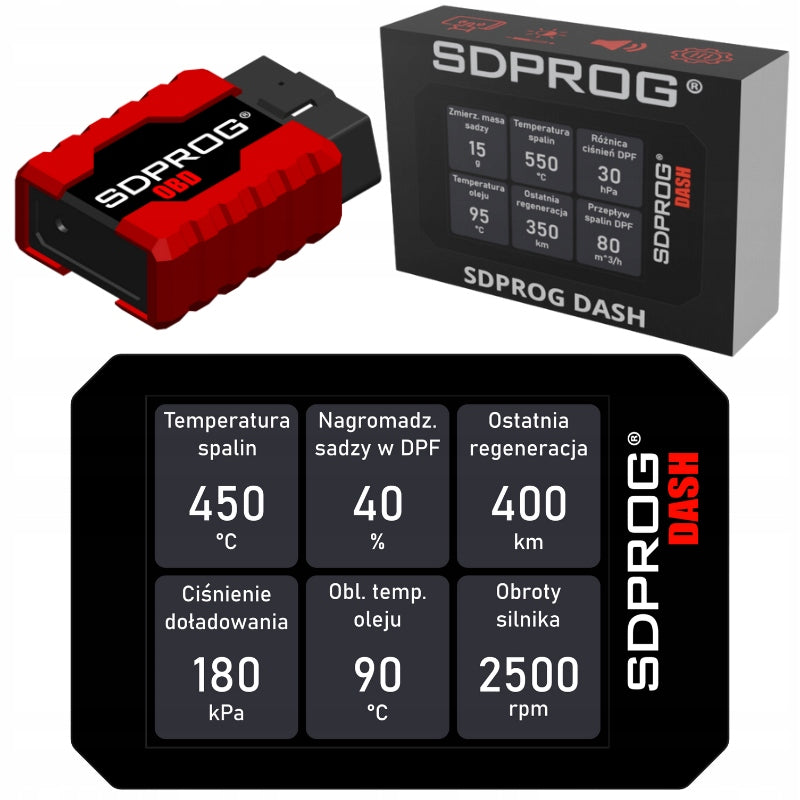

➡ The SDPROG DASH kit includes:

✅ SDPROG DASH

✅ Diagnostic interface SDPROG OBD

✅ User Manual

➡ About the brand SDPROG

The idea for SDPROG was created in 2012 to simplify the use of diagnostic functions for both drivers and mechanics. Since then, thanks to its dynamic development, SDPROG has become an indispensable tool for every user. Hundreds of professionals and automotive enthusiasts have already trusted him – join them and see how easy and effective diagnostics can be with SDPROG.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	SDPROG
Parametry	Product weight with unit packaging	0.2 kg
Parametry	EAN (GTIN)	5907346667124
Parametry	Manufacturer code	SDDASHPLBMW
Parametry	Batteries included	no
