Prekė: Belaidžio ryšio adapteris EDIMAX EW-7611ULB, WiFi N150, Bluetooth 4.0. Kategorija: Wi-Fi tinklo adapteriai.
- Gamintojas: Edimax
- Modelis: EW-7611ULB

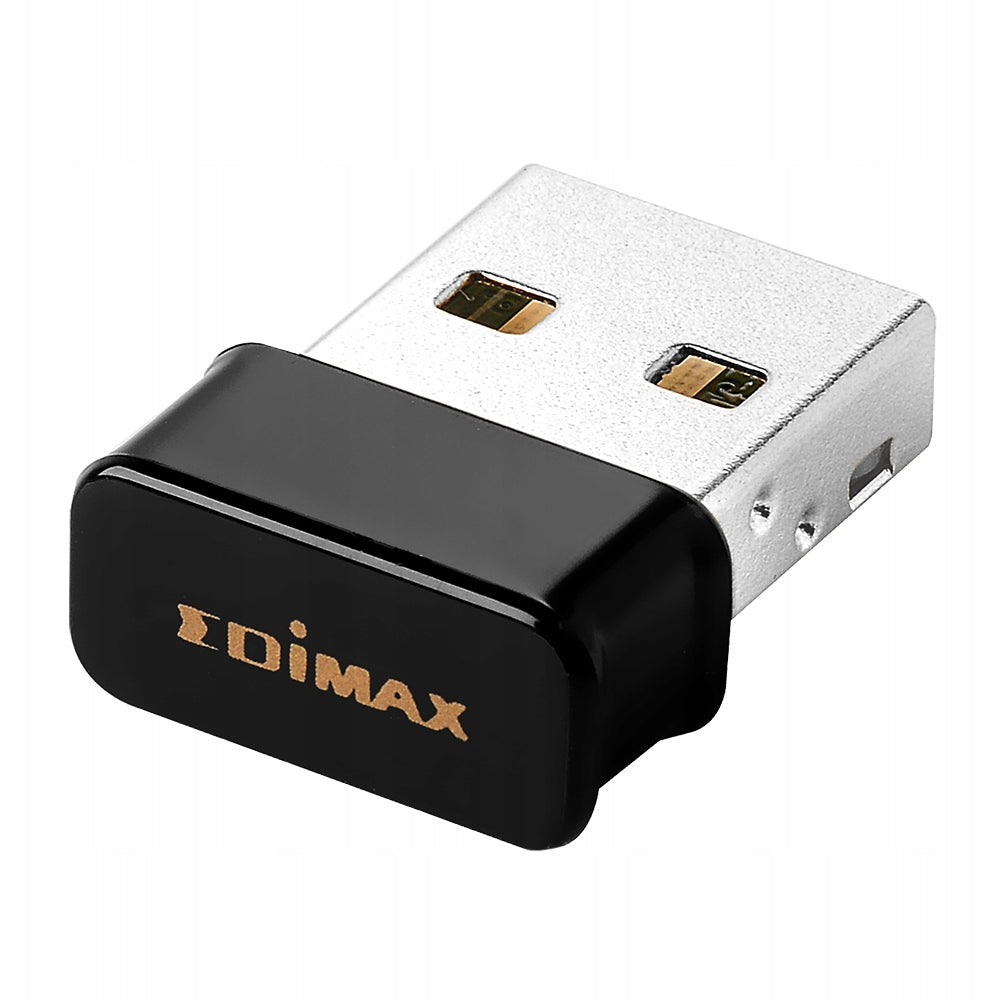

Wireless nano USB network card N150 + Bluetooth 4.0
EW-7611ULB
- Bluetooth drivers do not work with macOS
- Compliance with 802.11b/g/n standard, transmission speed up to 150Mbps
- Compatible with Bluetooth 4.0 and Bluetooth 3.0+HS (High Speed), transmission speed up to 24Mbps
- Advanced dual-mode Bluetooth 4.0 LE and BR/EDR
- Backward compatibility with Bluetooth 2.1+EDR and 3.0+HS
- 64/128-bit WEP, WPA, WPA2 encryption
- Support QoS-WMM, WMM-Power Save mode and Bluetooth LE (Low Energy)
- Small dimensions
The EW-7611ULB is a two-in-one nano USB card. It can act as a wireless network card that allows you to transfer data at speeds up to 150Mbps, as well as a Bluetooth 4.0 card, which allows you to connect to the latest Bluetooth devices, such as smartphones, tablets, keyboards or mice. The EW-7611ULB supports Bluetooth 4.0 with Bluetooth Smart Ready, and with Bluetooth Low Energy (BLE), the card consumes very little power when connecting and transmitting data. And the small size does not block adjacent USB ports.
Compliance with 802.11b/g/n standard, transmission speed up to 150Mbps
The EW-7611ULB is compatible with the 802.11b/g/n wireless standard and provides a connection speed of up to 150Mbps when connected to another 802.11n compliant device.
Bluetooth 4.0 and Bluetooth 3.0+HS (High Speed), transmission speed up to 24Mbps
With Bluetooth 4.0, the EW-7611ULB allows you to transfer data at speeds up to 24Mbps and is fully backward compatible with Bluetooth 3.0+HS and Bluetooth 2.1+EDR. This allows you to connect to virtually any Bluetooth device.
Energy savings with Green WLAN and Bluetooth Low Energy (BLE)
Intelligent transmission power control adjusts the signal strength depending on the distance and CPU load, which reduces the power consumed when the wireless network is not in use. The EW-7611ULB not only uses the latest technology, but also takes care of the environment and user pocket by reducing energy consumption.
WPS (Wi-Fi Protected Setup)
WPS (Wi-Fi Protected Setup) is the standard for easy and secure wireless networking. The EW-7611ULB supports software-defined WPS configuration and enables fast, secure connection to a router or access point that also supports WPS.
Multilingual configuration wizard
The multi-language configuration wizard and user-friendly interface will guide you through all the steps of installing and configuring the EW-7611ULB card on your wireless network.
Small and portable
The EW-7611ULB is currently the smallest wireless card with Bluetooth 4.0. It is an ideal solution for mobile users. In addition, the small dimensions make it difficult to accidentally damage the card already connected to the USB port.
HARDWARE INTERFACE
STANDARDS
FREQUENCY
1 USB A 1.0/2.0 port
Built-in antenna
Link/Act Diode
802.11b, 802.11g, 802.11n
Bluetooth 4.0 BLE/4.0 Dual Mode
Bluetooth 3.0+HS
Bluetooth 2.1 & 3.0
Wi-Fi: 2.4000~2.4835GHz (Industrial Scientific Medical Band)
Bluetooth: 2.4~2.4835GHz (Unlicensed ISM band)
TRANSMISSION SPEED
OUTPUT POWER
SENSITIVITY
11b: 1/2/5.5/11Mb/s
11g: 6/9/12/24/36/48/54Mb/s
11n (20MHz): MCS0-7 (up to 72Mbps)
11n (40MHz): MCS0-7 (up to 150Mbps)
Bluetooth : up to 24Mbps
11b: 16±1.5dbm
11g: 14±1.5dbm
11n: 12±1.5dbm
11n (20MHz)@MCS7: -64dBm±2dBm
11n (40MHz)@MCS7: -64dBm±2dBm
11g @54Mbps: -65dBm±2dBm
11b @11Mbps: -79dBm±2dBm
SECURITY
INSTALLATION
HUMIDITY AND TEMPERATURE
WEP 64/128-bit, WPA, WPA2, 802.1x
WPS
Multilingual configuration wizard
Working: 10~90% (non-condensing)
Storage: Max. 95% (non-condensing)
Operation: 0~40°C
Storage: -20~60°C
OS dehulled: W1nd.0ws 7, 8, 8.1, 10
DIMENSIONS AND WEIGHT
CERTIFICATES
Linux and MacOS
7.1 x 14.9 x 18.5mm
3g
CE, FCC, WiFi, BQB
*Achieved performance, speed, resolution, network coverage depend on external factors and may change.
Photo:
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Edimax |
| Parametry | Interface | USB |
| Parametry | Card type | external |
| Parametry | Band | 2,4 GHz |
| Parametry | Antenna | built-in |
| Parametry | Maximum transmission speed | 150 MB/s |
| Parametry | Product weight with unit packaging | 0.06 kg |
| Parametry | EAN (GTIN) | 4717964701305 |
| Parametry | Manufacturer code | EW-7611ULB |
| Parametry | Certificates of conformity | CE |
| Parametry | Wireless operation standard | 802.11n (Wi-Fi 4),802.11g,802.11b |
