Belaidis tinklo stiprintuvas Edimax

Trumpai apie prekę

Prekė: Belaidis tinklo stiprintuvas Edimax. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Edimax
• Modelis: EW-7438RPn

Multifunctional Router

Repeater Network Amplifier

access point

Edimax

location Szczecin

Opportunity! : Brand new goods, never used, in foil, BOX, very convenient and practical equipment

The EW-7438RPn extends wireless coverage. It is an ideal solution where the signal is suppressed by many walls and floors. iQ Setup allows for quick and easy configuration of the device, and wireless signaling diodes allow you to connect the expander in the best place for optimal network coverage. The EW-7438RPn expander extends the wireless network while maintaining speeds of up to 300Mbps.

Extending wireless coverage

Edimax EW-7438RPn is equipped with a WPS (Wi-Fi Protected Setup) button. With a single push of a button, you can connect to your existing wireless network. In contrast, iQ Setup automatically searches for available wireless networks and allows you to connect to one of them within seconds. In addition, the EW-7438RPn is equipped with signal level synchronization, which allows you to find the best place for optimal network coverage.

Small size, built-in power supply

The EW-7438RPn, in addition to being small in size, also has a built-in AC adapter. This allows you to connect it directly to an electrical outlet, wherever the wireless signal needs to be amplified.

Wireless standard 802.11n (transmission speed up to 300Mbps)

The EW-7438RPn can achieve transmission speeds of up to 300Mbps when combined with other 802.11n compliant devices.Compliant with the 802.11n standard, which also allows it to increase wireless coverage and reduce the number of "dead spots". The following diagram clearly illustrates the advantage of the EW-7438RPn over third-party devices in terms of wireless coverage.

Specification

HARDWARE INTERFACESTANDARDSTRANSMISSION SPEED

• 1 10/100 Mbps Ethernet port
• WPS button
• Power switch
• 2 built-in antennas

• 802.11b
• 802.11g
• 802.11n

• 11b: 1/2/5.5/11 Mb/s
• 11g: 6/9/12/24/36/48/54 Mb/s
• 11n (20MHz): MCS0-15, up to 144Mbps
• 11n (40MHz): MCS0-15, up to 300Mbps

FREQUENCYOUTPUT POWERTEMPERATURE

• 2.4000~2.4835GHz

  (industrial scientific medical band)

• 11b: 17±1.5dBm
• 11g: 15±1.5dBm
• 11n (20MHz): 14±1.5dBm
• 11n (40MHz): 13±1.5dBm

• Operating temperature:

  0~40°C

• Storage temperature:

  -20~60°C

MEMORY STRENGTHENING HUMIDITY

• 2MB NOR Flash
• 16MB SDRAM

• 11b: -84±2dBm
• 11g: -71±2dBm
• 11n (20MHz): -68±2dBm
• 11n (40MHz): -64±2dBm

• Operating humidity: 10~90%

  (non-condensing)

• Storage humidity: up to 95%

  (non-condensing)

POWER SUPPLY DIMENSIONS CERTIFICATES

• Built-in 3.3V 1.2A power supply

• 76 x 47 x 41mm

• CE, FCC

CONTENTS OF THE SET

• 1x expander
• 1x Quick Start Guide
• 1x CD (instructions/multilingual installation instructions)
• 1x Ethernet cable
• 1x card with access key

NETWORK CONNECTION SCHEME AND RELATED PRODUCTS

Example of application of EW-7438RPn:

• Using iQ Setup, connect the expander to an existing wireless network.
• Find the best location for optimal network coverage - it is recommended to place the device at an equal distance from the main router and client devices.

Manufacturer symbol EW-7438RPn

Product name Edimax 802.11b/g/n 300Mbps Universal Wi-Fi Extender / Repeater / AP, LAN

Manufacturer: Edimax Technology

Product Class Wireless LAN Device

LAN Architecture • Wireless IEEE 802.11b

• Wireless IEEE 802.11g

• Wireless IEEE 802.11n

Range Extender Device Type

Destiny. • PC

• Notebook

• PDA

• smartphone

• IP camera

LAN port 1x 10/100BaseTX (RJ45)

External Antenna Connector Type None

Maximum transmitter power for 802.11b 17 dBm

Maximum transmitter power for 802.11g 15 dBm

Maximum transmitter power for 802.11n 13 dBm

Encryption • WEP - Wired Equivalent Privacy

• WPA - Wi-Fi Protected Access

• WPA (PSK) - WiFi Protected Access (Pre-Shared Keys)

• WPS - WiFi Protected Setup

Available bit rates • 11 Mbps

• 54 Mb/s

• 300 Mb/s

Operating mode • access point

• Range Extender

• Universal Repeater (AP and AP client at the same time)

• wireless client

Frequency 2.4 - 2.4835 GHz

Wireless network adapter chipset • Realtek RTL8196CS

• Realtek RTL8192CE

Supported protocols and standards • IEEE 802.11b - Wireless LAN 11Mbps, 2.4GHz

• IEEE 802.11g - Wireless LAN 54Mbps, 2.4GHz

• IEEE 802.11n - Wireless LAN 300Mbps, 2.4GHz

IEEE 802.3 - 10BaseT

IEEE 802.3u - 100BaseTX

• auto MDI/MDI-X

• CSMA/CA - Carrier Sense Multiple Access With Collision Avoidance

• TCP/IP - Transmission Control Protocol/Internet Protocol

• DHCP - Dynamic Host Configuration Protocol

Additional MAC filtering features

Standard equipment • software on CD

• RJ45 cable

• installation instructions

Width 46,5 mm

Height 73 mm

Depth 41 mm

Additional information internal adapter 3,3V /1,2A

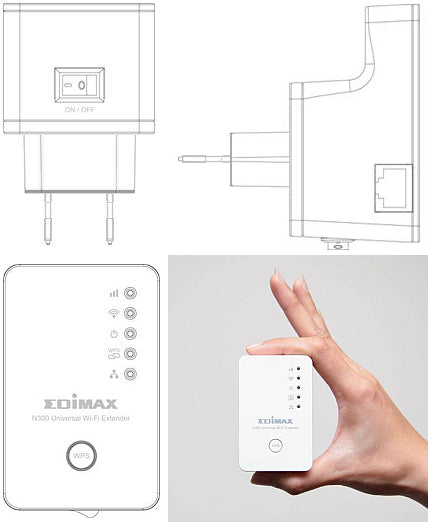

photo of the goods sold

photo of the goods sold

photo of the goods sold

photo of the goods sold

photo of the goods sold

photo of the goods sold

photo of the goods sold

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Edimax
Parametry	Band	2,4 GHz
Parametry	Internal modem	DSL
Parametry	LAN port operating standard	10/100 Mbps
Parametry	Antenna	built-in
Parametry	Product weight with unit packaging	0.263 kg
Parametry	EAN (GTIN)	4717964700438
Parametry	Manufacturer code	EW-7438RPn
Parametry	Model	EW-7438RPn
Parametry	The highest standard supported	802.11n (Wi-Fi 4)
Parametry	Batteries included	no
Parametry	Mode of operation	Access Point,Bridge,Repeater,Router
Parametry	Wireless operation standard	802.11n (Wi-Fi 4),802.11g,802.11b
