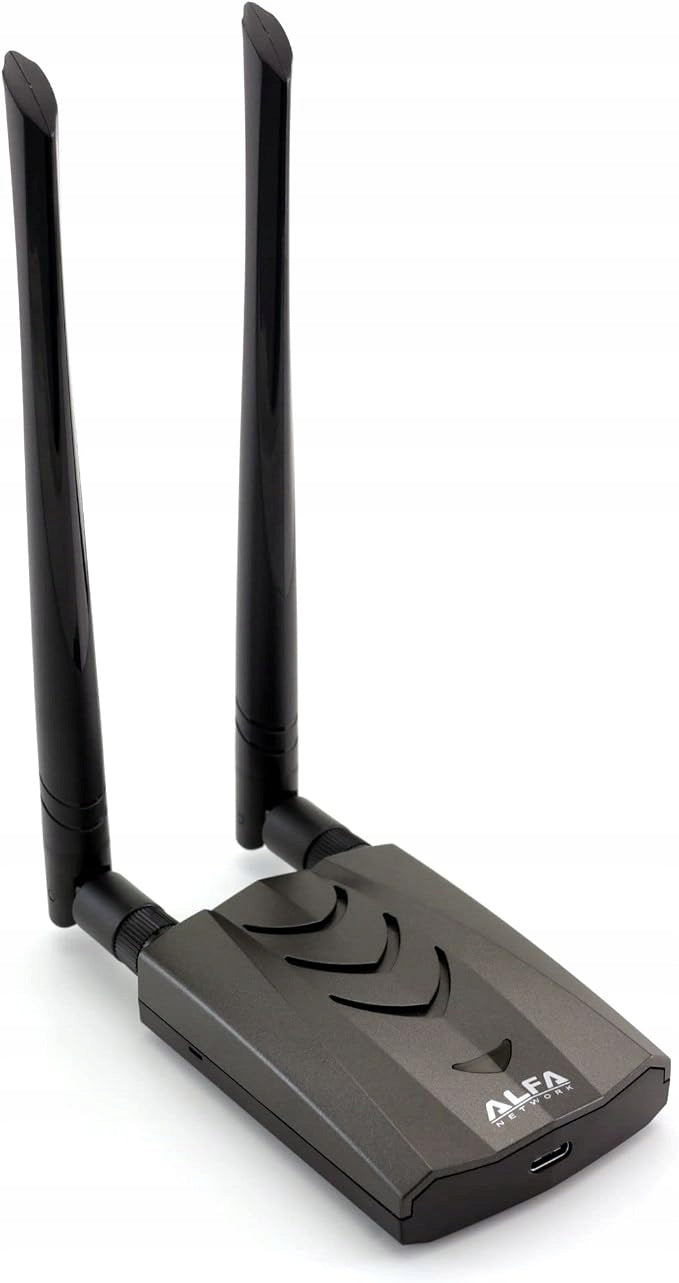

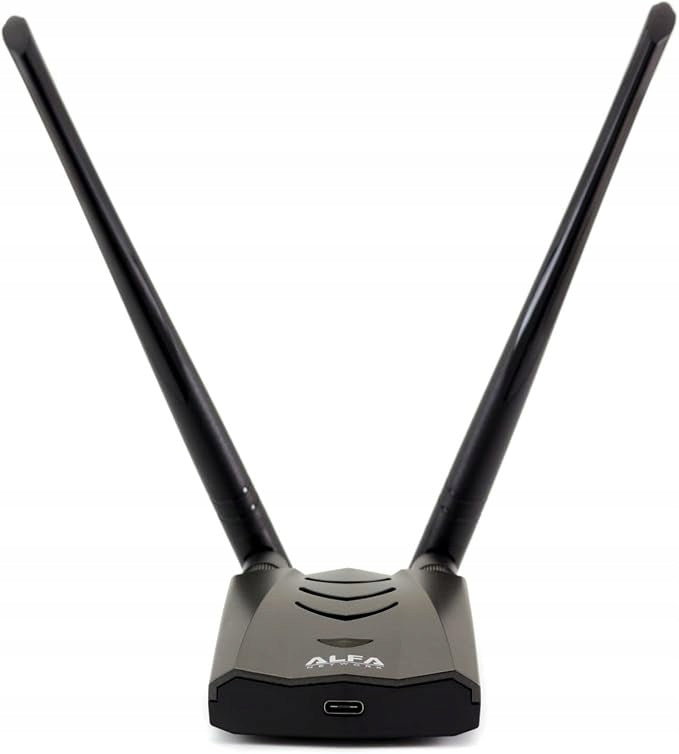

Belaidis tinklo adapteris ALFA AWUS036ACH, USB, AC1200, 2,4/5 GHz, 867 Mbps, 2 antenos

Trumpai apie prekę

Prekė: Belaidis tinklo adapteris ALFA AWUS036ACH, USB, AC1200, 2,4/5 GHz, 867 Mbps, 2 antenos. Kategorija: Wi-Fi tinklo adapteriai.

• Gamintojas: Alfa
• Modelis: AWUS036ACH

ALFA AWUS036ACH WiFi USB AC1200 2,4/5GHz 867Mbps 2x Antenna

? POOR WI-FI COVERAGE LIMITS YOUR COMPUTER?

You don’t have to settle for an unstable connection, slow downloads, and network issues just because the built-in Wi-Fi card can’t handle it.

ALFA Network AWUS036ACH is a powerful AC1200 dual-band Wi-Fi adapter based on the acclaimed Realtek RTL8812AU chipset, equipped with two unscrewable antennas with a gain of 5 dBi.

Use the 2,4 GHz band for greater range or switch to 5 GHz when higher speed and less interference count.

? WI-FI AC1200 – MORE SPEED WHERE YOU NEED IT

The adapter supports IEEE 802.11ac as well as previous Wi-Fi standards.

The maximum theoretical transmission speeds are:

2,4 GHz – up to 300 Mbps5 GHz – up to 867 Mbps

This allows the AWUS036ACH to provide a convenient connection during:

✔ browsing the Internet

✔ downloads

✔ streaming

✔ video conferencing

✔ remote work

✔ use of wireless network on a desktop or laptop computer

? DUAL BAND – CHOOSE THE BAND SUITABLE FOR THE SITUATION

Not every network works best on the same frequency.

The 2,4 GHz band usually provides greater range and better penetration through obstacles.

The 5 GHz band offers the ability to achieve higher speeds and often less network congestion.

ALFA AWUS036ACH supports both ranges, so you can tailor your connection to your network conditions.

? REALTEK RTL8812AU – PROVEN ADAPTER BASE

The heart of the adapter is the chipset:

Realtek RTL8812AU

It is responsible for Wi-Fi 5 and two frequency ranges.

AWUS036ACH supports the following standards:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac

With backward compatibility, the adapter can work with both newer and older Wi-Fi networks.

? 2 EXTERNAL 5 dBi ANTENNAS

The built-in miniature card in the laptop does not always provide a satisfactory reception.

ALFA AWUS036ACH has:

2 × unscrewable omnidirectional antenna 5 dBi

The antennas are connected via RP-SMA connectors, so they can be set in a convenient position.

This is especially practical in places where the router signal is weaker or the computer is further away from the access point.

? UNSCREWABLE ANTENNAS – MORE FLEXIBILITY

External antennas can be unscrewed.

Thanks to this, the adapter gives more freedom of configuration than structures with an antenna closed inside a small housing.

You can more conveniently position the antennas relative to the router and adjust the computer station to the conditions in the room.

⚡ FAST USB INTERFACE

The adapter uses a high-speed USB interface that allows you to conveniently connect it to a compatible computer.

The official specification of the current AWUS036ACH gives SuperSpeed USB up to 5 Gbps with backward compatibility with USB 2.0.

Thanks to this, the wired connection between the adapter and the computer does not limit the possibility of the Wi-Fi interface with typical use.

? FOR LAPTOP AND DESKTOP COMPUTER

The adapter is particularly useful when:

✔ desktop computer does not have Wi-Fi

✔ built-in laptop card has poor range

✔ you need support for 5 GHz band

✔ want to add AC Wi-Fi support to an older computer

✔ you need external, adjustable antennas

✔ you care about the adapter with the popular Realtek RTL8812AU chipset

? WINDOWS AND LINUX SUPPORT

The manufacturer lists the operation of the systems:

• Windows XP
• Windows Vista
• Windows 7
• Windows 8
• Windows 10
• Windows 11
• Linux

Depending on the system you are using and its version, you may need to install the appropriate driver.

Before purchasing for a specific Linux distribution, it is worth verifying the compatibility of the system kernel used and the availability of appropriate drivers for RTL8812AU.

? GOOD CHOICE WHEN RANGE AND CONFIGURATION IS IMPORTANT

The AWUS036ACH is not your typical miniature adapter tucked almost entirely into a USB port.

This device is designed for users who want to use:

✔ two Wi-Fi bands

✔ external antennas

✔ AC1200 standard

✔ popular Realtek chipset

✔ the ability to set antennas depending on the reception conditions

• Brand - ALFA Network
• Model - AWUS036ACH
• Product Type - External USB Wi-Fi Adapter / Network Card
• Wi-Fi Class - AC1200
• Chipset - Realtek RTL8812AU
• Supported standards - IEEE 802.11a/b/g/n/ac
• Wi-Fi bandwidth - 2,4 GHz / 5 GHz
• Maximum speed of 2,4 GHz - up to 300 Mbps
• Maximum speed of 5 GHz - up to 867 Mbps
• Maximum speed of AC class - up to 1200 Mbps in total in the designation of AC1200 class
• Number of antennas - 2
• Type of antennas - external, unscrewable, omnidirectional
• Antenna gain - 5 dBi each
• Antenna connectors - 2 × RP-SMA female
• Interface - SuperSpeed USB
• Maximum USB bandwidth - up to 5 Gbps
• Backward compatibility - USB 2.0
• Supported Systems - Windows XP/Vista/7/8/10/11, Linux
• Maximum power consumption - approx. 0,7 A at 5 V
• Dimensions of the device - approx. 85 × 63 × 20 mm
• Color - black
• Application - desktop computer, laptop, compatible USB devices
• EAN / GTIN - 4718050302222

? CONTENTS OF THE SET

Depending on the exact packaging version of the manufacturer, the kit may include:

• adapter ALFA Network AWUS036ACH
• 2 × 5 dBi Wi-Fi Antenna
• USB cable / adapter suitable for a given variant
• mounting element / holder in selected versions
• manufacturer's documentation

Before issuing an offer, it is worth comparing the content with the physical packaging of your copy, because AWUS036ACH appeared in various revisions of the set.

⚠ IMPORTANT – 1200 Mbps DOES NOT MEAN 1200 Mbps ON ONE BAND

The AC1200 designation is the name of the device class.

The maximum theoretical speeds are:

2,4 GHz – 300 Mbps5 GHz – 867 Mbps

The actual connection speed depends on m.in. from the router, distance, obstacles, interference, channel used, drivers and network parameters.

? IMPROVE YOUR COMPUTER'S WI-FI CAPABILITIES

If you need an adapter that offers dual band, Wi-Fi 5, two external antennas and RTL8812AU chipset, the ALFA Network AWUS036ACH gives you much more configuration options than a typical miniature dongle.

CLICK “BUY NOW” AND ADD EFFICIENT 2,4/5 GHz WI-FI TO YOUR PC!

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Alfa
Parametry	Interface	USB
Parametry	Card type	external
Parametry	Antenna	external removable
Parametry	Maximum transmission speed	867 MB/s
Parametry	Product weight with unit packaging	0.6 kg
Parametry	EAN (GTIN)	4718050302222
Parametry	Manufacturer code	AWUS036ACH
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Wireless operation standard	802.11g,802.11n (Wi-Fi 4),802.11b,802.11a,802.11ac (Wi-Fi 5)
Parametry	Band	2,4 GHz,5 GHz
