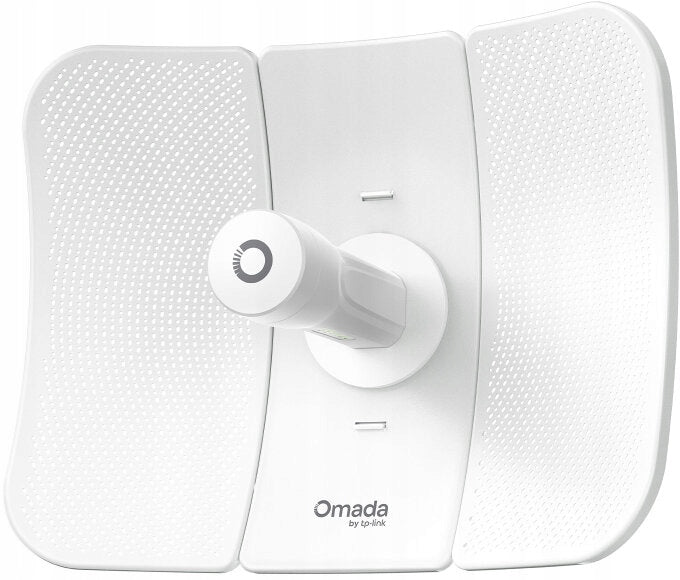

Belaidis tiltas TP-LINK Omada Beam Bridge 5 UR rinkinys

Trumpai apie prekę

Prekė: Belaidis tiltas TP-LINK Omada Beam Bridge 5 UR rinkinys. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: Omada Beam Bridge 5 UR KIT
• Plotis: 390 mm
• Aukštis: 300 mm

Wireless long-range bridge Omada 5 GHz 867 Mb/s

Product Description

TP-Link Beam Bridge 5 UR KIT is a professional wireless bridge kit designed to build stable network connections between remote locations. The device belongs to the Omada SDN ecosystem and enables wireless data transmission in the 5 GHz band at a maximum speed of up to 867 Mb/s.

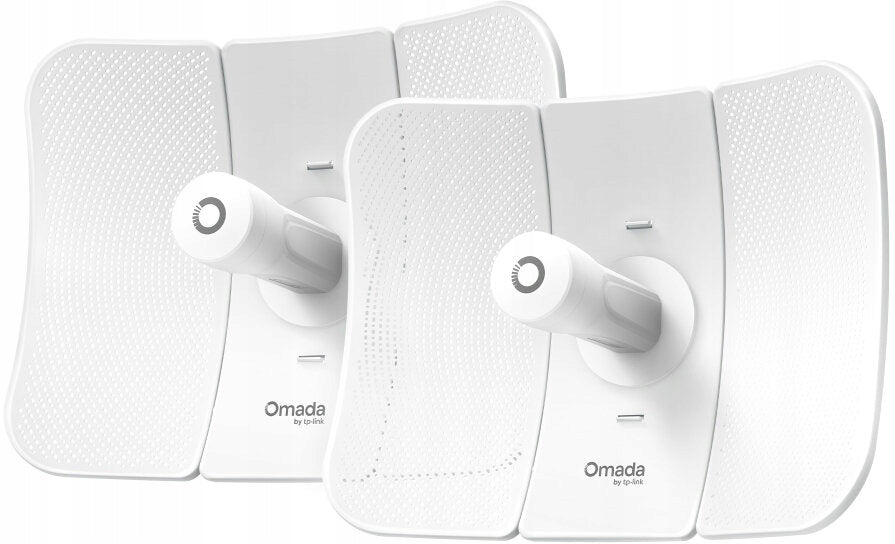

The set consists of two pre-configured devices that automatically set up a Point-to-Point connection when the power is connected. Thanks to this, the installation of the radio bridge is very fast and does not require complicated configuration. The system is designed to work in long-range installations and enables data transmission over a distance of up to up to 15 kilometers while maintaining a stable signal.

The Beam Bridge 5 UR KIT uses directional antennas with a high gain of 23 dBi, which provide very good signal concentration and allow for connections in demanding field environments. The devices operate in 2×2 MU-MIMO technology, which increases transmission efficiency and improves network efficiency.

The device supports the IEEE 802.11ac standard, offering channel width up to 80 MHz and 256-QAM modulation, making it possible to achieve high transmission bandwidth even at long distances between installation points.

The kit is designed for simple deployment. The Plug and Play function allows you to instantly connect between devices, and the Omada application allows you to precisely position antennas by visualizing the signal strength in real time. In the application, you can also perform a connection speed test and check the correctness of the installation.

The Beam Bridge 5 UR KIT features a gigabit Ethernet port with PoE support, which allows you to transfer data and power with a single network cable. The device supports both the 802.3af PoE and Passive PoE 24 V or 48 V standards, which greatly simplifies installation.

The construction has been prepared to work in demanding external conditions. The housing has a tightness class of IP65, and additional surge protection 6 kV increases the safety of the installation. The device can operate in a very wide temperature range from -40 °C to +70 °C, making it suitable for both hot climates and very low temperatures.

The wireless bridge can be managed locally or centrally in the Omada SDN system, which allows you to monitor, configure and manage multiple devices from a single administration panel or mobile application.

The Beam Bridge 5 UR KIT is designed for applications such as:

• network connections between buildings
• IP monitoring and CCTV systems
• industrial networks
• agricultural holdings and facilities away from cable infrastructure
• hotels, tourist resorts and campuses
• installations in difficult terrain (forests, islands, mines)

The most important installation requirements

1. Full optical visibility (Line of Sight – LOS)

There must be direct optical visibility between the two antennas. This means no obstacles such as buildings, trees, poles, steel structures or power lines between installation points. Even partial obscuration of the signal can significantly deteriorate the stability of the connection or reduce its bandwidth.

2. Behavior of the Fresnel zone

In addition to optical visibility alone, it is also important that the space between the antennas is as free from obstacles as possible. Components close to the transmission line can cause reflections and interference to the radio signal.

3. Precise antenna setting

Antennas with a high directional gain (23 dBi) require exact alignment in the axis. Even a slight deviation can lower the signal level. For precise setting, you can use the Antenna Alignment function in the Omada application, which shows the signal level in real time.

4. Stable mounting point

The devices should be mounted on a stable mast or structure that will not move under the influence of wind. Antenna movement can cause signal drops and connection instability.

5. Appropriate installation height

The antenna should be mounted at such a height as to avoid terrain obstacles, such as trees or buildings.

6. Grounding of installation

When installing externally, it is recommended to correctly ground the mast and shielded Ethernet cables to increase the resistance of the installation to atmospheric discharges.

7. Appropriate power cord

To connect the device to the network, use external Ethernet cables of the Cat5e minimum category, preferably shielded (FTP or STP), especially for outdoor installations.

Brief description of installation

Installing the Beam Bridge 5 UR KIT is relatively simple thanks to the factory point-to-point bridge configuration. The devices are already paired, so when you connect the power supply, they automatically set up the connection.

1. Mount both devices on masts or mounting structures facing the other location.
2. Connect the Ethernet cable from the device to the PoE adapter and then to your router, switch or local network.
3. Connect the power to the PoE adapter.
4. Once started, the devices will automatically establish a radio connection.
5. Use the Omada app to check the signal level and accurately position the antennas for the best connection quality.

After proper setting and configuration, the wireless bridge enables stable data transmission between distant locations even over a distance of several kilometers.

Full technical specification

Wi-Fi standards: IEEE 802.11a / 802.11n / 802.11ac

Working bandwidth: 5 GHz

Maximum transmission speed: up to 867 Mbps

Wireless transmission range: up to 15 km

Radio technology: OFDM (Orthogonal Frequency-Division Multiplexing)

MU-MIMO: 2×2 Downlink MU-MIMO

Spatial stirrup: 2

Channel width: 20 / 40 / 80 MHz

Modulation: 256-QAM, 64-QAM, 16-QAM, QPSK, BPSK

Frequency ranges:

• 5.150 – 5.250 GHz (U-NII-1)
• 5.250 – 5.350 GHz (U-NII-2A, DFS)
• 5.470 – 5.725 GHz (U-NII-2C, DFS)
• 5.725 – 5.850 GHz (U-NII-3 / ISM)

Transmission speeds:

• 802.11ac: 8.6 Mbps – 866 Mbps (MCS0–MCS9, NSS 1–2, VHT20/40/80)
• 802.11n: 8.6 Mbps – 300 Mbps (MCS0–MCS7, NSS 1–2, HT20/40)

Antennas:

• 2 × 5 GHz directional antennas
• Antenna gain 23 dBi (maximum)

Network interfaces:

• 1 × Ethernet port 10/100/1000 Mbps RJ45 (Gigabit, PoE In)

Memory:

• Flash: 128 Mbit
• RAM: 1024 Mbit

Buttons and switches:

• Reset button (holding above 5 s restores factory settings)
• device operating mode switch (Main AP / Client AP)

LEDs:

• multi-color system diode (power status, firmware initialization, uplink status, pairing, reset, location, errors)
• LAN diode
• 4 RSSI diodes informing about signal strength

Broadcasting power:

• maximum power (CE EIRP): up to 23 dBm in U-NII-1 and U-NII-2A, up to 30 dBm in U-NII-2C
• maximum power (FCC Conducted): up to 27 dBm
• minimum power: 4 to 6 dBm depending on bandwidth
• power regulation: every 1 dBm

Power Supply:

• PoE 802.3af (pins 1,2 and 3,6)
• Passive PoE 24 V or 48 V (pins +4,5 / -7,8)

Power consumption:

• maximum power consumption: about 15.8 W
• idle mode: about 2.87 W

Electrical protection:

• Ethernet surge protection: ±6 kV
• ESD protection: ±30 kV (air discharge), ±4 kV (contact)

Wireless and network functions:

• maximum number of customers: 8
• PtP (Point-to-Point) topology support
• Support for PtMP (Point-to-Multipoint) topology up to 4 devices
• Guest Network
• ACS (Automatic Channel Selection)
• Channel Optimization
• Antenna Alignment
• Speed Test
• Rogue AP Detection
• limiting SSID speed
• limiting the speed of customers
• multicast/broadcast rate management

Security and authentication:

• WPA Personal / Enterprise
• WPA2 Personal / Enterprise
• EAP-TLS
• EAP-TTLS
• EAP-PEAP
• EAP-CHAP
• EAP-SIM
• EAP-AKA
• EAP-GTC
• EAP-FAST
• EAP-MD5
• EAP-MSCHAPv2
• PEAPv0
• PEAPv1

Device management:

• Omada Controller (version 5.15.24 or later)
• Omada Essential (version 5.15.24 or later)
• Omada app (version 4.25 or later)
• Autonomous management (Standalone)
• SSH
• SNMP v1/v2c/v3

Working modes:

• Access Point
• Client AP

System functions:

• system log
• restart schedule
• WLAN schedule
• NTP time synchronization
• e-mail notifications
• firmware update
• Backup and Restore Configuration
• LED control

Network functions:

• VLAN for SSID
• Management VLANs
• IPv4 support
• DHCP Client
• LLDP (Link Layer Discovery Protocol)
• mDNS

Diagnostic tools:

• Ping
• Traceroute
• Packet Capture
• Terminal

Environmental parameters:

• Operating temperature: -40°C to +70°C
• Storage temperature: -40°C to +70°C
• Operating humidity: 10 to 90% non-condensing
• storage humidity: 5 to 90% non-condensing
• maximum working height: up to 2000 m above sea level.
• Wind resistance: Class 16

Housing and assembly:

• IP65 weatherproof housing
• mounting on the mast (mounting kit included)

Dimensions and weight:

• device dimensions: 366 × 280 × 207 mm
• Package dimensions: 390 × 296 × 165 mm
• weight of the device: 1.1 kg
• weight of assembly kit: 0.048 kg
• weight of the set in the package: 3.74 kg

Contents of the set:

• 2 × Beam Bridge 5 UR
• 2 × Passive PoE adapter
• 2 × power cord
• 2 × mounting kit
• installation instructions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	TP-Link
Parametry	Mode of operation	Bridge
Parametry	Wireless operation standard	other
Parametry	Band	5 GHz
Parametry	Internal modem	no modem
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Antenna	external irremovable
Parametry	Width	390 mm
Parametry	Height	300 mm
Parametry	Product weight with unit packaging	3.74 kg
Parametry	EAN (GTIN)	1210002603782
Parametry	Manufacturer code	BEAM BRIDGE 5 UR KIT
Parametry	Model	Omada Beam Bridge 5 UR KIT
Parametry	Packaging status	original
Parametry	The highest standard supported	other
Parametry	Batteries included	no
