Trumpai apie prekę
Prekė: Belaidis prieigos taškas UBIQUITI LOCO-M2. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.
- Gamintojas: Ubiquiti
- Modelis: 569538945
LOCO-M2 ACCESS POINT UBIQUITI
UBIQUITI NanoStation Loco M2 operates in 2x2 MIMO (Multiple Input Multiple Output) standard. The use of a new two-polarization antenna with a gain of 8dBi, and work in the MIMO standard allow you to combine more efficient links.

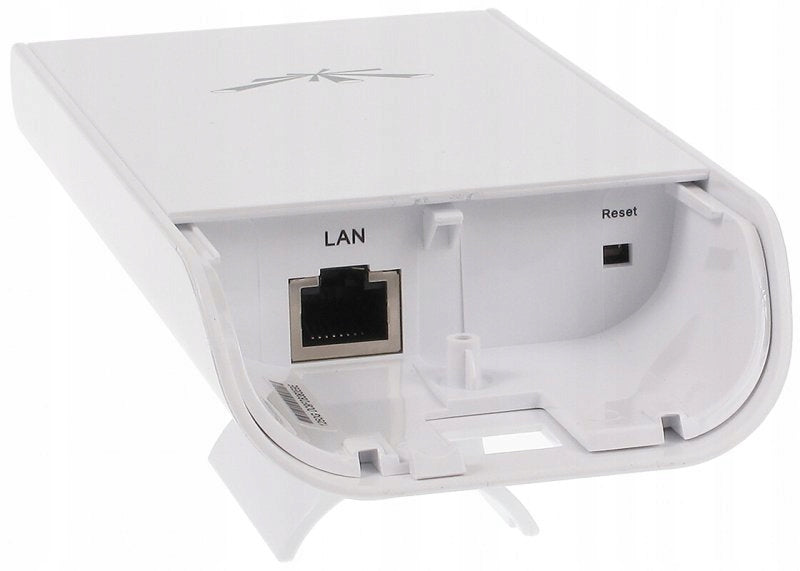

The device is equipped with a LAN port powered by PoE. A new design based on the existing concept, the PoE power supply, a very favorable insulation coefficient between polarities and 15kV surge protection for the radio track are features that give an advantage over other devices of this type.
The device can work in the following modes:
- Station
- Station WDS
- Access Point
- Access Point WDS
UBIQUITI NANOSTATION
LOCO M2
- Operation in the 2,4 GHz band
- bandwidth up to 150 Mb/s
- range up to 5 km
- Antenna with a gain of 8 dBi
- double polarisation
- application: primarily a client device in point-to-multipoint networks
Technical specification
- Processor: Atheros MIPS 24KC Clock: 400 MHz
- RAM: 32 MB SDRAM
- Embedded memory: 8 MB Flash
- Network interface: Fast Ethernet port 10/100
Compliance / Certificates
- Wireless: FCC Part 15.247 IC RS210 CE
- RoHS: Yes
Physical / Electrical / Environmental Properties
- Dimensions: 163x31x80 mm
- Weight: 0,18 kg
- Power supply: 24 V, 0.5 A
- Maximum power consumption: 5,5 W
- Polarization: Double
- Housing: UV resistant plastic
- Attachment: On pole, handles included
- Power supply: Passive PoE (pairs 4, 5+; 7, 8-)
- Admissible operating temperature: From -30 to 75°C
- Admissible air humidity: 5%-95% condensing
- Shocks and vibrations: ETSI300-019-1.4
Antenna
- Frequency range: 2412 - 2462 MHz
- Broadcasting power: Max. 23 dBm
- Energy Gain: 8,5 dBi
- Isolation of orthogonal polarization: Min. 20 dB
- Max. VSWR: 1,4:1
- Beam width: 60° (horizontal polarization) 60° (vertical polarization) 60° (elevation)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Ubiquiti |
| Parametry | Mode of operation | Access Point |
| Parametry | Wireless operation standard | 802.11b |
| Parametry | Internal modem | no modem |
| Parametry | LAN port operating standard | not specified |
| Parametry | EAN (GTIN) | 5908066527286 |
| Parametry | Manufacturer code | 569538945 |
| Parametry | Model | 569538945 |
| Parametry | The highest standard supported | 802.11b |
