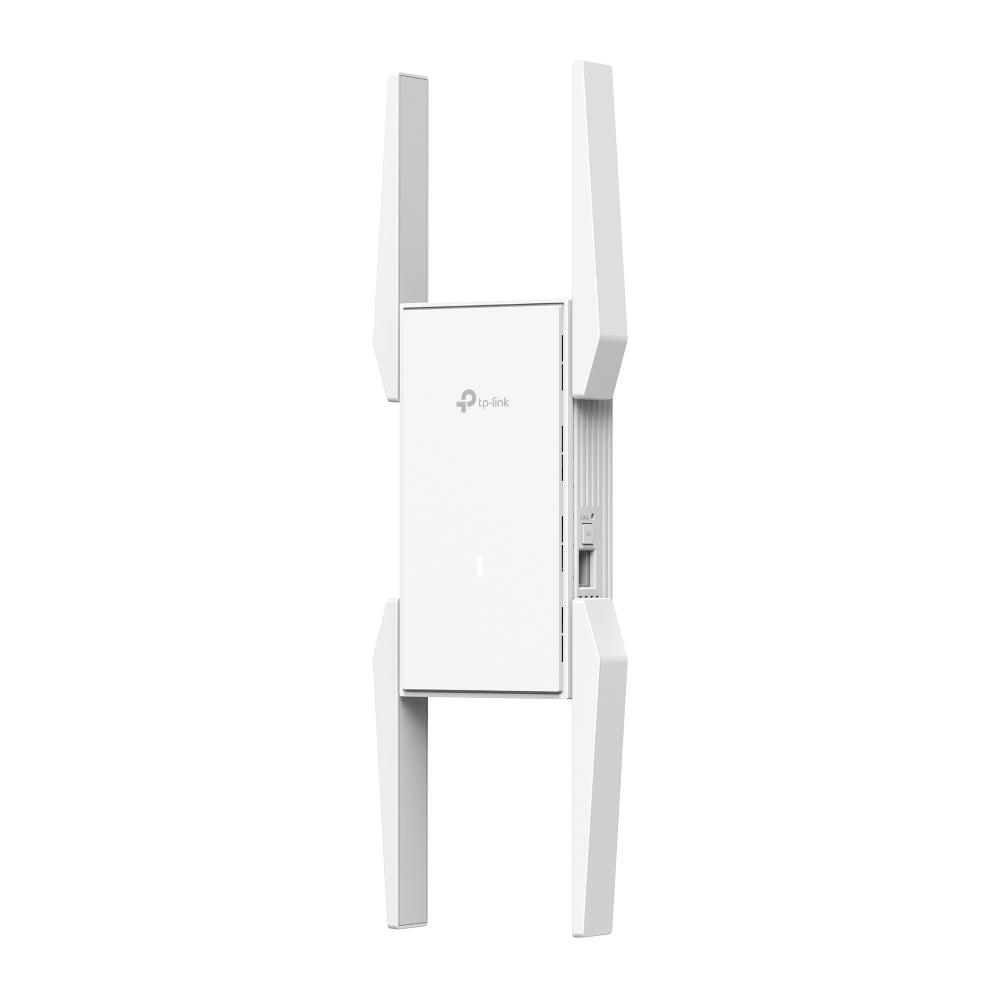

Belaidis prieigos taškas TP-Link Omada EAP673, Wi-Fi 6 AX5400, Mesh

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-Link Omada EAP673, Wi-Fi 6 AX5400, Mesh. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP673-Extender
• Plotis: 160 mm
• Aukštis: 38 mm

• Manufacturer: TP-LINK
• Manufacturer code: EAP673-EXTENDER
• EAN: 8885020622874

The most important features of the product

• Breakthrough speed of AX5400 Wi-Fi 6 standard for demanding applications
• Omada Mesh Wireless Technology – Extend Network Range Without Drilling and Cables
• Dedicated gigabit RJ45 Ethernet port for Access Point (AP) mode operation
• Professional security: support for the latest WPA3-Personal/Enterprise and 802.1X encryption
• Effortless power supply directly from a 230V wall outlet
• Up to 16 independent wireless networks (SSIDs) can be configured
• Advanced Band Optimization Features: Beamforming, Airtime Fairness and Band Steering

Ultrafast Wi-Fi 6 AX5400 for business and home

TP-Link Omada EAP673-Extender is a revolutionary signal amplifier and business-class access point, operating in the latest Wi-Fi 6 (802.11ax) standard. The device offers a powerful, total wireless network bandwidth of up to 5,4 Gbps (up to 4804 Mbps in the 5 GHz band with support for a wide 160 MHz channel and up to 574 Mbps in the 2,4 GHz band). Thanks to advanced technologies such as MU-MIMO and OFDMA, the extender is able to handle more than 250 client devices simultaneously, guaranteeing stable operation in demanding, dense network environments.

Dead Zone Slayer with Omada Mesh Technology

The EAP673-Extender is equipped with four external high-gain antennas that allow you to increase the coverage area of your wireless network by up to 140 m². Full integration with Omada Mesh technology allows wireless connection of access points, which eliminates the need for additional Ethernet cables. In addition, support for smooth roaming (Seamless Roaming) ensures that moving users are automatically and imperceptibly switched to the nearest transmitter with the strongest signal, without interrupting data downloads or video calls.

Centralized management in the Omada SDN cloud

The device is part of the TP-Link Omada SDN professional networking ecosystem. This integration enables central and 100% remote management of the entire network structure from a single cloud panel or an intuitive Omada mobile application. The user gains access to advanced functions such as customer authorization via the welcome page (Portal), maintenance-free configuration (ZTP - Zero-Touch Provisioning), work schedules or detailed network statistics.

Exceptional deployment flexibility and built-in AP mode

The design of the device has been thought out to simplify installation as much as possible. Simply plug the amplifier directly into a standard AC electrical outlet – without the tangle of additional power supplies. EAP673-Extender also offers a dedicated physical gigabit Ethernet port. It allows the device to operate in the classic Access Point (AP) mode. By connecting the internet cable directly to the extender, you will create a new, extremely fast Wi-Fi 6 hotspot without having to invest in PoE switches.

Technical data

Hardware features

• Ports: 1x gigabit Ethernet (10/100/1000 Mbps)
• Power supply: Built-in mains power supply 100-240 V ~ 50/60 Hz (AC plug)
• Power Consumption: 18 W
• Antennas: 4 external omnidirectional antennas (2,4 GHz: 2× 3 dBi | 5 GHz: 4× 5 dBi)
• Dimensions (Width x Depth x Height): 160 × 80 × 37,8 mm
• Buttons: Reset

Properties of wireless transmission

• Wireless standards: IEEE 802.11ax/ac/n/g/b/a (Wi-Fi 6)
• Operating frequency: Dual-Band 2,4 GHz and 5 GHz
• Transmission speed: * 5 GHz: up to 4804 Mbps 2,4 GHz: up to 574 Mbps
• Operating range: Up to 140 m² (depending on wave propagation conditions)
• Transmission Power (EIRP): CE:
