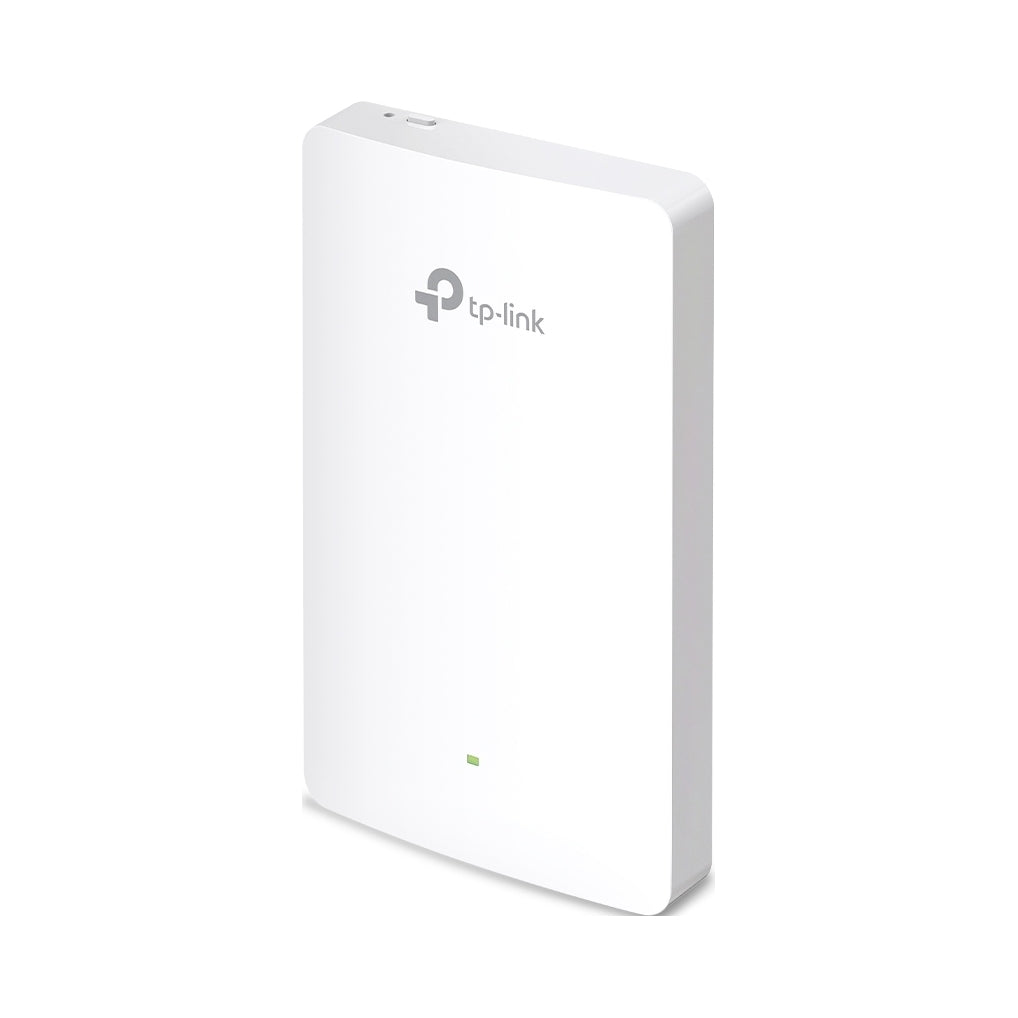

Belaidis prieigos taškas TP-LINK EAP615-Wall AX1800 WiFi 6

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-LINK EAP615-Wall AX1800 WiFi 6. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP615-WALL
• Plotis: 143 mm
• Aukštis: 185 mm

EAP615-Wall

• Excellent WiFi speed 6: Simultaneous support for speeds up to 574 Mbps in the 2,4 GHz band and 1201 Mbps in the 5 GHz band, resulting in a total of up to 1775 Mbps.**
• High connection performance: Guarantee higher network performance and lower latency.

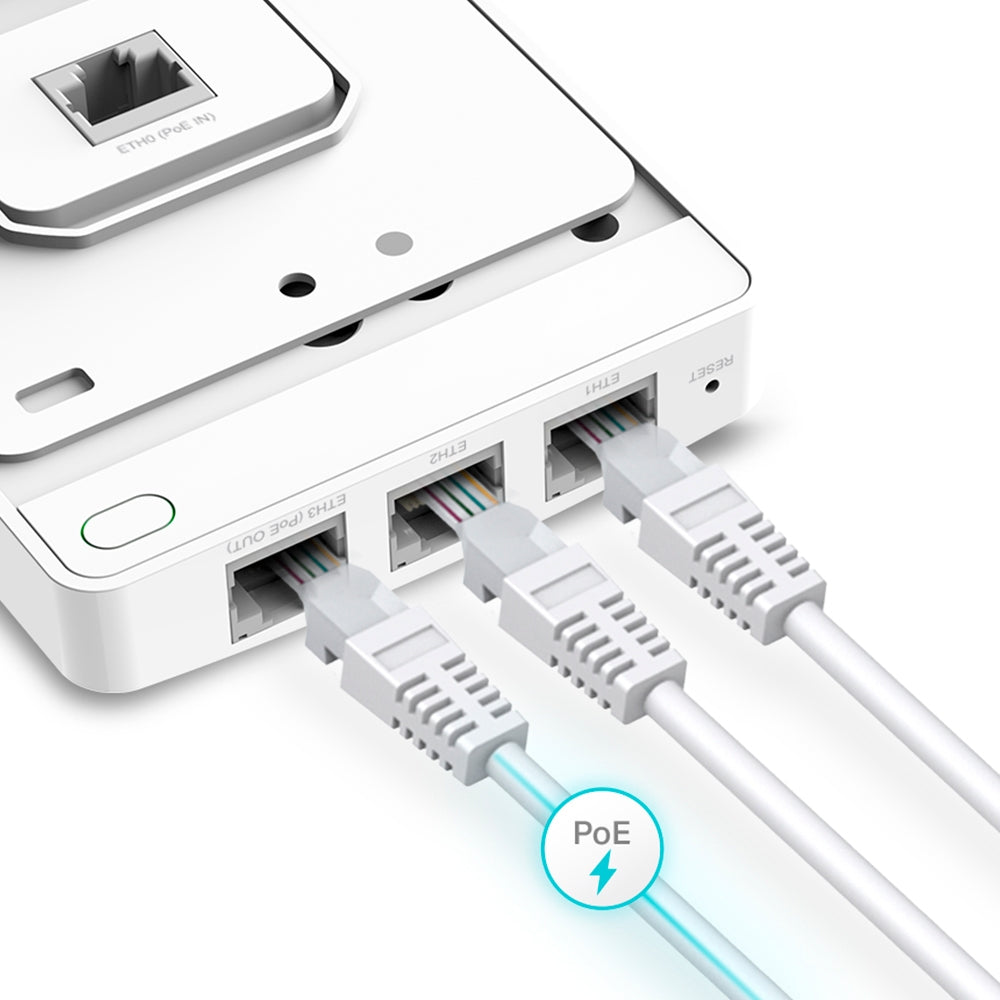

• Four Gigabit Ports: 4 Gigabit Ethernet ports (1x Uplink and 3x Downlink), including one Downlink supporting PoE Pass-Through provides power to a wired device. ‡
• Centralized management: Integration with the Omada SDN platform provides cloud access and remote management.
• Secure Guest Network: There are many authentication methods available (SMS/Voucher, etc. ) and numerous technologies that protect access to wireless networks.
• Simple installation and PoE support: The design ensures ease of installation thanks to compatibility with 86mm installation box and standard EU and US installation box and support for 802.3af/at PoE power supply.

HARDWARE FEATURES

Ports

Uplink: 1 Ethernet port 10/100/1000 Mbps

Downlink: 3 Ethernet ports 10/100/1000 Mbps (One port supports PoE OUT. This feature requires support for the 802.3at PoE+ standard, and the maximum output power is 13W.)

Physical security

Yes

Buttons

Reset

Power supply

PoE 802.3af/at

Power consumption

EU: 10W (802.3at PoE, without PoE Out)

Dimensions (S x G x W)

143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antennas

2 antennas in two bands

2,4 GHz: 2x3 dBi

5 GHz: 2x4 dBi

Assembly

Wall Mount

WIRELESS TRANSMISSION PROPERTIES

Coverage coverage

50㎡(600 ft²)△

Number of simultaneous clients

120+△

Wireless standards

IEEE 802.11ax/ac/n/g/b/a

Frequency of work

2,4 GHz and 5 GHz

Transmission speed

5 GHz: up to 1201 Mbps

2,4 GHz: up to 574 Mbps

Wireless transmission functions

16 SSID（ to 8 SSID on each band）

Disabling the wireless network

Automatic channel selection

Transmission power control

QoS (WMM)

Smooth roaming†

Beamforming

MU-MIMO

Speed limit

Bandwidth load balancing

Airtime Fairness

Bandwidth control

Reboot schedule

Wireless network scheduler

RADIUS Accounting

MAC Authorization

Wireless network statistics

Static IP, Dynamic IP

Wireless transmission security

Authentication with the Welcome Page

Access control

Filter MAC addresses

Isolation of wireless network clients

VLAN

Detection of unauthorized APs

Support 802.1X

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission power

• CE:

< 20 dBm (2.4 GHz, EIRP)

< 23 dBm (5 GHz, EIRP)

• FCC:

< 21 dBm (2.4 GHz)

< 21 dBm (5 GHz)

MANAGEMENT

Omada app

Yes

Centralized management

• Omada hardware controller (OC300)

• Omada hardware controller (OC200)

• Omada software controller

• Cloud-based Omada Controller

Access to the cloud

Yes Requires the use of an OC300, OC200, Cloud-Based Omada Controller, or Omada Software Controller.

Email notifications

Yes

Diode switch

Yes

Access control by MAC addresses

Yes

SNMP

v1, v2c, v3

System Journal

Local and remote

SSH

Yes

Management by browser

HTTP/HTTPS

Management of L3

Yes

Multi-site management

Yes

VLAN management

Yes

Maintenance-free ZTP configuration

Yes. Requires the use of a cloud-based Omada controller.

OTHER

Certificates

CE, FCC, RoHS

Contents of the pack

EAP615-Wall

Installation instructions

Mounting kit

System requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Working environment

Permissible operating temperature: 0 – 40 ℃ (32 – 104 ℉)

Permissible storage temperature: -40 – 70 ℃ (-40 – 158 ℉)

Permissible air humidity: 10 to 90% non-condensing;

Permissible storage temperature: 5 to 90% non-condensing
