Belaidis prieigos taškas TP-Link EAP235-Wall, AC1200, 2.4/5 GHz, PoE, MU-MIMO

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-Link EAP235-Wall, AC1200, 2.4/5 GHz, PoE, MU-MIMO. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: AC1200
• Plotis: 143 mm
• Aukštis: 86 mm

• Operation in the 2,4 and 5 GHz bands simultaneously
• uplink: 1x Gigabit Ethernet port 10/100/1000 Mbps; downlink: 3x Gigabit Ethernet port 10/100/1000 Mbps (1x downlink port with PoE pass-through support)
• 802.11ac Wave 2 technology allows multiple users to connect to the Internet at the same time.
• designed for indoor use - incredibly thin housing with a thickness of 15 mm
• max. theoretical WiFi bandwidth of 1167 Mbps (300 Mbps in the 2,4 GHz band and 867 Mbps in 5 GHz)
• energy gain of antennas 4 dBi (2,4 GHz) and 4 dBi (5 GHz)
• 2x2 MU-MIMO technology
• Power supply via PoE 802.3af/802.3at
• central management from the cloud – from anywhere, anytime
• easy management with Omada
• Business-class security protects Wi-Fi networks from attacks
• Guest network security provides authentication via Facebook Wi-Fi or via SMS and advanced wireless security technology

TP-Link EAP235-Wall is a wireless, wall-mounted, dual-band MU-MIMO access point, AC1200, designed for indoor use.

Its maximum theoretical WiFi bandwidth is 1167 Mb/s (300 Mb/s in the 2,4 GHz band and 867 Mb/s in 5 GHz), allowing you to work in both bands simultaneously. It supports standards of 802.11ac Wave 2 technology, which allows multiple users to connect to the Internet at the same time.

Placing EAP devices in each room allows guests to use a private Wi-Fi network that provides high speeds, strong signals, and coverage across the entire space.

Ultrathin and discreet design with the thinnest housing on the market – only 15 mm – allows you to mount the access point on the wall. With a sleek and minimalist design, this device fits in with any interior, making high-performance Wi-Fi connections that can be used in a hotel, hospital, office, or even a dorm.

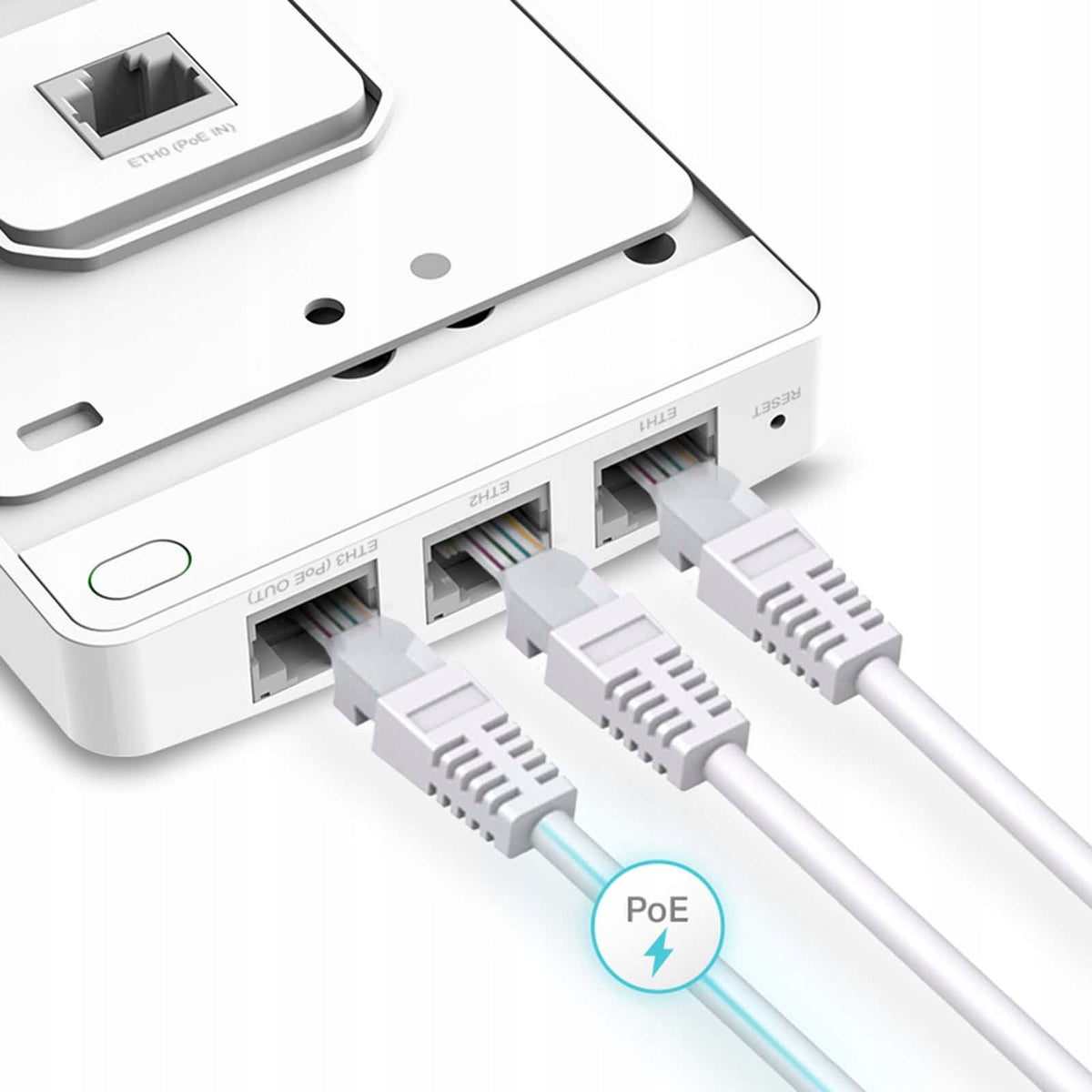

EAP235-Wall is equipped with four gigabit ports (1x uplink port + 3x downlink ports), including one downlink port with PoE pass-through support, the access point allows multiple devices to connect to the gigabit network. No additional electrical wires are needed to power wired devices such as VoIP phones. PoE support in the 802.3af/802.3at standard completely eliminates additional wiring. To use the devices, simply connect the previously used Ethernet cables.

The device also has po two antennas for each of the bands with an energy gain of 4 dBi (2,4 GHz) and 4 dBi (5 GHz). In contrast, the use of MU-MIMO technology in the 802.11ac Wave 2 standard means that more users can connect to the Internet at the same time, and connection speeds are much higher, reaching up to 1200 Mb/s. The availability of two bands - 2,4 GHz and 5 GHz - means that more different devices can connect to the network.

EAP235-Wall has the ability to manage from the cloud – anywhere, at any time. Tools designed for EAP switches, i.e. the Omada OC200 hardware controller and the Omada Controller software, make it much easier to manage and monitor Omada networks in real time. With the cloud service, you can securely access the management platform from anywhere.

• Ports: Uplink: 1x Gigabit Ethernet 10/100/1000 Mbps port, Downlink: 3x Gigabit Ethernet 10/100/1000 Mbps ports (One port supports PoE OUT. This feature requires support for the 802.3at PoE+ standard, and the maximum output power is 13W.)
• Physical security: Yes
• Buttons: Reset
• Power Supply: 802.3af/802.3at PoE
• Power consumption: 9,8 W/24,4 W (with PoE Out)
• Dimensions: 143 x 86 x 20 mm
• Antenna: 2 antennas in two bands, 2,4 GHz: 2x 4 dBi, 5 GHz: 2x 4 dBi
• Assembly: Wall mount
• Wireless standards: IEEE 802.11a/b/g/n/ac
• Working frequency: 2,4 GHz and 5 GHz
• Transmission speed: 5 GHz: up to 867 Mbps, 2,4 GHz: up to 300 Mbps
• Wireless transmission functions: 16 SSID（up to 8 SSID on each band), Wireless network shutdown, Automatic channel selection, Transmission power control, QoS (WMM), MU-MIMO, Bandwidth control, Beamforming, Bandwidth load balancing, Speed limit, Restart schedule, Wireless network schedule, Wireless network statistics based on SSID/AP
• Wireless transmission security: Welcoming site authentication, Access control, MAC address filtering, Wireless network client isolation, SSID to VLAN mapping, LAN-based VLAN, Unauthorized AP detection, Support 802.1X, 64/128/152-bit WEP encryption, WPA/WPA2-PSK, WPA
• Transmission power: CE: ≤20 dBm (2,4 GHz, EIRP), ≤23 dBm (5 GHz, EIRP), FCC: ≤21 dBm (2,4 GHz), ≤21 dBm (5 GHz)
• Access to Omada Cloud: Yes
• Omada app: Yes
• Omada Cloud Controller: Yes
• Central management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
• Omada Controller Software: Yes
• Cloud access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
• Email notifications: Yes
• LED switch: Yes
• MAC address access control: Yes
• SNMP: v1, v2c
• System log: Local and remote
• SSH: Yes
• Browser management: HTTP/HTTPS
• Management L3: Yes
• Multi-site management: Yes
• VLAN management: Yes
• Certificates: CE, FCC, RoHS
• Package Contents: EAP235-Wall, Installation Instructions, Mounting Screws
• System requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
• Working environment: Admissible operating temperature: 0℃~40℃ (32℉~104℉); Permissible storage temperature: -40℃~70℃ (-40℉~158℉), Permissible air humidity: 10%~90% non-condensing; Permissible storage temperature: 5%~90% non-condensing
