Trumpai apie prekę

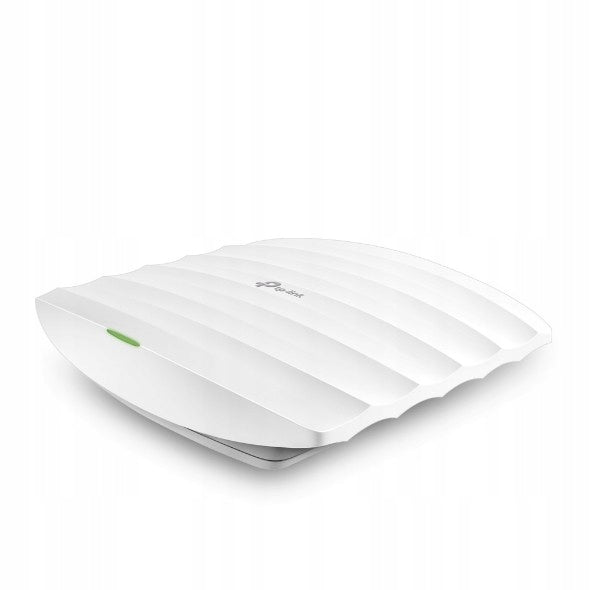

Prekė: Belaidis prieigos taškas TP-LINK EAP223 AC1350. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.
- Gamintojas: TP-Link
- Modelis: EAP223
- Plotis: 206 mm
- Aukštis: 37 mm
Gigabit Wireless Ceiling Mount Access Point, AC1350
- Fast Wi-Fi connections in two bands: Simultaneous support for speeds up to 450 Mbps in the 2,4 GHz band and up to 867 Mbps in the 5 GHz band, resulting in a total of up to 1317 Mbps.
- The ability to use Omada SDN: The platform provides access to maintenance-free ZTP configuration, centralized cloud management and intelligent monitoring.
- Centralized management: Management is extremely convenient thanks to cloud access and the easy-to-use Omada application.
- Smooth roaming: Video transmissions and ongoing voice calls are not interrupted when users change location.
- PoE power support: Installation of the device does not cause much difficulty, thanks to support for 802.3af/at and passive PoE standards (PoE adapter is not included).
- Secure Guest Network: There are many authentication methods available (SMS/Voucher, etc. ) and numerous technologies that protect access to wireless networks.
- Advanced Wi-Fi technologies: Optimize network performance with MU-MIMO, Bandwidth Control, Airtime Fairness and Beamforming technology.
Omada SDN - Intelligent cloud solutions for business networks
Omada's software-defined network infrastructure control (SDN) platform integrates network devices, including access points, switches and network gateways, providing access to a functional business network with higher performance, better security and greater reliability.
Identifying guests via SMS
Authenticating wireless clients through the welcome page is extremely convenient. Support for SMS authentication makes it even easier for customers to access your network and creates additional opportunities for your business.
Easy installation with multiple PoE options
The EAP223 supports both PoE 802.3af/at as well as passive PoE, so it can be flooded by a PoE switch or PoE adapter. This solution ensures simple and convenient installation.
Highest Wi-Fi speeds thanks to MU-MIMO technology
With 802.11ac Wave 2 MU-MIMO Wi-Fi technology, the EAP223 delivers speeds of up to 1350Mbps to multiple devices simultaneously.
HARDWARE FEATURES
- Ports: 1 Gigabit Ethernet port (RJ-45) (supports IEEE802.3af/at PoE and passive PoE)
- Physical security: Yes
- Buttons: Reset
- Power Supply: 802.3af/at PoE; Passive PoE 48V (pins +4,5; pins -7,8; PoE power supply NOT included)
- Power consumption: EU: 9,7W
- Dimensions (S x G x W): 205,5 × 181,5 × 37,1 mm (8,1 × 7,1 × 1,5 inches)
- Antenna type: 3 internal, omnidirectional (2,4GHz: 4dBi; 5GHz: 5dBi)
- Assembly: Wall/ceiling mounting (mounting kit included)
WIRELESS TRANSMISSION PROPERTIES
- Wireless standards: IEEE 802.11ac/n/g/b/a
- Working frequency: 2,4 GHz and 5 GHz
- Transmission speed: 5 GHz: Up to 867 Mbps; 2,4 GHz: Up to 450 Mbps
- Wireless transmission functions: Multi-SSID (Up to 15 SSID,8 for 2,4GHz band and 7 for 5GHz band), Wireless network shutdown,Automatic channel selection, Transmission power control (based on dBm),QoS(WMM), Seamless Roaming, Omada Mesh, Band Control,Bandwidth Load Balancing, MU-MIMO, Airtime Fairness,Beamforming, Bandwidth Control, Reset Schedule,Wireless network schedule, Wireless network statistics based on SSID/AP/client
- Wireless transmission security: Welcome page authentication, Access control, MAC address filtering, Wireless client isolation, SSID to VLAN mapping, Unauthorized AP detection, Support 802.1X
- Transmission power: CE: ≤20 dBm(2,4 GHz, EIRP), ≤23 dBm(5 GHz, EIRP); FCC: ≤24 dBm(2,4 GHz), ≤22 dBm(5 GHz)
MANAGEMENT
- Omada app: Yes
- Central management: Cloud-based Omada Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- Cloud access: Yes, via: Cloud-based Omada Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller
- Email notifications: Yes
- LED switch: Yes
- Access control by MAC addresses: Yes
- SNMP: v1,v2c
- System log: Local/remote
- SSH: Yes
- Browser management: HTTP/HTTPS
- Management L3: Yes
- Multi-site management: Yes
- VLAN management: Yes
- Support-free ZTP configuration: Yes. Requires the use of a cloud-based Omada controller
OTHER
- Certificates: CE, FCC, RoHS
- Package Contents: EAP223, Mounting Kit, Installation Instructions
- System requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
- Working environment: Permissible operating temperature: 0℃~40℃ (32℉~104℉); Permissible storage temperature: -40℃~70℃ (-40℉~158℉); Permissible air humidity: 10%~90% non-condensing; Permissible storage humidity: 5%~90% non-condensing
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | TP-Link |
| Parametry | Mode of operation | Access Point |
| Parametry | Wireless operation standard | 802.11ac (Wi-Fi 5) |
| Parametry | Internal modem | no modem |
| Parametry | Management | app |
| Parametry | Number of LAN (RJ-45) ports | 1 |
| Parametry | LAN port operating standard | 10/100/1000 Mbps |
| Parametry | Ports | USB 3.0 |
| Parametry | Antenna | built-in |
| Parametry | Additional features | Polish menu |
| Parametry | Width | 206 mm |
| Parametry | Height | 37 mm |
| Parametry | Depth | 182 mm |
| Parametry | Product weight with unit packaging | 0.823 kg |
| Parametry | EAN (GTIN) | 4895252500509 |
| Parametry | Manufacturer code | EAP223 |
| Parametry | Model | EAP223 |
| Parametry | The highest standard supported | 802.11ac (Wi-Fi 5) |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
| Parametry | Band | 2,4 GHz,5 GHz |
