Belaidis prieigos taškas TP-LINK EAP110, 300 Mb/s, N standarto

Trumpai apie prekę

Prekė: Belaidis prieigos taškas TP-LINK EAP110, 300 Mb/s, N standarto. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: TP-Link
• Modelis: EAP110 Access Point N300
• Plotis: 305 mm
• Aukštis: 70 mm

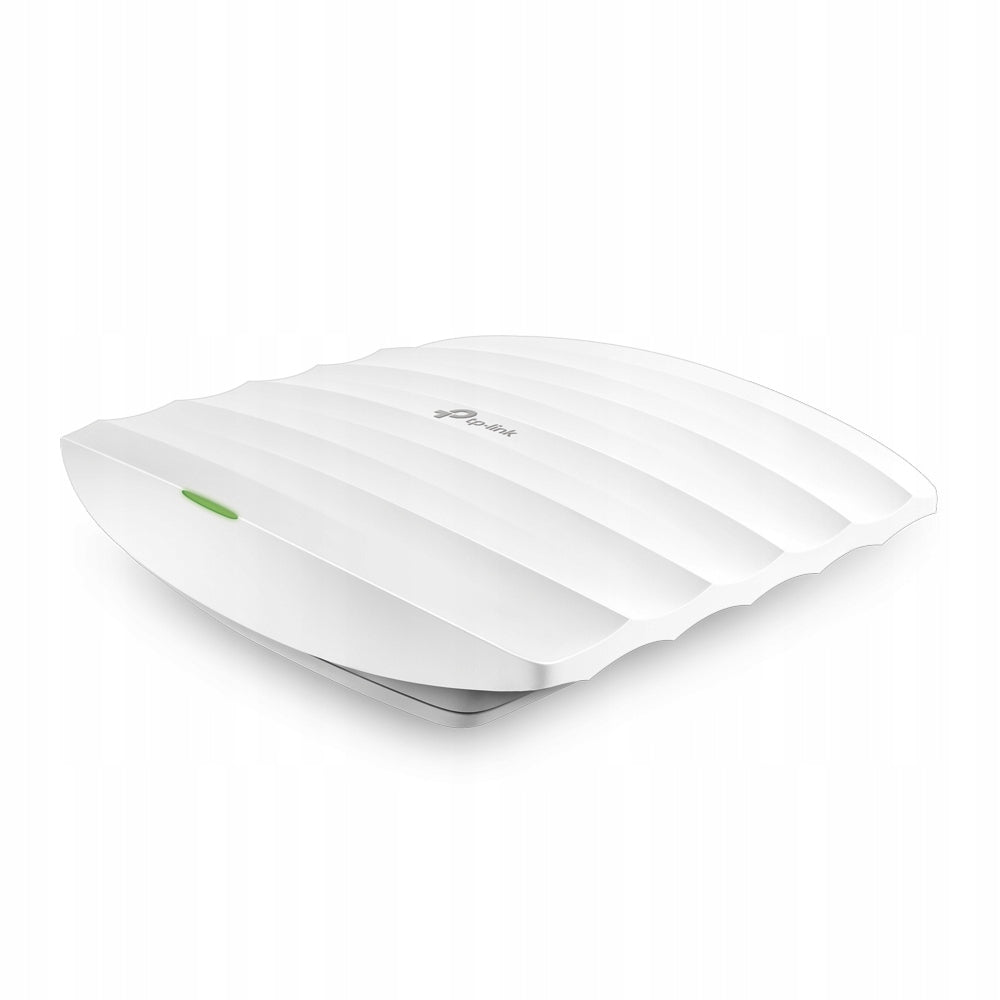

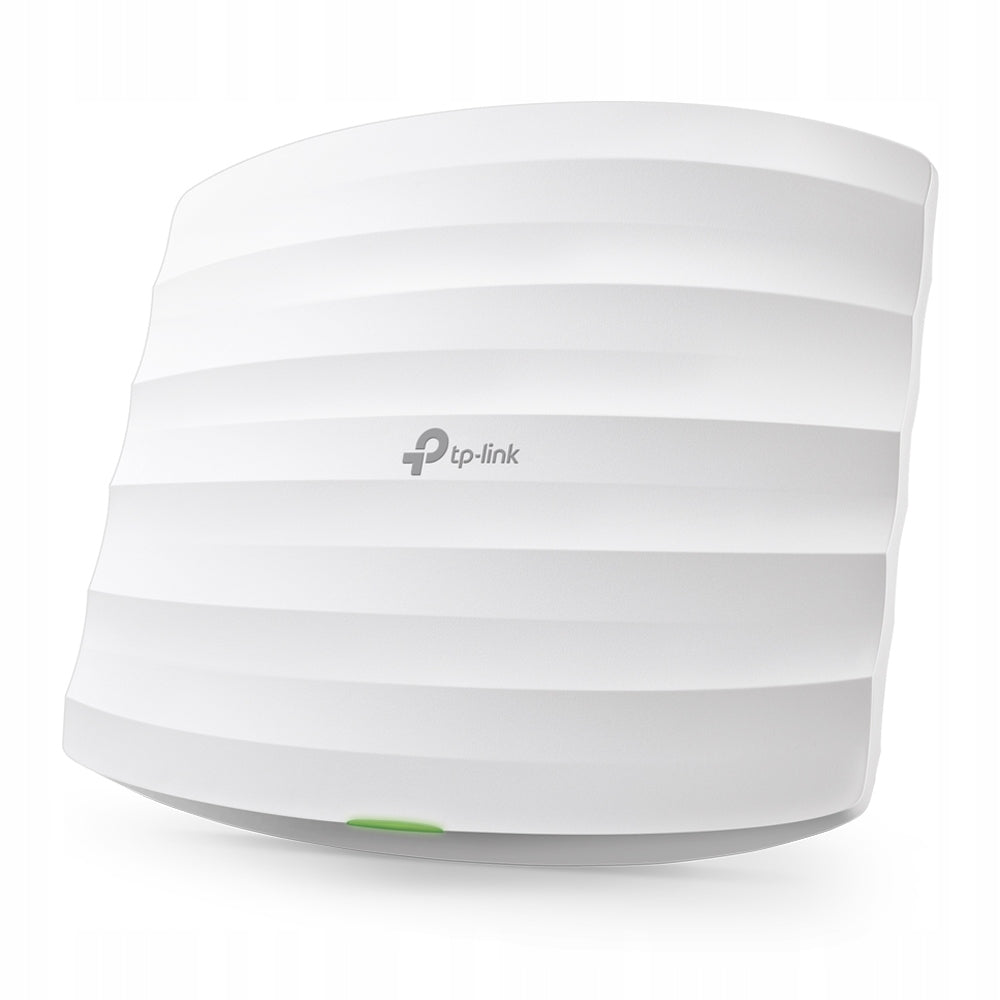

Wireless access point with ceiling mounting, standard N 300Mbps

P/N : EAP110

Key Features :

• Integration with Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
• Centralized management: Cloud access and the Omada app provide convenience and simplicity of setup.
• Support for PoE: Support passive PoE (PoE Adapter included).
• Easy installation: The simple mounting design ensures that the device is easily attached to a wall or ceiling.
• Secure Guest Network: There are many authentication methods available (SMS/Facebook Wi-Fi/ Voucher, etc. ) and numerous technologies that protect access to wireless networks.
• Load Balancing: Limit the number of users at each access point and remove devices with a weak signal to ensure the highest performance of your Wi-Fi network.
• Schedule: Automatically restart the access point and turn Wi-Fi on and off at the time you specify.

Freedom of location

Ease of installation and PoE power supply

Modern design and ease of installation allow for a seamless fit of the EAP110 into any interior. Passive PoE power supply allows quick and convenient installation of the device without the use of additional cables.

Omada SDN – Intelligent cloud solutions for business networks

Omada's software-defined network infrastructure control (SDN) platform integrates network devices, including access points, switches and network gateways, providing access to a functional business network with higher performance, better security and greater reliability.

Centralized management in the cloud::

Comprehensive central management of the entire network, divided between different facilities, from a single interface – anywhere, anytime.

Identification of guests via Facebook and SMS

Authenticating wireless clients through the welcome page is extremely convenient. Support for Facebook and SMS authentication makes it even easier for customers to access your network and creates additional opportunities for your business.

Easy management with the Omada app

Download the free Omada app today and remotely configure your devices, monitor network traffic, and manage your customers with your smartphone or tablet from anywhere in the world.

†The specified wireless network speeds are maximum values, in accordance with the IEEE 802.11 standard specification. Actual data transfer rate and network coverage may vary depending on 1) environmental factors,such as the building materials used, the presence of certain objects or obstacles,2) network conditions, such as local interference,traffic volume, location of the device, size of the network,presence of other wireless networks and 3) limitations on the part of the customer,such as rated performance, current location,quality of connections and construction and condition of the customer.

HARDWARE FEATURES

Ports

1 Fast Ethernet port (RJ-45) (supports passive PoE)

Buttons

Reset

Power supply

Passive PoE 24V (Adapter Included)

Power consumption

2.8 IN

Dimensions (S x G x W)

7.5×6.8×1.2 in (189.4×172.3×29.5mm)

Dimensions

189.4×172.3×29.5mm

(7.5×6.8×1.2 inches)

Antenna type

2 internal 4dBi omnidirectional antennas

Installation

Wall/ceiling mounting (mounting kit included)

WIRELESS TRANSMISSION PROPERTIES

Wireless standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency of work

2.4 to 2.4835 GHz

Transmission speed

• 11n: Up to 300Mbps (dynamic)

• 11g: Up to 54Mbps (dynamic)

• 11b: Up to 11Mbps (dynamic)

Receiver sensitivity

• 300M: -71 dBm@10% PER

• 150M: -75 dBm@10% PER

• 54M: -78 dBm@10% PER

• 11M: -93 dBm@8% PER

• 6M: -92 dBm@10% PER

• 1M: -96 dBm@8% PER

Wireless transmission functions

• Multi-SSID (Up to 8 SSIDs)

• Disabling the wireless network

• Automatic channel selection

• Transmission power control

• QoS (WMM)

• Bandwidth control

• Restart schedule

• Wireless network scheduler

• Wireless network statistics based on SSID/AP/client

Security of wireless transmission

• Authentication with the welcome page

• Access control

• MAC Address Filtering

• Wireless client isolation

• SSID to VLAN mapping

• Detection of unauthorized APs

• Support 802.1X

• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK encryption

Power of transmission

• CE:

≤19dBm (EIRP)

• FCC:

≤21 dBm

MANAGEMENT

Omada application

Yes

Central management

• Omada hardware controller (OC300)

• Omada hardware controller (OC200)

• Omada software controller

Access to the cloud

Yes (via OC300 controller, OC200 controller or Omada software controller)

Email notifications

Yes

LED switch

Yes

Access control by MAC addresses

Yes

SNMP

v1,v2c

System log

Local and remote

SSH

Yes

Management by browser

HTTP/HTTPS

Management L3

Yes

Multi-site management

Yes

VLAN management

Yes

OTHER

Certificates

CE, FCC, RoHS

Content of packaging

• EAP110

• Adapter for Passive PoE

• Power cable

• Mounting kit

• Installation instructions

System requirements

Microsoft Windows 10/8/7/Vista/XP

Working environment

• Permissible operating temperature: 0℃~40℃ (32℉~104℉);

• Permissible storage temperature: -40℃~70℃ (-40℉~158℉)

• Permissible air humidity: 10%~90% non-condensing;

• Permissible storage humidity: 5%~90% non-condensing

Specifications
