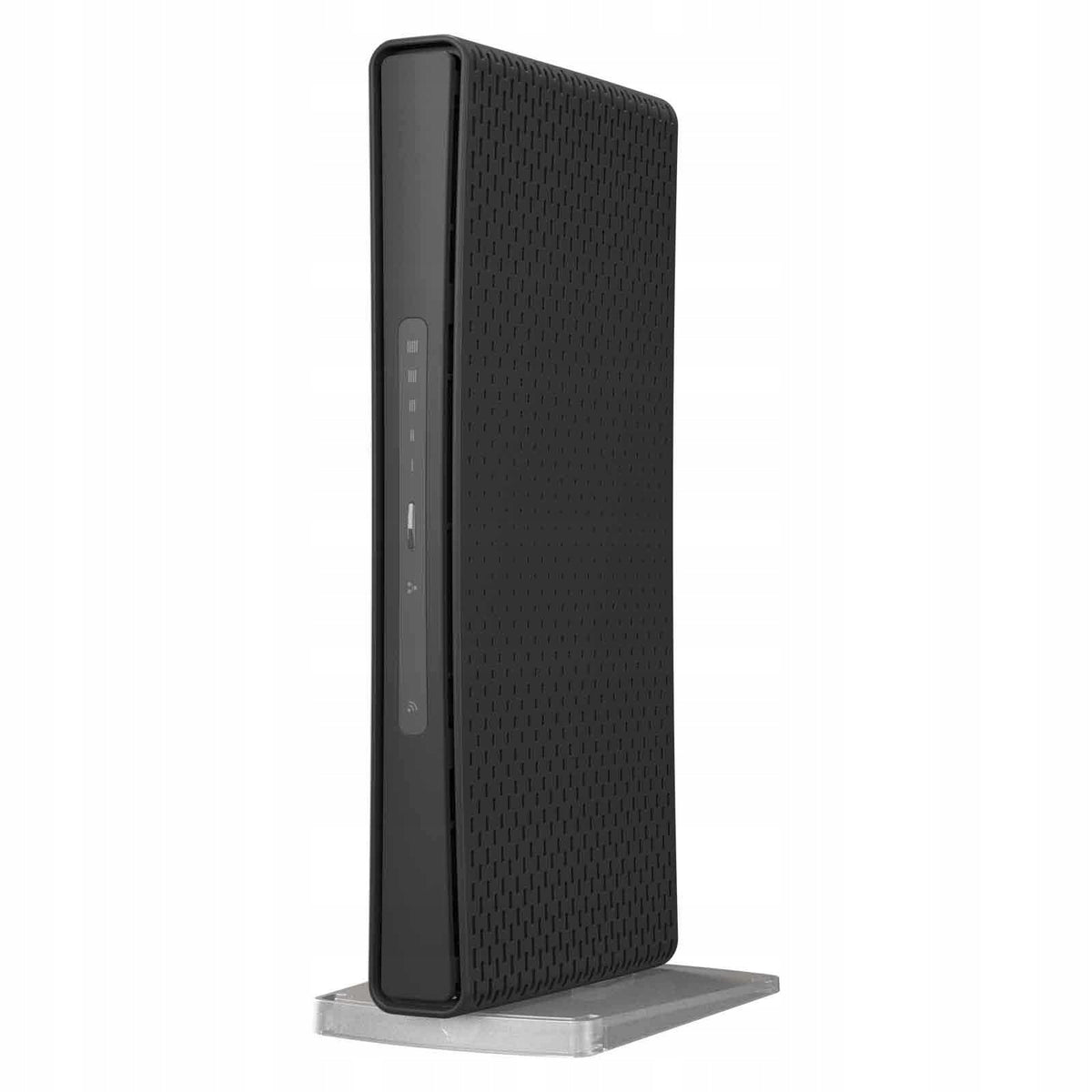

Belaidis prieigos taškas MikroTik HAP AX3, WiFi 6 (802.11ax)

Trumpai apie prekę

Prekė: Belaidis prieigos taškas MikroTik HAP AX3, WiFi 6 (802.11ax). Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: MikroTik
• Modelis: HAP AX3
• Plotis: 251 mm
• Aukštis: 39 mm

• standard 802.11ax WiFi 6 + Wave 2
• powerful IPQ-6010 processor (4 cores of 1.8 GHz)
• AX1800 WiFi speed, 574 Mbps in the 2,4GHz band and 1201 Mbps in the 5GHz band
• 1GB of RAM
• Operation in the 2,4 and 5 GHz bands simultaneously
• double polarity (2x2 MIMO / dual chain) in both bands
• 4x Gigabit Ethernet ports
• 1x 2.5 Gigabit Ethernet port, including PoE-in and PoE-out
• 1x USB 3.0 port
• RouterOS with Level 6 license
• advanced WPA3 encryption

MikroTik hAP ax³ is the latest dual-band wireless router AX1800 WiFi 6 MikroTika from the hAP series. Compared to MikroTik hAP ax², hAP ax³ is equipped with 4x Gigabit Ethernet ports and 1x 2.5 Gigabit Ethernet port with PoE-in and PoE-out. It can transmit wireless network in two bands simultaneously - 2,4 and 5 GHz, at a speed of 574 Mb/s in the 2,4GHz band and 1201 Mb/s in the 5GHz band.

MikroTik hAP ax³ is the most powerful AX device by MikroTik with the best wireless coverage to date. It has a modern four-core ARM processor operating at 1,8 GHz and enough memory (1 GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, hardware IPsec encryption, Wireguard, BGP, advanced routing or multiple VPN tunnels for remote work will not prevent convenient browsing, streaming, gaming, etc. The computing power is enough for everyone.

The device also has a fast USB 3.0 port for all purposes related to storage or used to connect an additional LTE modem. And with the added support of advanced WPA3 encryption, network users are more secure than ever before.

MikroTik hAP ax3 has the most modern dual-band, double-chain radio 3.3-5.5 dBi and standard 802.11ax with Wave2 support. Comparing the model with the previous generation of WiFi5: depending on the overall configuration, this means up to 40% higher speed in the 5 GHz band and up to 90% higher speed in the 2,4 GHz band.

In summary – hAP ax³ is one of the fastest, safest and most powerful solutions in the world of home access points. Wired or wireless. And it is equipped with the most advanced network software on the market – RouterOS.

Like previous models, the MikroTik hAP ax³ can be mounted vertically, horizontally or even on the wall – without sacrificing a strong signal. The wireless interface supports 802.11ax and is backwards compatible with older wireless standards. Older client devices that only support the 802.11ac standard will continue to benefit from many additional features of the 802.11ac Wave 2.

hAP ax3 can be powered by DC plug or passive PoE. The input voltage range is 12 - 28 V DC, 24 V DC 1.5 A power supply is included.

• Processor: IPQ-6010
• Architecture: ARM 64 bit
• Number of cores: 4
• Clocking: auto 864 - 1800 MHz
• RAM: 1 GB
• Embedded memory: 128 MB
• Type of built-in memory: NAND
• Polarization: Double in 2x2 MIMO / dual-chain enclosures
• Antenna: Built-in omnidirectional antennas: 2.4 GHz (3.3 dBi), 5 GHz (5.5 dBi)
• Wireless standards: 2.4 GHz: 802.11 b/g/n/ax, 5 GHz: 802.11 a/n/ac/ax
• Wireless interface model: QCN-5022 (2.4 GHz), QCN-5052 (5 GHz)
• Power Supply: 24V 1.5A (included)
• Input voltage (PoE): 18 - 28 V DC
• Input voltage (DC socket): 12 - 28 V DC
• Maximum power consumption: 38 W, 15 W (without PoE)
• Network interface: 4x 10/100/1000 Mbps Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet port (supports PoE-in/out), 1x USB 3.0 port
• PoE-out: Yes, Passive PoE on Ether1, max. Power (input < 15 V): 625mA
• Dimensions: 251 x 130 x 39 mm
• Admissible operating temperature: From -40 to 70°C
• Operating system: RouterOS v.7
• License: Level 6

Specifications
