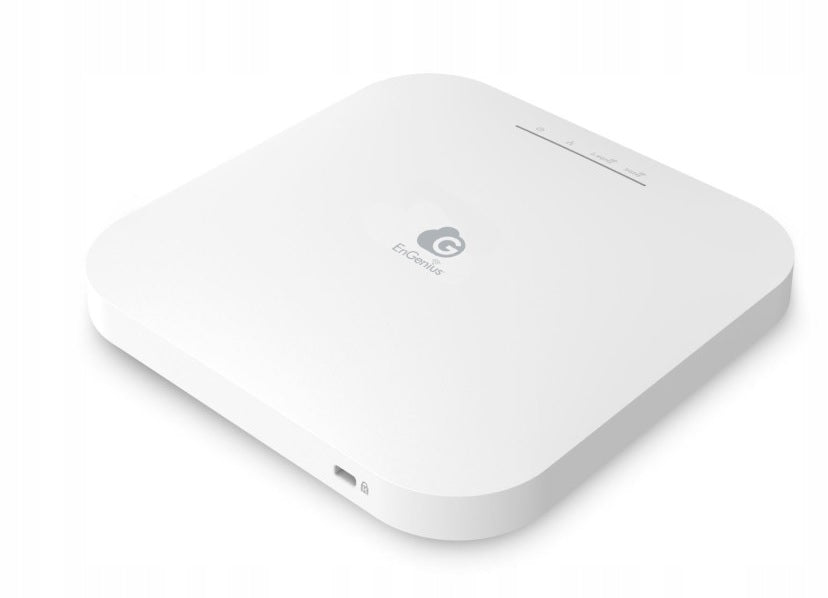

Belaidis prieigos taškas EnGenius Cloud ECW220, Wi-Fi 6, 1.7 Gb/s, 802.11ax

Trumpai apie prekę

Prekė: Belaidis prieigos taškas EnGenius Cloud ECW220, Wi-Fi 6, 1.7 Gb/s, 802.11ax. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: EnGenius

CODE: 350087

EnGenius ECW220 is a dual-band Wi-Fi 6 (802.11ax) access point, offering speeds up to 574 Mbps in the 2,4 GHz band and 1200 Mbps in 5 GHz. Equipped with OFDMA, MU-MIMO or Beamforming technologies, it ensures efficient and energy-efficient operation even in crowded networks. Powered by PoE, operating in mesh mode, with WPA3 protection, intuitively managed in the free EnGenius Cloud and the EnGenius Cloud To-Go application - ECW220 access point allows you to easily scale and secure your network without additional software costs. The device can work separately as wireless network support, e.g. In the office or at home, it can create, along with several other EnGenius devices from the Cloud series, a small, local Wi-Fi network managed in the cloud, or be part of the professional EnGenius Cloud network ecosystem designed for hotels, schools, office buildings, guesthouses, offices, restaurants and other public facilities.

➡ Internal, wireless cloud-managed access point

➡ Dual-band 802.11ax 2x2 standard supports up to 1200 Mbps (5 GHz) and 574 Mbps (2,4 GHz)

➡ Backward compatibility with 11ac/a/b/g/n client devices

➡ OFDMA uplink and downlink improves transmission to access points and client devices

➡ Gigabit cable transmission speed ensures high bandwidth

➡ Power supply via PoE 802.3at, max. length of the supply line 100 m

➡ Power supply via 12V DC / 1,5A power supply (not included)

➡ MU-MIMO uplink and downlink technology for signal optimization

➡ Remote monitoring and troubleshooting

➡ Quick registration and configuration by scanning the QR code on the device

➡ Comprehensive device management in the EnGenius Cloud

➡ The EnGenius Cloud To-Go mobile app enables cloud management from anywhere in the world with Internet access

➡ Product Type: Access Point

➡ Series: EnGenius Cloud

➡ Type: managed in the cloud

➡ Application: indoor

➡ Frequency: 2.4 GHz + 5 GHz (Dual Band)

➡ Wi-Fi Standard: 802.11ax (Wi-Fi 6)

➡ Data transfer rate: 574 Mbps (2.4 GHz) + 1200 Mbps (5 GHz)

➡ RJ45 sockets: 1x Gigabit BASE-T PoE

➡ PoE Standard: 802.3af

➡ Wi-Fi Antennas: built-in, omnidirectional, 2 for 2.4 GHz (4 dBi) + 2 for 5 GHz (5 dBi)

➡ Maximum number of connected users

• 512 on the 2.4 GHz band
• 512 on the 5 GHz band

➡ Power supply: via 802.3af PoE port or optionally via 12V DC/1,5A power supply (not included)

➡ Operating Modes: AP, AP Mesh

➡ Mounting type: ceiling or wall

➡ Supported standards

• IEEE 802.11ax at 2.4 GHz
• IEEE 802.11ax at 5 GHz
• Backward compatibility with 802.11a/b/g/n/ac standards
• IEEE 802.3 u/ab
• IEEE 802.3az

➡ Wireless network security

• THOSE
• WPA2 Personal
• WPA2 Personal (SAE)-WPA3 Only
• WPA2 Enterprise
• WWPA3 Enterprise Suite B
• Hiding SSID
• MAC address filtering, up to 32 MAC addresses per SSID
• List of connected STA wireless client devices
• SSH tunnel
• Customer isolation

➡ Wi-Fi antenna parameters

• 2.4 GHz: 2x 4 dBi antenna, 360° omnidirectional, TX 22 dBm transmitting power
• 5 GHz: 2x 5 dBi antenna, 360° omnidirectional, TX 22 dBm transmitting power
• Radius of coverage with signal 30 m

➡ Technologies to improve Wi‑Fi performance and range

• Tx Beamforming (TxBF)
• SU-MIMO - maximum speed for a single device: 2,4 GHz: up to 574 Mb/s ; 5 GHz: up to 867 Mb/s
• MU-MIMO - fast connections for multiple devices simultaneously: 2,4 GHz: up to 574 Mb/s;
• 5 GHz: up to 1200 Mbps

➡ Supported data rates (Mbps)

• 802.11ax: 2.4 GHz: 9 - 287 (MCS0 - MCS11, NSS = 1 - 2)
• 802.11ax: 5 GHz: 18 - 1,200 (MCS0 - MSC11, NSS = 1 - 2)
• 802.11b: 1, 2, 5.5, 11
• 802.11a/g: 6, 9, 12, 18, 36, 48, 54
• 802.11n: 6.5 - 300Mbps (MCS0 - MCS15)
• 802.11ac: 6.5 - 867Mbps (MCS0 - MCS9, NSS = 1 - 2)

➡ Supported radio technologies

• 802.11ax: Multiple access with orthogonal frequency division (OFDMA)
• 802.11ac/a/g/n: multiple orthogonal frequency division (OFDM)
• 802.11b: Direct Sequence Distributed Spectrum (DSSS)

➡ Channelization

• 802.11ax supports high performance (HE) - HE 20/40/80 MHz
• 802.11ac supports very high bandwidth (VHT) - VHT 20/40/80 MHz
• 802.11n supports high bandwidth (HT) - HT 20/40 MHz
• 802.11n supports very high bandwidth in the 2,4 GHz band
• Radio - VHT40 MHz (256-QAM)
• 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

➡ Supported modulation

• 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
• 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
• 802.11b: BPSK, QPSK, CCK

➡ Multiple BSSID identifiers: 8x SSID in the 2,4 GHz and 5 GHz bands

➡ VLAN tagging - VLAN Tagging

• Supports SSID tagging to VLAN 802.1q
• VLAN interband transmission
• VLAN management

➡ Spanning Tree Protocol: 802.1d

➡ QoS: IEEE 802.11e compliant, WMM compliant

➡ SNMP protocol: v1, v2c, v3

➡ Maximum number of clients supported: 1024 (512 on the 2,4 GHz band and 512 on the 5 GHz band)

➡ MIB database: I/II, private MIB

➡ LED

• 1x power supply
• 1x LAN
• 1x 2.4 GHz
• 1x 5 GHz

➡ Power Methods

• Through the Ethernet PoE 802.3af port from the EnGenius switch of the Cloud series
• Through 802.3af Ethernet PoE port from any 802.3af PoE switch
• From any PoE 802.3af injector
• By 12V DC/1,5A power supply (not included)

➡ Maximum power consumption: 12,8W

➡ Operating temperature: 0°C to 40°C

➡ Storage temperature: -40°C to 80°C

➡ Operating humidity: 90% or less, non-condensed

➡ Storage humidity: 90% or less, non-condensed

➡ Management

• Through the free cloud EnGenius Cloud - web browser support
• Through the free EnGenius Cloud - support via the application for mobile devices EnGenius Cloud To-Go (iOS/Android)

➡ Certificates: CE, FCC, IC

➡ Dimensions: 160 x 160 x 33,2 mm

➡ Weight: 0,38 kg

➡ Color: whiteVerified Purchase

➡ access point ECW220 (v3)

➡ ceiling mount bracket (T 9/16" rail)

➡ ceiling mount bracket (T 15/16" rail)

➡ set of screws for ceiling and wall mounting

➡ product card

P/N: ECW220 (v3), 350087

Specifications
