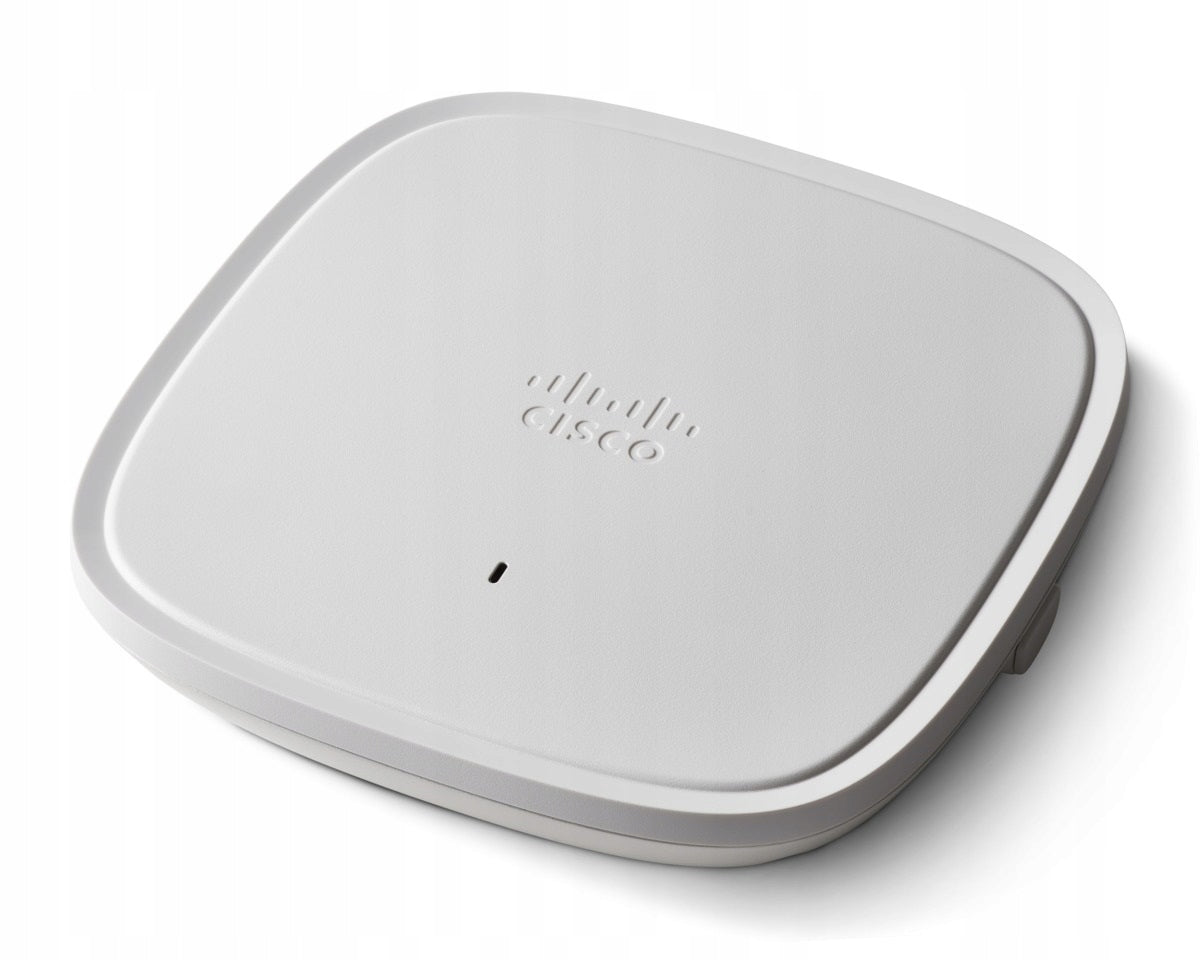

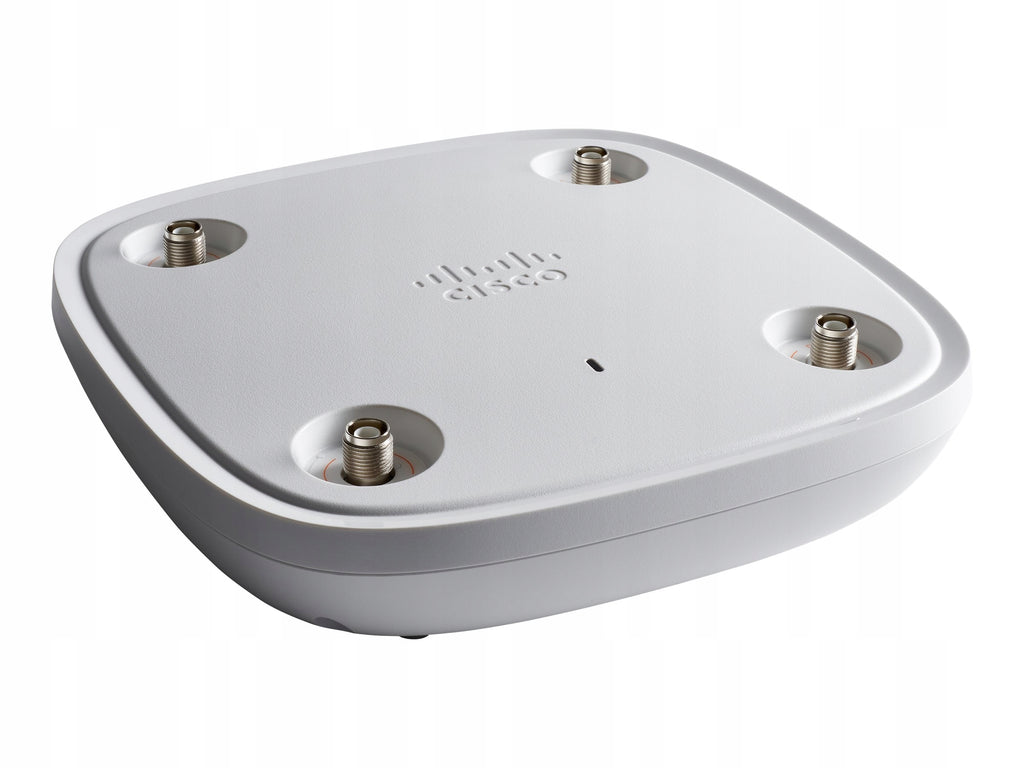

Belaidis prieigos taškas CISCO Catalyst 9115AX, Wi-Fi 6, išorinės antenos

Trumpai apie prekę

Prekė: Belaidis prieigos taškas CISCO Catalyst 9115AX, Wi-Fi 6, išorinės antenos. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Cisco
• Modelis: 9115
• Plotis: 203 mm
• Aukštis: 38 mm

CISCO Catalyst 9115AX Access Point Wi-Fi 6 802.11ax external antennas DNA s

Cisco

Producer: CISCO

Product:

• Name: CISCO Catalyst 9115AX Access Point Wi-Fi 6 802.11ax external antennas DNA subscription required
• Description: Cisco Catalyst 9115AXE - Wireless Access Point - Bluetooth 5.0 - Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz
• EAN: 0889728212014

General

• Device Type: Wireless Access Point
• Heavy-duty model: Room
• Width: 20.3 cm
• Depth: 20.3 cm
• Height: 4.3 cm
• Weight: 1.1 kg
• Location: Belgium, Jordan, Lebanon, Qatar, Albania, Bulgaria, Czech Republic, Estonia, Lithuania, Mongolia, Iceland, Romania, Sri Lanka, Luxembourg, Hungary, Cyprus, Iraq, Trinidad, Jamaica, Algeria, Liechtenstein, Gibraltar, Malta, Morocco, Monaco, Croatia, Macedonia, Slovakia, Slovenia, Latvia, Libya, Mauritius, Austria, Denmark, Finland, France, Germany, Italy, Netherlands, Norway, Poland , Portugal, Spain, Sweden, Switzerland, United Kingdom, Greece, Turkey, Ireland, Bahamas, Serbia, Montenegro, Bosnia and Herzegovina

Processor / Memory / Storage

• RAM: 2 GB
• Flash memory: 1 GB

Working online

• Housing type: Outdoor
• Connection technology: Wireless
• Line coding format: OFDMA
• Data communication protocol: IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, 802.11ax
• Network/Transport Layer Protocol: IPSec, IPv6
• Remote management protocol: NETCONF, RESTCONF
• Frequency band: 2.4 GHz, 5 GHz
• Status Indicators: Status
• Features: DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Cisco VideoStream technology, Transmit Resource Management (RRM), Cyclic Shift Diversity (CSD), Beamforming technology, A-MPDU aggregation, A-MSDU aggregation, Pre-Shared Key (PSK), Dynamic QoS, Guest access, 4x4 MU-MIMO technology, Secure Boot, 8x8 MU-MIMO technology, Target Wait Time (TWT), Image Signing, Cisco Trust Anchor Module
• Encryption algorithm: AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST
• Identification method: MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
• Compliance with standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Internet of Things (IoT)

• Internet of Things (IoT) Compatible: Yes
• Network connection technology: Bluetooth Low Energy (LE)

Extension/Connection

• Interfaces: 1 x 1/2.5GBase-T - RJ-45 1 x management - RJ-45 1 x USB 2.0 4 x antenna

Different

• Included accessories: Low profile bracket, ceiling grid clip
• Compliance with standards: CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN

Power supply

• Supports Power Over Ethernet (PoE): UPOE

Software / System Requirements

• Included Software: CAPWAP Software Image

Environmental parameters

• Minimum operating temperature: -20 °C
• Maximum operating temperature: 50 °C
• Permissible humidity: 10-90% non-condensing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Cisco
Parametry	Mode of operation	Access Point
Parametry	Internal modem	no modem
Parametry	Number of LAN (RJ-45) ports	1
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	Ports	USB 2.0
Parametry	Antenna	built-in
Parametry	Width	203 mm
Parametry	Height	38 mm
Parametry	Depth	203 mm
Parametry	Product weight with unit packaging	0.15 kg
Parametry	EAN (GTIN)	889728211789
Parametry	Manufacturer code	Cisco
Parametry	Model	9115
Parametry	The highest standard supported	802.11ax (Wi-Fi 6)
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Wireless operation standard	802.11ax (Wi-Fi 6),802.11ac (Wi-Fi 5),802.11n (Wi-Fi 4),802.11g,802.11b,802.11a
Parametry	Band	2,4 GHz,5 GHz
