Belaidis prie sienos tvirtinamas prieigos taškas IP-COM Pro 6 IW AX3000

Trumpai apie prekę

Prekė: Belaidis prie sienos tvirtinamas prieigos taškas IP-COM Pro 6 IW AX3000. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.

• Gamintojas: Ip-Com
• Modelis: Pro-6-IW
• Plotis: 86 mm
• Aukštis: 86 mm

• dual-band, simultaneous wireless speed up to 3000 Mbps, WiFi 6
• 86x86 mm wall-mounted design, ultra-thin coating and fashionable appearance
• Support standard PoE power supply for easy installation
• managed from IP-COM Cloud platform and applications
• MU-MIMO 2x2 technology, 160 MHz channel bandwidth
• 2x Gigabit Ethernet ports (including 1x PoE port)
• support for fast roaming k/v/r
• IPTV penetration support
• motion control function
• installation with double-sided tape
• wall mounting

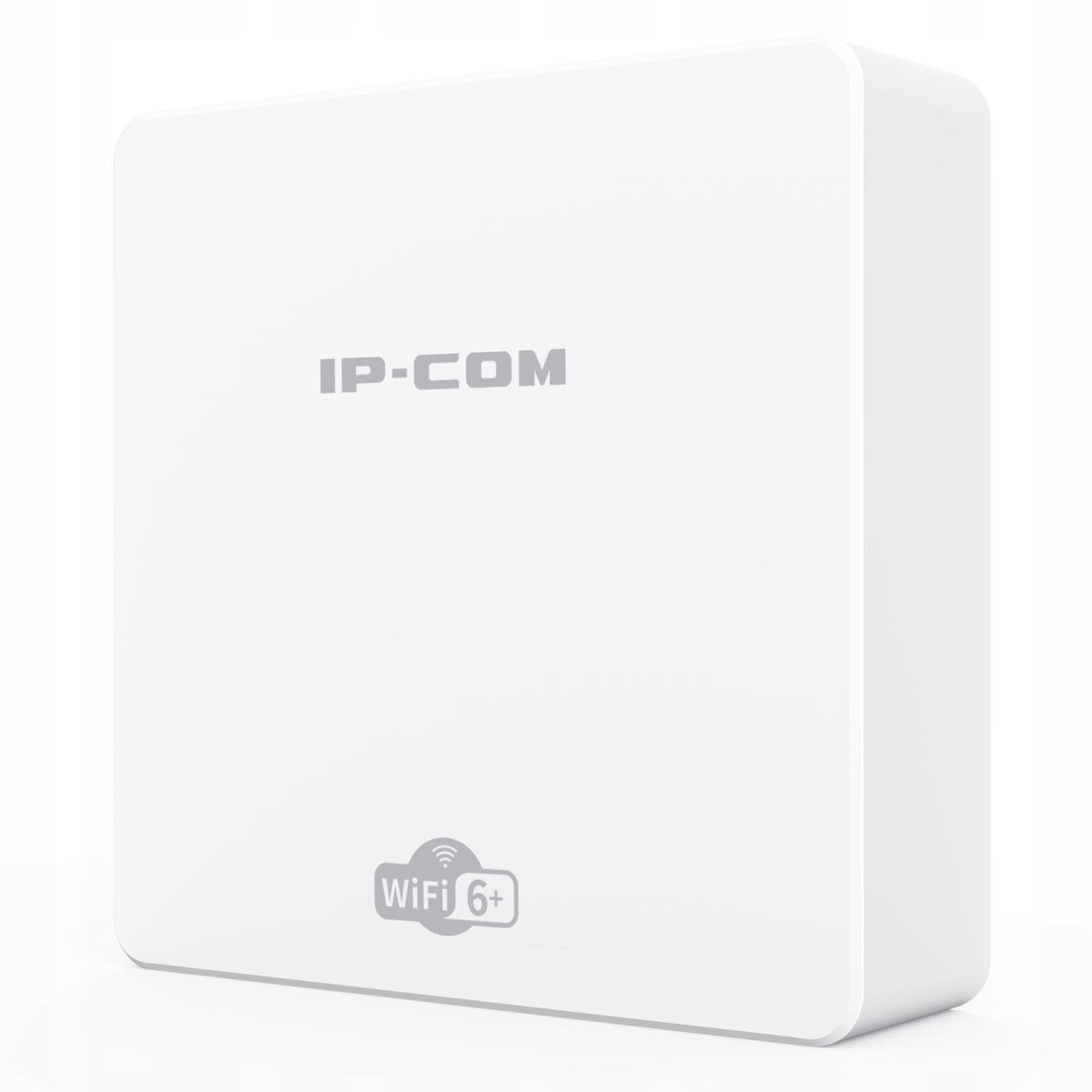

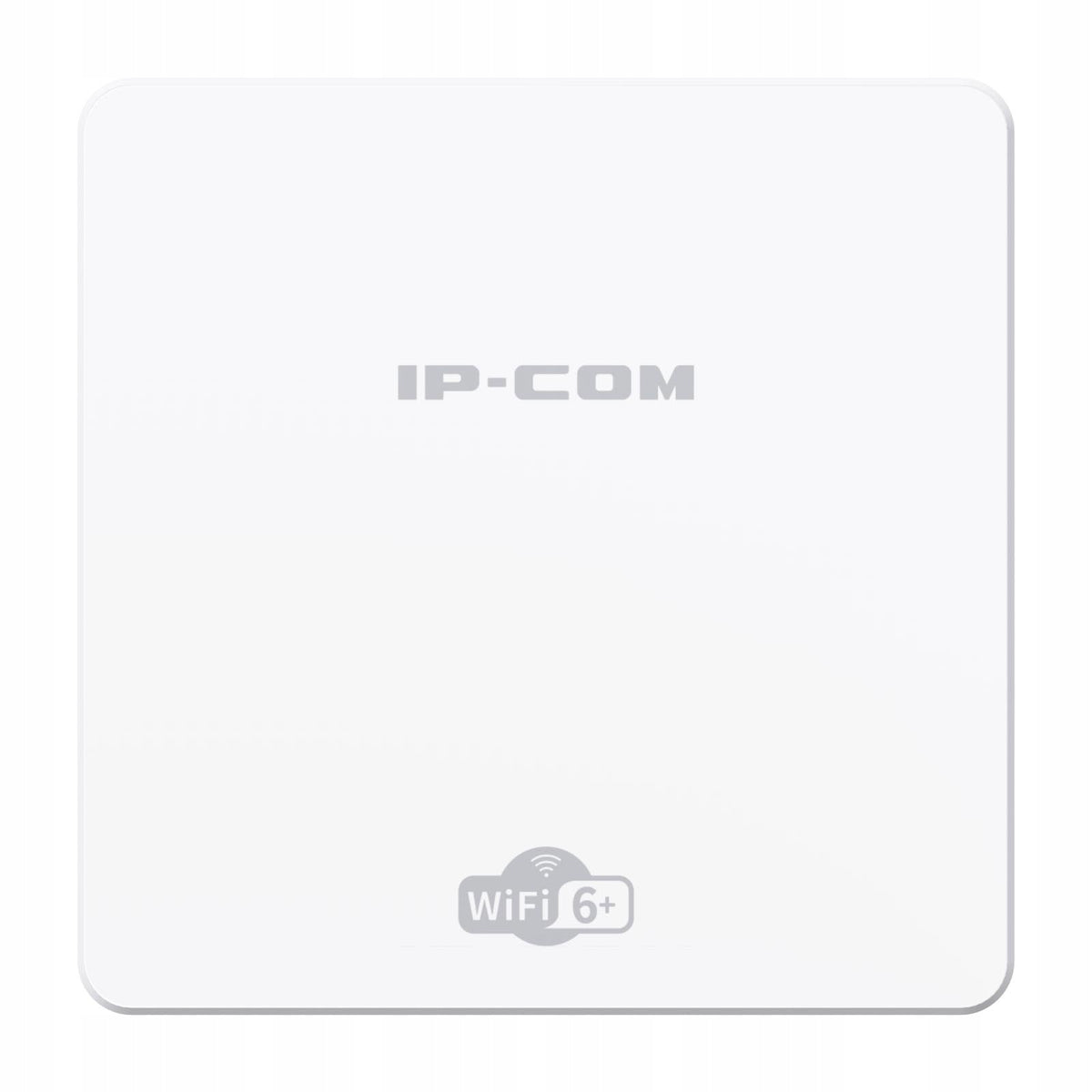

IP-COM Pro-6-IW is a two-band, gigabit point accessible, working in the standard 802.11ax WiFi 6 AX3000, designed for installation in the wall, in hotel rooms, villas, large apartments, cinema halls and other places.

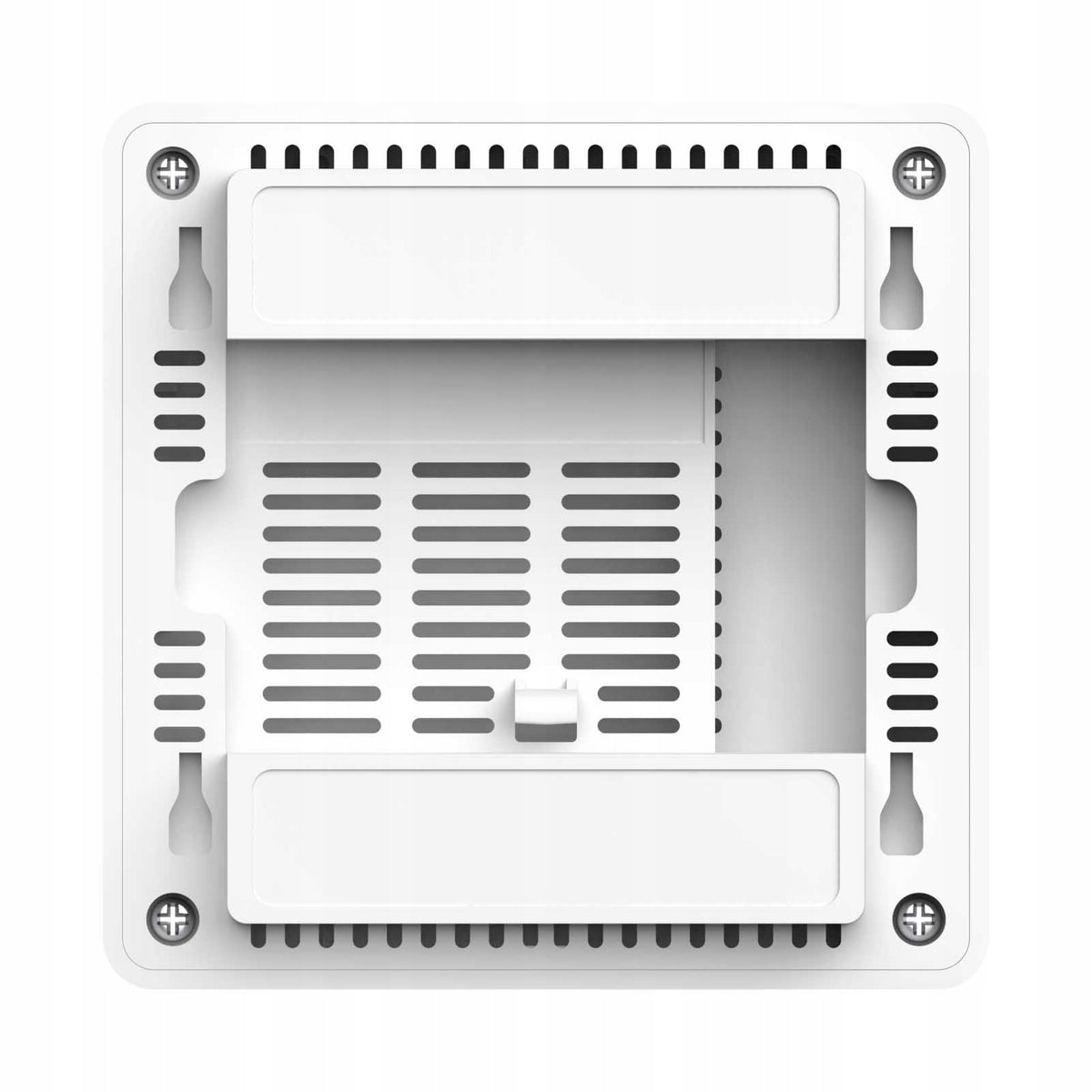

The adoption of the standard 86 x 86 mm flush-mounted design allows the installation of the point in any flush-mounted electrical boxes measuring 86 x 86 mm and 75 x 75 mm. Elegant and stylish design blends well with the interior design of the room. With the help of the existing structure of electric cans, the access point helps to easily deploy wireless networks, freeing them from time-consuming creation and effectively solve the problem of poor Wi-Fi signal in guest rooms.

Unlike traditional wall-mounted AP designs, the Pro-6-IW housing is higher than the wall by 3 cm, increasing the area of contact with air and accelerating heat dissipation without affecting the aesthetics of the space. At the same time, it is equipped with 111 cooling holes, which increase the cooling efficiency by 30% .

Pro 6 IW uses next-generation WiFi6 technology, with 160 MHz channel bandwidth, two-band simultaneous wireless speed up to 3000 Mb/s. The Pro-6-IW is designed to meet all your networking needs related to downloads, VR games, cloud games, etc. Can provide simultaneous high-speed internet access for 80 devices.

IP-COM Pro 6 IW has two gigabit Ethernet ports (10/100/1000 Mb/s), one from the wall side, the other outside, for use by the user.

Supports Wi-Fi 6, supports IEEE 802.11 b/g/n/ax protocols in the 2,4 GHz and IEEE 802.11 a/n/ac/ax bands in 5 GHz, as well as MU-MIMO 2x2 technology.

The maximum theoretical bandwidth of a wireless network is 3000 Mbps - 574 Mbps at 2,4 GHz and 2402 Mbps at 5 GHz.

The device can be powered via PoE, according to IEEE 802.3af standard.

The device has two independent omnidirectional antennas, equipped with a 4-way FEM signal amplifier. Compared to other regular access points, the transmission and reception efficiency of the wireless signal is 2 times higher, which allows for easy covering of 250㎡ large apartment. The unique antenna design effectively reduces interchannel interference and makes the WiFi signal more stable.

With a unified SSID for the whole house, the internet device automatically connects to the AP node with the best signal, and the latency is low to 50 ms. Wherever you are, the wireless network speed is always smooth and stable. Pro-6-IW provides a separate IPTV port that is connected to the STB decoder, avoiding the hassle of laying network cables.

IP-COM Pro-6-IW supports unified deployment, configuration and device management.

It can be managed from the IP-COM Cloud platform and operations and maintenance management applications from anywhere.

Standard PoE power supply, guarantee easy AP expansion and installation

The access point can be powered by PoE devices. With an Ethernet cable, the access point can be powered and transfer data at the same time. The maximum power supply distance of up to 100 meters allows easy installation of APs in hotels or homes without interfering with the existing power line system.

Support for unified configuration and management

The access point supports unified management and configuration of IP-COM AC adapters and enterprise routers, enabling network administrators to conveniently manage, configure and monitor all access points.

• Assembly: In the wall
• Dimensions: 86 x 86 x 32 mm
• Hardware specifications:
• Frequency band: 2,4 GHz, 5 GHz
• Wireless standards: IEEE 802.11a/b/g/n/ac/ax
• 2,4 GHz data rate: 1-574 Mbps
• 5 GHz data rate: 6-2402 Mbps
• Channel width: 20 MHz/40 MHz/80 MHz/160 MHz
• MU-MIMO: 2x2 MU-MIMO
• Ethernet port: 1x gigabit Ethernet LAN port 1000 Mbps (PoE), 1x gigabit Ethernet LAN port 1000 Mbps
• Button: 1x Reset
• LED indicator: Two-color LEDs
• Max energy consumption: 8,5 W
• Power supply standard: IEEE 802.3af PoE, direct current 12 V 1 A
• Max connected clients: 256
• Antenna gain 2,4 GHz: 4 dBi
• Antenna gain 5 GHz: 5 dBi
• 2,4 GHz max. output power: 21,5+/-1,5dBm
• 5 GHz max. output power: 23,5+/-1,5dBm
• 2,4 GHz 802.11b RX sensitivity: -95,5 dBm
• Sensitivities RX 2,4 GHz 802.11n (MCS7): -72,5 dBm
• Sensitivities 5 GHz 802.11a RX: -97,5 dBm
• RX sensitivity 5 GHz 802.11n (MCS7): -77,5 dBm
• Software specifications:
• Working mode: AP, Client + AP
• Hiding SSID: Yes
• Max SSID No.: 2,4 GHz: 8, 5 GHz: 8
• OFDMA: Yes
• Beam Shaping: Yes
• TWT: Yes
• 802.11k/v/r: Yes
• WEP: Yes
• WPA-PSK: AES/TKIP
• WPA2-PSK: AES/TKIP
• WPA3-SAE: AES
• WPA: Yes
• WPA2: Yes
• Access control: Based on MAC address
• Adjustable power transmission: Yes
• Frequency analysis: Yes
• AP insulation: Yes
• Control of connected clients: Yes
• Low signal client limitation: Yes
• Prefer 5 GHz: Yes
• WMM: Yes
• VLAN tagging for SSID: Yes
• LED indicator control: Yes
• Diagnostic tool: Ping
• Scheduled restart: Yes
• Restart at specified intervals: Yes
• Device management: Network management, controller management, cloud platform management, application management
• System logos: Yes
• Update firmware: Local update and AC
• Reboot: Reboot local and network
• Reset: Local reset and AC
• Backup configuration: Yes
• Restore configuration: Yes
• Environment:
• Working temperature: -10℃ - 40℃
• Working humidity: (10% - 90%) RH, non-condensing
• Storage temperature: -30℃ - 70℃
• Storage humidity: (5% - 90%) RH, non-condensing

Specifications
