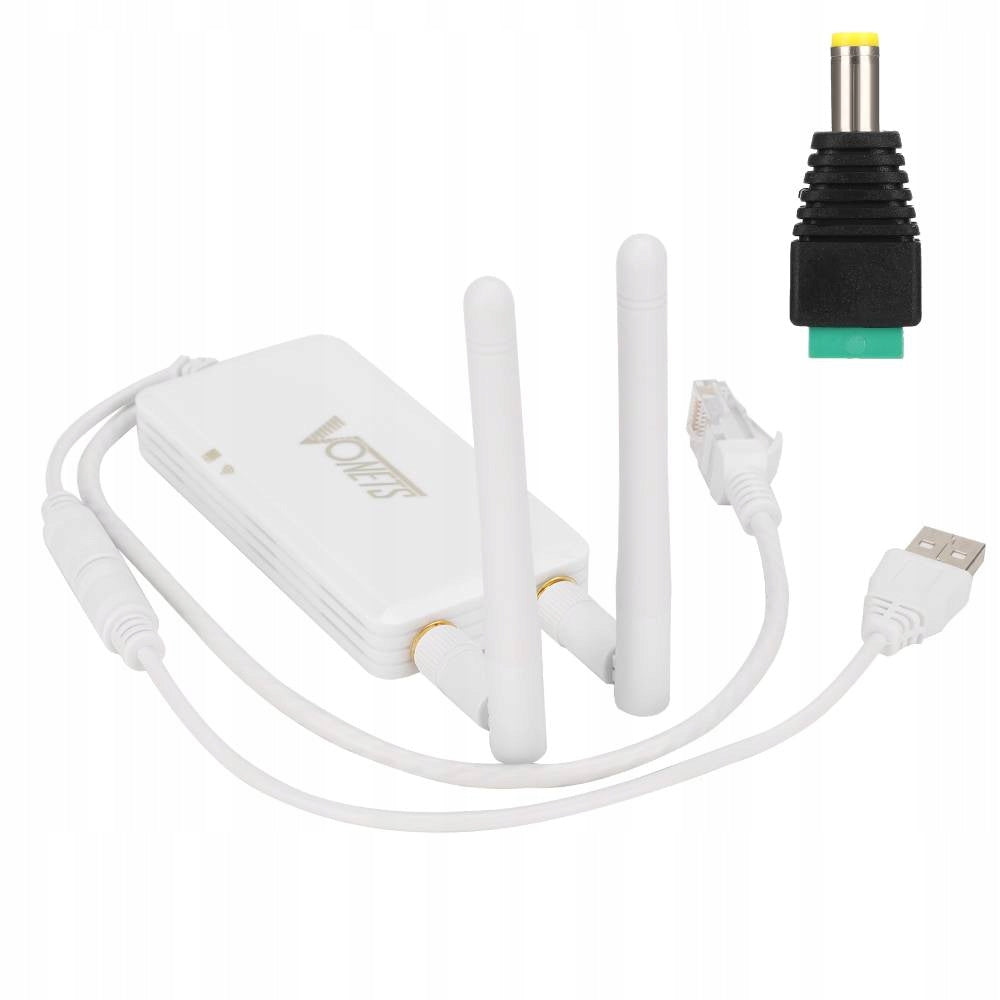

Belaidis maršrutizatorius VONETS

Trumpai apie prekę

Prekė: Belaidis maršrutizatorius VONETS. Kategorija: Wi-Fi signalo stiprintuvai.

• Gamintojas: no brand
• Modelis: Spacnana

✔ Industrial bridge / repeater / WiFi 2.4G router, supports DC5-24V wide voltage, two-stage automatic surge protection, 27V surge protection point.

✔ Support WiFi transmission protocol 802.11b/g/n, transmission power: 20dBm/23dBm optional.

✔ Maximum point-to-point transmission distance without barriers: 500 meters, two external antennas 2,5 dBi, extendable with an extension cable. (Optional)

✔ Two adaptive 10/100Mbps Ethernet ports with expandable Ethernet port options. (1 to 2)

✔ Standard industrial rail mounting kit and industrial DC connector for simultaneous connection of more than 20 WiFi terminal devices.

✔ Use VDNS virtual domain name configuration technology to reduce user configuration problems, support manual SSID emission shutdown, manual WiFi equipment shutdown.

✔ Support SSA signal strength detection and reporting function to realize mobile WiFi positioning.

✔ Support the import and export functions of configuration parameters to facilitate batch configuration of engineering projects.

✔ Support transparent IP layer transmission and transparent MAC layer transmission in two bridge modes to meet different bridge applications.

✔ Transparent IP layer transmission (factory setting), transparent IP layer data transmission, can meet most bridge applications.

✔ The MAC layer transparently transmits all data above the MAC layer (link layer) and MAC layer, including IP layer data. MAC passthrough can solve some special MAC layer encryption applications, such as GoPro camera, Cisco AP, Hikvision monitoring system.

✔ Thanks to frequency stabilization technology with temperature compensation in digital mode, the WiFi signal is more stable and not easy to drop.

Material: ABS

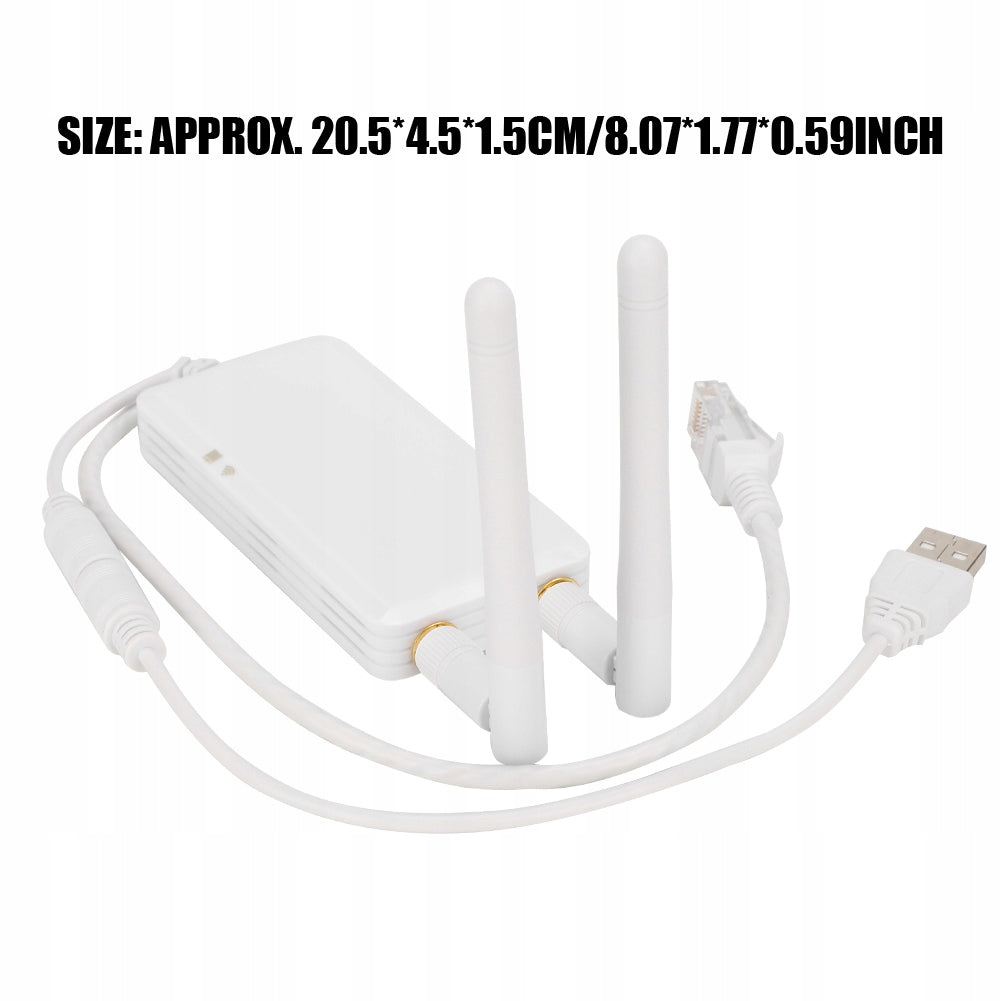

Size: approx. 20,5 * 4,5 * 1,5 cm / 8,07 * 1,77 * 0,59 inch

Model: VAP11S

Colour white

Weight: approx. 153 g

Wireless function: wireless relay/bridge/routing

Wireless bandwidth: 2,4 GHz

Wireless protocol: 802.11b/g/n

Wireless transmission rate: 300 Mbps

Operating voltage: 5 V-24 V (typical 5 V / 2 A)

Support Channel: 1-14

Wireless transmission power: Normal power: 20 dBm; increased power: 23dBm.

Reception Sensitivity: -95dbm

Low Noise Amplifier Sensitivity (LNA): 14 dBi

Wireless network security: 64/128 / WEP

Encryption: WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism.

External interface: USB/DC power cord, 10/100M adaptive Ethernet cable, 10/100M adaptive Ethernet port (you can use dedicated Ethernet expander from 1 to 2 ports)

1 x WiFi bridge

1 x instructions

1 x DC connection head

1 x hook for industrial chassis rail

Specifications
